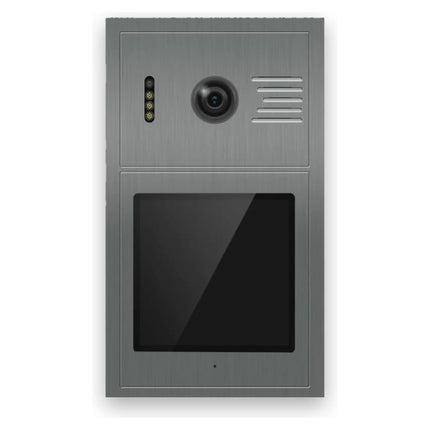

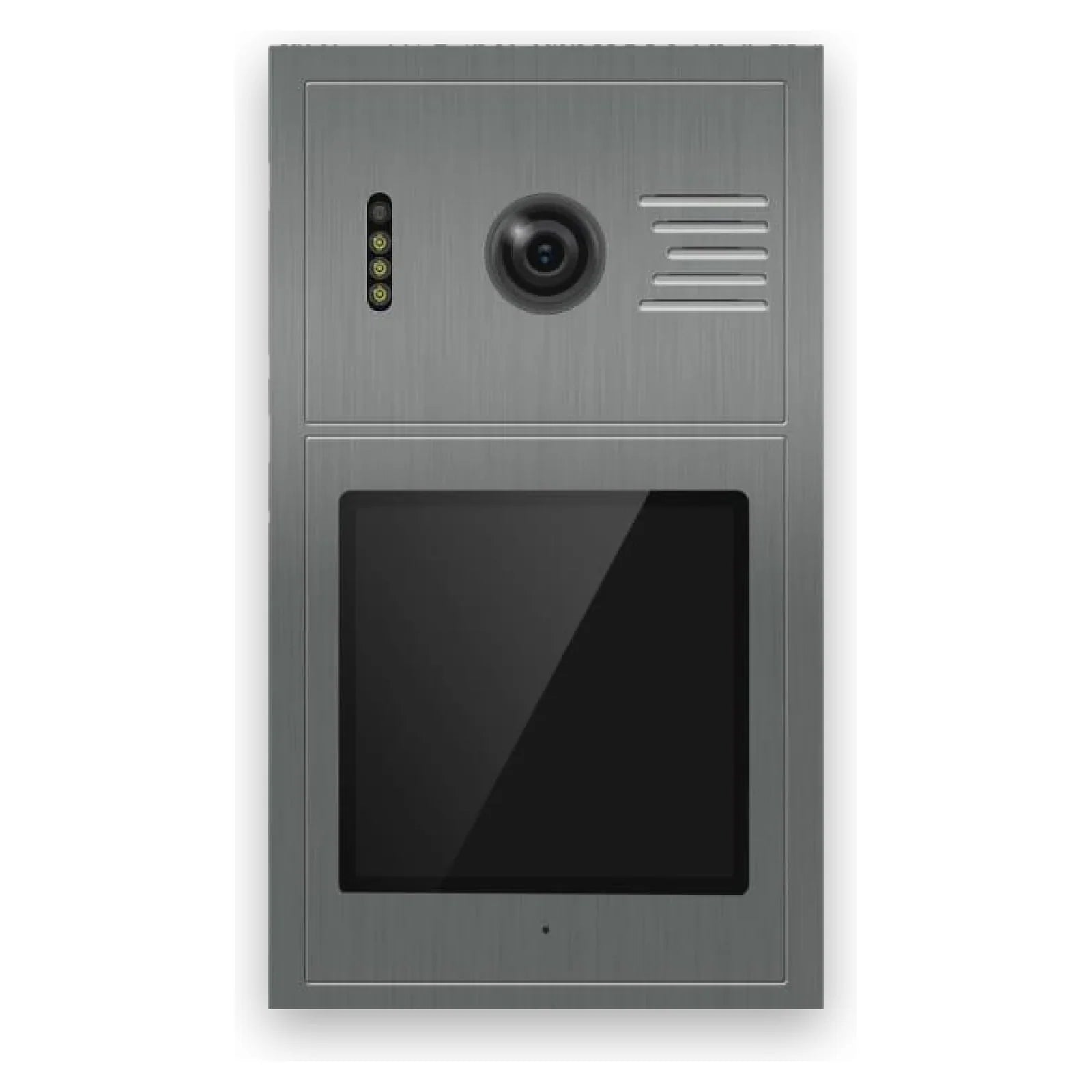

The Spark I-300 is an IP video outdoor station with a 4.5″ capacitive touch screen, a 150° wide-angle camera and IC/ID card and password access. It supports villa, building and high-rise modes, runs on PoE or DC 12 to 15 V, and can be flush or surface mounted.
Key Features
-
4.5″ touch screen: TFT LCD, capacitive touch, 480 × 272
-
Wide view: 150° horizontal viewing angle, white-LED night vision, PIR motion detection
-
Access: IC 13.56 MHz Mifare and ID 125 kHz EM cards (2,000), six-digit public password, Wiegand reader unlock
-
Lock relay: NC / NO / COM for electric or magnetic locks
-

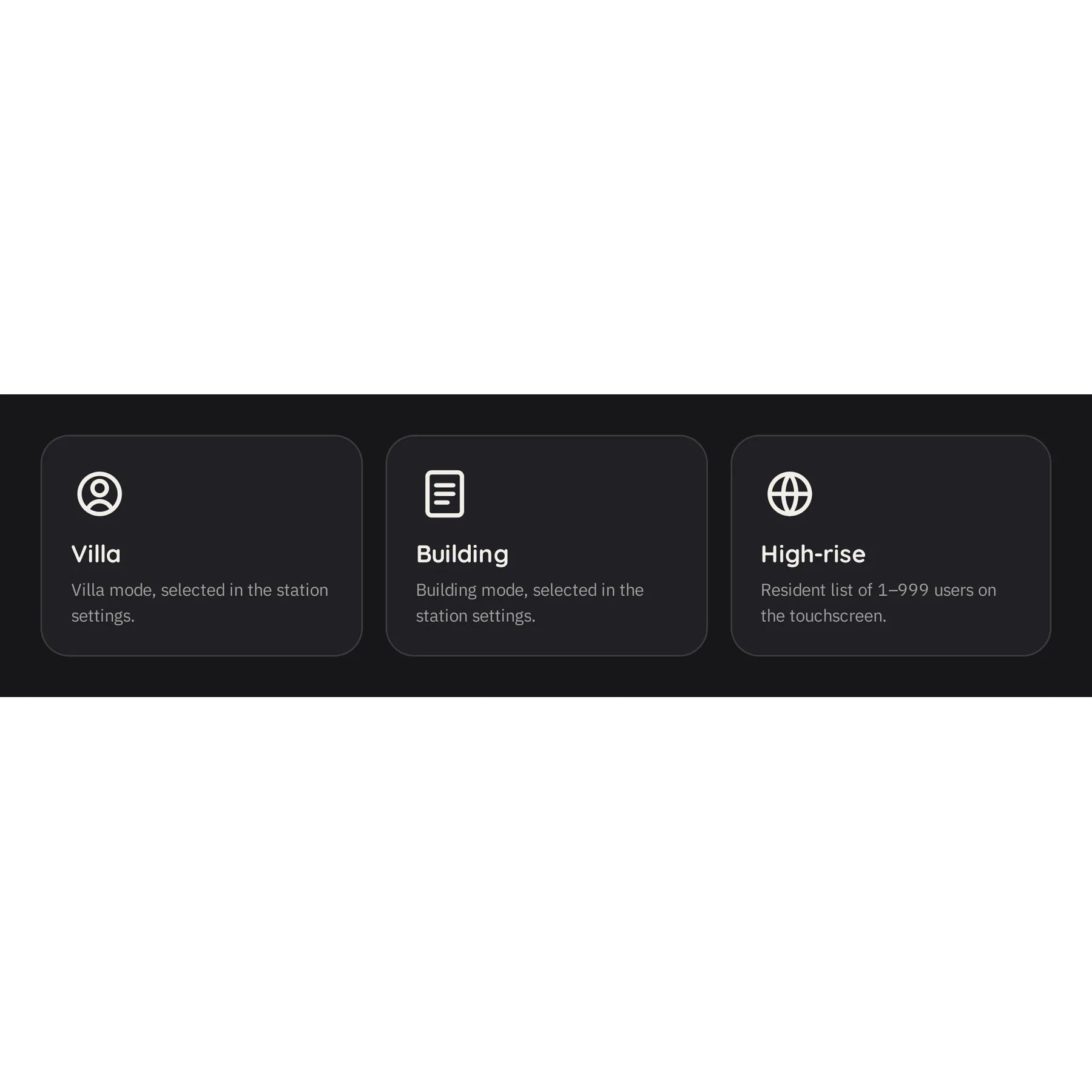

System modes: villa, building and high-rise (high-rise resident list up to 999 users)
-
Power and cabling: PoE or DC 12 to 15 V 2 A over Cat5/Cat5e up to 100 m
-
Storage: SD card up to 256 GB for JPG photos
-
Mounting: flush or surface mount, install height 120 to 160 cm
Technical Specifications
| Model |
Spark I-300 |
| Brand |
Spark |
| Type |
IP video outdoor station (door station) |
| Screen |
4.5″ TFT LCD, capacitive touch |
| Resolution |
480 × 272 |
| Viewing angle |
150° horizontal |
| Night vision |
White LED |
| Motion detection |
PIR |
| Video codec |
H.264 |
| SD card |
Up to 256 GB, JPG photos |
| Intercom mode |
Full duplex |
| Operating system |
Linux |
| Standby display |
Black screen, clock, photo frame |
| Ringtones |
10, ring time 0 to 150 s |
| RFID |
IC 13.56 MHz Mifare · ID 125 kHz EM |
| Card capacity |
2,000 |
| Wiegand |
Wiegand reader unlock (D0/D1) |
| Relay output |
NC / NO / COM |
| Power |
PoE or DC 12 to 15 V 2 A |
| Working current |
DC 12 V 250 mA |
| Standby power |
< 1 W |
| Working temperature |
-20 °C to +55 °C |
| Installation |
Flush mount, surface mount |
| Cable |
Cat5 / Cat5e, up to 100 m |
What's in the Box
- Outdoor station
- Embedded box
- Rubber stoppers ×4
- Screws KA4×32 ×4
- Screws KM3, stainless 304 ×2
- Screw wrench
- IC cards ×2
- 4-pin cable
- 3-pin cables ×2
- 2-pin cables ×2
- User manual
Downloads
⬇ Download Datasheet (PDF)
