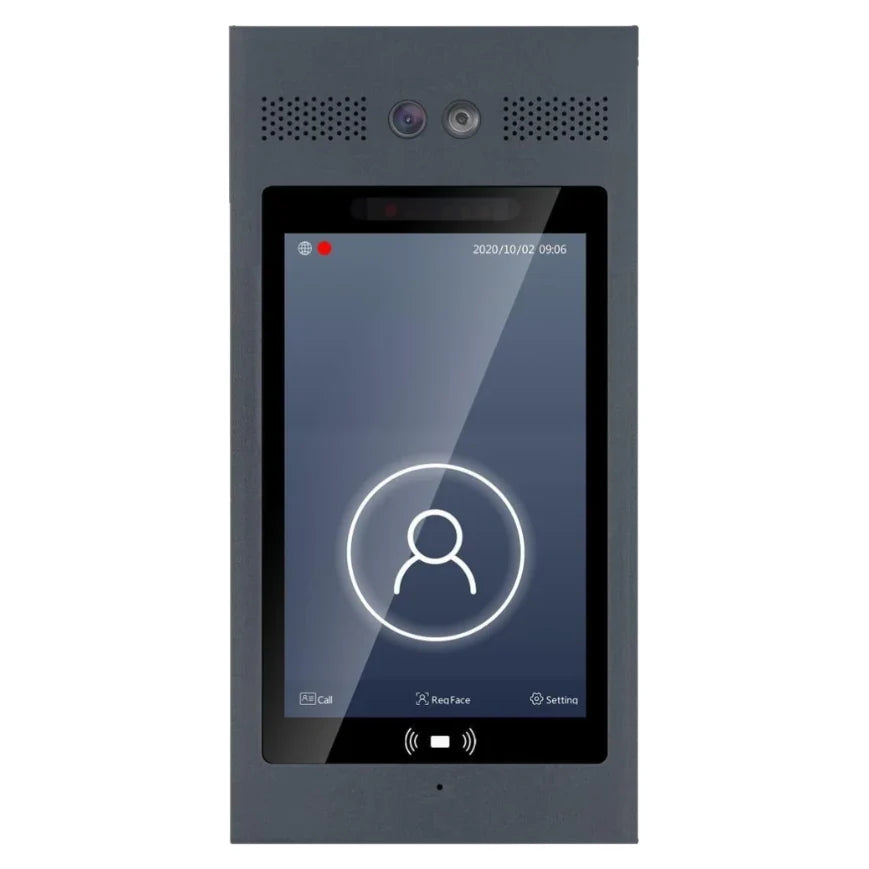

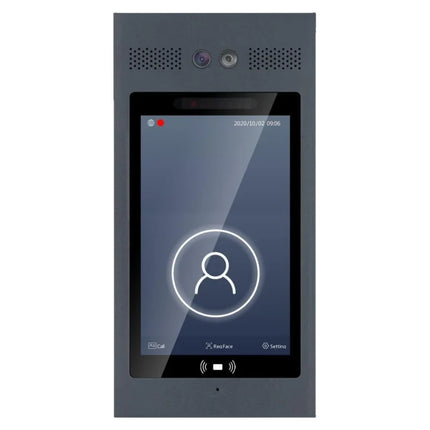

The Spark I-400 is an IP video door station for building entrances. Residents unlock with face recognition, an IC/NFC card or a passcode (public, resident-specific or one-time dynamic), and visitors call by room number. It is powered over PoE on Cat5/Cat6 or a separate DC 15 V supply and is rated IP55 / IK07.
Key Features
-

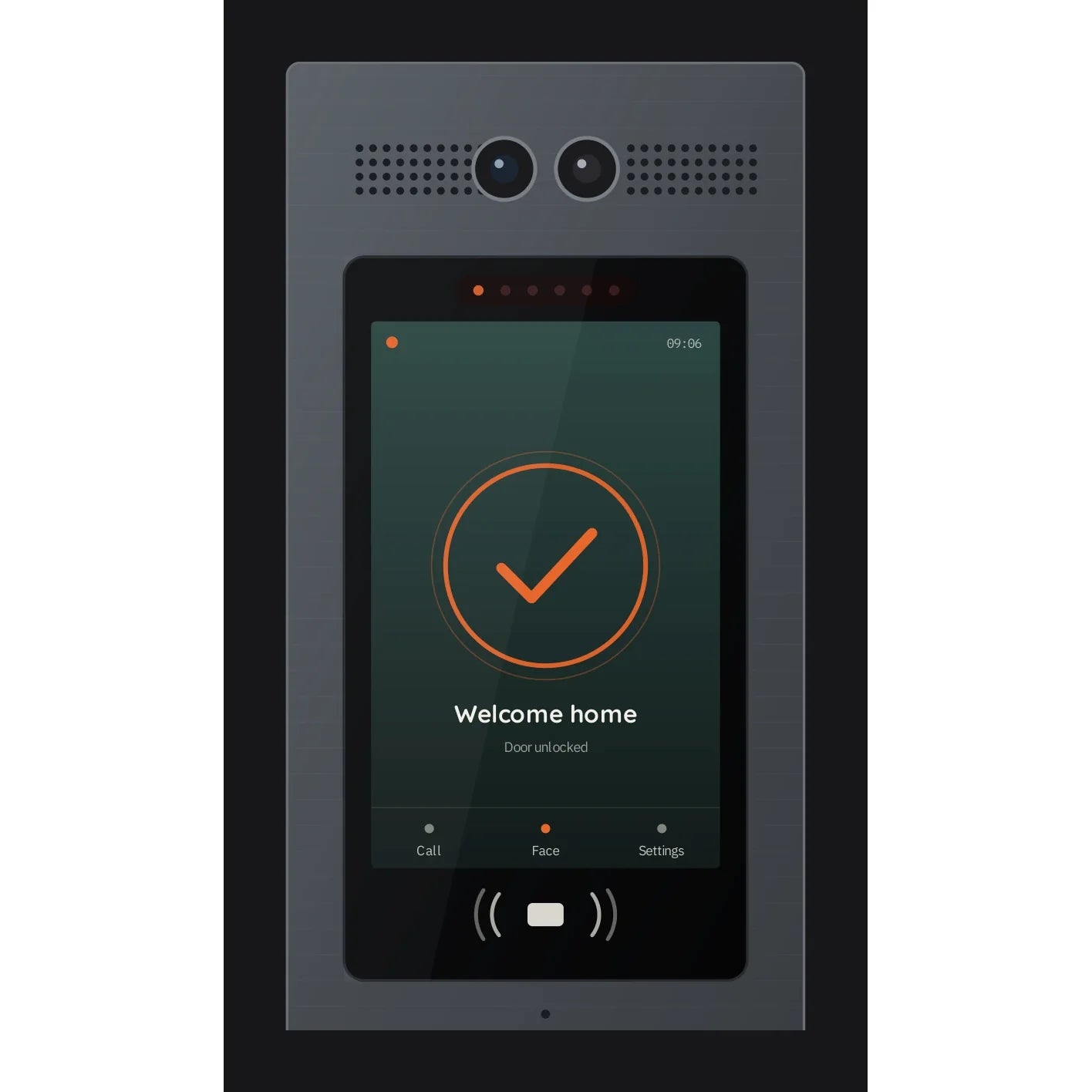

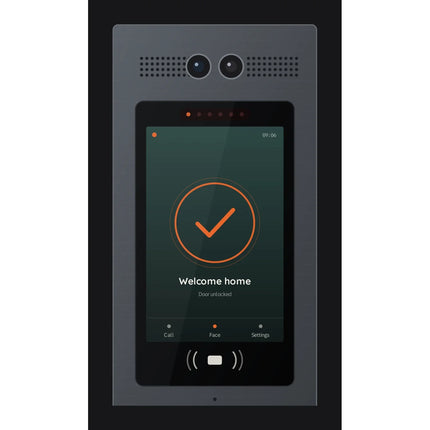

Face recognition: up to 5,000 faces, with liveness detection
-
Cards and codes: IC card (Mifare, 13.56 MHz) up to 2,000, NFC, and public, resident or one-time dynamic passcodes
-
Video intercom: 1920 × 1080P / 720P H.264, full duplex, white LED + infrared light
-

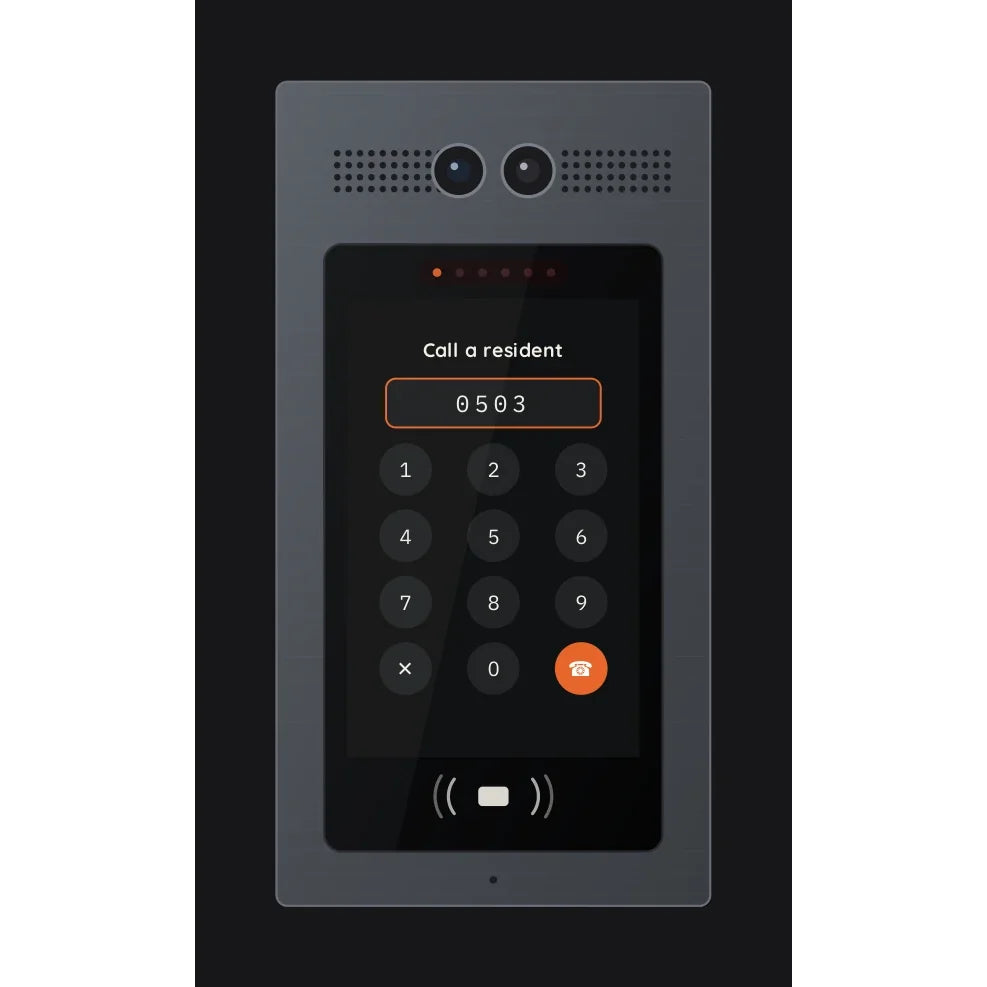

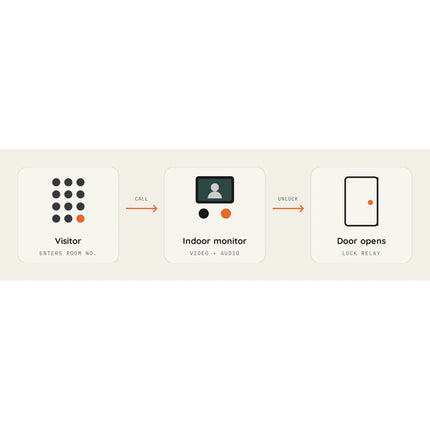

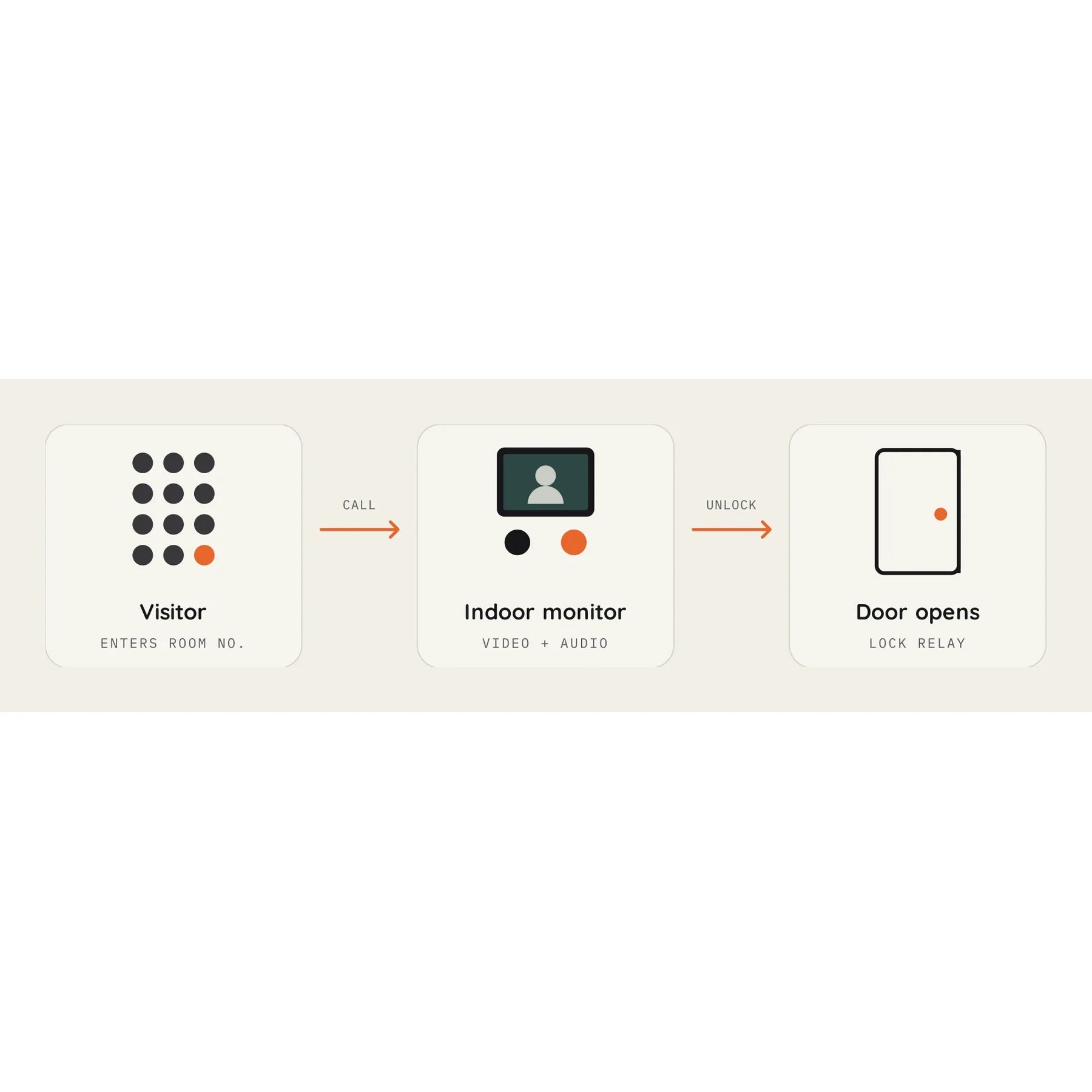

Calling: call by room number or from an imported visitor list; ringing time 10 to 60 s, call time 10 to 120 s
-
Lock control: relay for electric or magnetic locks, unlock time 1 to 99 s; 2 exit buttons and 2 door contacts
-

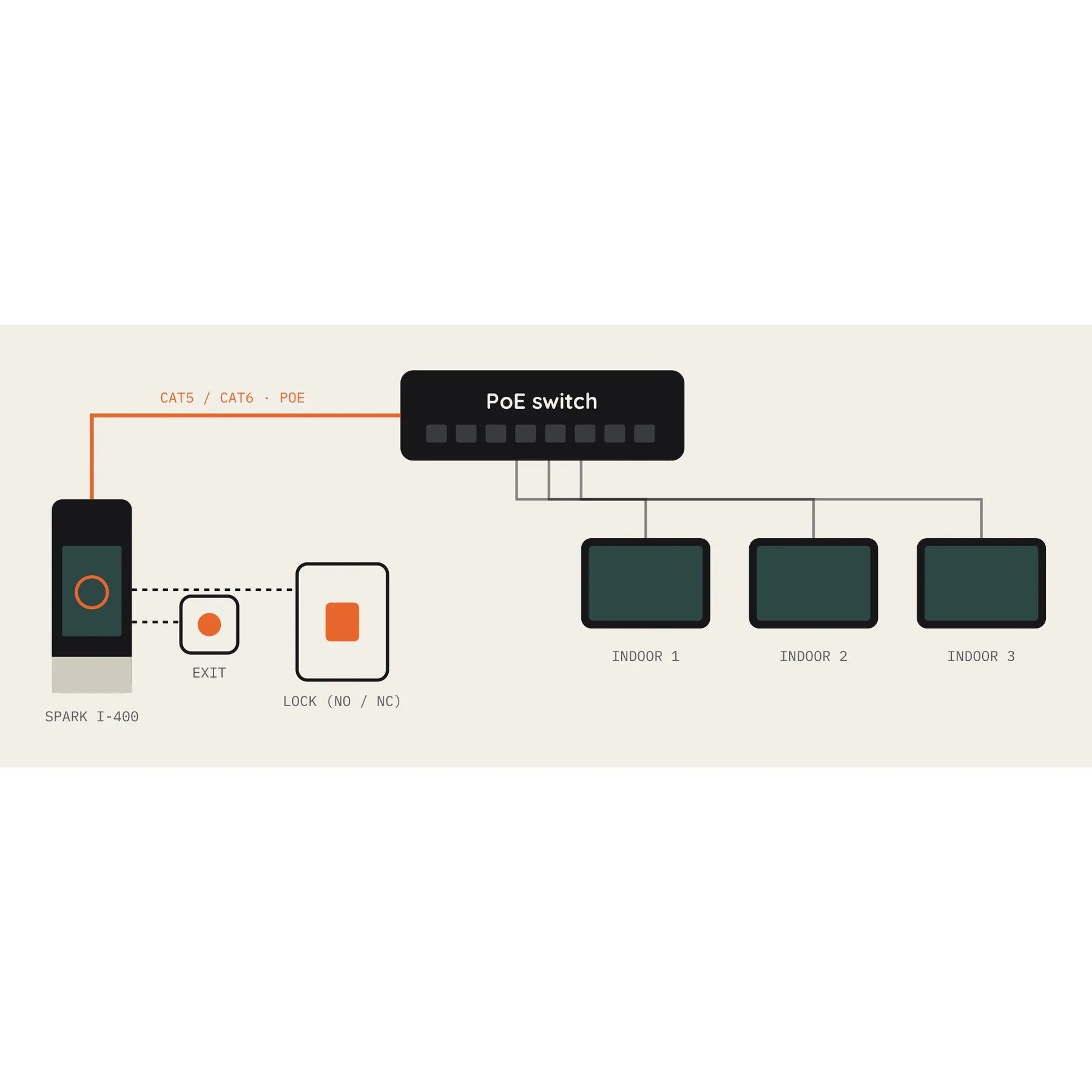

Network: 10/100/1000M adaptive with PoE on Cat5/Cat6, or DC 15 V, 2 A
-
Rugged build: aluminium + acrylic, IP55 and IK07, -40 °C to +65 °C
-
Management: SD-card backup and restore, centre sync, announcements and hardware self-test
Technical Specifications
| Model |
Spark I-400 |
| Brand |
Spark |
| Type |
IP video outdoor station (door station) |
| Screen |
8″ or 10″ touch screen |
| Operating system |
Linux |
| Languages |
English, Arabic, Chinese (Simplified and Traditional) |
| Face capacity |
Up to 5,000 |
| Liveness detection |
Yes |
| RFID |
IC card (Mifare, 13.56 MHz), up to 2,000 |
| NFC |
Yes |
| Human-body sensing |
Yes |
| Video |
1920 × 1080P / 720P, H.264 |
| Noise reduction |
3D noise reduction |
| Supplement light |
White LED + infrared |
| Audio intercom |
Full duplex |
| Exit buttons |
2 (lock and gate) |
| Door contact inputs |
2 (lock and gate) |
| Lock relay |
NO / NC, max AC 125 V 0.5 A / DC 30 V 2 A |
| Alarms |
Tamper, door contact |
| Network |
10/100/1000M adaptive, PoE |
| Cable |
Cat5 / Cat6 |
| Power supply |
DC 15 V, 2 A |
| Material |
Aluminium + acrylic |
| Protection |
IP55, IK07 |
| Working temperature |
-40 °C to +65 °C |
| Working humidity |
10% to 90% RH, non-condensing |
| Installation |
Surface mount |
| Size |
8″: 360 × 150 × 33 mm · 10″: 340 × 190 × 37.5 mm |
What's in the Box
- Outdoor station
- 10-pin terminal
- 2-pin terminal
- Embedded box
- Screws ×4
Downloads
⬇ Download Datasheet (PDF)
