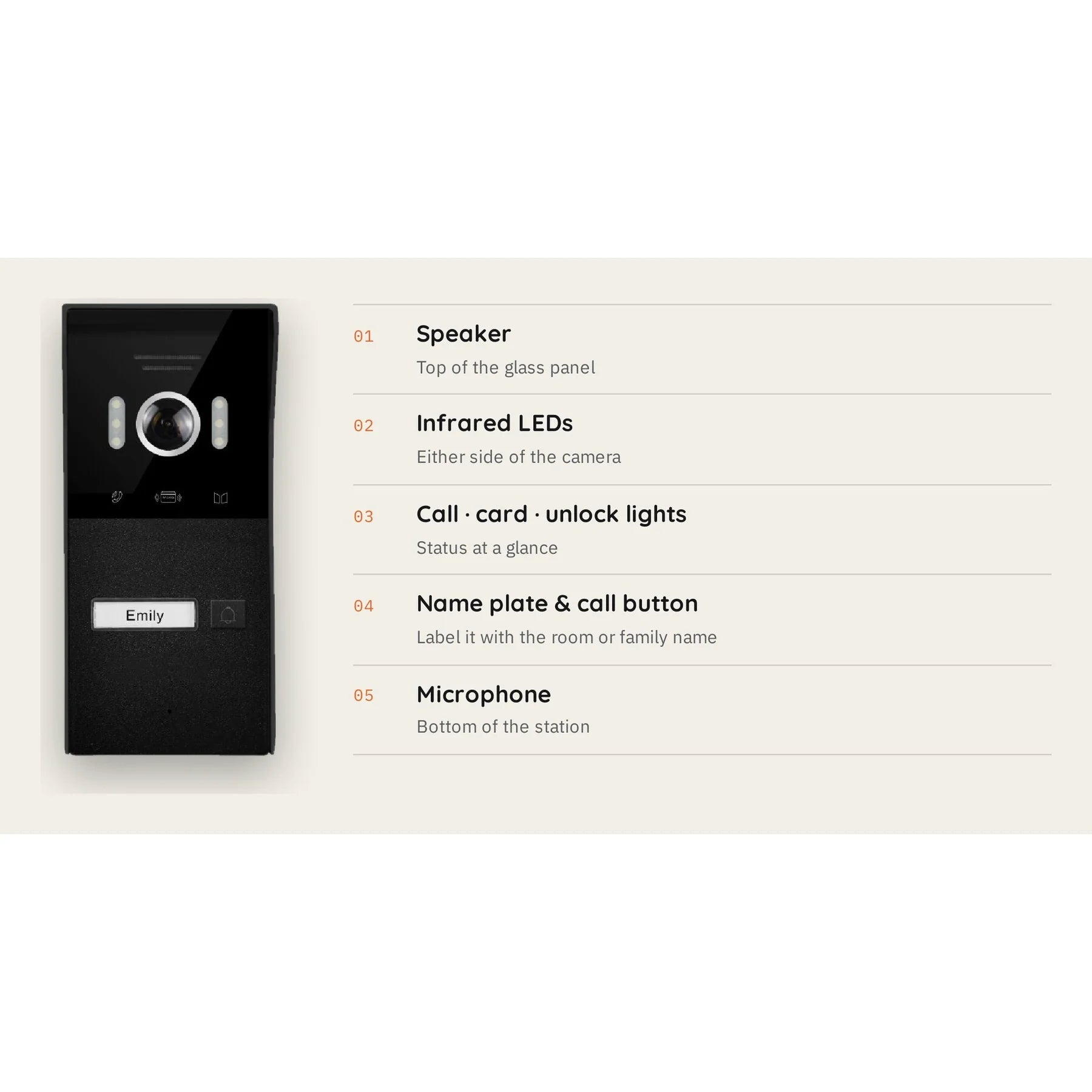

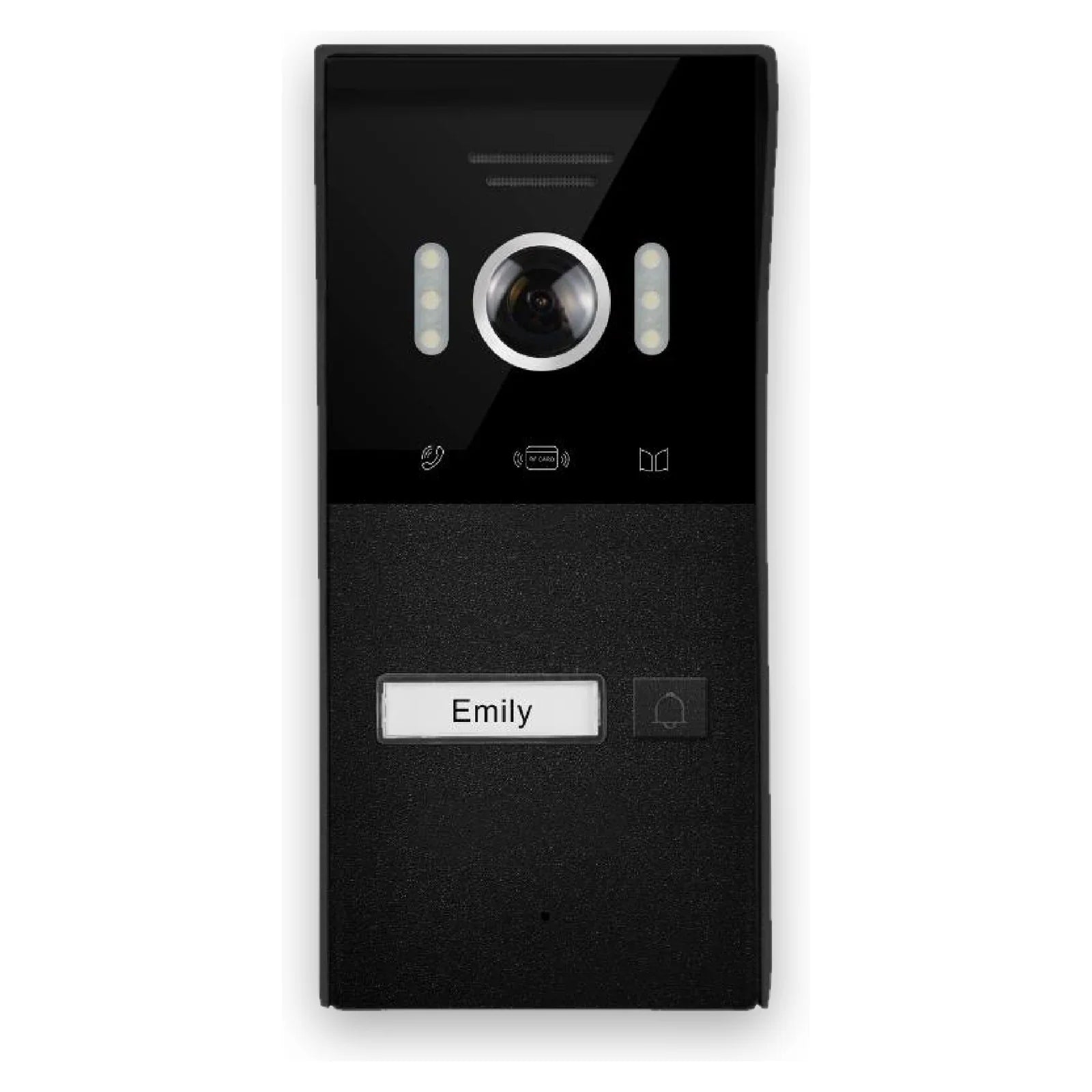

The Spark I-50 is a slim, single-button IP video door station for homes and villas. Visitors are shown on the indoor monitor through a 2.0 MP, 120° camera with infrared night vision, and residents unlock with an IC card tap. It is powered by PoE or DC 12 to 15 V.
Key Features
-
2.0 MP camera: 120° viewing angle, infrared compensation LEDs
-

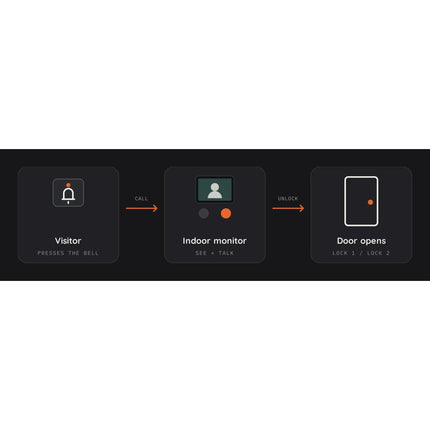

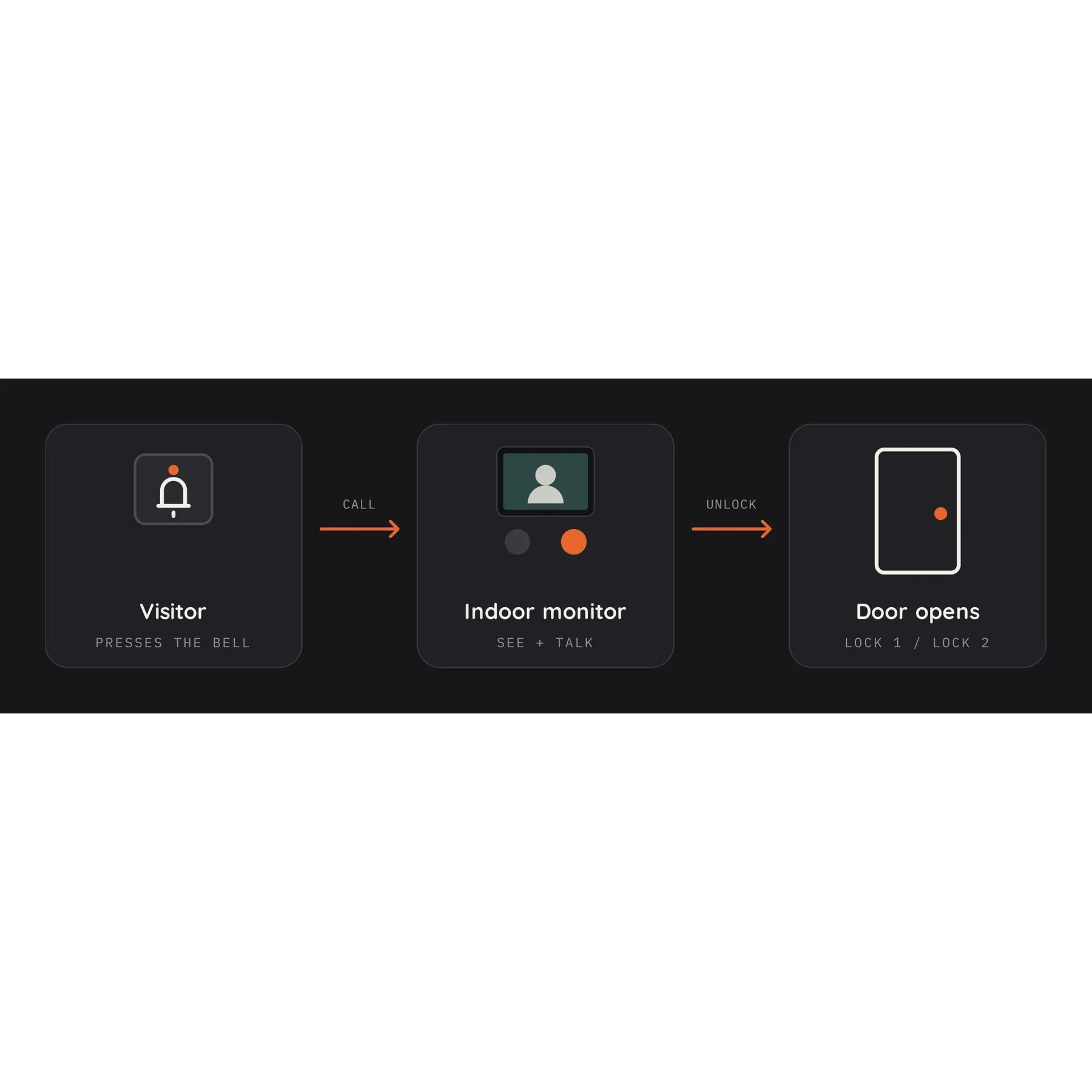

Full-duplex intercom: both sides talk at the same time
-
IC card unlock: or unlock from the indoor monitor
-
Detection: motion detection and human detection
-

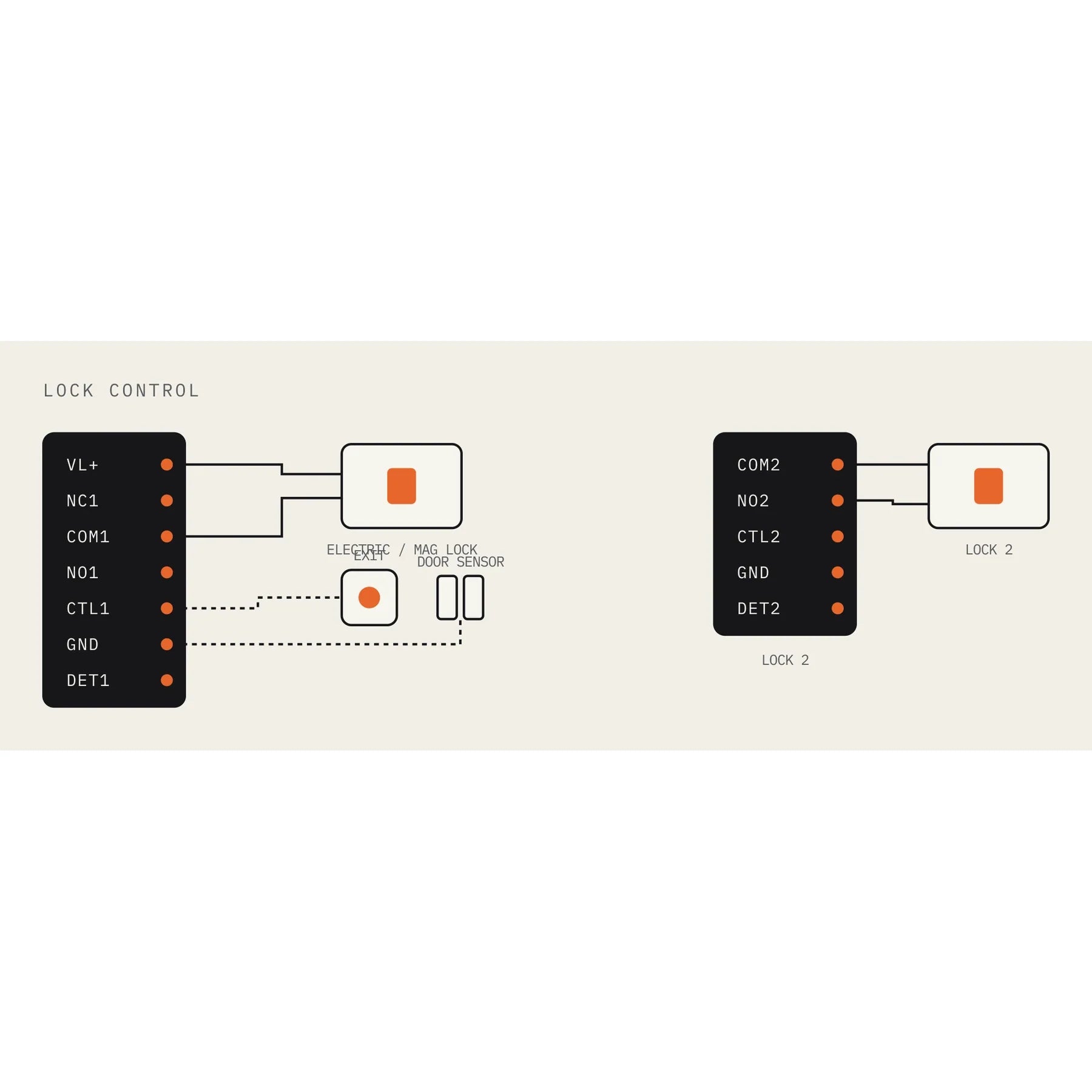

Two locks: Lock 1 (NO / NC) and Lock 2, each with exit-button and door-contact input
-

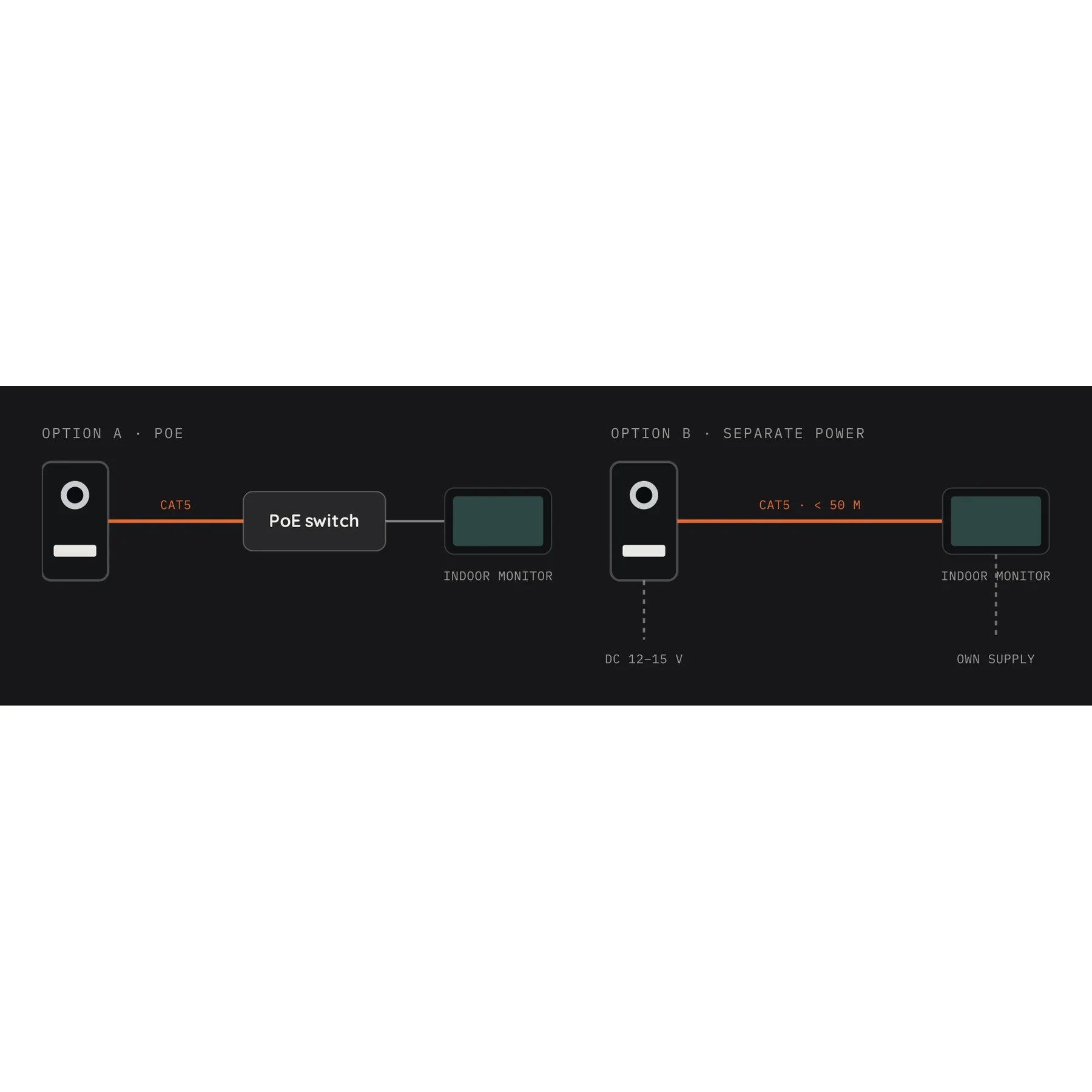

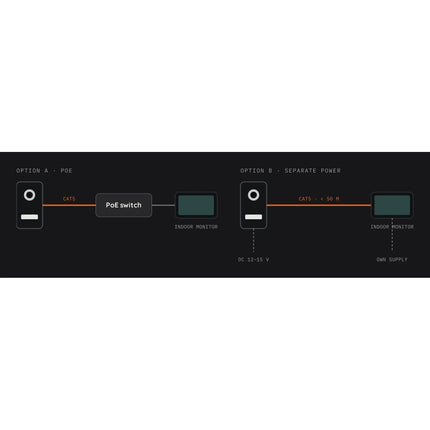

Power: PoE or DC 12 to 15 V / 1 A; standby < 1.5 W
-
Cabling: Cat5 / Cat5e < 50 m to the monitor, lock RVV 2×1.0 < 10 m
Technical Specifications
| Model |
Spark I-50 |
| Brand |
Spark |
| Type |
IP outdoor station |
| Camera |
2.0 MP |
| Viewing angle |
120° |
| Night vision |
Infrared compensation LEDs |
| Intercom |
Full duplex |
| Unlocking |
IC card, from the indoor monitor |
| Operating system |
Linux |
| Network |
RJ45, DHCP |
| Power |
PoE or DC 12 to 15 V / 1 A |
| Working current |
Max 300 mA at DC 15 V |
| Standby power |
< 1.5 W |
| Working temperature |
-10 °C to +55 °C |
| Motion detection |
Yes |
| Human detection |
Yes |
| Lock outputs |
Lock 1 (NO / NC), Lock 2 |
| Inputs |
Exit button + door contact per lock |
| Installation |
Surface mount |
| Cabling |
Cat5 / Cat5e < 50 m · lock RVV 2×1.0 < 10 m |
What's in the Box
- Door station
- Wall mount
- IC cards ×2
- 7-pin, 5-pin and 2-pin cables
- Anchors and screws ×4
- Box screws ×2
- User manual
Downloads
⬇ Download Datasheet (PDF)
Buy the Spark I-50 IP video door station in Jordan from Bestways Smart-home Solutions.
