الوصف

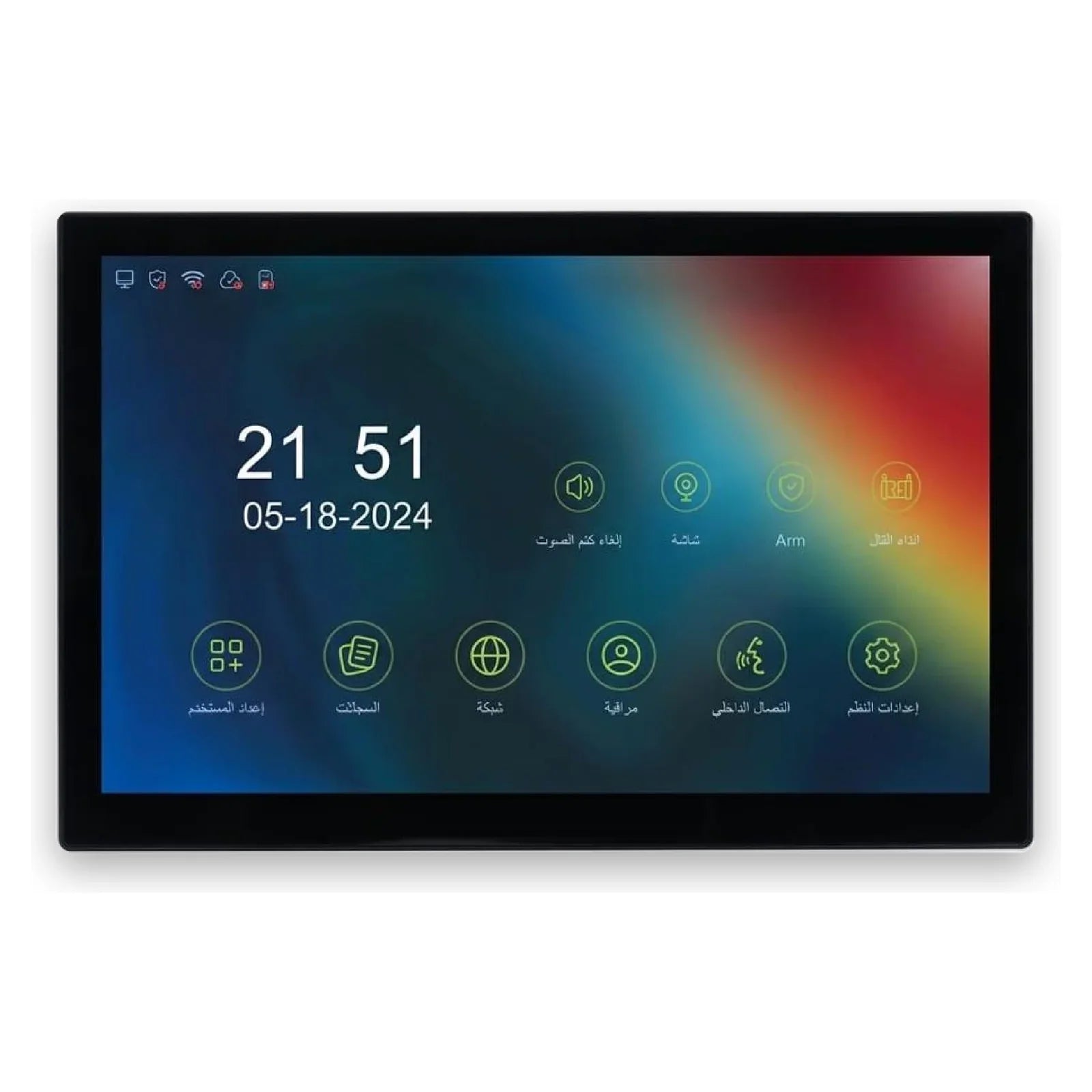

The Spark S-210 is a 10-inch IPS integrated IP video intercom indoor monitor. See who is at the door, talk in full duplex and unlock with one tap, monitor outdoor stations and manage alarm zones from the wall panel. It is PoE powered over one Cat5/Cat5e cable and works with the Tuya smart-home app.
Key Features
-
10″ IPS display: for calls, cameras and alarms
-

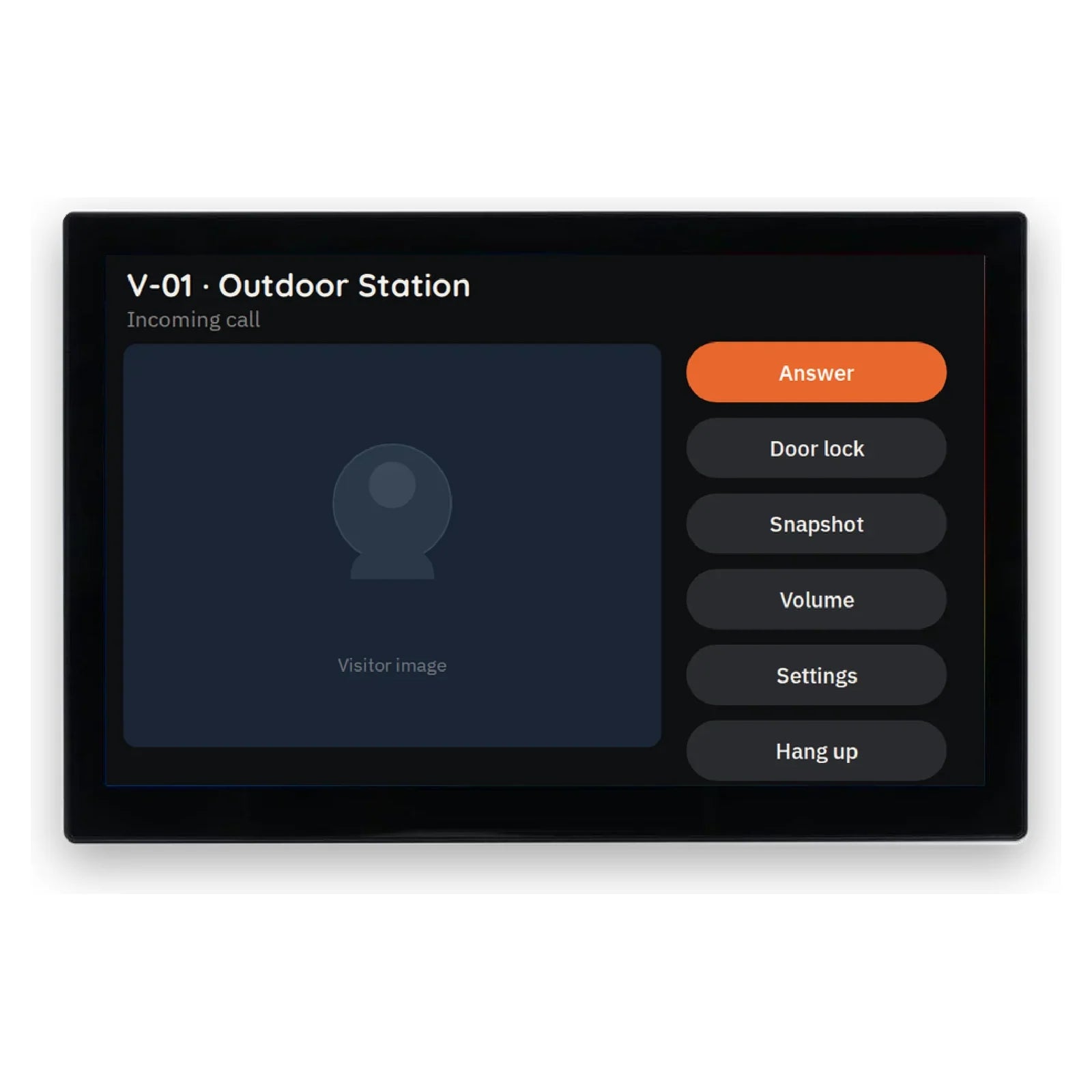

Answer the door: visitor video with the outdoor unit's room number, full-duplex audio and one-tap relay unlock
-
Record: JPG snapshots and video clips to SD card (< 32 GB)
-
Monitoring: view any outdoor station, switch channels and talk two-way
-

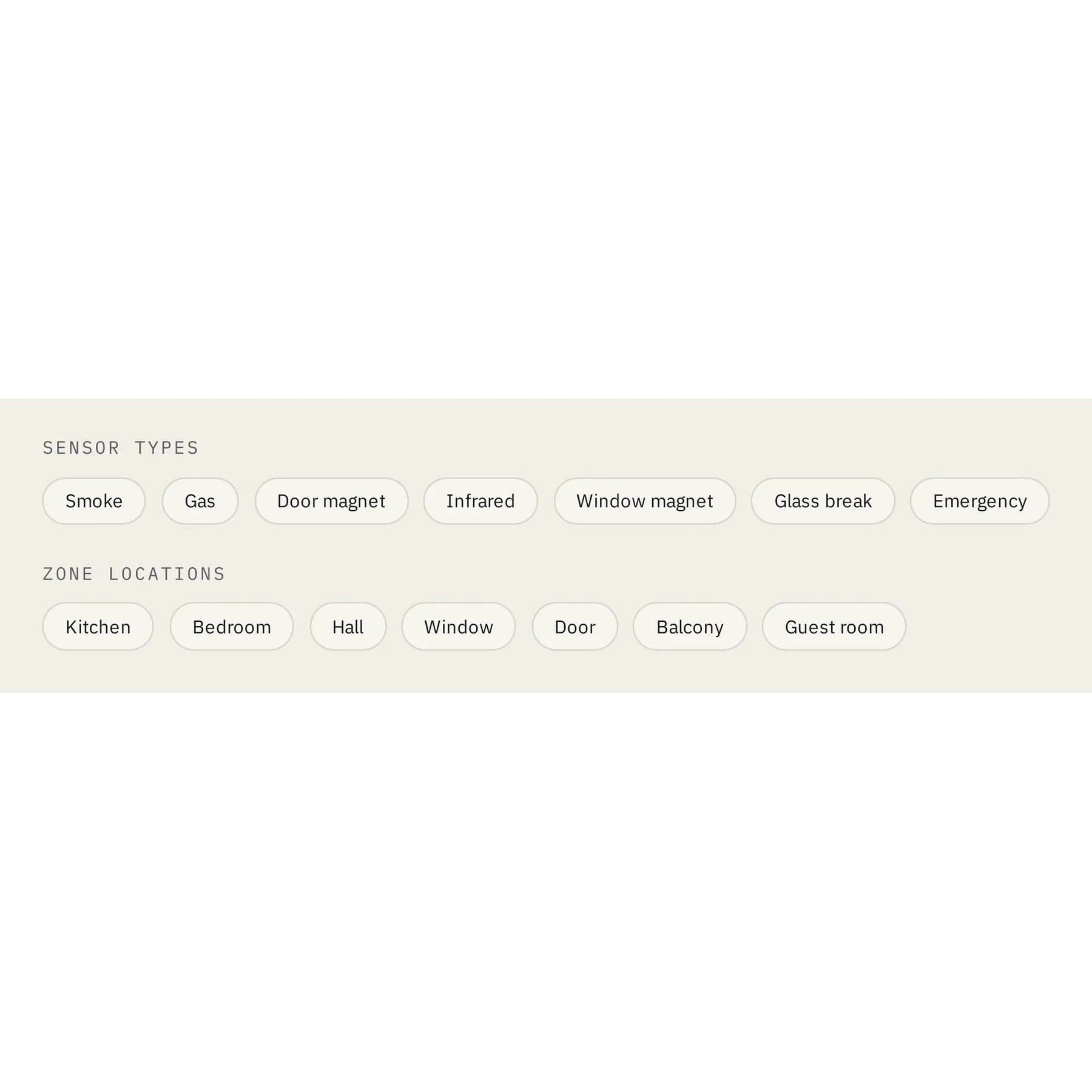

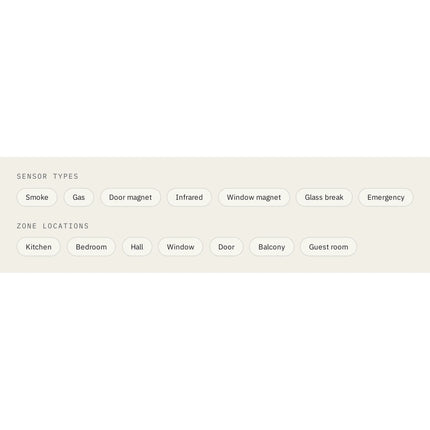

Security zones: smoke, gas, door-magnet, infrared, window-magnet, glass-break and emergency detectors; NO/NC per zone, 60 s arming countdown, 6-digit disarm password
-
Tuya smart home: control calls, alarm zones, settings and recordings from the app
-
One cable: PoE over Cat5/Cat5e (DC 15 V, max 350 mA), standby < 2.5 W
-
Indoor lock: can also open a lock wired to the monitor's own relay
Technical Specifications
| Model |
Spark S-210 |
| Brand |
Spark |
| Type |
IP video intercom indoor monitor |
| Screen |
10″ IPS LCD |
| Video input |
Digital |
| Video codec |
H.264 |
| Picture format |
JPG |
| Max SD card |
< 32 GB |
| Intercom mode |
Digital duplex |
| Microphone |
Built-in |
| Power supply |
PoE / DC 15 V 1 A |
| Working current |
Max 350 mA |
| Standby |
< 2.5 W |
| Network |
DHCP, PoE |
| Platform |
Tuya |
| Operating system |
Linux |
| Motion detection |
Yes |
| Person detection |
Yes (via outdoor station) |
| Working temperature |
-10 °C to +50 °C |
| Installation |
Wall / surface mount |
| Cabling |
UTP Cat5/Cat5e to door station, max 50 m · lock RVV 2×1.0, up to 10 m |
| System size |
Up to 100 indoor monitors per outdoor station |
What's in the Box
- Indoor monitor
- Wall bracket
- 2-pin cable ×2
- 7-pin cable
- 10-pin cable
- Screws and anchors ×4
- User manual
Downloads
⬇ Download Datasheet (PDF)
Buy the Spark S-210 IP video intercom indoor monitor in Jordan from Bestways Smart-home Solutions.
