Description

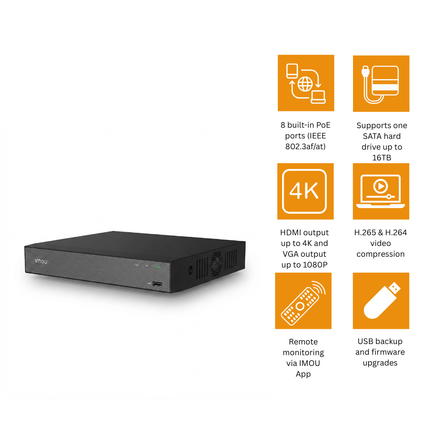

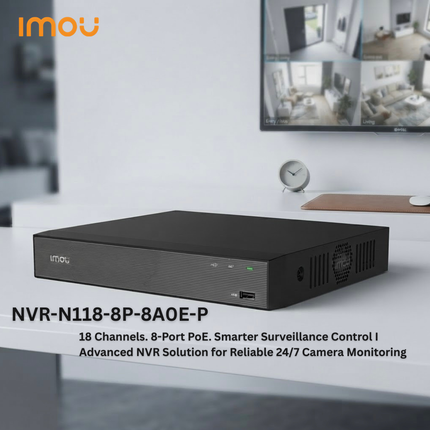

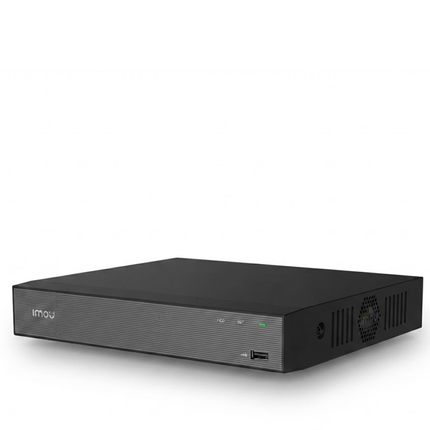

The IMOU NVR-N118-8P-8A0E-P is a professional 18-channel PoE Network Video Recorder designed for medium and large surveillance systems. Featuring 8 built-in PoE ports, it powers and connects compatible IP cameras through a single Ethernet cable, making installation faster, cleaner, and more reliable.
Supporting 4K HDMI output, H.265/H.264 video compression, AI Smart Search, two-way audio, and one SATA hard drive up to 16TB, this recorder provides high-performance video recording and intelligent playback. It also supports IMOU IPC Auto-Pair, ONVIF compatibility, and remote monitoring via the IMOU App, making it an ideal solution for homes, offices, warehouses, retail stores, schools, and commercial facilities.
Key Features
- 8 built-in PoE ports (IEEE 802.3af/at)
- Supports up to 18 IP camera channels
- Plug & Play PoE camera installation
- H.265 & H.264 video compression
- HDMI output up to 4K and VGA output up to 1080P
- AI Smart Search for Person, Vehicle, and Events
- Built-in microphone and speaker for two-way audio
- IMOU IPC Auto-Pair for automatic camera pairing
- Supports one SATA hard drive up to 16TB
- Remote monitoring via IMOU App
- ONVIF compatible
- USB backup and firmware upgrades
Technical Specifications
| Specification |
Details |
| Model |
NVR-N118-8P-8A0E-P |
| PoE Ports |
8 × 10/100Mbps IEEE 802.3af/at |
| Camera Channels |
Up to 18 IP Channels |
| Maximum Camera Resolution |
Up to 10MP |
| Video Compression |
H.265 / H.264 |
| Video Output |
1 × HDMI (Up to 4K), 1 × VGA (Up to 1080P) |
| Playback |
4 × 8MP @15fps or 4 × 5MP @30fps |
| Storage |
1 × SATA HDD (Up to 16TB) |
| Network Interface |
1 × RJ45 10/100Mbps |
| Audio |
Built-in Microphone & Speaker |
| Smart Search |
Person, Vehicle & Event Search |
| USB Ports |
2 × USB 2.0 |
| Remote Access |
IMOU App |
| Third-Party Compatibility |
ONVIF |
| Power Supply |
DC 54V |
| Operating Temperature |
-10°C to +45°C |
Why Choose NVR-N118-8P-8A0E-P IMOU?
The IMOU NVR-N118-8P-8A0E-P is an excellent choice for professional surveillance installations that require easy deployment and reliable performance. With 8 integrated PoE ports, support for 18 IP cameras, 4K video output, AI-powered Smart Search, H.265 compression, and up to 16TB of storage, it delivers a powerful and scalable security solution for residential and commercial applications.
