The SONOFF TRV Gen2 (TRV-ZBT) is a Zigbee smart thermostatic radiator valve that turns any radiator with an M30 × 1.5 mm valve into a smart, scheduled heater. It is about 38% smaller than the first-generation TRVZB, so it fits tight spaces behind furniture and curtains, and its HD IPS colour display can be rotated in four directions so it is easy to read however the valve is mounted.
Three independent weekly heating plans with up to 12 temperature periods per day, dual open-window detection, PID valve control and quiet operation keep every room comfortable while cutting wasted energy. It runs on 2 × AA alkaline batteries, pre-installed (up to 6 months under normal use), and the valve adapters in the package fit most heating systems.
Note: a SONOFF Zigbee gateway is required for remote control, schedules from the app and smart scenes (see "Works With" below). The valve can also be paired with the eWeLink app over Bluetooth.
Key Features
Compact design, about 38% smaller in volume than the TRVZB
HD IPS colour display that rotates in 4 directions
3 independent weekly heating plans with up to 12 temperature periods per day
Dual open-window detection: linked SONOFF door/window sensor, or automatic detection of a fast temperature drop
Use a SONOFF Zigbee temperature & humidity sensor as the room temperature source
Energy saving mode and motion sensor linkage
PID algorithm for stable temperature control, with low-noise valve operation
Child lock, anti-calcification, anti-freeze mode and low-battery alert
Group control, boost mode and temperature offset
Up to 6 months of history: target temperature, room temperature and heating activity
Dual-mode connectivity: Zigbee and Bluetooth (BLE)
Works With
SONOFF Zigbee gateways: ZBBridge-P, ZBBridge-U, NSPanel Pro 120, NSPanel Pro 86 and iHost

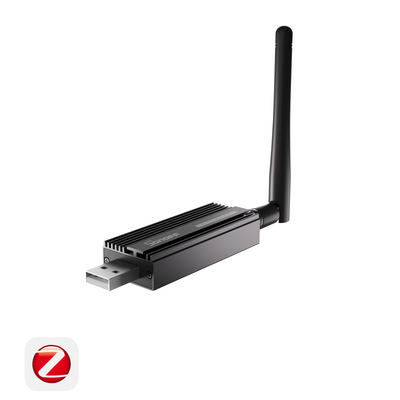

Home Assistant (Zigbee2MQTT 2.12.1 or later): ZBDongle-P or ZBDongle-E
Apple Home: through a Matter bridge (ZBBridge-U or iHost)
eWeLink app: through a SONOFF Zigbee gateway, or paired directly over Bluetooth
Technical Specifications
Specification
Details
Model
TRV-ZBT
Product Name
TRV Gen2
Product Type
Zigbee Thermostatic Radiator Valve
Wireless Protocol
Zigbee (IEEE 802.15.4) and Bluetooth (BLE)
MCU
TLSR8258
Input
3V⎓ (2 × 1.5V batteries)
Battery Type
1.5V LR6 alkaline AA batteries
Battery Life
Up to 6 months under normal use
Valve Connection
M30 × 1.5 mm (adapters in the package for most other valves)
Temperature Setting Range
5°C ~ 30°C
Display
HD IPS colour display, rotatable in 4 directions
Operating Temperature
-10°C ~ 50°C
Operating Humidity
5% – 95% RH, non-condensing
Operating Cycles
10,000 cycles
Housing Material
PC
Color
White
Dimensions
50 × 50 × 82.9 mm
Net Weight
169 g (with batteries)
Certifications
CE, RoHS
What's in the Box
1 × TRV-ZBT radiator valve (2 × AA batteries pre-installed)
1 × Quick guide
1 × Installation video card (QR code)
6 × Valve adapters: CAL, RAVL, RAV, M28, GIA, RA
Why Choose the SONOFF TRV-ZBT?
Smaller body that fits radiators in tight spaces
Clear colour display you can read from any mounting angle
Room-by-room schedules that heat only when you need it
Saves energy with open-window detection and accurate PID control
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
The SONOFF AirGuard TH Pressure (SNZB-02M) is a Zigbee 3.0 sensor from the SONOFF AirGuard Series that measures temperature, humidity and air pressure. The eWeLink app also calculates dew point and VPD, giving you complete 5-in-1 indoor climate monitoring.
It is fully wireless and runs on a CR2477 battery for more than 2 years, so you can place it on ceilings, corners, shelves or windows. Set comfort ranges to get instant alerts, and create Zigbee automations that switch fans, humidifiers, air conditioners or window openers on their own.
Note: a Zigbee gateway is required (see "Works With" below).
Key Features
5-in-1 monitoring: temperature, humidity and air pressure, plus dew point and VPD in the app
High precision: ±0.2°C (±0.4°F), ±2% RH and ±0.1 hPa
Operating pressure range: 700–1100 hPa
More than 2 years of battery life (CR2477 battery included)
Instant alerts when readings leave your comfort range
Zigbee 3.0 automations for fans, humidifiers, air conditioners and window openers
6 months of environmental history in the app
Compact 45 × 45 × 17.6 mm body with magnetic, screw or adhesive mounting
Voice control through eWeLink cloud-to-cloud integration with Alexa and Google Home
Works with Apple Home through a Matter bridge, and with open-source Zigbee platforms
Works With
SONOFF Zigbee gateways: ZBBridge-P, ZBBridge-U, Bridge Max, NSPanel Pro 120 and NSPanel Pro 86
Home Assistant (ZHA / Zigbee2MQTT): ZBDongle-P or ZBDongle-E
Apple Home: through a Matter bridge such as ZBBridge-U
Technical Specifications
Specification
Details
Model
SNZB-02M
Product Name
AirGuard TH Pressure
Wireless Protocol
Zigbee 3.0 (IEEE 802.15.4)
MCU
EFR32MG22C224F512GN32
Power Input
3.0V ⎓ (CR2477 battery, included)
Battery Life
More than 2 years
Temperature Accuracy
±0.2°C / ±0.4°F
Humidity Accuracy
±2% RH
Pressure Accuracy
±0.1 hPa
Operating Pressure
700–1100 hPa
Operating Temperature
-20°C ~ 60°C
Operating Humidity
5% ~ 95% RH, non-condensing
Application Environment
Indoor (not waterproof)
Casing Material
PC
Color
White
Dimensions
45 × 45 × 17.6 mm
Net Weight
27.3 g (including battery)
Certifications
CE, FCC, RoHS
What's in the Box
1 × SNZB-02M sensor
1 × CR2477 battery
1 × User manual
Why Choose the SONOFF SNZB-02M?
Adds air pressure to precise temperature and humidity readings for a complete picture of indoor comfort
Useful for weather trends, reptile care, plant growing and wine storage
Long battery life and fully wireless placement
Automations that react on their own, without opening the app
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
The SONOFF Bridge Max (Bridge-M) is a smart home bridge that combines a Matter bridge with a Zigbee gateway for up to 128 Zigbee devices. It brings Zigbee, BTHome and eWeLink devices to Apple Home, Alexa, Google Home and other Matter platforms for cross-brand control and automation in one ecosystem.
It connects to your network by Ethernet (RJ45) or Wi-Fi and is powered over USB Type-C. A built-in web console on your local network lets you bridge devices without app downloads, cloud accounts or an internet connection, and Zigbee devices can be synced to Home Assistant over MQTT.
Key Features
Matter bridge: brings Zigbee, BTHome and eWeLink devices to Apple Home, Alexa, Google Home and other Matter platforms
Zigbee gateway for up to 128 Zigbee devices such as sensors, switches and plugs
Local web interface (bridgem.local): no app download, cloud account or internet connection needed
Home Assistant integration: sync Zigbee devices to Home Assistant via MQTT, or share Home Assistant devices with Matter ecosystems
Smart security: works with Zigbee sensors and cameras, triggers a siren of up to 90dB and sends real-time mobile notifications
Wired Ethernet (RJ45, 10/100Mbps) or Wi-Fi IEEE 802.11a/b/g/n/ac/ax connection
Supports up to 8 eWeLink-Remote devices
USB Type-C power input (5V ⎓ 1A)
Works With
SONOFF Zigbee devices: SNZB-03P motion sensor, SNZB-04P door/window sensor, SNZB-06P presence sensor, SNZB-02D temperature & humidity sensor, ZBMINIR2 smart switch and S60ZBTPF smart plug, plus other Zigbee sensors, switches and plugs
Matter platforms: Apple Home, Amazon Alexa, Google Home, SmartThings and Home Assistant
Home Assistant: Zigbee devices sync over MQTT
Technical Specifications
Specification
Details
Model
Bridge-M
Product Series
Bridge Series
Product Name
Smart Home Bridge (Bridge Max)
MCU
SigmaStar SSD2351Q + EFR32MG21
Input
5V ⎓ 1A
Power Interface
USB Type-C
Wi-Fi
IEEE 802.11a/b/g/n/ac/ax
Zigbee
IEEE 802.15.4
Network Interface
RJ45 (10/100Mbps)
Max. Zigbee Devices
Up to 128
eWeLink-Remote Devices
Up to 8
Local Control
Built-in web console (bridgem.local)
Dimensions
82 × 82 × 28 mm
Net Weight
83.4 g
Color
White
Housing Material
PC+ABS
Usage Environment
Indoor
Operating Temperature
-10°C ~ 40°C
Operating Humidity
5% ~ 95% RH, non-condensing
Operating Altitude
Below 5000 m
Certifications
CE, FCC, RoHS
Why Choose the SONOFF Bridge-M?
One hub that unites Zigbee, BTHome and eWeLink devices under Matter
Fully local web control for faster setup and better privacy
Wired Ethernet for a stable backbone for large Zigbee networks
Works alongside Home Assistant as well as the major voice ecosystems
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
The SONOFF AirGuard TH Lite (SNZB-02B) is a slim Zigbee 3.0 temperature and humidity sensor from the SONOFF AirGuard Series. It measures temperature with ±0.2°C (±0.4°F) and humidity with ±2% RH accuracy, refreshes its data every 5 seconds and shows real-time dew point and VPD to help you detect condensation risk early, prevent mold and keep plants in healthy growing conditions.
At only 27.8 mm wide and 20 mm thick, it supports hanging and adhesive mounting in tight spaces such as guitar cases, cigar humidors, jewelry cabinets and wine racks. Two standard AAA batteries give up to 2 years of battery life and can be replaced without tools, and the app keeps up to 6 months of history.
Note: a Zigbee gateway is required (see "Works With" below).
Key Features
High accuracy: ±0.2°C (±0.4°F) and ±2% RH
Data refresh every 5 seconds for real-time monitoring
Real-time dew point and VPD (Vapor Pressure Deficit) monitoring
Early detection of condensation risk to help prevent mold
Slim 27.8 mm-wide, 20 mm-thick design for small spaces
Hanging or adhesive mounting
Up to 2 years of battery life on 2 × AAA batteries, replaceable without tools
6 months of temperature, humidity, dew point and VPD history in the app
Voice commands through eWeLink cloud-to-cloud integration
Works with Apple Home through a Matter bridge (such as ZBBridge-U) and with open-source Zigbee platforms
Works With
SONOFF Zigbee gateways: ZBBridge-P, ZBBridge-U, Bridge Max, NSPanel Pro 120, NSPanel Pro 86 and NSPanel Pro Gen2
Home Assistant (ZHA / Zigbee2MQTT): ZBDongle-P or ZBDongle-E
Apple Home: through a Matter bridge such as ZBBridge-U
Technical Specifications
Specification
Details
Model
SNZB-02B
Product Name
AirGuard TH Lite
Product Series
AirGuard Series
Wireless Protocol
Zigbee 3.0 (IEEE 802.15.4)
MCU
TLSR8656
Power Input
3.0V ⎓ (2 × 1.5V batteries)
Battery Model
LR03 AAA
Battery Life
Up to 2 years
Temperature Accuracy
±0.2°C / ±0.4°F
Humidity Accuracy
±2% RH
Data Refresh
Every 5 seconds
Operating Temperature
-20°C ~ 60°C
Operating Humidity
5% ~ 95% RH, non-condensing
Application Environment
Indoor
Casing Material
PC
Color
White
Dimensions
66.3 × 27.8 × 20 mm
Net Weight
43.0 g (including batteries)
Certifications
CE, FCC, RoHS
Why Choose the SONOFF SNZB-02B?
Professional-grade accuracy plus dew point and VPD in a tiny body
Fits where other sensors cannot: humidors, guitar cases, cabinets and wine racks
Standard AAA batteries – easy to replace, up to 2 years of life
6 months of history to track long-term changes
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
The SONOFF Thermostat Core (TP-WGZBA) is a Zigbee 3.0 smart thermostat for hydronic underfloor heating and boiler systems. It combines a powered output that drives underfloor heating actuators (max. 3A) with a potential-free dry contact output (COM, NO) for boiler control, in a clean white flush wall-mount panel with a smooth physical dial.
Built-in human presence sensing wakes the display as you approach and turns it off when you leave. Three independent heating plans, each with a full week of scheduling and up to 12 time periods per day, plus window-open detection, child lock and anti-freeze mode keep your home comfortable and efficient.
Note: a Zigbee gateway is required (see "Works With" below). The Thermostat Core is not suitable for direct connection to electric underfloor heating.
Key Features
Dual outputs: active relay output for water heating actuators (max. 3A, resistive load) and passive dry contact (COM, NO) for boilers
3 independent heating plans, each with a full week of scheduling and up to 12 time periods per day
Built-in human presence sensing wakes the display, with adjustable screen brightness
Smooth physical dial for intuitive temperature control
Smart window-open detection, plus door/window sensor integration, pauses heating to avoid wasted energy
Connect a remote temperature sensor on the same gateway to measure the actual room temperature
External NTC floor sensor support (10KΩ, B value 3950K) with overheat protection; NTC sensor sold separately
Child lock, anti-freeze mode and boost mode
Heating data stored for up to 6 months: target temperature, actual temperature and heating activity
Works With
SONOFF Zigbee gateways: ZBBridge-P, ZBBridge-U, NSPanel Pro 120, NSPanel Pro 86 and iHost
Home Assistant (Zigbee2MQTT): ZBDongle-P or ZBDongle-E
Apple Home: through a Matter bridge
Technical Specifications
Specification
Details
Model
TP-WGZBA
Product Type
Zigbee Smart Thermostat
Wireless Protocol
Zigbee 3.0 (IEEE 802.15.4)
Applicable System
Water heating system
Installation Method
Flush wall mount
Rated Parameters
Max. 3A, 100-240V~ 50/60Hz
Water Heating Actuator Output
Active relay output, max. 3A (resistive load)
Boiler Control Output
Passive dry contact output (COM, NO)
Temperature Setting Range
5°C ~ 30°C
Radar Detection Distance
Low: approx. 0.3 m; Medium: approx. 0.6 m; High: approx. 1 m
External NTC Floor Sensor
10KΩ NTC, B value 3950K (sold separately)
Operating Temperature
0°C ~ 50°C
Operating Humidity
≤90% RH, non-condensing
Dimensions
86 × 86 × 45.5 mm
In-Wall Depth
31.5 mm
Mounting Screw Hole Distance
60 mm
Recommended Wire Size
24AWG-12AWG (0.2-3.5 mm²)
Rated Impulse Voltage
4KV
Automatic Operation Cycles
10,000 cycles
Operating Altitude
2000 m
Housing Material
PC
Color
White
Net Weight
155 g
Certifications
CE, RoHS
Why Choose the SONOFF TP-WGZBA?
One thermostat for hydronic underfloor heating actuators and boilers
Presence-aware display and a physical dial for easy everyday use
Flexible weekly schedules for weekdays, weekends, holidays and family routines
Energy saving with window-open detection and room-temperature compensation
Downloads⬇ Download User Manual (PDF)Warranty: 12-month warranty from the Official Distributor.
The SONOFF SwitchMan ZBM5 Zigbee Smart Wall Switch (80 Type) is a Zigbee 3.0 wall switch with physical push buttons for 80-type wall boxes (86 × 71 × 40.3 mm), available in 1 and 3 gang versions (ZBM5-1C-80W and ZBM5-3C-80W). It works with or without a neutral wire, so it fits most existing lighting circuits.
Pair it with a SONOFF Zigbee gateway for remote control, timers, schedules, smart scenes and voice control with Amazon Alexa and Google Assistant in the eWeLink app, or add it to Home Assistant with a SONOFF ZBDongle for fast local control. In neutral-wire mode the ZBM5 also works as a Zigbee router that strengthens your Zigbee mesh, and Detach Relay Mode keeps smart lights controllable through smart scenes even when the physical switch is turned off.
Note: a Zigbee gateway is required (see "Works With" below). 80-type and 86-type wall boxes need different switch sizes, so please confirm your wall box type before ordering.
Key Features
Physical push buttons in 1 and 3 gang versions
Works with or without a neutral wire (3W minimum load in no-neutral mode)
Zigbee 3.0 for stable, low-latency local control
Acts as a Zigbee router in neutral-wire mode, extending your Zigbee mesh
Detach Relay Mode for smart lights (in neutral-wire mode): control them through smart scenes even when the switch is off
Up to 10A resistive load; LED loads up to 400W at 240V
Timers, schedules and smart scenes in the eWeLink app
Voice control with Amazon Alexa and Google Assistant
Works with SONOFF Zigbee gateways and with Home Assistant (ZHA / Zigbee2MQTT) via ZBDongle
Works With
SONOFF Zigbee gateways: ZBBridge-P, ZBBridge-U, NSPanel Pro 120 and NSPanel Pro 86
Home Assistant (ZHA / Zigbee2MQTT): ZBDongle-P or ZBDongle-E
Apple Home: through a Matter bridge such as ZBBridge-U
Technical Specifications
Specification
Details
Model
ZBM5-1C-80W, ZBM5-3C-80W
Product Name
SwitchMan Zigbee Smart Wall Switch ZBM5
Wall Box Type
80 Type
Wireless Protocol
Zigbee 3.0
Power Input
100-240V~ 50/60Hz
Rating
1-Gang: 10A max; 3-Gang: 10A/gang, 10A total max (resistive load)
LED Load
1-Gang: 400W@240V, 200W@100V; 3-Gang: 400W@240V / 200W@100V per gang, 400W@240V / 200W@100V total
Min. Load
3W (no-neutral mode)
Wiring
With or without neutral wire
Casing Material
PC + CRS
Color
White
Dimensions
86 × 71 × 40.3 mm
Net Weight
1-Gang: 132.8 g; 3-Gang: 150.3 g
Operating Temperature
-10°C ~ 40°C
Operating Humidity
5% ~ 95% RH, non-condensing
Certifications
CE, RoHS
Gateway
SONOFF Zigbee gateway or Zigbee dongle required
Why Choose the SONOFF ZBM5-80W?
Physical push buttons with full Zigbee smart control
Works with or without a neutral wire, ideal for older wiring
Strengthens your Zigbee network as a router in neutral-wire mode
Local control with SONOFF gateways or Home Assistant
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.

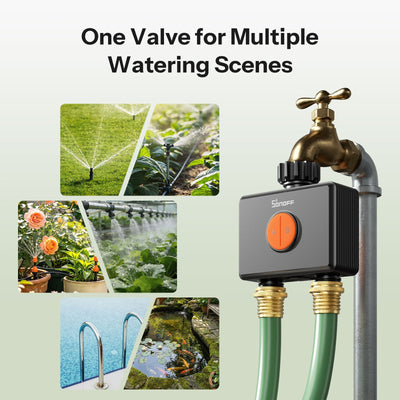

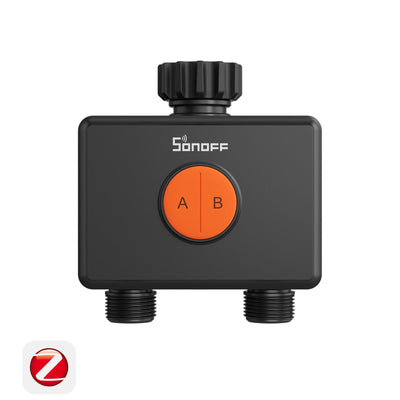

The SONOFF Hydro DUO (SWV-ZF2E) is a dual-channel Zigbee smart water valve with a built-in flow meter that manages two irrigation zones independently from a single tap. Each channel runs its own watering plan, with up to 6 schedules per channel and timed or volume-based watering.
It connects over Zigbee 3.0 and Bluetooth Low Energy (BLE), so schedules and manual control remain available through a proximity connection even without a gateway. Weather-based and seasonal adjustments save water, app alerts warn of low battery, frost, water shortage or leakage, and the IP65 housing with a brass inlet is built for outdoor use. This listing is the EU version (SWV-ZF2E).
Note: a Zigbee gateway is required for remote control and smart home integration (see "Works With" below). The EU and US versions have different inlet/outlet thread specifications and are not interchangeable.
Key Features
Two independent channels for dual-zone watering with separate plans
Up to 6 schedules per channel (12 in total), timed or volume-based
Built-in flow meter (2–45 L/min) with up to 6 months of water usage data per zone
Weather-based watering: schedules in the next 24 hours pause when severe weather is expected
Seasonal adjustment with a monthly watering multiplier for each zone
Real-time alerts for low battery, frost risk, water shortage or leakage
Built-in child lock against accidental operation
Zigbee 3.0 plus BLE proximity control without a gateway
Upgraded brass inlet with anti-slip textured surface and IP65 rating
Runs on 4 × AA batteries or USB Type-C (5V 1A); about 1 year of battery life (2 uses per day, 30 minutes each)
Works With
SONOFF Zigbee gateways: such as ZBBridge-U
Home Assistant: through a SONOFF Zigbee dongle such as ZBDongle-P or ZBDongle-E
Apple Home: through a Matter bridge such as ZBBridge-U, iHost or CUBE OS with a SONOFF Zigbee dongle
Google Home, Alexa and SmartThings: through a gateway
Technical Specifications
Specification
Details
Model
SWV-ZF2E (EU version)
Product Name
Hydro DUO
Product Series
Hydro Series
Channels
2 (independent zones)
MCU
TLSR8258F1KAT32
Wireless Protocol
Zigbee 3.0 / BLE (Bluetooth Low Energy)
Power Input
3V ⎓ (4 × 1.5V AA batteries, 2S2P) / USB Type-C 5V 1A
Battery Life
About 1 year (2 uses per day, 30 minutes each)
Flow Meter Range
2–45 L/min
Working Water Pressure
0.06–0.8 MPa
Thread
BSP G3/4-14 (3/4" nominal size)
Port Diameter
Inner 18 mm / Outer 26 mm
Waterproof Rating
IP65
Dimensions
121 × 132 × 67 mm
Casing Material
ABS
Color
Black + Orange
Working Temperature
0°C ~ 50°C
Working Water Temperature
5°C ~ 40°C
Working Humidity
5% ~ 95% RH, non-condensing
Working Altitude
Below 2,000 m
Certifications
CE, FCC, RoHS
Why Choose the SONOFF Hydro DUO?
Water two garden zones independently from one tap
Accurate flow measurement and usage data help you save water
Weather-aware and seasonal schedules protect your plants
Leak, frost and water-shortage alerts with child lock for peace of mind
Keeps working through BLE proximity control even without a gateway
Downloads⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.

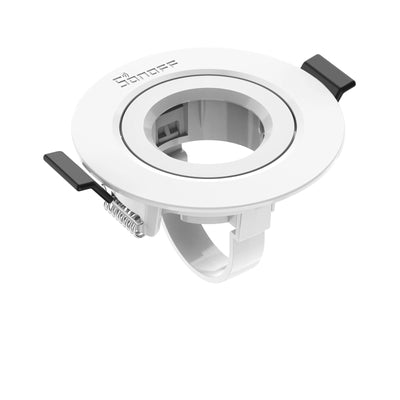

The SONOFF Motion & Presence Sensor Recessed Ceiling-Mount Adapter (CMSH03 / CMSH06) lets your SONOFF sensor sit almost flush with the ceiling, blending in like a recessed light. No bulky device and no exposed cables, just a clean and discreet installation.
The sensor keeps its full range of angle adjustment for precise positioning, with the same reliable detection accuracy. Installation takes minutes and needs no modifications: simply mount the bracket without altering your sensor. Choose CMSH03 for the SNZB-03P / SNZB-03PR2 motion sensors or CMSH06 for the SNZB-06P / SNZB-06P24 presence sensors.
Note: the sensor is sold separately; pick the adapter version that matches your sensor (see "Works With" below).
Key Features
Recessed, near-flush ceiling finish that blends in like a recessed light
No bulky device and no exposed cables
Sensor keeps its full range of angle adjustment
Same reliable detection accuracy as a standard installation
Clean white design that fits various ceiling styles and interiors
Installs in minutes with no modifications to the sensor
Two versions: CMSH03 for SNZB-03P / SNZB-03PR2, CMSH06 for SNZB-06P / SNZB-06P24
Compact 87 × 66 × 24.5 mm, 34 g
Works With
CMSH03 – SONOFF motion sensors: SNZB-03P and SNZB-03PR2
CMSH06 – SONOFF human presence sensors: SNZB-06P and SNZB-06P24
Technical Specifications
Specification
Details
Product Type
Motion & Presence Sensor Recessed Ceiling-Mount Adapter
Model
CMSH03 / CMSH06
CMSH03 Compatibility
SNZB-03P, SNZB-03PR2
CMSH06 Compatibility
SNZB-06P, SNZB-06P24
Installation
Recessed ceiling mount
Color
White
Dimensions
87 × 66 × 24.5 mm
Net Weight
34 g
Why Choose the SONOFF CMSH03 / CMSH06?
A discreet, recessed look for SONOFF motion and presence sensors
Keeps aiming flexibility and detection accuracy
Fast installation without modifying the sensor
Warranty: 12-month warranty from the Official Distributor.

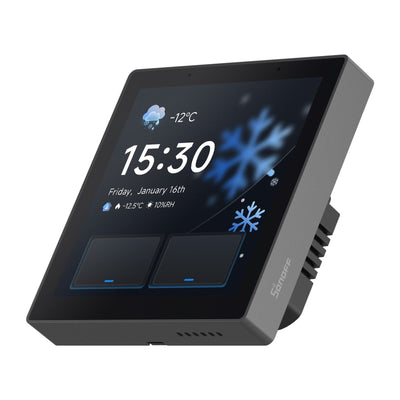

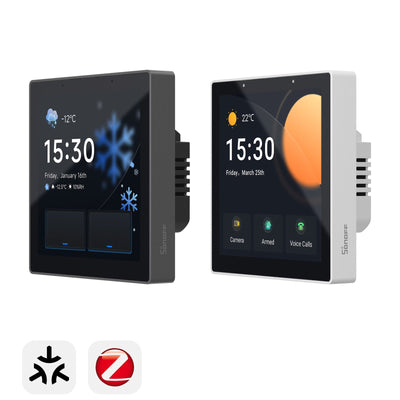

The SONOFF NSPanel Pro Gen2 (NSPanel86PB-Relay) is an 86-type in-wall smart home control panel in Dim Gray that combines a 3.95" touchscreen with an integrated 2-channel relay. It replaces a traditional 2-gang wall switch, fits standard back boxes and works with your existing wiring, so there is no rewiring cost.
A quad-core ARM Cortex-A35 processor with 2GB RAM and 32GB storage runs third-party apps smoothly, including the Home Assistant app installed via F-Droid without root. The built-in Zigbee 3.0 gateway (Silicon Labs EFR32MG24) and Matter bridge bring Zigbee and Wi-Fi devices to Apple Home, Google Home, Amazon Alexa and Home Assistant.
Note: for indoor installation in a standard wall back box by a qualified electrician, with a 10A MCB or RCBO upstream.
Key Features
Integrated 2-channel relay replaces a traditional 2-gang wall switch (max 5A per gang, 10A total)
3.95" 480 × 480 capacitive multi-touch screen with automatic brightness from the ambient light sensor
Built-in Zigbee 3.0 gateway (Silicon Labs EFR32MG24) connects sensors, switches and lights without extra hubs
Matter bridge brings Zigbee and Wi-Fi devices to Apple Home, Google Home, Amazon Alexa and Home Assistant
2GB RAM and 32GB storage run third-party apps, including the Home Assistant app via F-Droid, no root required
Voice control via Siri, Alexa or Google Home, with a 1.5W speaker and dual-array microphone
Dual-band Wi-Fi (2.4GHz & 5GHz) and a proximity sensor that wakes the screen as you approach
Smart thermostat and energy monitoring functions from one screen
Home security with 3 customizable arming modes, panel alarm and phone notifications
Supports SONOFF cameras, RTSP/ESP32 cameras and eWeLink cameras
Works With
Ecosystems: Apple Home, Google Home, Amazon Alexa and Home Assistant through the built-in Matter bridge; voice control with Siri, Alexa or Google Home
SONOFF Zigbee devices: sensors such as SNZB-02P, SNZB-03P, SNZB-04P and SNZB-06P, plus ZBMINIR2 switches
Cameras: SONOFF cameras, RTSP/ESP32 cameras and eWeLink cameras
Technical Specifications
Specification
Details
Model
NSPanel86PB-Relay
Color
Dim Gray
Product Series
NSPanel Pro Series
Screen
3.95" capacitive touch panel, 480 × 480, multi-touch
Processor
Quad-core ARM Cortex-A35 CPU, Mali G31-2EE GPU (RK3326-S SoC)
Memory
2GB RAM, 32GB storage
Wireless Protocol
Wi-Fi IEEE 802.11 b/g/n/ac/ax 2.4GHz & 5GHz, Zigbee 3.0
Rating
100–240V~ 50/60Hz, max 5A/gang, 10A total (resistive load)
LED Load
150W@240V/gang, 75W@100V/gang
Relay Channels
2
Audio
8Ω 1.5W speaker, dual-channel digital silicon microphones
Light Sensor
Automatic brightness adjustment based on ambient light
Dimensions
86 × 86 × 39.5 mm
Net Weight
190 g
Casing Material
PC+CRS
Operating Temperature
-10°C ~ 40°C
Operating Humidity
10% ~ 80% RH, non-condensing
Installation
Indoor, standard wall back box; by a qualified electrician with a 10A MCB or RCBO upstream
Certifications
CE, RoHS
Why Choose the SONOFF NSPanel Pro Gen2?
Replaces a 2-gang wall switch with a full smart home touchscreen – no rewiring
Zigbee gateway and Matter bridge built in – no extra hubs
32GB storage for Home Assistant and other third-party apps
Climate, energy, security and cameras on one screen
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.

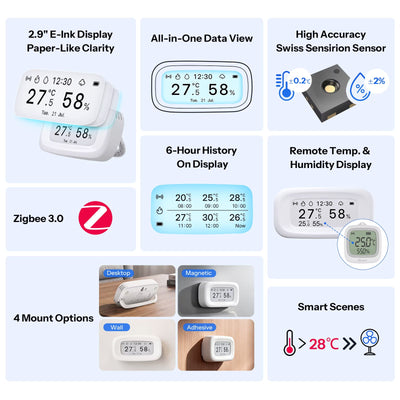

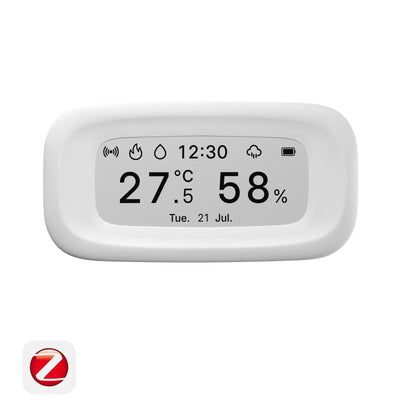

The SONOFF AirGuard E-Ink (SNZB-02UL) is a Zigbee temperature and humidity sensor from the SONOFF AirGuard Series with a 2.9-inch E-Ink display. Its nearly 180° viewing angle keeps readings clear even in bright places such as sunrooms and balconies.
Once paired, the screen shows temperature, humidity, time, date, weather and a comfort indicator. Press the button to see the last 6 hours of readings without a gateway or app, and view readings from other compatible sensors on the same screen. It runs on 2 AAA batteries for 8+ months with a gateway, or 15+ months standalone.
Note: time, date, weather, remote readings and app features need a SONOFF Zigbee gateway or Home Assistant (see "Works With" below).
Key Features
2.9" E-Ink display with a nearly 180° viewing angle, clear in bright light
Shows temperature, humidity, time, date, weather and a comfort indicator
6-hour data recall on the screen at the press of a button, no gateway or app needed
High accuracy: ±0.2°C / ±0.4°F and ±2% RH, with data refreshed every 5 seconds
Remote Temperature & Humidity Source: view readings from other rooms on one screen
Smart alerts and automations, including heating control based on real room temperature
6 months of environmental data in the app
2 × AAA batteries: 8+ months with a gateway, 15+ months standalone
4 placement options: desktop, built-in magnet, wall mounting or adhesive backing
Works with Alexa and Google voice assistants, Apple Home via a Matter bridge, Home Assistant and Zigbee2MQTT
Works With
SONOFF Zigbee gateways: Bridge Max, ZBBridge-P, ZBBridge-U, NSPanel Pro 120 and NSPanel Pro 86 (also iHost)
Home Assistant (ZHA / Zigbee2MQTT): ZBDongle-P or ZBDongle-E
Apple Home: through a Matter bridge such as Bridge Max
Technical Specifications
Specification
Details
Model
SNZB-02UL
Product Series
AirGuard Series
Product Name
Zigbee Temperature Humidity Sensor
Wireless Protocol
Zigbee (IEEE 802.15.4)
MCU
TLSR8258
Display
2.9" E-Ink
Power Input
3.0V ⎓ (2 × 1.5V LR03 AAA batteries)
Battery Life
8+ months with gateway, 15+ months standalone
Temperature Accuracy
±0.2°C / ±0.4°F
Humidity Accuracy
±2% RH
Working Temperature
0°C ~ 50°C
Working Humidity
5% ~ 95% RH, non-condensing
Application Environment
Indoor
Casing Material
PC
Color
White
Dimensions
99.1 × 51.1 × 18.6 mm
Net Weight
91.0 g (including batteries)
Certifications
CE, FCC, RoHS
Why Choose the SONOFF SNZB-02UL?
A paper-like E-Ink screen that stays readable in bright sunlight
Check the last 6 hours without opening an app
See the climate of several rooms on one screen
Long battery life on standard AAA batteries
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.

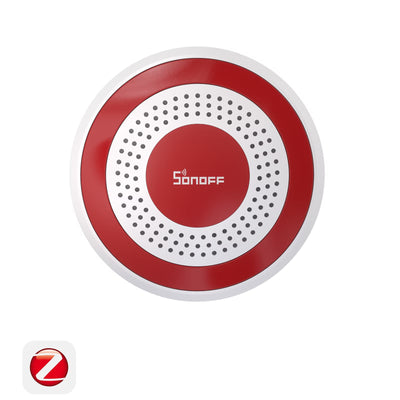

The SONOFF SenseGuard Indoor Siren (SNZB-09P) is a Zigbee 3.0 alarm siren that delivers powerful security alerts of up to 105 dB, combined with a red circular light strip on the front for flashing visual warnings. Choose sound only, light only, or synchronized sound and light alerts, with 10 built-in tones and 4 volume levels you can adjust anytime in the app.
It is powered through its USB Type-C 5V interface and has a built-in backup battery that keeps it running during power outages, for up to 300 days in silent mode, and recharges automatically when USB power is restored. Link it with Zigbee sensors and cameras to build an automated security system that detects, alerts and responds instantly.
Note: a Zigbee gateway is required (see "Works With" below).
Key Features
Loud alarm of up to 105 dB with 4 volume levels (75 / 82 / 93 / 105 dB at 1 m)
Flexible alert modes: sound only, light only, or synchronized sound and light
Red circular light strip on the front for flashing light alerts
10 built-in alarm tones to assign unique sounds to different areas or events
Dual power: USB Type-C 5V plus a built-in 600 mAh lithium backup battery
Up to 300 days of backup operation in silent mode; recharges automatically when USB power returns
Zigbee security automations with sensors and cameras
Home Assistant integration with the SONOFF Dongle series
Up to 100 m communication distance in open environments
Works With
SONOFF Zigbee gateways: ZBBridge-P, ZBBridge-U, Bridge Max, NSPanel Pro 120 and NSPanel Pro 86
Home Assistant (ZHA / Zigbee2MQTT): ZBDongle-P or ZBDongle-E
Technical Specifications
Specification
Details
Model
SNZB-09P
Product Name
SenseGuard Indoor Siren
Product Series
SenseGuard
Wireless Protocol
Zigbee 3.0 (IEEE 802.15.4)
MCU
TLSR8656
Power Input
5V ⎓ 1A (USB Type-C)
Backup Battery
Built-in 600 mAh lithium battery
Alarm Volume
Up to 105 dB (4 levels)
Alarm Tones
10 built-in tones
Alert Modes
Sound only, light only, sound and light
Communication Distance
Up to 100 m in open environments
Application Environment
Indoor
Operating Temperature
0°C ~ 45°C
Operating Humidity
0% ~ 90% RH, non-condensing
Casing Material
ABS
Color
White
Dimensions
81 × 81 × 35 mm
Net Weight
106 g
Certifications
CE, FCC, RoHS
Why Choose the SONOFF SNZB-09P?
Loud 105 dB alarm with flexible sound and light alerts
Keeps working during power outages thanks to the backup battery
10 tones help you tell which area or event triggered the alarm
Completes your Zigbee security system with sensors and cameras
Downloads⬇ Download User Manual (PDF)Warranty: 12-month warranty from the Official Distributor.

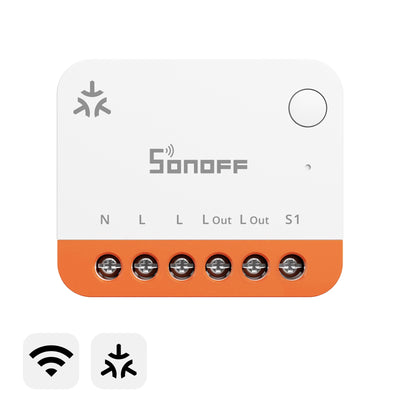

The SONOFF MINI ONE (MINI-1GS) is a compact Matter over Wi-Fi smart switch from the SONOFF MINI Extreme Series Gen5. Rated at 16A with a 3840W maximum resistive load, it can handle high-power loads such as storage water heaters and electric underfloor heating.
It works with Matter ecosystems including Apple Home, Amazon Alexa, Google Home, SmartThings and Home Assistant. You can also control it from a local web page in your browser with no app or cloud connection, or integrate it through its open API over HTTP (JSON-RPC 2.0), WebSocket and MQTT. It installs behind your existing wall switch, so you keep both manual and smart control.
Note: a neutral wire is required. Installation in a wall box with 60 mm depth is recommended.
Key Features
Matter over Wi-Fi: works with Apple Home, Amazon Alexa, Google Home, SmartThings and Home Assistant
16A / 3840W maximum resistive load for water heaters and underfloor heating
Local web control from any browser on your network, with no app or cloud required
Open API over HTTP (JSON-RPC 2.0), WebSocket and MQTT, with Home Assistant MQTT Discovery and OpenHAB integration
Built-in overheat protection that cuts power when the temperature gets too high
Keeps your existing wall switch, supporting toggle and momentary switches
Detach relay mode keeps smart lights powered even when the wall switch is turned off
Delayed power-on to limit high inrush current after a power outage
Voice control, timers, schedules and scenes
Compact 39.5 × 33 × 16.8 mm body fits EU round boxes and 86/120-type wall boxes
Technical Specifications
Specification
Details
Model
MINI-1GS
Product Name
MINI ONE (Matter over Wi-Fi version)
Product Series
MINI Extreme Series Gen5
Wireless Protocol
Wi-Fi IEEE 802.11 b/g/n 2.4GHz, Matter
Rating
16A 100–240V~ 50/60Hz (max. resistive load)
Max. Load
3840W
Max. Current
16A
Output
1 relay channel (two parallel L Out terminals)
Neutral Wire
Required
External Switch Types
Toggle and momentary
Local Control & API
Local web console; HTTP (JSON-RPC 2.0), WebSocket, MQTT
Recommended Wire Gauge
18–14 AWG (0.75–2.5 mm²), solid or stranded copper conductor only
Installation
Indoor concealed installation
Housing Material
PC
Color
White + Orange
Dimensions
39.5 × 33 × 16.8 mm
Net Weight
27.5 g
Operating Temperature
-10°C ~ 40°C
Operating Humidity
10% ~ 90% RH, non-condensing
FCC ID
2APN5-MINI1GSP
Certifications
CE, RoHS, FCC
Why Choose the SONOFF MINI-1GS?
Handles demanding 16A loads such as water heaters and underfloor heating
Matter support for cross-platform control in Apple Home, Alexa, Google Home, SmartThings and Home Assistant
Local web control and an open API for privacy and custom automation
Fits behind existing switches without replacing them
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.

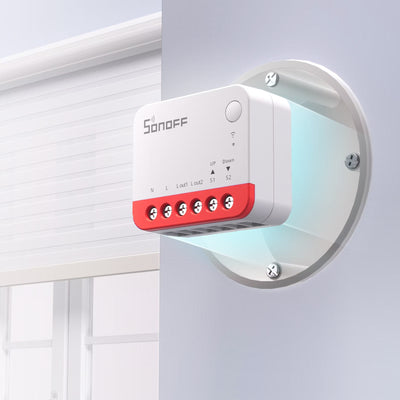

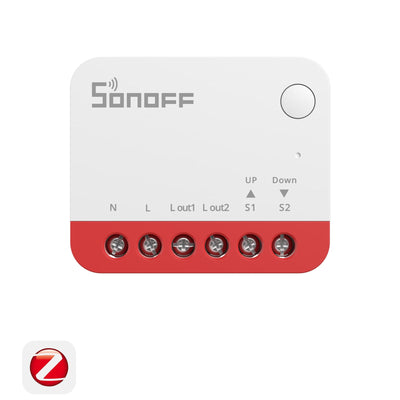

The SONOFF MINI-ZBRBS is a compact Zigbee 3.0 smart roller shutter switch that upgrades existing motorized shutters into smart ones without replacing the motor. Adjust the opening precisely by percentage, set schedules and create scenes from the eWeLink app or your Zigbee hub.
It fits small wall-mounted junction boxes, including European standard 60/80 boxes, and acts as a Zigbee router that extends your Zigbee network. Once configured via your Zigbee hub, scenes run locally, so they respond immediately even when the internet is offline.
Note: a Zigbee gateway is required (see "Works With" below).
Key Features
Precise percentage adjustment of roller blinds and curtains (0–100%)
Zigbee signal booster: acts as a Zigbee router to extend and strengthen your network
Zigbee local scenes that respond immediately even when the internet is offline
Travel calibration (automatic or manual) to reduce errors and extend the life of your curtains
Schedules and smart scenes for opening and closing
Works with your existing wall switches for manual control
Compatible with Home Assistant (Zigbee2MQTT), Alexa and Google Home through supported Zigbee hubs
Compact 39.5 × 33 × 16.8 mm module fits European standard 60/80 junction boxes
100–240V~ 50/60Hz with 1A max motor load
Works With
SONOFF Zigbee gateways: ZBBridge-P, ZBBridge-U, Bridge Max, NSPanel Pro 120 and NSPanel Pro 86
Home Assistant (ZHA / Zigbee2MQTT): ZBDongle-P or ZBDongle-E
Voice assistants: Amazon Alexa and Google Assistant through the eWeLink app
Technical Specifications
Specification
Details
Model
MINI-ZBRBS
Product Type
Smart Roller Shutter Switch
MCU
EFR32MG21
Rating
100–240V~, 50/60Hz, 1A max
Wireless Protocol
Zigbee 3.0
Position Control
0–100%
Color
White
Casing Material
PC
Application Environment
Indoor
Working Temperature
-10°C ~ 40°C
Working Humidity
5–95% RH, non-condensing
Dimensions
39.5 × 33 × 16.8 mm
Net Weight
25.1 g
Why Choose the SONOFF MINI-ZBRBS?
Upgrades existing electric shutters and curtains without replacing the motor
Local Zigbee scenes respond instantly, even when the internet is down
Strengthens your Zigbee network as a router device
Ideal for Home Assistant and advanced smart home automation
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.

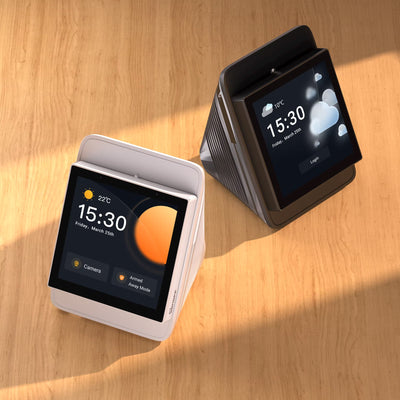

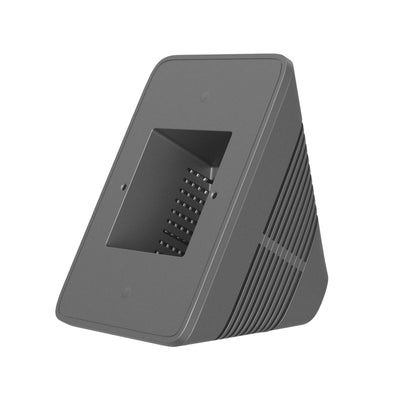

The SONOFF Desk Enclosure Stand turns your NSPanel Pro or NSPanel into a smart desktop controller. Instead of mounting the panel in a wall box, place it on a desk or table and control your smart home from where it suits you best.
The triangular mechanical structure keeps the panel stable and anti-tip, and the tool-free design means the stand is ready to use immediately. It is made of PC (V0) and comes in Dim Gray (StandB) or White (StandW).
Note: fits the NSPanel Pro and the NSPanel (EU and US versions); the panel is sold separately.
Key Features
Turns NSPanel Pro or NSPanel into a smart desktop controller
Fits NSPanel Pro, NSPanel EU and NSPanel US
Triangular mechanical structure: stable and anti-tip
Tool-free installation, ready to use immediately
PC housing with V0 rating
Two colours: Dim Gray (StandB) and White (StandW)
Compact 121 × 88.5 × 67.5 mm
Works With
SONOFF NSPanel Pro: NSPanel Pro (NSPanel Pro 86)
SONOFF NSPanel: NSPanel EU and NSPanel US
Technical Specifications
Specification
Details
Model
StandB (Dim Gray) / StandW (White)
Compatible Devices
NSPanel Pro, NSPanel EU, NSPanel US
Material
PC V0
Color
Dim Gray, White
Structure
Triangular, stable and anti-tip
Installation
Tool-free
Dimensions
121 × 88.5 × 67.5 mm
Why Choose the SONOFF Desk Enclosure Stand?
Use your NSPanel as a desktop smart home controller, no wall installation needed
Stable, anti-tip triangular design
Tool-free and ready to use immediately
Two colours to match your interior
Downloads
⬇ Download Quick Start Guide (PDF)
Warranty: 12-month warranty from the Official Distributor.

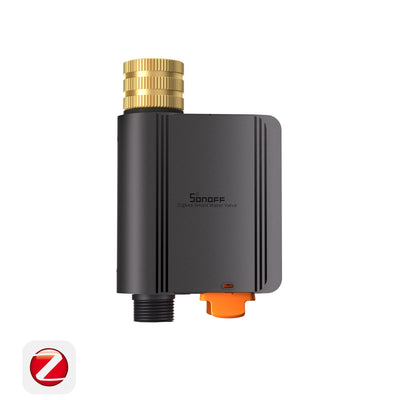

The SONOFF Hydro ONE (SWV-ZFE) is a Zigbee smart water valve with a built-in flow meter from the SONOFF Hydro Series. It automates watering of gardens, lawns, greenhouses and farms by duration or by water volume, with up to 6 schedules and cycle options such as odd/even days or set intervals.
It supports Zigbee 3.0 and Bluetooth Low Energy (BLE) proximity communication: connect it to a Zigbee gateway or coordinator for Home Assistant and other smart home systems, while essential irrigation control and settings stay available locally within range even if the gateway goes offline. Weather-based rules, seasonal adjustment and instant alerts help you save water and protect your plants.
Note: a Zigbee gateway or coordinator is required for remote control and smart home integration (see "Works With" below). The EU and US versions have different inlet/outlet thread specifications and are not interchangeable.
Key Features
Built-in flow meter (2–45 L/min) for watering by duration or by volume
Up to 6 schedules with odd/even-day and interval cycle options
Weather-based rules skip watering in special weather conditions
Seasonal adjustment optimises watering duration and volume year-round
Instant alerts for low battery, water shortage, leakage and frost
Built-in child lock against accidental operation
Daily, monthly and half-yearly records of water volume and irrigation duration, downloadable
Zigbee 3.0 plus BLE proximity control when the gateway is offline
Upgraded brass inlet for corrosion resistance and strength under pressure and sun
IP55 outdoor design, powered by 4 × AA batteries
Works With
Home Assistant and Zigbee2MQTT: through a Zigbee coordinator such as ZBDongle-P or ZBDongle-E
Zigbee 3.0 gateways: connect it to a Zigbee gateway for remote control, alerts and automations in your smart home system
Technical Specifications
Specification
Details
Model
SWV-ZFE (EU version)
Product Name
Hydro ONE
Product Series
Hydro Series
MCU
TLSR8656
Wireless Protocol
Zigbee 3.0 / BLE (Bluetooth Low Energy)
Power Input
6V ⎓ (4 × 1.5V AA batteries)
Flow Meter Range
2–45 L/min
Working Water Pressure
0.06–0.8 MPa
Irrigation Schedules
Up to 6
Water Inlet
Brass
Waterproof Rating
IP55
Dimensions
152 × 100 × 46 mm
Casing Material
PC+ABS
Working Temperature
5°C ~ 60°C
Working Water Temperature
5°C ~ 40°C
Working Humidity
5% ~ 95% RH, non-condensing
Communication Distance
Up to 130 m (open area)
Why Choose the SONOFF Hydro ONE?
Measures real water consumption with a built-in flow meter
Flexible schedules with weather-based skipping save water
Alerts for leaks, frost, low battery and water shortage
Keeps essential control available locally even when the gateway is offline
Durable brass inlet and IP55 design for outdoor use
Downloads⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.

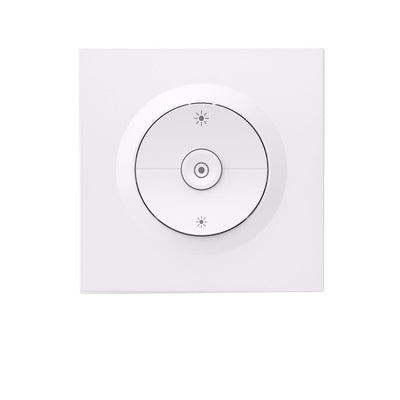

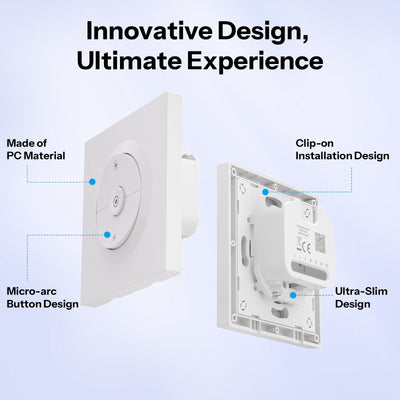

The SONOFF Fusion Series Dimmer Switch Enclosure (EDIM) turns a SONOFF MINI-DIM or MINI-ZBDIM smart dimmer module into a neat wall-mounted dimmer switch. Its clip-on installation simplifies wiring, locks the housing securely and reduces installation time.
The ultra-slim design needs only 21 mm of depth inside the wall box and fits standard 86-type and European round (Ø60 mm) mounting boxes. The white housing is made of fireproof, scratch-resistant PC that stays durable without deforming over time, and the micro-arc button follows the natural pressing angle for effortless tactile feedback.
Note: designed for the SONOFF MINI-DIM and MINI-ZBDIM dimmer modules, which are sold separately (see "Works With" below).
Key Features
Designed for SONOFF MINI-DIM and MINI-ZBDIM smart dimmer modules
Clip-on installation that simplifies wiring and locks the housing securely
Ultra-slim: only 21 mm depth inside the wall box
Fits standard 86-type and European round (Ø60 mm) mounting boxes
Fireproof, scratch-resistant PC that does not deform over time
Micro-arc button design for effortless tactile feedback
Clean white 86 × 86 mm wall-switch finish
Works With
SONOFF dimmer modules: MINI-DIM (Wi-Fi) and MINI-ZBDIM (Zigbee)
Wall boxes: standard 86-type and European round (Ø60 mm) mounting boxes
Technical Specifications
Specification
Details
Model
EDIM
Product Type
Fusion Series dimmer switch enclosure
Compatible Products
MINI-DIM, MINI-ZBDIM
Casing Material
PC (fireproof, scratch-resistant)
Installation
Clip-on
Depth Inside Wall Box
21 mm
Mounting Box
Standard 86-type; European round Ø60 mm
Color
White
Dimensions
86 × 86 × 34 mm
Net Weight
32.6 g
Why Choose the SONOFF EDIM?
Gives MINI-DIM and MINI-ZBDIM installations a finished wall-switch look
Slim enough for shallow wall boxes
Faster, tidier installation with the clip-on design
Durable, fire-resistant PC housing
Downloads
⬇ Download Operation Guide (PDF)
Warranty: 12-month warranty from the Official Distributor.
The SONOFF Zigbee 3.0 USB Dongle Plus (ZBDongle-E) is a USB Zigbee coordinator built on the EFR32MG21 chipset. It comes pre-flashed with Zigbee coordinator firmware based on EZNet 6.10.3, so it is ready to use out of the box with Home Assistant, Zigbee2MQTT, openHAB and other open-source smart home platforms.
Its +20dBm output gain and external antenna deliver strong, stable coverage, and the shielded aluminum housing minimizes electromagnetic interference from surrounding devices. With the SONOFF Dongle Flasher web tool or add-on you can flash other firmware and switch the dongle to another device type in about one minute.
Note: ZBDongle-E supports Zigbee Green Power devices. To add Hue Zigbee Green Power devices, set the dongle's Zigbee channel to 11, 15, 20 or 25.
Key Features
Pre-flashed Zigbee 3.0 coordinator firmware (EZNet 6.10.3), ready out of the box
EFR32MG21 chipset (ARM Cortex-M33) for reliable Zigbee network coordination
Works with Home Assistant, Zigbee2MQTT, openHAB and more
+20dBm output gain for wider, more stable coverage
External antenna for a stronger wireless signal
Shielded aluminum housing minimizes electromagnetic interference
Switch firmware in about 1 minute with the Dongle Flasher web tool or add-on (for example Zigbee router or Thread RCP)
Local control of your Zigbee devices without cloud dependency
Supports Zigbee Green Power devices
Works With
Platforms: Home Assistant, Zigbee2MQTT, openHAB and other open-source platforms
Zigbee 3.0 devices: SONOFF Zigbee sensors, switches and plugs such as SNZB-02P, SNZB-03P, SNZB-04P, ZBMINIR2 and S60ZBTPF
Technical Specifications
Specification
Details
Model
ZBDongle-E
Product Name
Zigbee 3.0 USB Dongle Plus
Wireless Protocol
Zigbee 3.0
Chipset
EFR32MG21 (ARM Cortex-M33)
Firmware
Zigbee coordinator firmware based on EZNet 6.10.3 (pre-flashed)
Output Power
Up to +20dBm
Power Input
DC 5V (100mA max)
Operating Temperature
-10°C ~ 40°C
Shell Material
Aluminum alloy
Dimensions
75 × 25.5 × 13.5 mm
Why Choose the SONOFF ZBDongle-E?
Ready-to-use Zigbee coordinator for Home Assistant, Zigbee2MQTT and openHAB
Strong +20dBm signal in an interference-shielded aluminum body
Flexible: re-flash to other device types in about a minute
Green Power support for compatible Zigbee devices
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.

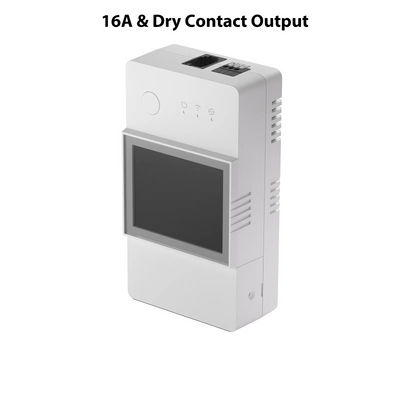

The SONOFF TH Elite THR316D is a smart Wi-Fi temperature and humidity monitoring switch with a built-in LCD screen and a 16A maximum load. Connect a compatible SONOFF sensor and it switches heaters, fans, humidifiers, pumps and other appliances on or off automatically according to temperature, humidity and time, while the screen shows real-time readings that update every 5 seconds.
A dry contact output (5-30V, 1A max) lets it control boilers, HVAC systems, industrial relays and other non-voltage input equipment. The app keeps 6 months of hourly temperature and humidity history, viewable by hour, day or month and exportable as .xlsx files, and you can create up to 8 automation programs and use voice control with Amazon Alexa and Google Assistant.
Note: compatible sensors (THS01, WTS01, MS01) are sold separately. THS01 and WTS01 plug directly into the RJ9 jack; MS01 comes with a free RJ9 adapter. A 2.4 GHz Wi-Fi network is required.
Key Features
16A maximum load (100-240V AC)
Dry contact output (5-30V, 1A max) for boilers, HVAC systems, industrial relays and other non-voltage input equipment
Built-in LCD screen with real-time temperature and humidity, updated every 5 seconds
6 months of temperature and humidity history, viewable by hour, day or month and exportable as .xlsx
Up to 8 automation programs based on temperature, humidity and time settings for energy saving
Voice control and real-time temperature and humidity queries with Amazon Alexa and Google Assistant
Supports THS01, WTS01 (DS18B20) and MS01 sensors
Extend the sensor distance with the RL560 cable: up to 60 m for WTS01 and THS01, up to 10 m for MS01
DIN rail mounting and flame-retardant PC V0 casing
Works With
Sensors: THS01 temperature & humidity sensor, WTS01 waterproof temperature sensor and MS01 soil moisture sensor
Extension cable: RL560 RJ9 sensor extension cable
Voice assistants: Amazon Alexa and Google Assistant
Technical Specifications
Specification
Details
Model
THR316D
Product Name
TH Elite Smart Temperature and Humidity Monitoring Switch
MCU
ESP32
Input/Output
100-240V~ 50/60Hz, 16A Max
Dry Contact
5-30V, 1A Max
Wireless Protocol
Wi-Fi IEEE 802.11 b/g/n 2.4 GHz
Security Mode
WPA/WPA2
Display
LCD
Supported Sensors
THS01, DS18B20 (WTS01), MS01
Sensor Interface
RJ9 (4P4C)
Operating Temperature
-10°C ~ 40°C (14°F ~ 104°F)
Operating Humidity
5% ~ 95% RH, non-condensing
Casing Material
PC V0
Installation
DIN rail mounting
Dimensions
98 × 54 × 31 mm
Certifications
TUV, CE, UKCA, WWA, FCC, RoHS, SRRC
App
eWeLink
Why Choose the SONOFF THR316D?
See temperature and humidity at a glance on the built-in LCD
Relay switching and dry contact control in one device
Ideal for greenhouses, farms, aquariums, wine cellars and server rooms
Exportable history and up to 8 programs for energy-saving automation
Downloads⬇ Download User Manual (PDF)Warranty: 12-month warranty from the Official Distributor.

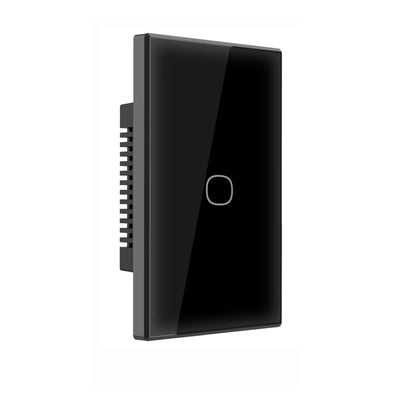

The SONOFF TX Gen2 Smart Touch Wall Switch (T6) is a Matter-compatible Wi-Fi touch switch with a glass panel for 120-type wall boxes, available in 1, 2 and 3 gang versions. This listing is the Black edition (T6-1C/2C/3C-120MB).
Through Matter it works with Apple Home, Google Home, Amazon Alexa and other Matter platforms, including Siri, iPhone, iPad and Apple Watch. Each gang switches up to 10A (16A total on the 2- and 3-gang models). Detach Relay Mode keeps smart bulbs online, and the adjustable LED night locator makes the switch easy to find in the dark.
Note: a neutral wire and a 2.4GHz Wi-Fi network are required.
Key Features
Matter over Wi-Fi: works with Apple Home, Google Home, Amazon Alexa and other Matter platforms
Apple ecosystem control with Siri, iPhone, iPad and Apple Watch
Glass touch panel in 1, 2 and 3 gang versions for 120-type wall boxes
Up to 10A per gang and 16A total (resistive load)
Detach Relay Mode: the buttons are separated from the relay, so smart lights stay online and controllable
Night switch locator: LED indicator with adjustable brightness
Smart scenes across the SONOFF and Matter ecosystems
Remote control, timers and schedules in the eWeLink app
Technical Specifications
Specification
Details
Model
T6-1C-120MB, T6-2C-120MB, T6-3C-120MB
Product Name
TX Gen2 Smart Touch Wall Switch
Product Series
TX Series
Wall Box Type
120 Type
Wireless Protocol
Wi-Fi IEEE 802.11 b/g/n 2.4GHz, Matter
MCU
BK7238
Rating
1-Gang: 100-240V~ 50/60Hz, 10A max; 2-Gang: 10A max/gang, 16A total; 3-Gang: 10A max/gang, 16A total (resistive load)
LED Load
1-Gang: 150W@100V, 300W@240V; 2-Gang: 150W@100V / 300W@240V per gang, total 300W@100V / 600W@240V; 3-Gang: 150W@100V / 300W@240V per gang, total 450W@100V / 900W@240V
Neutral Wire
Required
Recommended Wiring
16AWG to 11AWG solid/stranded copper conductor only
Casing Material
PC + Glass
Color
Black
Dimensions
120 × 74 × 37.7 mm
Net Weight
1-Gang: 133.3 g; 2-Gang: 140.7 g; 3-Gang: 149.5 g
Operating Temperature
-10°C ~ 40°C
Operating Humidity
5% ~ 95% RH, non-condensing
Why Choose the SONOFF T6-120MB?
Cross-platform control through Matter
Detach Relay Mode for smart bulbs
Elegant glass panel with an adjustable night locator
Up to 16A total on the 2- and 3-gang models
Downloads⬇ Download User Manual (PDF)Warranty: 12-month warranty from the Official Distributor.

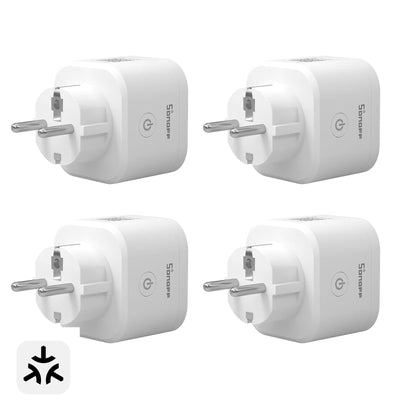

The SONOFF iPlug Gen2 S61s (S61STPF) 4 Pack includes four Matter over Wi-Fi smart plugs for EU Type F sockets. Each plug handles up to 16A / 3840W and monitors voltage, current, power, runtime and energy use in real time. Set your electricity rate to get detailed consumption and cost reports that help you optimize energy habits and reduce expenses.
With Matter support, the plugs integrate with Apple Home, Home Assistant, Alexa and Google Home for cross-platform automation. Create schedules or condition-based scenes, control them from the app or by voice, or choose the 4 Pack + Wireless Remote option to control a single plug or the whole group with a wireless remote.
Key Features
Pack of 4 × S61STPF smart plugs, optionally bundled with a wireless remote
Matter over Wi-Fi: works with Apple Home, Home Assistant, Alexa and Google Home
16A max, up to 3840W load per plug (100-240V~ 50/60Hz)
Real-time monitoring of voltage, current, power, runtime and energy
Custom electricity rate with detailed consumption and cost reports
Measurement accuracy: voltage ±1%, current ±2%, power ±3.5% (≥100W)
Overload and overcharge protection
V-0 flame-retardant housing prevents overheating and deformation
Schedules and condition-based scenes
Standby power consumption below 0.5W
Technical Specifications
Specification
Details
Model
S61STPF
Product Name
S61s (iPlug Gen2)
Package
4 Pack: 4 × S61STPF; 4 Pack + Wireless Remote: 4 × S61STPF + 1 × wireless remote
Plug Type
EU (Type F)
Wireless Protocol
Matter over Wi-Fi, IEEE 802.11 b/g/n 2.4GHz
MCU
BK7238
Rating
100-240V~ 50/60Hz, 16A max
Max Load
3840W
Standby Power Consumption
<0.5W
Measurement Accuracy
Voltage ±1%; Current ±2%; Power ±3.5% @ ≥100W, ±3.5W @ <100W
Casing Material
PC (V-0 flame-retardant)
Color
White
Working Temperature
-10°C ~ 40°C
Working Humidity
5% ~ 95% RH, non-condensing
Dimensions
56 × 50 × 84 mm
Net Weight
86 g (per plug)
What's in the Box
4 × S61STPF smart plug
1 × wireless remote (4 Pack + Wireless Remote option only)
Why Choose the SONOFF S61STPF?
Four plugs to automate several appliances in one purchase
Matter support for cross-platform, future-proof control
Detailed energy and cost reports to cut electricity bills
Built-in overload and overcharge protection with flame-retardant housing
Optional wireless remote for one-touch group control
Downloads⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.

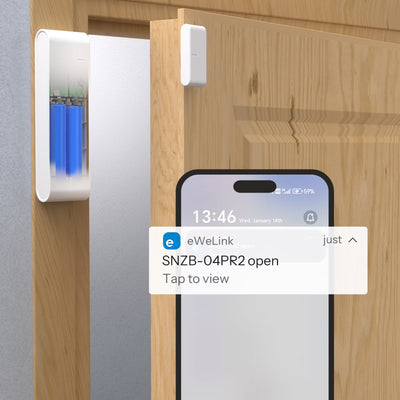

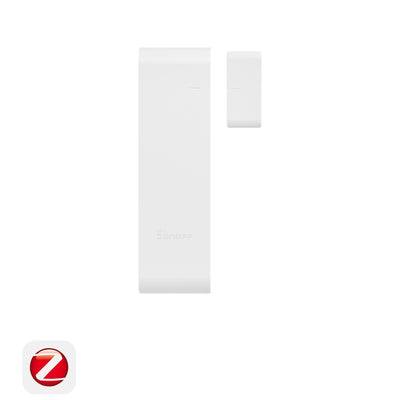

The SONOFF SenseGuard DW Gen2 (SNZB-04PR2) is a second-generation Zigbee door and window sensor from the SONOFF SenseGuard series. It detects when doors and windows open or close, sends instant alerts through the eWeLink app, and works as a key trigger for smart scenes such as starting camera recording, sounding gateway alarms or preparing your climate devices for a comfortable, energy-efficient home.
Built-in tamper detection sends an alert if the sensor is forcibly removed or damaged. The slim 45.1 g design supports both horizontal and vertical mounting to suit wide gaps, narrow frames and uneven door or window structures, and it runs on standard AAA batteries for up to 3 years.
Note: a Zigbee gateway is required (see "Works With" below).
Key Features
Tamper detection with instant app alerts if the sensor is removed or damaged
Triggers smart scenes such as gateway sound alarms and camera recording
Links with climate control devices for a comfortable, energy-efficient home
Slim, discreet design weighing only 45.1 g (including batteries)
Horizontal and vertical mounting for wide gaps, narrow frames and uneven structures
Powered by 2 × standard AAA batteries for easy, low-cost replacement
Up to 3 years of battery life
Detection distance up to 30 mm (horizontal installation)
Suitable for doors, windows, cabinets, drawers, safes and refrigerators
Works with Home Assistant through Zigbee2MQTT (ZHA currently needs a script)
Works With
SONOFF Zigbee gateways: ZBBridge-P, ZBBridge-U, Bridge Max, NSPanel Pro 120 and NSPanel Pro 86
Home Assistant (Zigbee2MQTT; ZHA via script): ZBDongle-P or ZBDongle-E
Technical Specifications
Specification
Details
Model
SNZB-04PR2
Product Name
SenseGuard DW Gen2
Product Series
SenseGuard
Wireless Protocol
Zigbee (IEEE 802.15.4)
MCU
TLSR8656F512ET32
Power Input
3V ⎓ (2 × AAA LR03 batteries)
Battery Life
Up to 3 years
Detection Distance
Up to 30 mm (horizontal installation)
Operating Temperature
-10°C ~ 60°C
Operating Humidity
5% ~ 95% RH, non-condensing
Casing Material
PC
Dimensions
Sensor: 90 × 26 × 13.5 mm; Magnet: 31 × 14 × 6.5 mm
Net Weight
45.1 g (including batteries)
Why Choose the SONOFF SNZB-04PR2?
Improved second-generation design with flexible installation options
Standard AAA batteries keep maintenance simple and affordable
Tamper detection protects against unauthorized removal
Reliable local Zigbee communication that does not depend on Wi-Fi
Works with Home Assistant and Zigbee2MQTT
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.

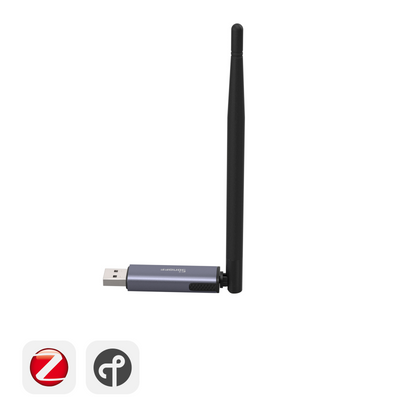

The SONOFF Dongle Plus MG24 (Dongle-PMG24) is a Zigbee/Thread USB dongle powered by the advanced EFR32MG24 chip, with richer resources and higher performance for faster automation processing and stable sub-device control. It works with Home Assistant, Zigbee2MQTT, openHAB and other open-source platforms.
Its default 3dBi antenna gain is optimized up to 4.5dBi for stronger signal and wider coverage, with a range of up to 200 m in free line of sight. Flash different firmware with the SONOFF Dongle Flasher web tool or Home Assistant add-on to switch roles in about a minute, and use the included USB extension cable to minimize interference.
Note: the dongle needs a host computer running an open-source platform such as Home Assistant, Zigbee2MQTT or openHAB.
Key Features
EFR32MG24 Zigbee SoC with 1536KB flash and 256KB RAM
Zigbee 3.0 (IEEE 802.15.4) and Thread support
Default 3dBi antenna gain, optimized up to 4.5dBi for wider coverage
Up to 200 m signal range in free line of sight
Works with Home Assistant, Zigbee2MQTT, openHAB and other open-source platforms
Runs as a Zigbee coordinator, Zigbee router, OpenThread RCP or MultiPAN RCP
Easy firmware flashing with the SONOFF Dongle Flasher web tool or add-on; switch device type in about 1 minute
USB extension cable included to minimize Zigbee interference
Low 40 mW stand-by power consumption
Works With
Open-source platforms: Home Assistant (ZHA), Zigbee2MQTT and openHAB
Zigbee devices: SNZB-03P motion sensor, SNZB-04P door/window sensor, SNZB-06P presence sensor, SNZB-02D temperature & humidity sensor, ZBMINIR2 smart switch and S60ZBTPF smart plug, plus other Zigbee 3.0 devices supported by your platform
Technical Specifications
Specification
Details
Model
Dongle-PMG24
Product Name
Dongle Plus MG24
Zigbee SoC
EFR32MG24
Flash / RAM
1536KB / 256KB
USB Chip
CP2102N
Input
5V ⎓ 500mA
Stand-by Power Consumption
40 mW
Signal Range
200 m in free line of sight
Signal Strength
Max 20dBi + antenna gain 3dBi
RF Frequency
2.4 GHz
RF Standard
IEEE 802.15.4 / Zigbee 3.0
Firmware Roles
Zigbee Coordinator, Zigbee Router, OpenThread RCP, MultiPAN RCP
Working Temperature
-10°C ~ 60°C
Working Humidity
5% ~ 95% RH
Supported OS
Windows, Ubuntu, Raspberry Pi OS / Raspbian, Docker
Dimensions
10 × 18 × 214 mm
What's in the Box
1 × Dongle-PMG24 USB dongle
1 × USB extension cable (1 m)
Why Choose the SONOFF Dongle-PMG24?
Latest-generation MG24 chip with more resources for large networks
Stronger antenna gain and up to 200 m range
Zigbee and Thread in one dongle with flexible firmware roles
Fully local control with Home Assistant or Zigbee2MQTT
Downloads
⬇ Download Quick Start Guide (PDF)
Warranty: 12-month warranty from the Official Distributor.
The SONOFF Dongle Lite MG21 (Dongle-LMG21) is a compact Zigbee/Thread USB dongle built on the proven EFR32MG21 chip, trusted by millions of users for reliable, stable performance. It works as a Zigbee coordinator for Home Assistant, Zigbee2MQTT, openHAB and other open-source platforms, for local control of your Zigbee devices.
It is 65% smaller than the ZBDongle-E, so it fits more easily into different USB ports. The SONOFF Dongle Flasher tool lets you switch firmware to run it as a Zigbee router, OpenThread RCP or MultiPAN RCP, and the included USB extension cable lets you place it away from USB 3.0 interference.
Note: the dongle needs a host computer running an open-source platform such as Home Assistant, Zigbee2MQTT or openHAB.
Key Features
Proven EFR32MG21 Zigbee SoC, Zigbee 3.0 / IEEE 802.15.4
65% smaller than the ZBDongle-E for a better fit in crowded USB ports
Works with Home Assistant, Zigbee2MQTT, openHAB and other open-source platforms
Easy firmware flashing with the SONOFF Dongle Flasher tool
Runs as a Zigbee coordinator, Zigbee router, OpenThread RCP or MultiPAN RCP
USB extension cable included for flexible placement and less interference from USB 3.0 ports
Up to 135 m signal range in open line of sight
CP2102(N) USB-serial chip; supports Windows, Ubuntu, Raspberry Pi OS and Docker
Works With
Open-source platforms: Home Assistant (ZHA), Zigbee2MQTT and openHAB
Zigbee devices: SNZB-03P motion sensor, SNZB-04P door/window sensor, SNZB-06P presence sensor, SNZB-02D temperature & humidity sensor, ZBMINIR2 smart switch and S60ZBTPF smart plug, plus other Zigbee 3.0 devices supported by your platform
Technical Specifications
Specification
Details
Model
Dongle-LMG21
Zigbee SoC
EFR32MG21
Zigbee
IEEE 802.15.4 (Zigbee 3.0)
USB-Serial Chip
CP2102(N)
Input
5V ⎓ 500mA
RF Frequency
2.4GHz
Signal Strength
Max 20dBi + 2dBi antenna gain
Signal Range
Up to 135 m in open line of sight
Standby Power
60 mW
Firmware Roles
Zigbee Coordinator, Zigbee Router, OpenThread RCP, MultiPAN RCP
Supported OS
Windows, Ubuntu, Raspberry Pi OS / Raspbian, Docker
Working Temperature
-10°C ~ 60°C
Working Humidity
5% ~ 95% RH
Casing Material
Aluminum, PC+ABS
Color
Dim gray
Dimensions
18.6 × 10.1 × 133 mm
What's in the Box
1 × Dongle-LMG21 USB dongle
1 × USB extension cable (0.5 m)
Why Choose the SONOFF Dongle-LMG21?
A proven chip trusted by millions of users
Very compact size that fits next to other USB devices
Flexible firmware options for Zigbee and Thread
Fully local Zigbee control with your own smart home server
Downloads
⬇ Download Quick Start Guide (PDF)
Warranty: 12-month warranty from the Official Distributor.
The SONOFF Orb Socket (WS01TPF-E) is a Matter over Wi-Fi smart wall socket from the SONOFF Fusion series for EU Type F plugs. It replaces a standard wall outlet and handles up to 16A / 4000W (100-250V~), so you can control and monitor high-power appliances directly at the wall.
It tracks power consumption with intuitive visual charts and history, calculates electricity costs from your own rate, and automatically cuts power when current, voltage or wattage exceed preset safety thresholds. Built on Matter, it works with Alexa, Apple Home and Google Home for a more open, unified smart home.
Key Features
Matter over Wi-Fi: works with Alexa, Apple Home and Google Home
In-wall EU Type F smart socket, 16A max, up to 4000W load
Real-time energy monitoring with visual charts and history
One-tap reset of energy data when you replace an appliance
Electricity cost tracking with your own rate
Overload protection on current, voltage and wattage thresholds
Overcharge protection powers off once devices are fully charged
Remote app control, voice control and schedules
Fire-resistant PC housing, standby power consumption below 1W
Technical Specifications
Specification
Details
Model
WS01TPF-E
Product Name
Orb Socket (Type F)
Product Series
Fusion series
Socket Type
EU wall socket (Type F)
Wireless Protocol
Matter over Wi-Fi, IEEE 802.11 b/g/n 2.4GHz
Rating
100-250V~ 50/60Hz, 16A max
Max Load
4000W
Standby Power Consumption
<1W
Casing Material
PC
Working Temperature
-10°C ~ 40°C
Working Humidity
5% ~ 95% RH, non-condensing
Dimensions
86 × 86 × 42.5 mm
Certifications
CE, RoHS
Why Choose the SONOFF WS01TPF-E?
Turns a standard wall outlet into a smart, energy-monitoring socket
Handles high-power appliances up to 4000W
See your energy costs at a glance and reduce power bills
Open Matter ecosystem support across Alexa, Apple Home and Google Home
Downloads⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
Upgrade your home with smart home automation solutions designed for greater comfort, convenience, security, and energy efficiency. Discover smart switches, sensors, controllers, lighting solutions, and connected devices that let you automate and control your home with ease. Shop reliable smart home products in Jordan with a 24-month warranty.
