Description

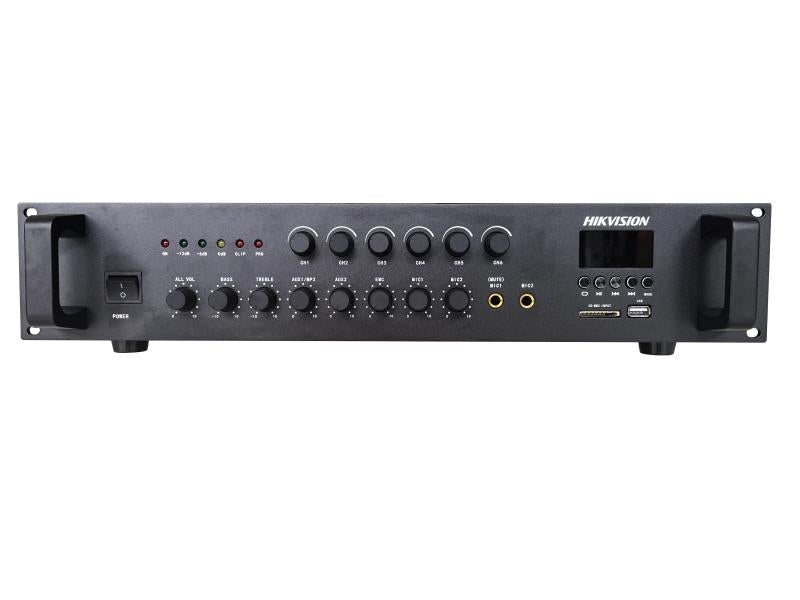

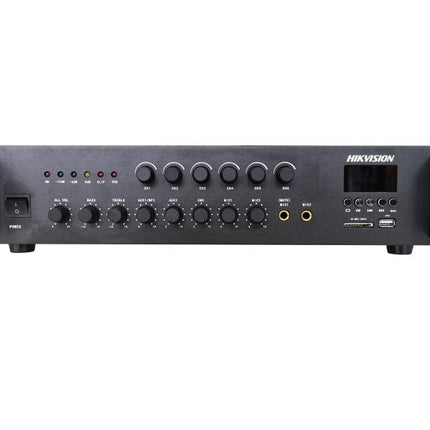

The Hikvision DS-QAE0A120G1-VB6 is a professional 120W analog public address amplifier designed for background music, voice announcements, and audio distribution across commercial, educational, and industrial facilities.
Featuring six independently adjustable speaker zones, the amplifier allows convenient volume management across different areas. It supports constant-voltage and constant-impedance speaker connections, providing flexible installation options for professional public address systems.
The amplifier includes Bluetooth, USB, SD card playback, two microphone inputs, two AUX inputs, and a dedicated emergency audio input (EMC). Its priority announcement function ensures that important microphone and emergency messages can override regular audio sources.
With adjustable bass and treble, advanced protection circuits, forced-air cooling, and durable metal construction, the amplifier is suitable for schools, shopping malls, offices, restaurants, warehouses, and factories in Jordan.
Key Features
120W rated audio output power
Six independently adjustable speaker zones
70V and 110V constant-voltage speaker outputs
4–16Ω constant-impedance speaker output
Bluetooth wireless audio playback
USB audio playback support
SD card audio playback support
Two microphone inputs
Two AUX audio inputs
Dedicated emergency audio input (EMC)
Priority broadcasting for MIC 1 and EMC
Automatic attenuation of background audio during priority announcements
Independent microphone and AUX volume adjustment
Six individual speaker-zone volume controls
Master volume adjustment
Adjustable bass and treble
Line output for amplifier cascading
Built-in MP3 playback module
Power and signal status indicators
Short-circuit protection
Overheating and overload protection
Output limiting to help protect connected speakers
Built-in cooling fan for extended operation
Durable metal housing
Suitable for professional commercial PA installations
Technical Specifications
|
Specification
|
Details
|
|
Product Type
|
Analog PA Amplifier
|
|
Rated Output Power
|
120W
|
|
Speaker Zones
|
6
|
|
Constant-Voltage Outputs
|
70V / 110V
|
|
Zone Outputs
|
6 × 110V
|
|
Constant-Impedance Output
|
4–16Ω
|
|
Audio Sources
|
Bluetooth / USB / SD / MIC / AUX / EMC
|
|
Microphone Inputs
|
2
|
|
AUX Inputs
|
2
|
|
Emergency Audio Input
|
1 × EMC
|
|
USB Interface
|
USB 2.0
|
|
SD Card Playback
|
Supported
|
|
Line Output
|
1
|
|
Volume Controls
|
6 Zones / MIC / AUX / Master
|
|
Tone Adjustment
|
Bass / Treble
|
|
Microphone Input Sensitivity
|
-40dB
|
|
AUX Input Sensitivity
|
-10dB
|
|
EMC Input Sensitivity
|
-10dB
|
|
Line Output Level
|
0dB
|
|
Frequency Response
|
80Hz–18kHz (±3dB)
|
|
Signal-to-Noise Ratio
|
≥83dB
|
|
Total Harmonic Distortion
|
≤0.5%
|
|
Cooling System
|
Built-in Fan
|
|
Protection
|
Short Circuit / Overheating / Overload
|
|
Power Supply
|
200–230V AC, 50/60Hz
|
|
Housing Material
|
Metal
|
|
Installation
|
Cabinet Mounting
|
|
Dimensions
|
484 × 88 × 360 mm
|
|
Weight
|
Approx. 9.2kg
|
|
Operating Temperature
|
-10°C to +40°C
|
|
Color
|
Black
|
|
Model
|
DS-QAE0A120G1-VB6
|
Why Choose Hikvision DS-QAE0A120G1-VB6?
The Hikvision DS-QAE0A120G1-VB6 provides reliable audio amplification and flexible sound distribution for facilities requiring multiple independently controlled speaker zones.
Its 120W rated output and six-zone volume management make it ideal for schools, commercial buildings, shopping malls, restaurants, and industrial facilities.
The combination of Bluetooth, USB, SD card, microphone, and AUX inputs offers convenient audio playback, while the priority emergency broadcasting function helps ensure that important announcements are heard.
Advanced protection circuits, automatic output limiting, and forced-air cooling further enhance reliability during extended operation.
