Description

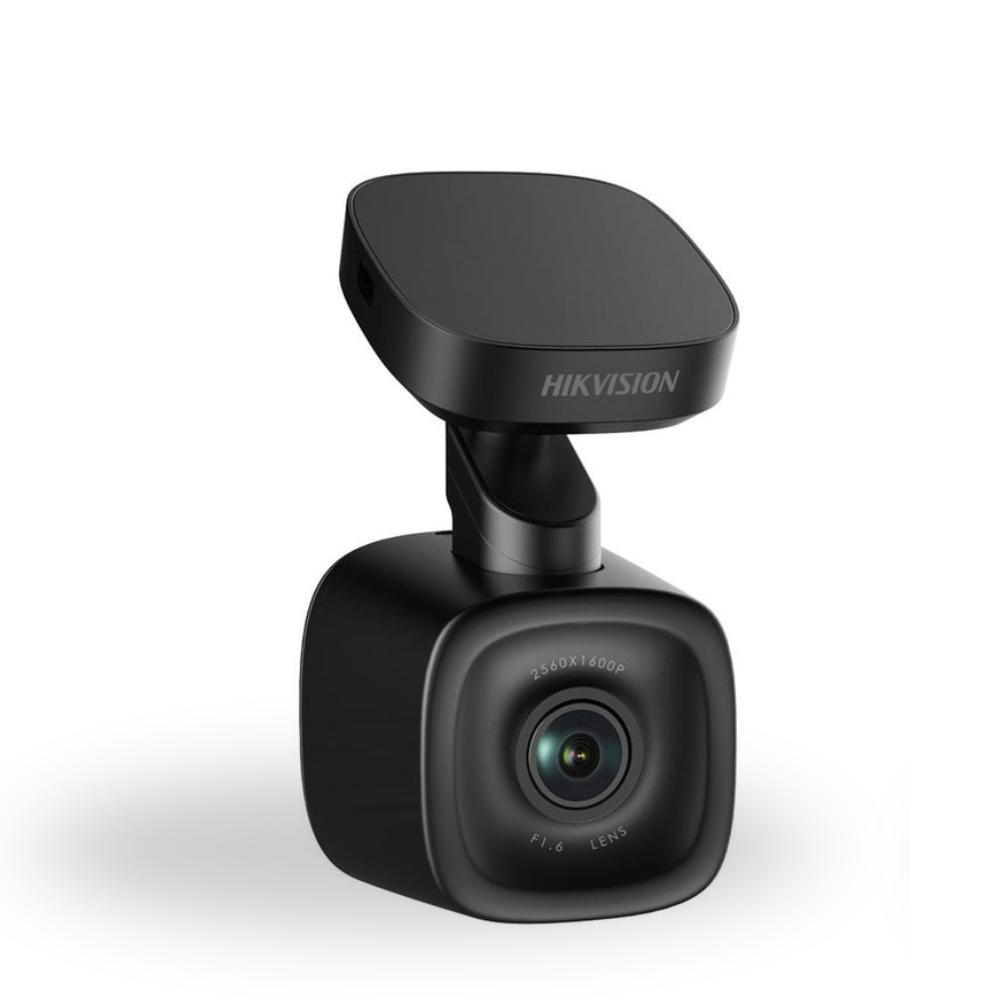

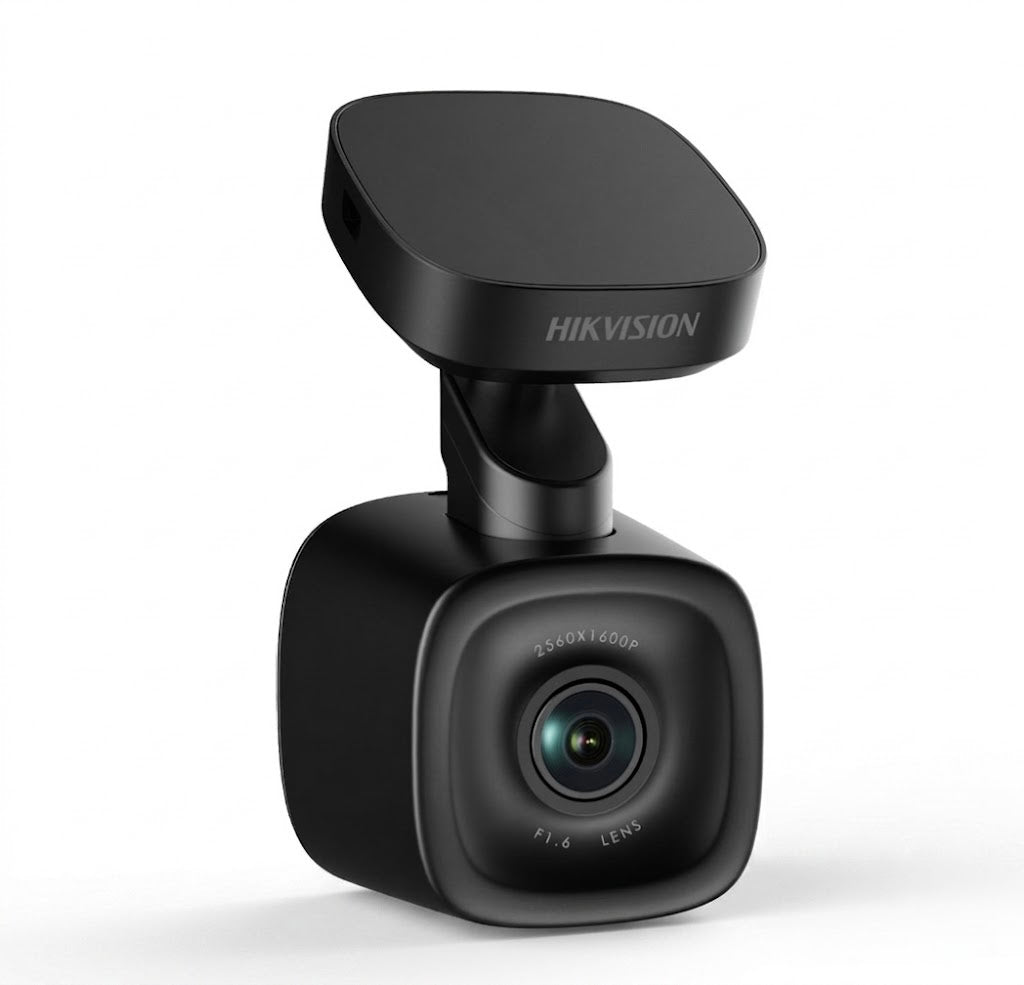

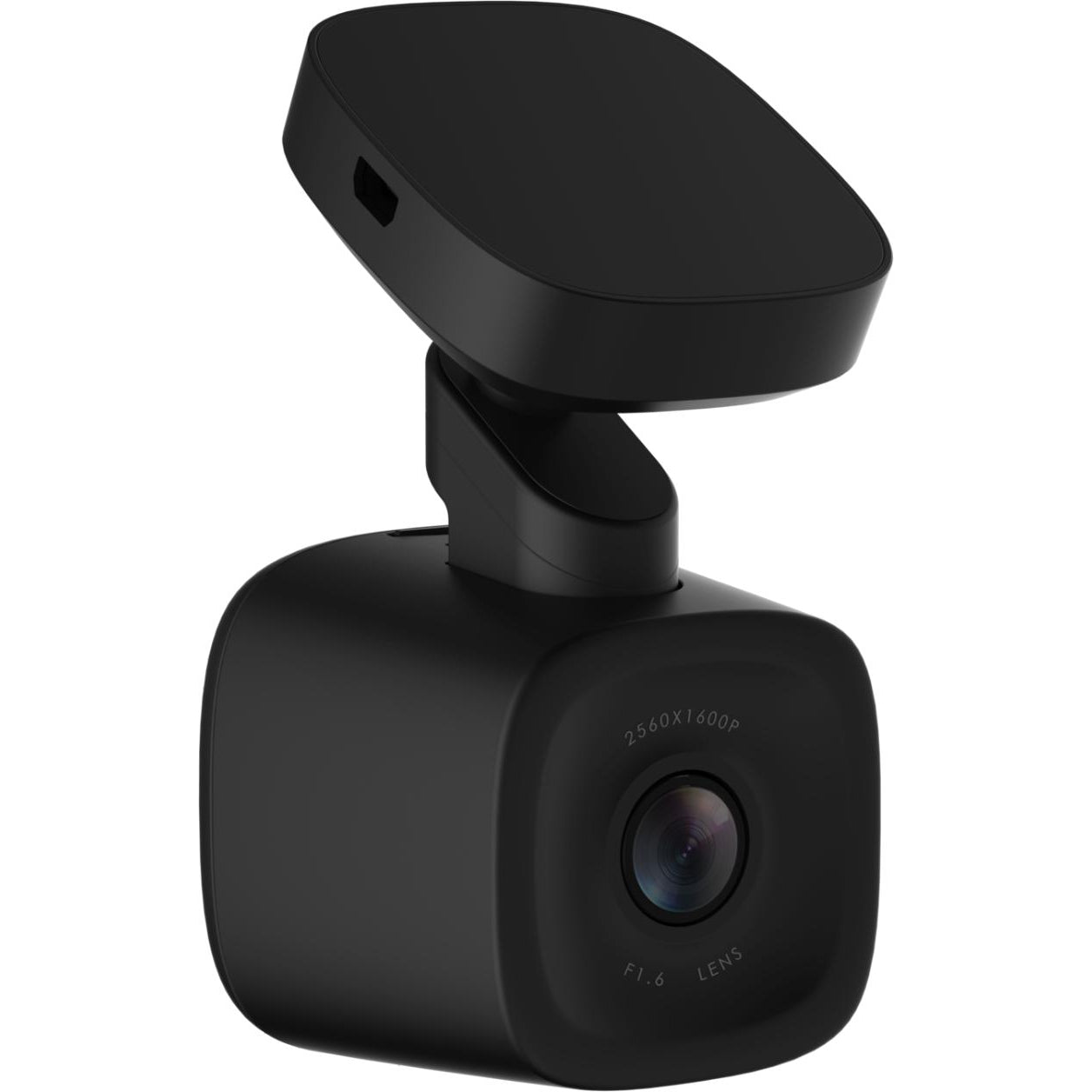

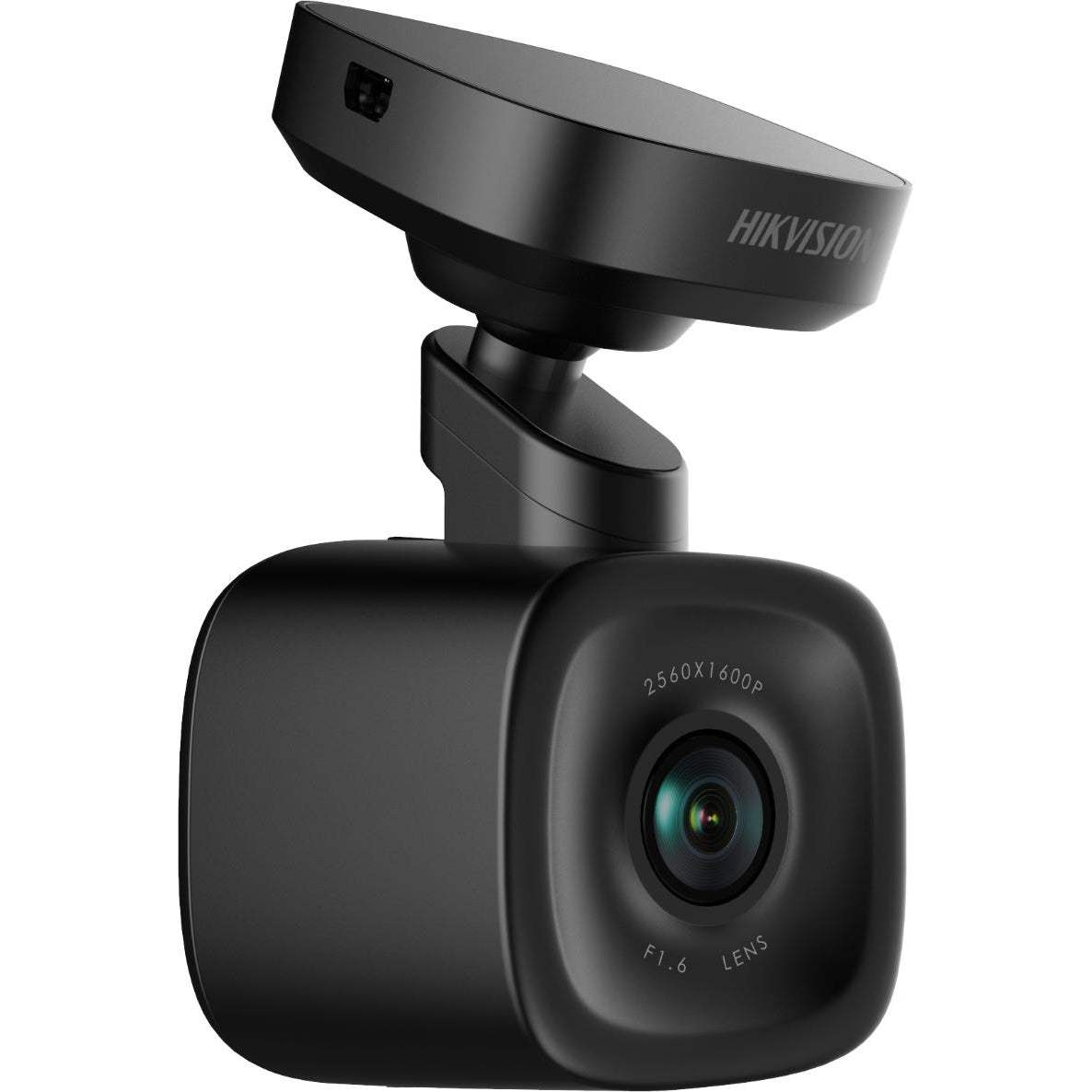

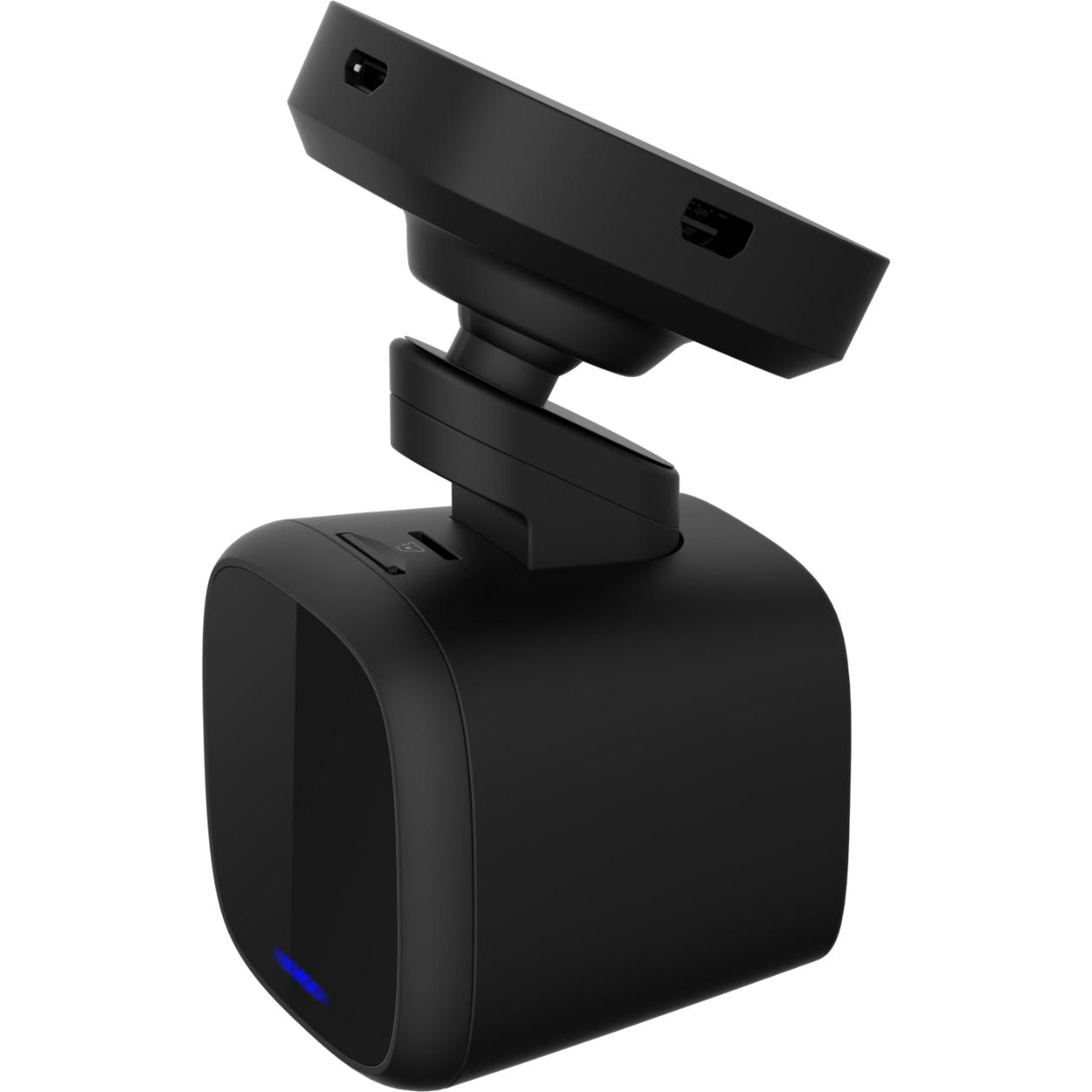

The Hikvision F6 / F6 Pro Dash Camera (AE-DC5013) records in up to 1600P at 30 fps with an OV-05A20 image sensor and a 130° wide-angle lens with an F1.6 super large aperture for clear night images. It comes in two versions: F6 (AE-DC5013-F6) and F6 Pro (AE-DC5013-F6PRO), which adds built-in GPS.
ADAS alerts tell you when the traffic light turns green, recognise speed limits and remind you when the car in front starts moving. Voice commands take a snapshot or switch recording on and off, the G-sensor starts a linked recording on a crash or strong vibration, and the built-in Wi-Fi connects the camera to your phone for live view, playback and settings.
Note: choose the F6 or F6 Pro (GPS) version above. A microSD (TF) card of up to 128 GB is needed for recording.

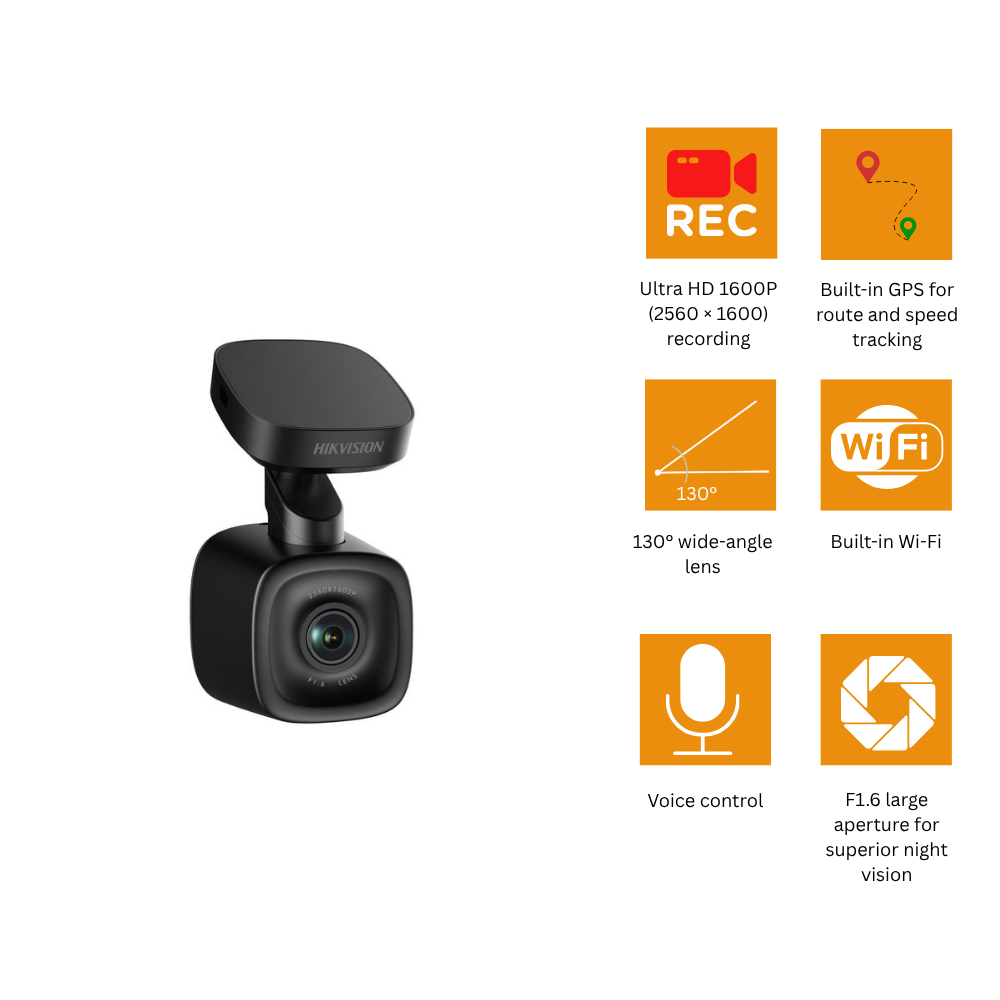

Key Features
- Up to 1600P at 30 fps (1440P and 1080P also available)
- 130° wide-angle lens with F1.6 super large aperture for night images
- Lens angle adjustable upward by up to 30°
- ADAS: traffic light turns green, speed limit recognition, front car start reminder
- Voice commands: snapshot, recording on, recording off
- Built-in GPS on the F6 Pro version (AE-DC5013-F6PRO)
- Built-in 2.4 GHz Wi-Fi with Wi-Fi AP for live view, playback and settings in the app
- Built-in G-sensor: linked recording on crash or strong vibration, which can be protected from overwriting
- Loop recording on a microSD (TF) card up to 128 GB
- Plug and play: starts recording automatically when powered on
Works With
-
HikDashcam mobile app: connect to the camera over Wi-Fi for live view, record playback and parameter configuration
Technical Specifications
| Specification |
Details |
| Model |
AE-DC5013-F6 / AE-DC5013-F6PRO (store options 5013-F6 / 5013-F6PRO) |
| Image Sensor |
OV-05A20 |
| Resolution |
1600P, 1440P or 1080P @ 30/25 fps |
| Lens |
G+P, F1.6 aperture |
| Field of View |
130° (D), 109° (H) |
| Angle Adjustment |
Up to 30° upward |
| Video Compression |
H.265 |
| Storage |
microSD (TF) card, up to 128 GB, loop overwrite |
| Wi-Fi |
Built-in, 2.4 GHz (2412–2472 MHz), Wi-Fi AP |
| GPS |
F6: No; F6 Pro: Yes |
| ADAS |
Yes |
| Speech Recognition |
Yes |
| Audio |
Built-in microphone and speaker |
| G-Sensor |
Yes |
| Power-off Memory |
Yes |
| Power Supply |
5 V DC, 2 A (3.5 W) |
| Power Interface |
Micro USB |
| Operating Temperature |
-20°C ~ 70°C (-4°F ~ 158°F) |
| Operating Humidity |
95% max. |

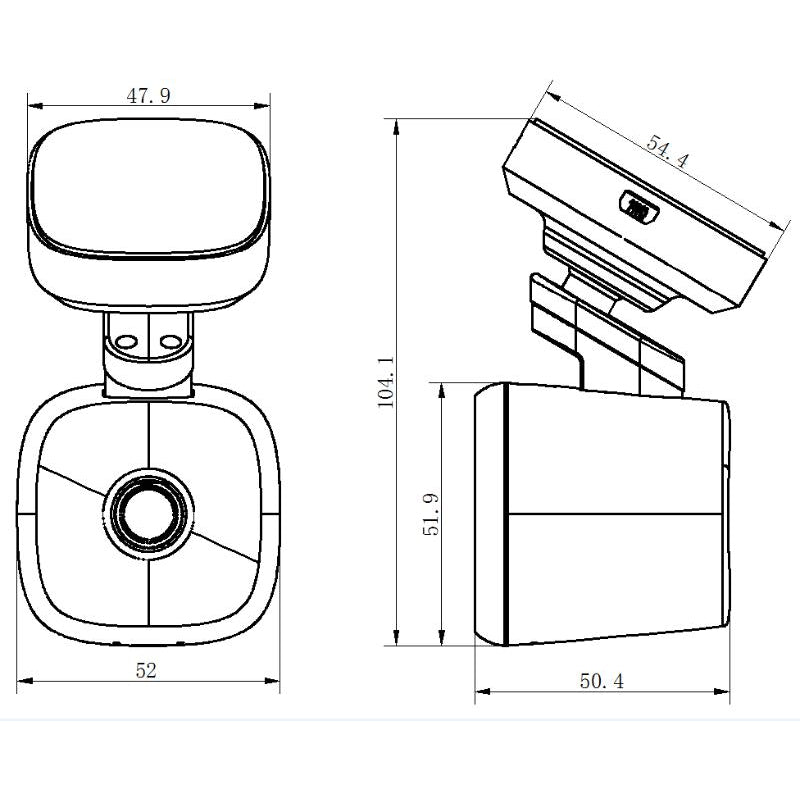

| Dimensions |
52 × 50.4 × 51.9 mm |
| Weight |
120 g |
Why Choose the Hikvision AE-DC5013?
- High 1600P resolution with a wide 130° view
- ADAS alerts and hands-free voice commands for safer driving
- F6 Pro version adds GPS for speed and route records
- Compact body of only 120 g
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
