Description

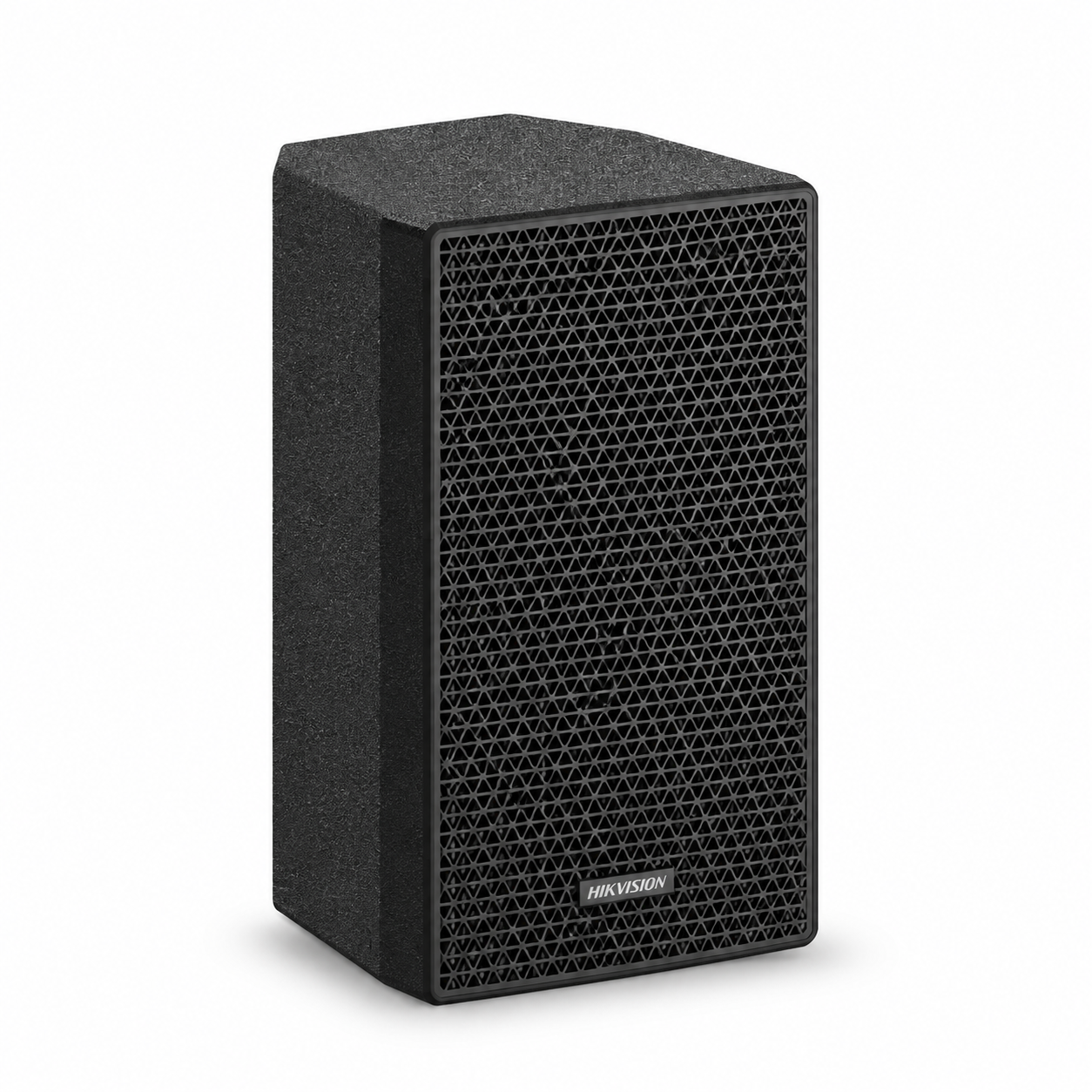

The Hikvision DS-QAPS1R20-8 is a professional 200W 8-Inch Full-Range Speaker designed to deliver powerful, clear, and balanced audio for commercial and professional sound reinforcement applications.
Featuring an 8-inch woofer and a 1-inch tweeter, the speaker utilizes a two-way acoustic configuration to reproduce low, mid, and high frequencies, providing detailed speech reproduction and dynamic music playback.
With a rated power of 200W, 8Ω impedance, and a maximum sound pressure level of 118dB (126dB peak), the speaker delivers high-output audio performance suitable for conference halls, auditoriums, hotels, event venues, educational institutions, and commercial facilities.
The speaker offers a wide frequency response of 76Hz to 20kHz (-10dB) and a directional coverage angle of 80° horizontal × 50° vertical, allowing controlled sound distribution across the intended listening area.
Constructed from multi-layer solid wood plywood with a durable matte-black textured finish, the DS-QAPS1R20-8 combines acoustic performance with robust construction.
Its versatile installation options, including vertical suspension, horizontal suspension, and bottom support, provide flexibility for different professional audio installations.
Key Features
-
Professional 200W Full-Range Speaker
-
8-inch woofer for low-frequency reproduction
-
1-inch tweeter for high-frequency clarity
-
Two-way acoustic speaker configuration
-
Rated power: 200W
-
8Ω nominal impedance
-
High sensitivity: 96dB @ 2.83V/1m
-
Maximum sound pressure level: 118dB
-
Peak sound pressure level: 126dB
-
Wide frequency response: 76Hz–20kHz (-10dB)
-
Horizontal coverage angle: 80°
-
Vertical coverage angle: 50°
-
Designed for speech and music reproduction
-
Durable multi-layer solid wood plywood enclosure
-
Matte-black textured finish
-
Supports vertical suspension
-
Supports horizontal suspension
-
Supports bottom-supported installation
-
Suitable for professional sound reinforcement systems
-
Compatible with appropriately rated professional audio amplifiers
-
Suitable for commercial and institutional audio installations
Technical Specifications
| Specification |
Details |
| Product Type |
Professional Full-Range Speaker |
| Speaker Configuration |
Two-Way |
| Rated Power |
200W |
| Woofer |
1 × 8-inch |
| Tweeter |
1 × 1-inch |
| Nominal Impedance |
8Ω |
| Sensitivity |
96dB @ 2.83V/1m |
| Maximum SPL |
118dB |
| Peak SPL |
126dB |
| Frequency Response |
76Hz–20kHz (-10dB) |
| Horizontal Coverage |
80° |
| Vertical Coverage |
50° |
| Enclosure Material |
Multi-Layer Solid Wood Plywood |
| Finish |
Matte Black Textured Paint |
| Dimensions (H × W × D) |
450 × 275 × 270mm |
| Weight |
Approx. 12kg
|
| Installation |
Vertical Hanging / Horizontal Hanging / Bottom Support |
| Operating Temperature |
-30°C to +60°C |
| Operating Humidity |
Up to 95%, Non-Condensing
|
| Included Items |
Speaker, User Manual, Certificate, Warranty Card |
| Model |
DS-QAPS1R20-8 |
Why Choose Hikvision DS-QAPS1R20-8?
The DS-QAPS1R20-8 delivers professional audio performance in a compact yet powerful 8-inch speaker design, making it an excellent choice for commercial sound systems and professional installations.
Its 200W rated power, 118dB maximum SPL, and two-way speaker configuration provide clear speech reproduction and dynamic music performance for a variety of indoor venues.
The 80° × 50° directional coverage helps focus sound toward the audience, while the durable wooden enclosure supports consistent acoustic performance.
With flexible vertical, horizontal, and bottom-supported mounting options, the speaker can be integrated into a wide range of professional audio installations.
