Description

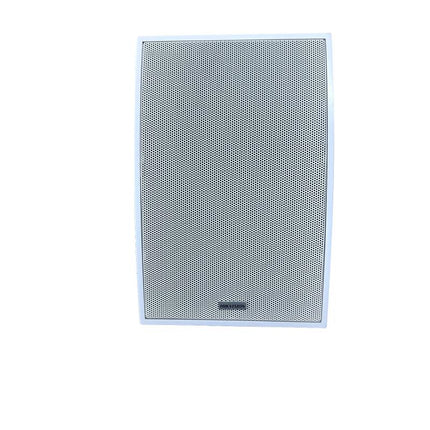

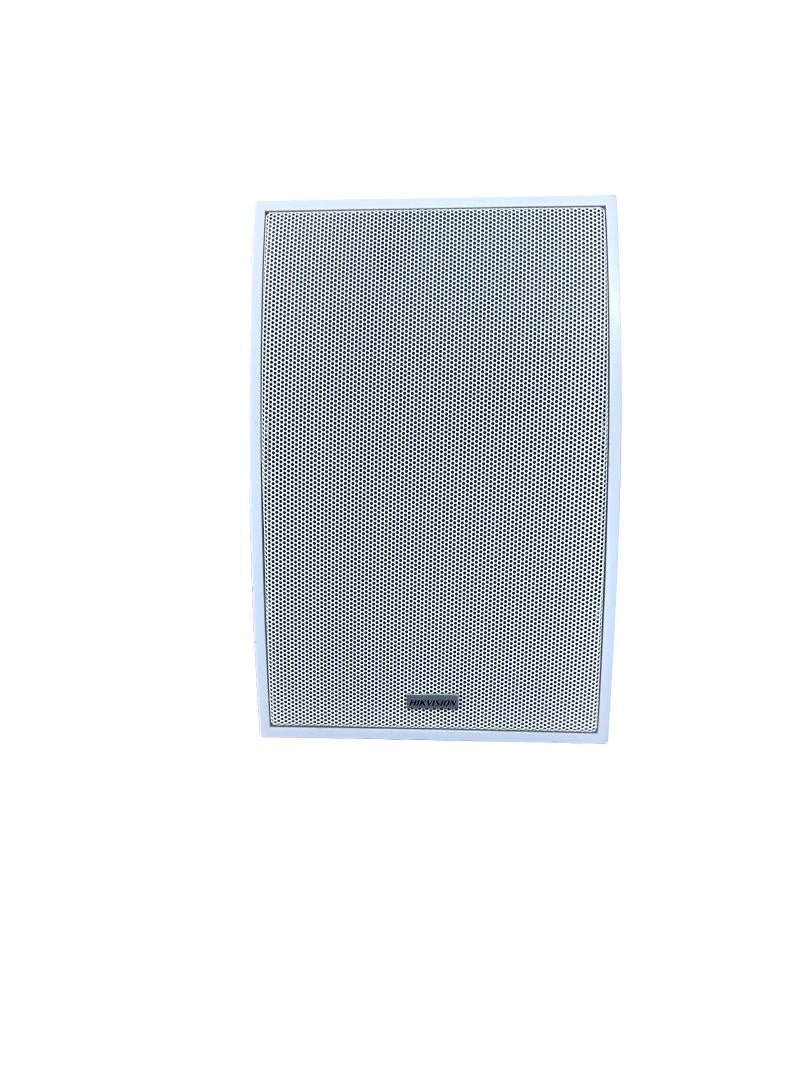

The Hikvision DS-QAE0120G1E-V is a 20W analog cabinet speaker designed for professional public address, voice announcement, and background music systems.
Operating on a 100V constant-voltage audio system, the speaker supports selectable 10W / 20W power, providing flexibility when designing distributed audio systems and calculating amplifier load.
It features a 4-inch full-frequency speaker with a dedicated tweeter, delivering a wide 80 Hz to 20 kHz frequency response. With 92 dB ±3 dB sensitivity and a maximum sound pressure level of 108 dB, it provides powerful and clear reproduction for both speech and background music.
Key Features
-
20W Analog Cabinet Speaker
-
Designed for 100V Line audio systems
-
Selectable power: 10W / 20W
-
8Ω speaker impedance
-
4-inch full-frequency speaker
-
Dedicated Tweeter
-
Sensitivity: 92 dB ±3 dB
-
Maximum SPL: 108 dB
-
Wide frequency response: 80 Hz–20 kHz
-
Suitable for voice announcements and paging
-
Suitable for background music
-
Designed for distributed public address systems
-
Metal and plastic construction
-
Compact cabinet design
-
Ideal for shops, offices, restaurants, schools, hotels, and commercial buildings
Technical Specifications
| Specification |
Details |
| Product Type |
Analog Cabinet Speaker |
| Audio System |
100V Constant Voltage |
| Rated Power |
10W / 20W |
| Maximum Rated Power |
20W |
| Impedance |
8Ω |
| Speaker Unit |
4″ Full Frequency × 1 + Tweeter |
| Sensitivity |
92 dB ±3 dB @ 1W/1m |
| Maximum SPL |
108 dB |
| Frequency Response |
80 Hz–20 kHz |
| Audio Input |
Rated Voltage 100V
|
| Material |
Metal and Plastic |
| Dimensions |
172 × 260 × 113 mm |
| Weight |
Approx. 1385 g
|
| Operating Temperature |
-10°C to 50°C |
| Operating Humidity |
<90%, Non-Condensing |
| Model |
DS-QAE0120G1E-V |
Why Choose Hikvision DS-QAE0120G1E-V?
The DS-QAE0120G1E-V is an excellent choice for indoor public address systems requiring both powerful voice reproduction and quality background music.
Its 4-inch full-frequency speaker combined with a dedicated tweeter provides a wide 80Hz–20kHz frequency range, allowing it to reproduce both speech and music clearly.
The selectable 10W / 20W output also provides flexibility when designing a 100V distributed audio system, allowing installers to balance sound coverage and total amplifier load according to the requirements of each area.
