Description

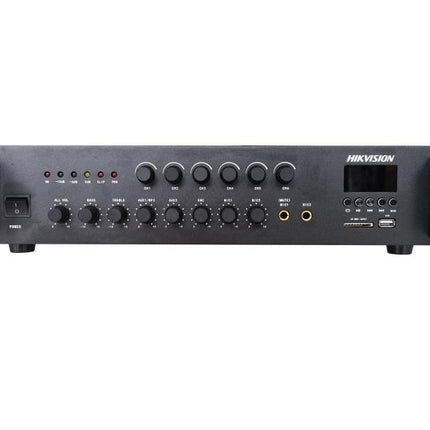

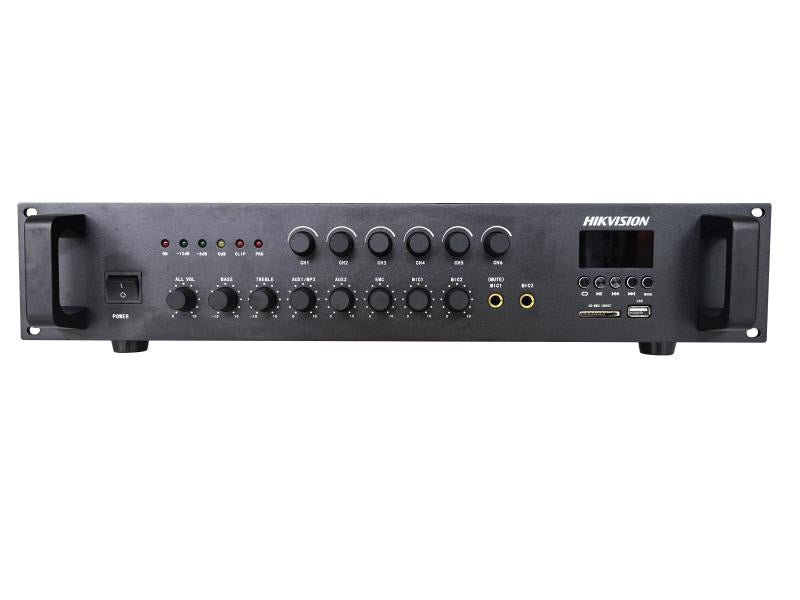

The Hikvision DS-QAE0A240G1-VB6 is a professional 240W analog public address amplifier designed for background music, voice announcements, and reliable audio distribution in commercial, educational, and industrial environments.
Featuring six independently adjustable speaker zones, the amplifier allows convenient sound management across different areas of a building. It supports 70V and 110V constant-voltage speaker outputs, along with 4–16Ω constant-impedance connections, providing flexible installation options for professional PA systems.
The amplifier supports multiple audio sources, including Bluetooth, USB, SD card, two microphone inputs, two AUX inputs, and a dedicated emergency audio input (EMC). Its priority broadcasting function allows important announcements to override regular background audio.
With adjustable bass and treble controls, advanced electrical protection, and durable metal construction, the DS-QAE0A240G1-VB6 is suitable for schools, offices, shopping malls, restaurants, warehouses, factories, and commercial facilities in Jordan.
Key Features
240W rated audio output power
Six independently adjustable speaker zones
70V and 110V constant-voltage speaker outputs
4–16Ω constant-impedance speaker output
Bluetooth wireless audio playback
USB 2.0 audio playback support
SD card audio playback support
Two microphone inputs for live announcements
Two AUX inputs for external audio sources
Dedicated emergency audio input (EMC)
Priority broadcasting for MIC 1 and EMC
Automatic attenuation of background audio during priority announcements
Independent microphone volume controls
Six individual speaker-zone volume controls
Master volume adjustment
Adjustable bass and treble controls
Independent AUX and media playback volume adjustment
Line output for connecting additional amplifiers
Built-in Bluetooth and MP3 playback module
Power and audio signal indicators
Short-circuit protection
Overheating and overload protection
Output limiting to protect connected speakers
Durable iron housing with black finish
Cabinet-mountable installation design
Suitable for professional commercial PA systems
Technical Specifications
|
Specification
|
Details
|
|
Product Type
|
Analog PA Amplifier
|
|
Rated Output Power
|
240W
|
|
Speaker Zones
|
6
|
|
Constant-Voltage Outputs
|
70V / 110V COM
|
|
Zone Outputs
|
6 × 110V COM
|
|
Constant-Impedance Output
|
4–16Ω COM
|
|
Audio Sources
|
Bluetooth / USB / SD / MIC / AUX / EMC
|
|
Microphone Inputs
|
2 × 6.5mm
|
|
AUX Inputs
|
2
|
|
Emergency Audio Input
|
1 × EMC
|
|
Bluetooth
|
Supported
|
|
USB Interface
|
USB 2.0
|
|
SD Card Playback
|
Supported
|
|
Line Output
|
1
|
|
Speaker-Zone Volume Controls
|
6
|
|
Microphone Volume Controls
|
2
|
|
AUX Volume Controls
|
AUX1/MP3 / AUX2
|
|
Emergency Input Volume Control
|
Supported
|
|
Master Volume Control
|
Supported
|
|
Tone Controls
|
Bass / Treble
|
|
Microphone Input Sensitivity
|
-40dB
|
|
AUX Input Sensitivity
|
-10dB
|
|
EMC Input Sensitivity
|
-10dB
|
|
Line Output Level
|
0dB
|
|
Frequency Response
|
80Hz–18kHz (±3dB)
|
|
Signal-to-Noise Ratio
|
≥75dB
|
|
Total Harmonic Distortion
|
≤0.5%
|
|
Protection
|
Short Circuit / Overheating / Overload
|
|
Power Supply
|
200–230V AC, 50/60Hz, 7A
|
|
Housing Material
|
Iron
|
|
Installation
|
Cabinet Mounting
|
|
Dimensions
|
484 × 88 × 360mm
|
|
Dimensions Including Handle
|
484 × 88 × 395mm
|
|
Weight
|
Approx. 10.3kg
|
|
Package Dimensions
|
540 × 165 × 450mm
|
|
Package Weight
|
Approx. 11kg
|
|
Operating Temperature
|
-10°C to +40°C
|
|
Operating Humidity
|
20%–80% RH
|
|
Color
|
Black
|
|
Model
|
DS-QAE0A240G1-VB6
|
Why Choose Hikvision DS-QAE0A240G1-VB6?
The Hikvision DS-QAE0A240G1-VB6 delivers reliable audio amplification and flexible sound distribution for commercial and industrial facilities requiring independent control across multiple speaker zones.
Its 240W rated output provides greater power capacity for distributed speaker installations, while six independent zone volume controls allow audio levels to be adjusted according to the requirements of each area.
Bluetooth, USB, SD card, microphone, and AUX connectivity provide versatile playback options for background music and live announcements. The priority broadcasting function ensures that emergency messages and important announcements can take precedence over regular audio.
The durable metal housing, comprehensive volume controls, and built-in protection circuits make this amplifier a practical choice for professional public address installations.
