Description

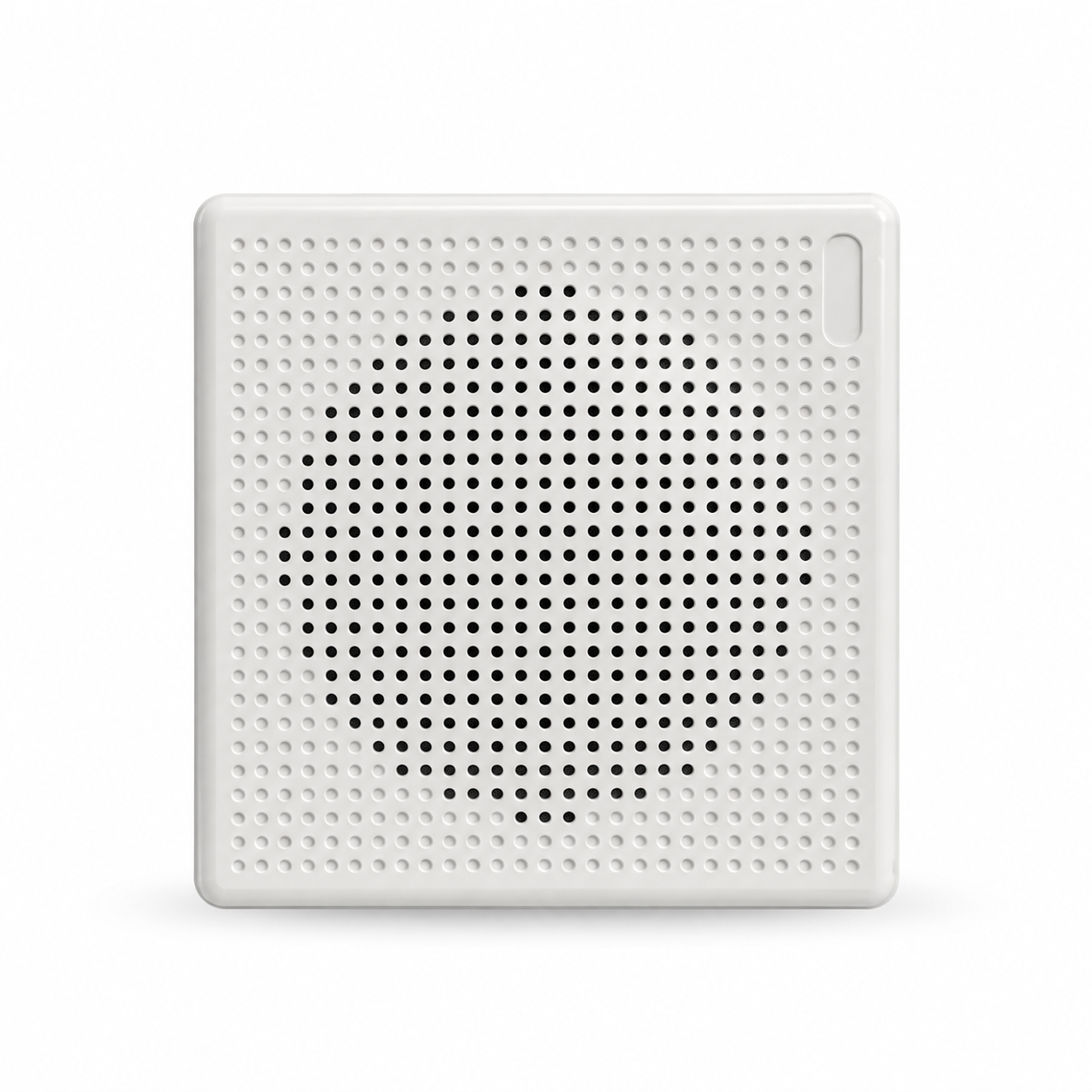

The Hikvision DS-QAE0103G1E-V is a compact 3W analog cabinet speaker designed for indoor public address, voice announcement, and background music systems.
Operating on a 100V audio line, the speaker features a 3-inch woofer unit with a sensitivity of 88 dB ±3 dB, maximum sound pressure level of 96 dB, and frequency response from 200 Hz to 16 kHz.
Its compact cabinet design makes it ideal for indoor corridors, supermarkets, retail stores, offices, and other areas requiring clear and reliable distributed audio.
Key Features
-
3W Analog Cabinet Speaker
-
Designed for 100V Line audio systems
-
3-inch woofer unit
-
Rated power: 3W
-
Sensitivity: 88 dB ±3 dB
-
Maximum SPL: 96 dB
-
Frequency response: 200 Hz–16 kHz
-
Compact cabinet design
-
Suitable for voice announcements
-
Suitable for background music
-
Designed for indoor applications
-
Ideal for corridors, supermarkets, shops, and offices
-
White finish
Technical Specifications
| Specification |
Details |
| Product Type |
Analog Cabinet Speaker |
| Audio System |
100V Line |
| Rated Power |
3W |
| Rated Voltage |
100V |
| Speaker Unit |
3″ Woofer × 1 |
| Sensitivity |
88 dB ±3 dB @ 1W/1m |
| Maximum SPL |
96 dB |
| Frequency Response |
200 Hz–16 kHz (-3 dB) |
| Input Interface |
Interface Card |
| Terminal Colors |
Black / White / Red |
| Dimensions |
120 × 120 × 60 mm |
| Application |
Indoor |
| Color |
White |
| Model |
DS-QAE0103G1E-V |
Why Choose Hikvision DS-QAE0103G1E-V?
The DS-QAE0103G1E-V is a practical solution for smaller indoor areas that require clear voice announcements and background audio without high speaker power.
Its 100V line operation makes it suitable for distributed public address systems, while the compact 120 × 120 × 60 mm cabinet allows convenient installation in corridors, supermarkets, retail stores, offices, and similar indoor environments.
