Description

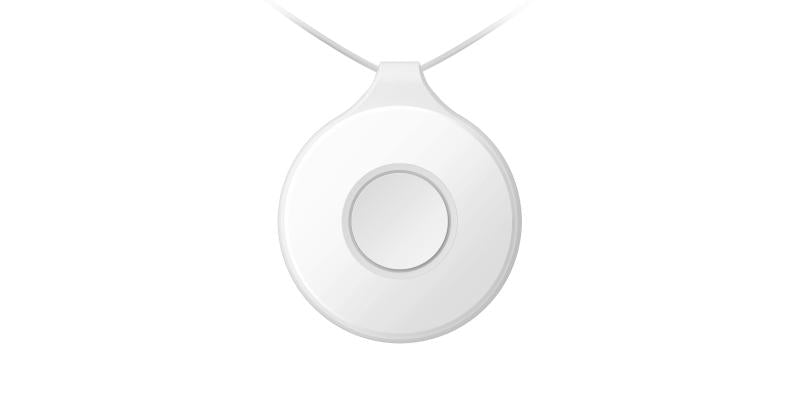

The Hikvision DS-PDEBP2-EG2-WB is a compact portable wireless emergency button designed for Hikvision AX PRO alarm systems, providing quick access to an emergency alarm while helping reduce accidental activations.
The device features two buttons and accidental press protection, making it suitable for personal emergency and panic applications where reliable activation is important.
It uses Hikvision Tri-X two-way wireless communication at 433MHz, with a transmission range of up to 800 meters in open space. AES-128 encryption and frequency hopping help provide secure and reliable wireless communication.
Its compact Ø38 mm design weighs only 13.5 g and can be used as a portable emergency device. An optional wristband and lanyard are also available, making it suitable for elderly users, patients, security staff, reception personnel, and other personal emergency applications.
Key Features
- Portable wireless emergency button
- Dual-button design
- Accidental press protection
-
Hikvision Tri-X Wireless
- Two-way RF wireless communication
-
433MHz wireless frequency
-
Up to 800m range in open space
- AES-128 encryption
- Frequency hopping against interference
- Signal strength indication
- Red / Green LED indicator
- Fully configurable remotely through the app
- Multiple enrollment methods
- Battery powered
-
Up to 3 years battery life
-
IP66 protection
- Optional wristband accessory
- Optional lanyard
-
Ultra-compact and lightweight design
Technical Data
| Specification |
Details |
| Product Type |
Portable Wireless Emergency Button |
| System |
Hikvision AX PRO |
| Number of Buttons |
2 |
| Wireless Technology |
Tri-X Wireless |
| Communication |
Two-Way RF Wireless |
| Frequency |
433MHz |
| Wireless Range |
Up to 800m in Open Space
|
| Encryption |
AES-128 |
| Frequency Hopping |
Supported |
| Signal Strength Indicator |
Supported |
| LED Indicator |
Red / Green |
| Tamper Protection |
None |
| Power Supply |
Battery Powered |
| Battery |
CR2035 × 1 |
| Typical Voltage |
3V |
| Battery Life |
Up to 3 Years
|
| Protection Rating |
IP66 |
| Operating Temperature |
-10°C to +55°C |
| Operating Humidity |
10%–90% |
| Dimensions |
Ø38 × 12 mm |
| Weight |
13.5 g |
| Application |
Portable |
| Optional Accessory |
DS-PDB-IN Wristband |
| Model |
DS-PDEBP2-EG2-WB |
Why Choose This Product?
The DS-PDEBP2-EG2-WB combines portability with a dual-button design and accidental press protection, making it suitable when an emergency button needs to remain with the user rather than being installed permanently on a wall.
Its compact 13.5 g design, IP66 protection, 800m open-space wireless range, encrypted Tri-X communication, and optional wristband make it particularly practical for personal emergency applications.
