Description

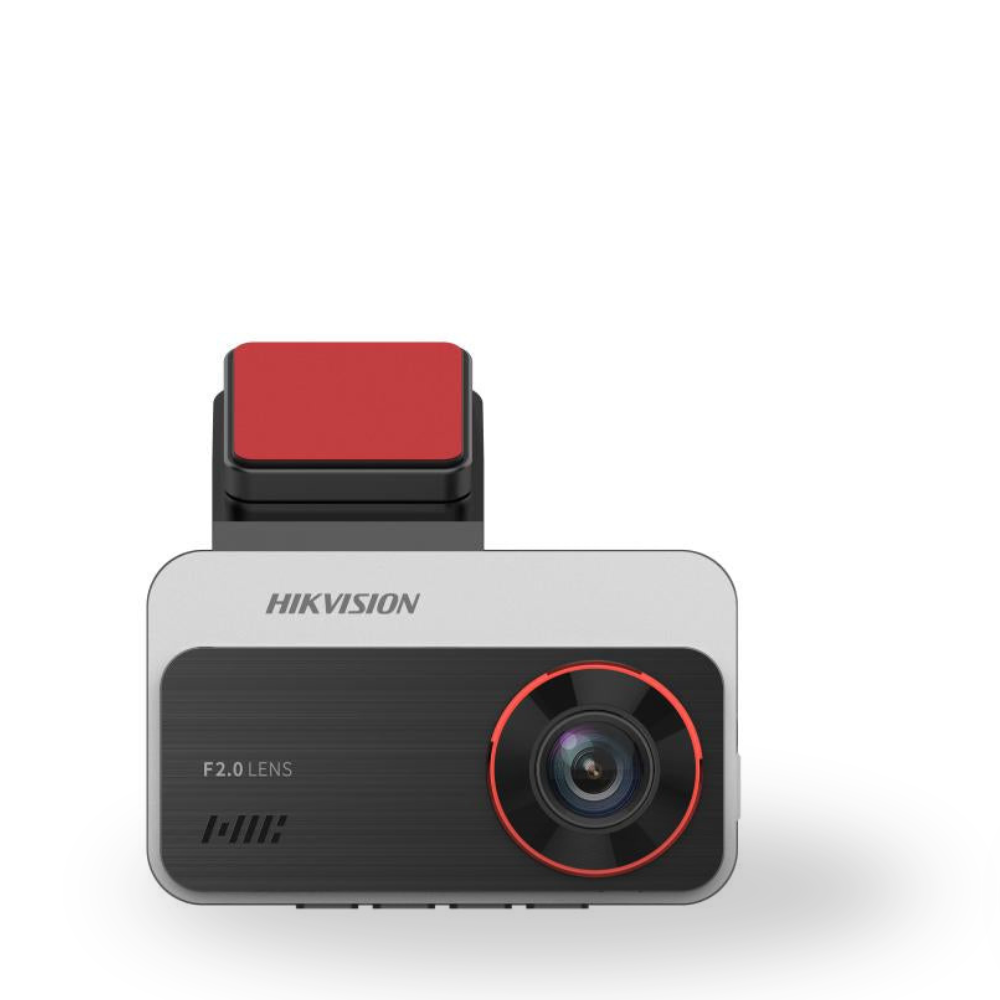

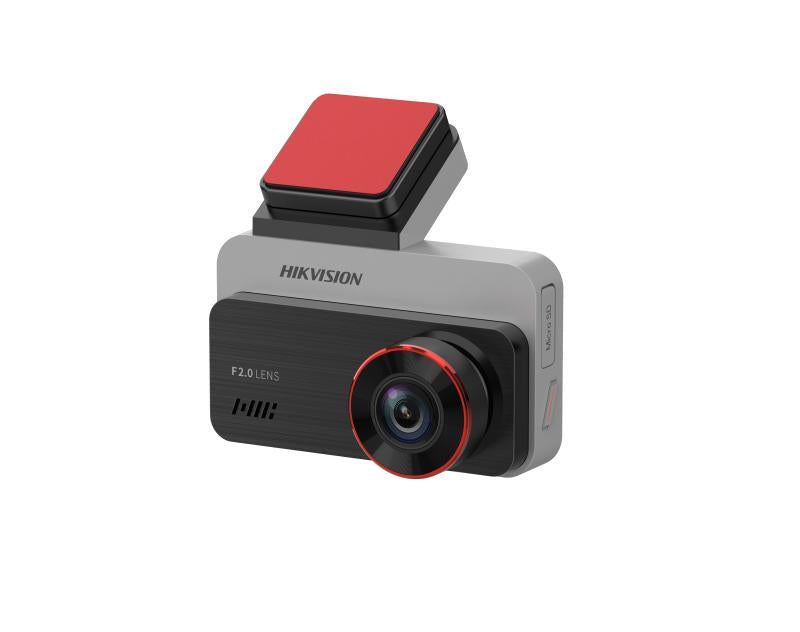

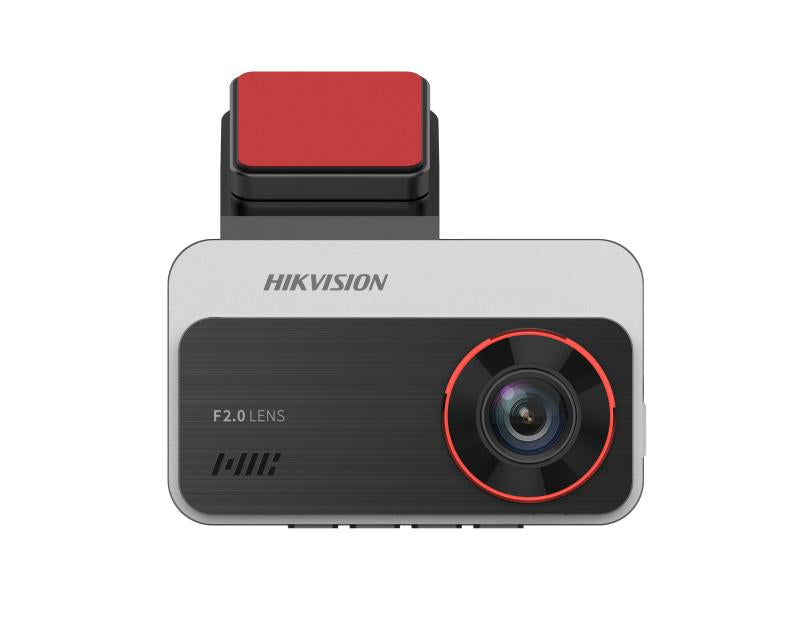

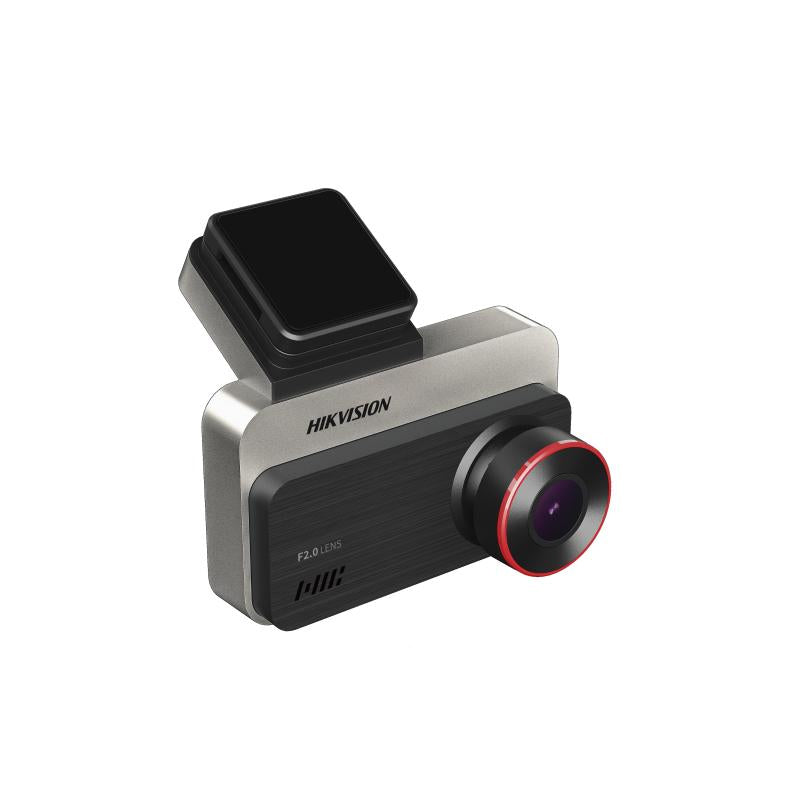

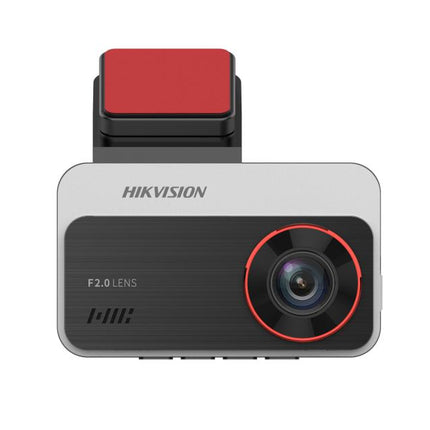

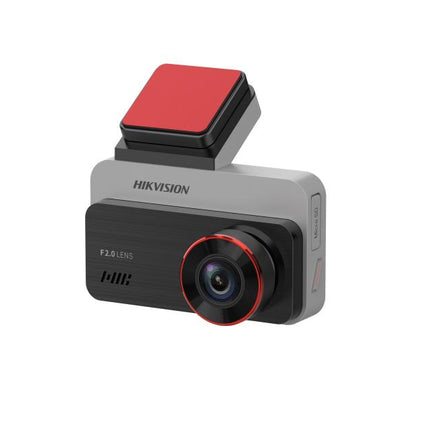

The Hikvision C200S Dash Camera (AE-DC2328-C200S) records the road ahead in 1080P at 30 fps and, with its rear camera, the view behind in 1080P at 25 fps. The front lens covers 128° diagonally (107° horizontal) and the F2.0 super large aperture gives clear night images.

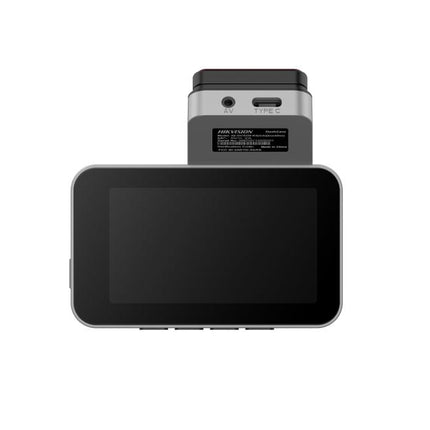

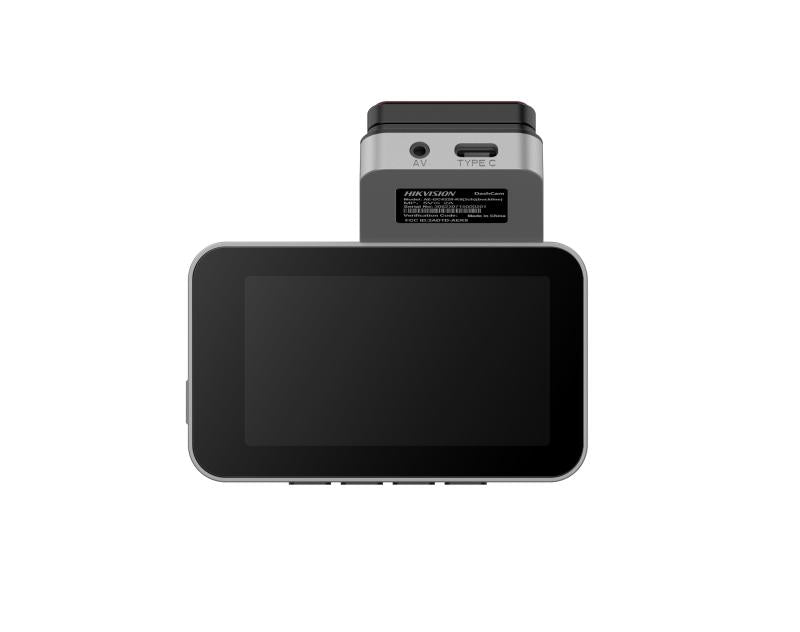

A 3-inch IPS screen shows the video on the camera, while the built-in Wi-Fi module and Wi-Fi AP function connect it to your phone for live view, record playback and settings. The G-sensor starts a linked recording on a crash or strong vibration, and video is stored on a microSD (TF) card from 16 GB up to 256 GB with automatic overwrite.

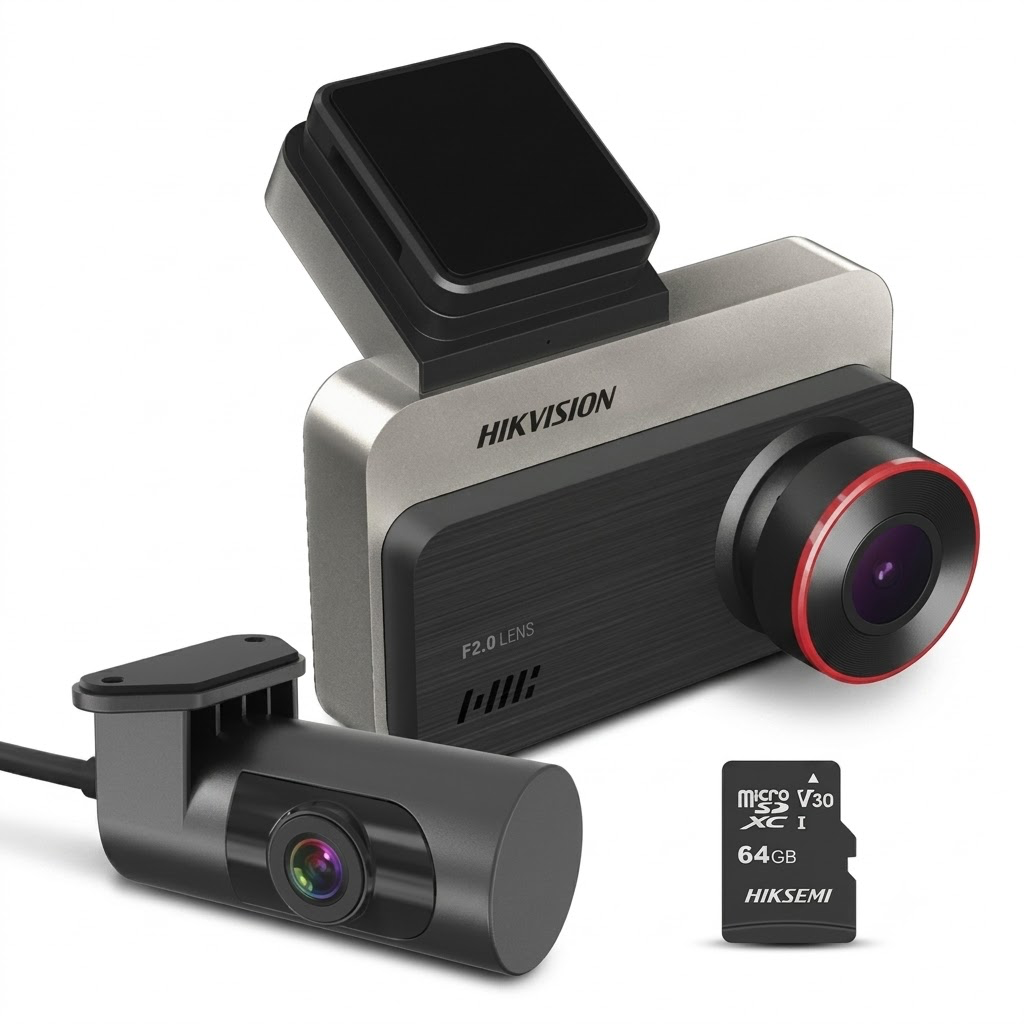

Note: available as a front camera only or as a front & rear camera set (choose the option above). A microSD (TF) card of 16–256 GB is needed for recording.
Key Features
- Front 1080P at 30 fps; rear camera 1080P at 25 fps
- Front lens 128° diagonal, 107° horizontal; rear lens 124° diagonal, 102° horizontal
- F2.0 super large aperture for clear night images
- 3-inch IPS screen
- Built-in 2.4 GHz Wi-Fi with Wi-Fi AP for live view, playback and settings in the app
- Built-in G-sensor: linked recording on crash or strong vibration, which can be protected from overwriting
- Loop recording on a microSD (TF) card from 16 GB up to 256 GB
- Built-in microphone and speaker for audio in and out
- Plug and play: starts recording automatically when powered on
- Low power consumption (approx. 3 W)
Works With
-
HikDashcam mobile app: connect to the camera over Wi-Fi for live view, record playback and parameter configuration
-
Rear camera: included with the "Front & Rear Camera" option
Technical Specifications
| Specification |
Details |
| Model |
AE-DC2328-C200S |
| Product Name |
Hikvision C200S Dashcam |
| Image Sensor |
CMOS |
| Resolution |
Front: 1080P @ 30 fps; Rear: 1080P @ 25 fps |
| Aperture |
F2.0 |
| Field of View (Front) |
128° (D), 107° (H), 57° (V) |
| Field of View (Rear) |
124° (D), 102° (H), 53° (V) |
| Display |
3-inch IPS screen |
| Video Compression |
H.264 |
| Image Format |
JPG |
| Storage |
microSD (TF) card, 16–256 GB, loop overwrite |
| Wi-Fi |
Built-in, 2.4 GHz, Wi-Fi AP |
| GPS |
No |
| Audio |
Built-in microphone and speaker |
| G-Sensor |
Yes |
| Power Supply |
5 V DC, 2 A (approx. 3 W) |
| Power Interface |
USB Type-C |
| Operating Temperature |
-20°C ~ 65°C |
| Operating Humidity |
0 ~ 95% |

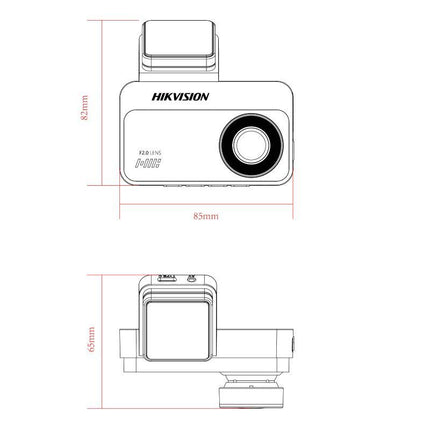

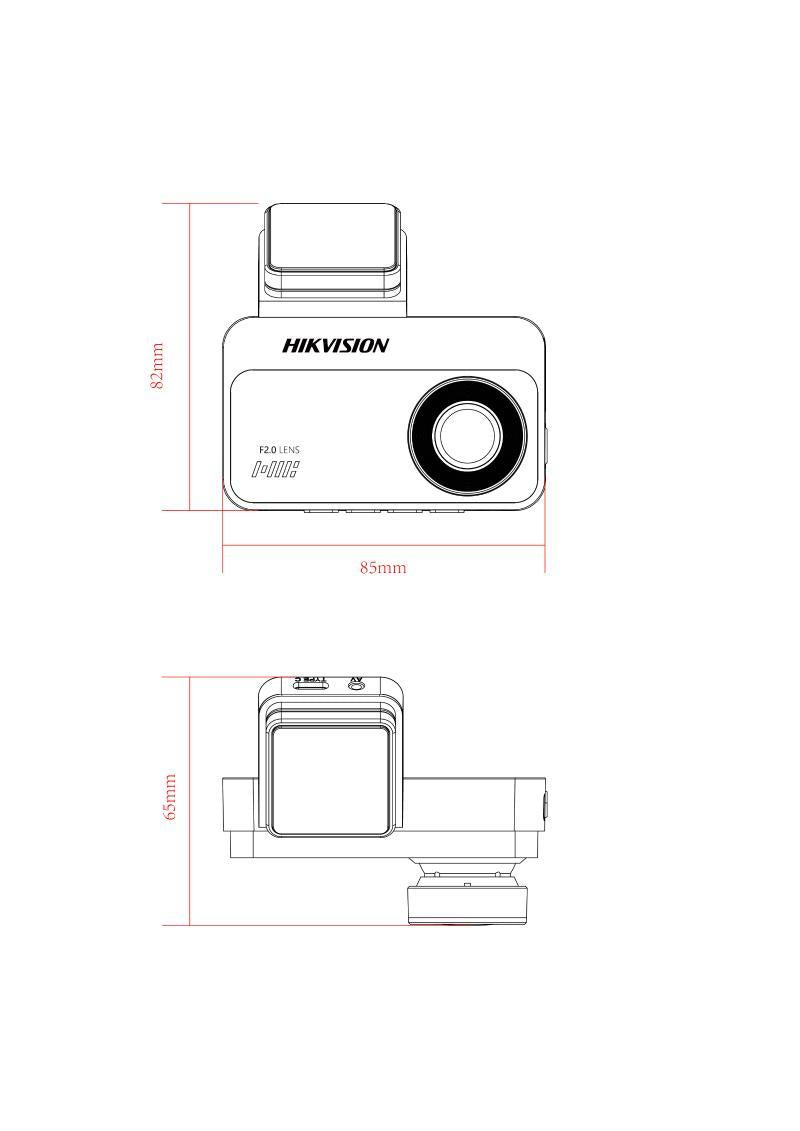

| Dimensions |
85 × 82 × 65 mm |
| Weight |
< 100 g |
Why Choose the Hikvision AE-DC2328-C200S?
- Front and rear 1080P recording in one compact unit
- Built-in 3-inch screen plus phone access over Wi-Fi
- Bright F2.0 lens for clearer night driving footage
- Large storage support, up to 256 GB
Downloads
⬇ Download Datasheet (PDF)
Warranty: 12-month warranty from the Official Distributor.
