Description

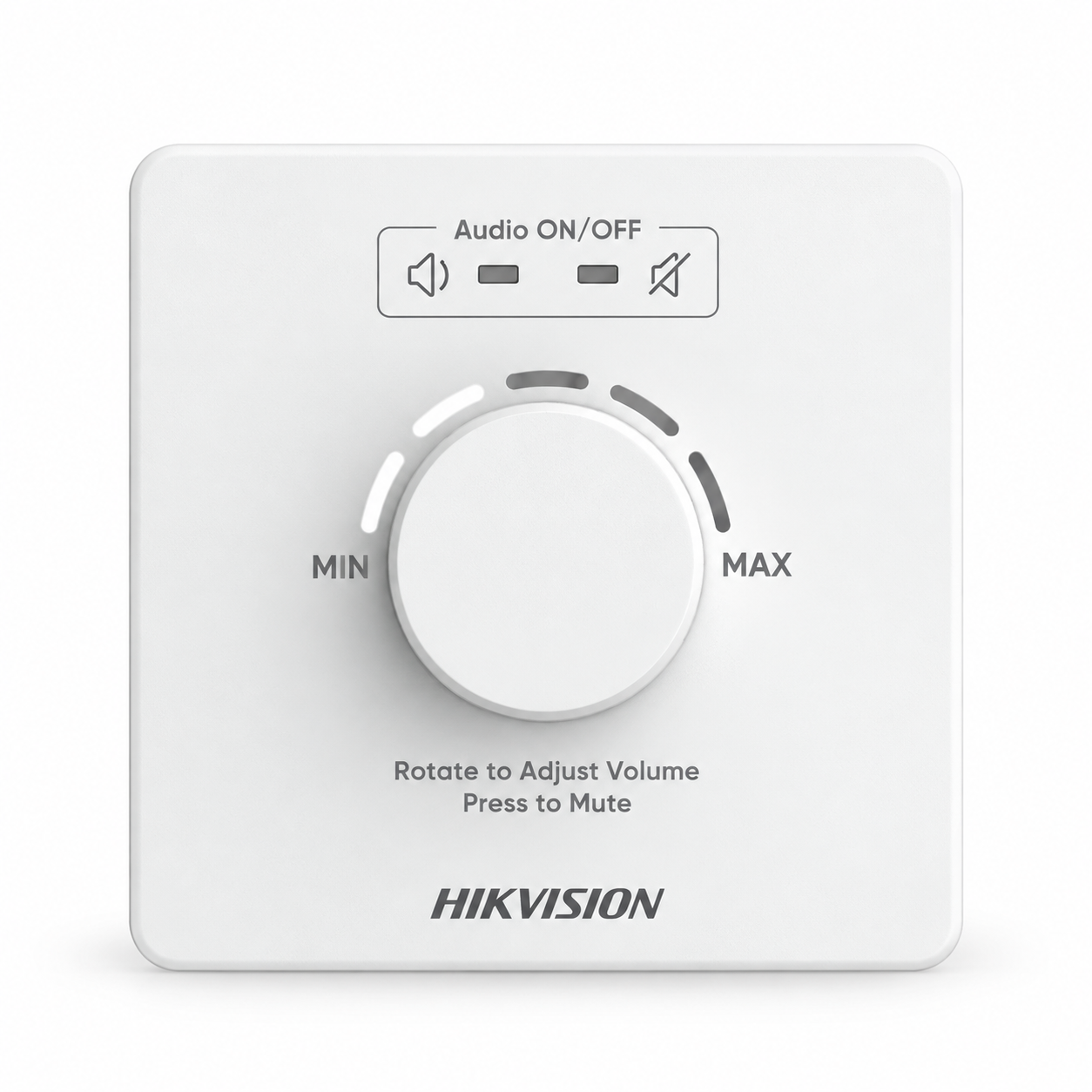

The Hikvision DS-QAE1C00G1 is a compact Network Volume Controller designed for centralized and convenient volume management of compatible Hikvision network audio products.
The controller communicates with network audio devices through network protocols and supports both one-to-one and one-to-many volume control. A single channel can control the volume of up to 16 compatible network products, making it suitable for distributed public address and network audio installations.
Powered through PoE IEEE 802.3af Class 1, the controller simplifies installation by carrying power through the network infrastructure. Integrated LED indicators clearly display the current operating mode and volume level.
Key Features
-
Network Volume Controller
-
Designed for compatible network audio products
-
Supports one-to-one and one-to-many control
-
Controls up to 16 network audio products per channel
-
PoE IEEE 802.3af Class 1
-
Maximum power consumption: 3W
-
Supports ISAPI and OTAP
-
Integrated LED indicators
-
Visual volume level indication
-
Sound reinforcement and mute status indication
-
Compact 86 × 86 mm wall-controller design
-
White finish
-
Ideal for network public address systems
Technical Specifications
| Specification |
Details |
| Product Type |
Network Volume Controller |
| Control Mode |
One-to-One / One-to-Many |
| Maximum Controlled Devices |
Up to 16 Network Products per Channel |
| Interface Protocol |
ISAPI / OTAP |
| Power Supply |
PoE IEEE 802.3af Class 1 |
| Maximum Current |
500 mA |
| Power Consumption |
3W |
| LED Indicators |
Operating Mode & Volume Level |
| Volume Indicators |
5 LED Indicators |
| Mode Indicator |
White: Sound Reinforcement / Red: Mute |
| Material |
PC |
| Dimensions |
86 × 86 × 74.7 mm |
| Weight |
113.6 g |
| Operating Temperature |
-10°C to 50°C |
| Operating Humidity |
<90% |
| Color |
White |
| Model |
DS-QAE1C00G1 |
Why Choose Hikvision DS-QAE1C00G1?
The DS-QAE1C00G1 provides a simple and convenient way to control the volume of Hikvision network audio devices without having to adjust each speaker individually.
Its one-to-many network control allows a single controller to manage up to 16 compatible network products, making it especially useful for offices, shops, meeting areas, schools, hotels, and other locations with multiple network speakers.
With PoE power, installation is also simplified without requiring a separate local power supply for the controller.
