Hikvision Professional IP Network Paging Microphone with 4-Inch Touchscreen – DS-QAZ1MP4G1

Description

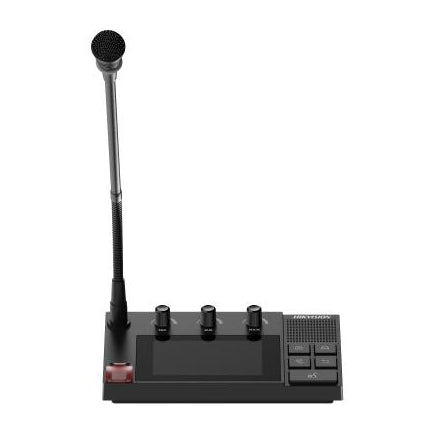

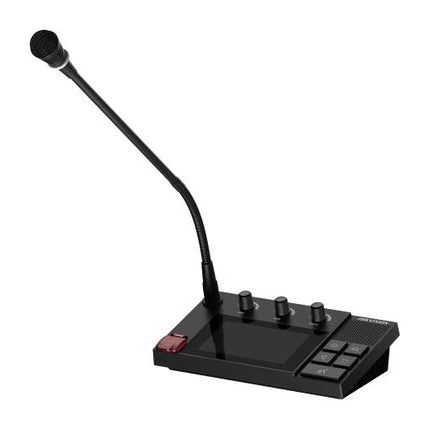

The Hikvision 4-inch Network Paging Microphone (DS-QAZ1MP4G1) is a desktop IP paging station for Hikvision network public-address systems. It runs a Linux system with a 4-inch color IPS touch screen and a cardioid gooseneck microphone, and handles real-time, file, text-to-speech and emergency broadcasts to all, some or a single network terminal.

It manages up to 24 channels with up to 4 partitions, supports two-way intercom with network speakers that have built-in microphones, and applies scheduled tasks to the terminals so they keep playing on time even if the network is interrupted. A built-in 3 W speaker, Bluetooth 5.0, USB, MIC/AUX inputs and 1 alarm input/output complete the station, which connects over a 10/100 M Ethernet port and runs on 12 VDC.

Note: designed for Hikvision network audio terminals (see "Works With" below).

Key Features

  • 4-inch color IPS touch screen (480 × 800) on a Linux system
  • Real-time broadcast and real-time speaking to all, some or a single terminal
  • File broadcast, text-to-speech broadcast and emergency broadcast
  • Manages up to 24 channels with up to 4 partitions
  • Two-way intercom with network speakers that have built-in microphones
  • Scheduled tasks keep playing on terminals during network interruptions
  • Alarm input or alarm signal triggers preset audio on specified terminals
  • Audio library: import MP3 and WAV files via the web, up to 1 GB, 100 MB per file and 30 folders
  • Audio algorithms: noise gate, EQ, AGC, compressor, echo cancellation (AEC) and noise reduction
  • Extra sources: Bluetooth 5.0, USB 2.0 drive up to 256 GB, MIC and AUX inputs; AUX output for headphones

Works With

Technical Specifications

Specification Details
Model DS-QAZ1MP4G1
Product Name 4-inch Network Paging Microphone
Microphone Electret, cardioid gooseneck
Frequency Response 50 Hz – 16 kHz
Sensitivity -42 dB ±2 dB (0 dB = 1 V/Pa at 1 kHz)
SNR / Dynamic Range 78 dB / 104 dB
Acoustic Overload Point (AOP) 120 dB
THD <1%
Built-in Speaker 3 W, 4 Ω, 300 Hz – 10 kHz, 71 dB (1 m, 1 W), max. 76 dB SPL
Audio Algorithms Noise gate, EQ, AGC, compressor, AEC, noise reduction
Audio Bit Rate Broadcast: MP3 128 kbps; two-way audio: G.711 64 kbps
Audio Files MP3, WAV; 16-bit; max. 100 MB per file
Display 4-inch IPS touch screen, 480 × 800

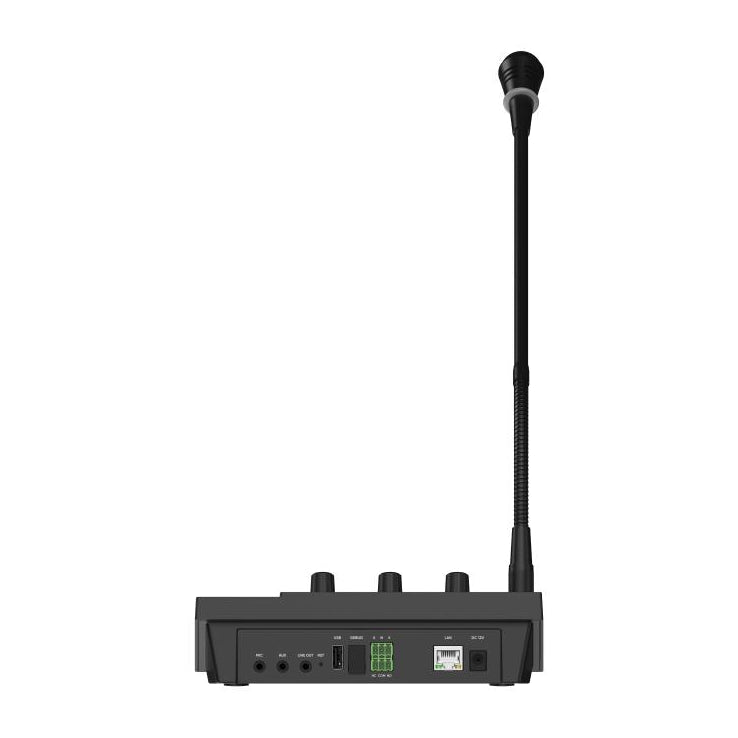

Audio In Gooseneck MIC (4-pin aviation connector); MIC × 1 and AUX In × 1 (3.5 mm); USB 2.0 drive; Bluetooth 5.0
Audio Out AUX Out × 1 (3.5 mm, headphones above 32 Ω); local speaker
USB USB 2.0, FAT32 / exFAT, up to 256 GB
Bluetooth Bluetooth 5.0, 10 m
Network Interface 1 × RJ45 10 M/100 M Ethernet port
Protocols / API IPv4, HTTP, HTTPS, SIP, SSL/TLS, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH; API: ISAPI, SIP
Alarm 1 alarm input, 1 alarm output
Local Storage eMMC 4 GB
Power 12 VDC, 12 W
Operating Conditions -10 °C to +50 °C, humidity 10% to 90%
Dimensions 191 × 114.8 × 62.9 mm
Weight 0.51 kg (1.05 kg with package); color: black

Why Choose the Hikvision DS-QAZ1MP4G1?

  • One desktop station for live, file, text-to-speech and emergency announcements
  • Touch-screen operation makes choosing zones and terminals simple
  • Scheduled tasks and alarm-triggered broadcasts keep the system working automatically
  • Open integration through ISAPI and SIP

Downloads

⬇ Download Datasheet (PDF)⬇ Download Quick Start Guide (PDF)

Warranty: 12-month warranty from the Official Distributor.

Hikvision Professional IP Network Paging Microphone with 4-Inch Touchscreen – DS-QAZ1MP4G1

Product form

The Hikvision 4-inch Network Paging Microphone (DS-QAZ1MP4G1) is a desktop IP paging station for Hikvision network public-address systems. It runs... Read more

Free pickup in our shop(s)

175.000 JD Incl. VAT

  • 7-Day Easy Return and Exchange🔄
  • Order Now, Get It Today📦🚀
  • Enjoy a 12-Month Warranty 🛡️
  • After-Sales Service to Guarantee Customer Satisfaction
  • ( COD ) Cash On Delivery💵
  • Found a Lower Price? We'll Refund the Difference 🏷️💰
    • Shipped today? Order within: Oct 15, 2026 23:59:00 +0300

    Description

    The Hikvision 4-inch Network Paging Microphone (DS-QAZ1MP4G1) is a desktop IP paging station for Hikvision network public-address systems. It runs a Linux system with a 4-inch color IPS touch screen and a cardioid gooseneck microphone, and handles real-time, file, text-to-speech and emergency broadcasts to all, some or a single network terminal.

    It manages up to 24 channels with up to 4 partitions, supports two-way intercom with network speakers that have built-in microphones, and applies scheduled tasks to the terminals so they keep playing on time even if the network is interrupted. A built-in 3 W speaker, Bluetooth 5.0, USB, MIC/AUX inputs and 1 alarm input/output complete the station, which connects over a 10/100 M Ethernet port and runs on 12 VDC.

    Note: designed for Hikvision network audio terminals (see "Works With" below).

    Key Features

    • 4-inch color IPS touch screen (480 × 800) on a Linux system
    • Real-time broadcast and real-time speaking to all, some or a single terminal
    • File broadcast, text-to-speech broadcast and emergency broadcast
    • Manages up to 24 channels with up to 4 partitions
    • Two-way intercom with network speakers that have built-in microphones
    • Scheduled tasks keep playing on terminals during network interruptions
    • Alarm input or alarm signal triggers preset audio on specified terminals
    • Audio library: import MP3 and WAV files via the web, up to 1 GB, 100 MB per file and 30 folders
    • Audio algorithms: noise gate, EQ, AGC, compressor, echo cancellation (AEC) and noise reduction
    • Extra sources: Bluetooth 5.0, USB 2.0 drive up to 256 GB, MIC and AUX inputs; AUX output for headphones

    Works With

    Technical Specifications

    Specification Details
    Model DS-QAZ1MP4G1
    Product Name 4-inch Network Paging Microphone
    Microphone Electret, cardioid gooseneck
    Frequency Response 50 Hz – 16 kHz
    Sensitivity -42 dB ±2 dB (0 dB = 1 V/Pa at 1 kHz)
    SNR / Dynamic Range 78 dB / 104 dB
    Acoustic Overload Point (AOP) 120 dB
    THD <1%
    Built-in Speaker 3 W, 4 Ω, 300 Hz – 10 kHz, 71 dB (1 m, 1 W), max. 76 dB SPL
    Audio Algorithms Noise gate, EQ, AGC, compressor, AEC, noise reduction
    Audio Bit Rate Broadcast: MP3 128 kbps; two-way audio: G.711 64 kbps
    Audio Files MP3, WAV; 16-bit; max. 100 MB per file
    Display 4-inch IPS touch screen, 480 × 800
    Audio In Gooseneck MIC (4-pin aviation connector); MIC × 1 and AUX In × 1 (3.5 mm); USB 2.0 drive; Bluetooth 5.0
    Audio Out AUX Out × 1 (3.5 mm, headphones above 32 Ω); local speaker
    USB USB 2.0, FAT32 / exFAT, up to 256 GB
    Bluetooth Bluetooth 5.0, 10 m
    Network Interface 1 × RJ45 10 M/100 M Ethernet port
    Protocols / API IPv4, HTTP, HTTPS, SIP, SSL/TLS, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH; API: ISAPI, SIP
    Alarm 1 alarm input, 1 alarm output
    Local Storage eMMC 4 GB
    Power 12 VDC, 12 W
    Operating Conditions -10 °C to +50 °C, humidity 10% to 90%
    Dimensions 191 × 114.8 × 62.9 mm
    Weight 0.51 kg (1.05 kg with package); color: black

    Why Choose the Hikvision DS-QAZ1MP4G1?

    • One desktop station for live, file, text-to-speech and emergency announcements
    • Touch-screen operation makes choosing zones and terminals simple
    • Scheduled tasks and alarm-triggered broadcasts keep the system working automatically
    • Open integration through ISAPI and SIP

    Downloads

    ⬇ Download Datasheet (PDF)⬇ Download Quick Start Guide (PDF)

    Warranty: 12-month warranty from the Official Distributor.
