Description

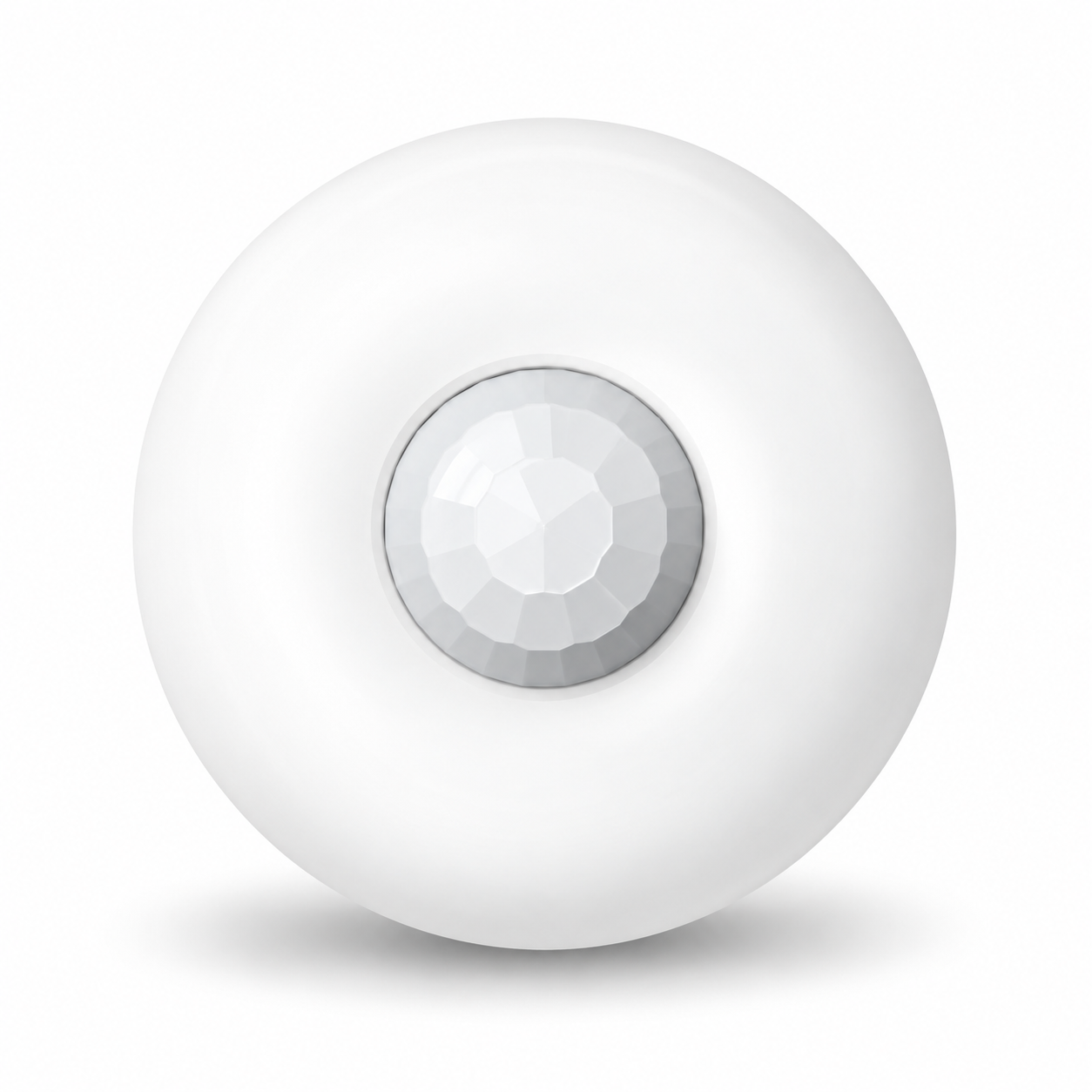

The Hikvision DS-PDCL12-EG2 is a wired ceiling-mounted PIR motion detector designed to provide 360° indoor intrusion detection from a central ceiling position.
With a detection range of up to 12 meters, a full 360° detection angle, and 172 detection zones, it provides comprehensive coverage for offices, shops, halls, corridors, reception areas and other indoor spaces.
The detector features digital temperature compensation, creep-zone protection, digital signal processing and sealed optics to provide stable and reliable motion detection. It operates from a wide 9–16V DC power supply and connects directly to compatible wired alarm systems.
Key Features
-
Wired ceiling-mounted PIR motion detector
- 360° detection coverage
-
Detection range up to 12 m
- 172 detection zones
-
Detection speed: 0.3–2 m/s
-
Sensitivity: Auto / Low
-
White light filter up to 6500 lux
- Digital temperature compensation
- Creep-zone protection
- Digital signal processing
- Sealed optics
- Front tamper protection
- Normally Closed alarm output
- Blue alarm LED indicator
-
Wide 9–16V DC power input
-
Low power consumption: 13mA max
-
Ceiling mounting from 2.4 to 4 m
-
Designed for indoor applications
Technical Specifications
| Specification |
Details |
| Product Type |
Wired PIR Ceiling Detector |
| Detection Method |
Passive Infrared (PIR) |
| Detection Range |
12 m |
| Detection Angle |
360° |
| Detection Zones |
172 |
| Detectable Speed |
0.3–2 m/s |
| Sensitivity |
Auto / Low |
| White Light Filter |
6500 lux |
| Digital Temperature Compensation |
Supported |
| Creep Zone Protection |
Supported |
| Digital Processing |
Supported |
| Sealed Optics |
Supported |
| Tamper Protection |
Front |
| Alarm Output |
Normally Closed |
| LED Indicator |
Blue – Alarm |
| Transmission |
Wired |
| Power Supply |
9–16V DC |
| Typical Voltage |
12V DC |
| Power Consumption |
13mA Max |
| Operating Temperature |
-10°C to 55°C |
| Storage Temperature |
-20°C to 60°C |
| Operating Humidity |
10%–90% |
| Mounting Height |
2.4–4 m |
| Mounting Method |
Ceiling |
| Application |
Indoor |
| Dimensions |
Ø101.2 × 32.9 mm |
| Weight |
79 g |
| Model |
DS-PDCL12-EG2 |
Why Choose Hikvision DS-PDCL12-EG2?
The main advantage of the DS-PDCL12-EG2 is its 360° ceiling detection, allowing a single centrally positioned detector to monitor movement from all directions rather than covering only one side of a room.
With 12m coverage, 172 detection zones, digital temperature compensation and sealed optics, it is an excellent choice for professional wired alarm installations in offices, shops, showrooms and other indoor areas.
