Description

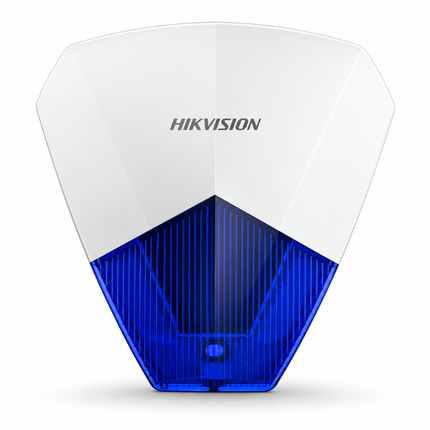

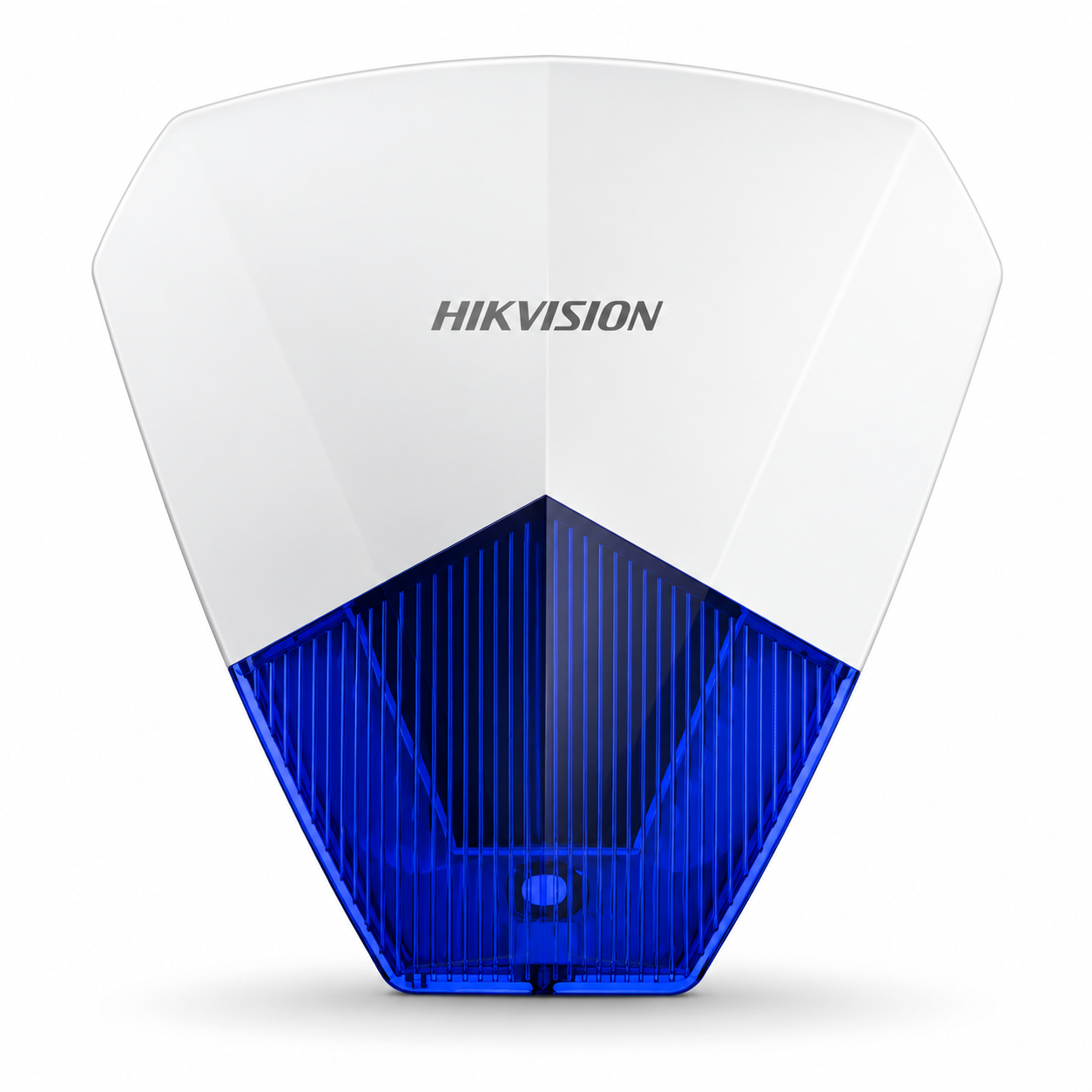

The Hikvision DS-PS1-B is a wired alarm sounder designed for connection to compatible wired intrusion alarm control panels.
Powered directly from the alarm panel, the sounder delivers a powerful audible warning of up to 105 dB at 30 cm. It also features an integrated LED flash indicator, providing both audible and visual notification during alarm events.
The sounder and LED flash indications can be configured separately, providing greater flexibility according to the installation requirements. With an IP54-rated enclosure and an operating temperature range from -20°C to 60°C, the DS-PS1-B can be used for both indoor and outdoor applications.
Key Features
- Wired alarm sounder
-
Powerful 105 dB sound pressure at 30 cm
-
Integrated LED flash indication
- Sound and LED flash can be configured separately
- Designed for wired alarm control panels
- Powered from the control panel
-
8–16V DC power supply
-
IP54 protection rating
-
Suitable for indoor and outdoor use
-
Operating temperature from -20°C to 60°C
-
Compact and easy-to-install design
Technical Specifications
| Specification |
Details |
| Product Type |
Wired Alarm Sounder |
| Sound Pressure |
105 dB @ 30 cm |
| Visual Indication |
LED Flash |
| Sound / LED Control |
Separately Configurable |
| Power Supply |
8–16V DC |
| Maximum Current |
0.22A |
| Quiescent Power Consumption |
0.96W |
| Protection Rating |
IP54 |
| Operating Temperature |
-20°C to 60°C |
| Operating Humidity |
10%–90% |
| Housing Material |
PC + ABS |
| Color |
Blue |
| Dimensions |
140 × 134 × 33 mm |
| Weight |
185 g |
| Model |
DS-PS1-B |
Why Choose Hikvision DS-PS1-B?
The DS-PS1-B provides a simple and reliable way to add audible and visual alarm indication to a wired intrusion alarm system.
Its 105 dB siren, separate LED flash indication, IP54 protection and wide operating temperature range make it suitable for homes, villas, offices, shops, warehouses and other security installations. Hikvision also lists the DS-PS1-B as a wired sounder within its AX Hybrid PRO product lineup.
