Description

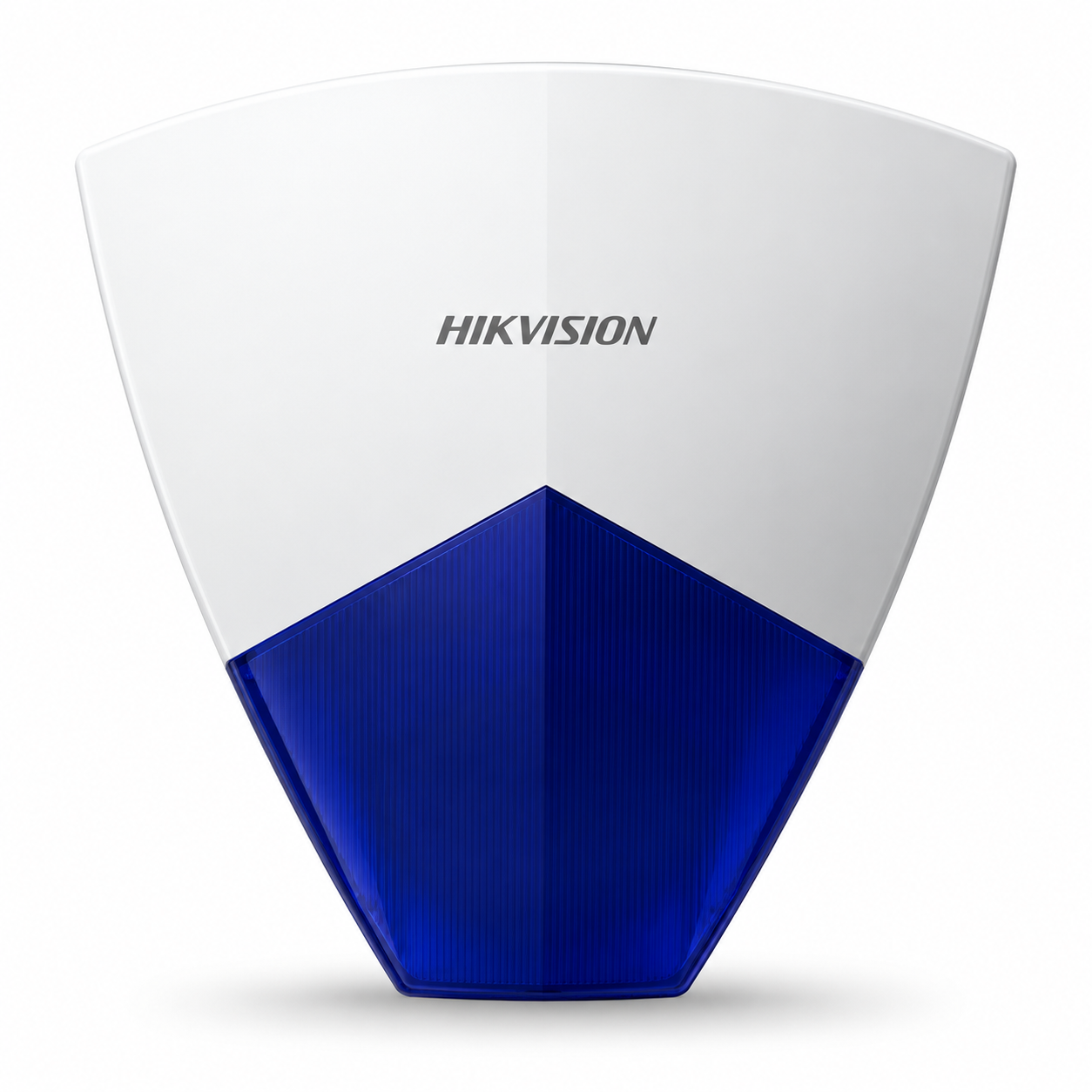

The Hikvision DS-PS102X/BLUE is a wired external alarm sounder designed to provide powerful audible and visual alarm indication for wired intrusion alarm systems.
It combines a high-output siren with a blue LED strobe light, delivering a maximum sound pressure of 110 dB at 1 meter. The sound and LED strobe can be controlled separately, providing flexible alarm notification for different security applications.
The sounder supports three selectable alarm tones for fire, medical emergency, and intrusion alarm events. It can be controlled through the alarm panel's PGM/BELL output and supports both positive and negative triggering.
With an IP55-rated enclosure, front-cover and wall tamper protection, and an operating temperature range from -20°C to 60°C, the DS-PS102X/BLUE is suitable for demanding indoor and outdoor security installations.
Key Features
- Wired external alarm sounder
- Blue LED strobe light
-
Maximum sound pressure: 110 dB at 1 m
- Separate sound and LED strobe indication
- 3 selectable alarm tones
- Fire alarm tone
- Medical emergency alarm tone
- Intrusion alarm tone
-
Controlled via PGM/BELL output
- Supports positive and negative triggering
- Front-cover tamper protection
- Wall tamper protection
- Tamper and cut-wire alarm support
-
IP55 protection
- Suitable for indoor and outdoor installation
-
Wide 9–16V DC power input
Technical Specifications
| Specification |
Details |
| Product Type |
Wired External Sounder |
| Alarm Indication |
Sound + Blue LED Strobe |
| Sound Pressure |
110 dB @ 1 m Max. |
| Alarm Tones |
Fire / Medical / Intrusion |
| Control |
PGM / BELL |
| Trigger |
Positive / Negative |
| Tamper Protection |
Front Cover + Wall |
| Power Supply |
9–16V DC |
| Typical Voltage |
12V DC |
| Maximum Current |
180mA @ 12V DC |
| Protection Rating |
IP55 |
| Operating Temperature |
-20°C to 60°C |
| Operating Humidity |
10%–90% |
| Housing Material |
PC + ABS |
| Dimensions |
221 × 215 × 51 mm |
| Weight |
475 g |
| Strobe Color |
Blue |
| Model |
DS-PS102X/BLUE |
Why Choose Hikvision DS-PS102X/BLUE?
The DS-PS102X/BLUE provides both audible and visual alarm notification, making it ideal for locations where a strong siren alone may not be enough.
Its 110 dB siren, blue strobe light, three alarm tones and IP55 protection make it suitable for homes, villas, shops, offices, warehouses and commercial security installations. Front-cover and wall tamper protection also helps detect attempts to interfere with or remove the sounder.
