Description

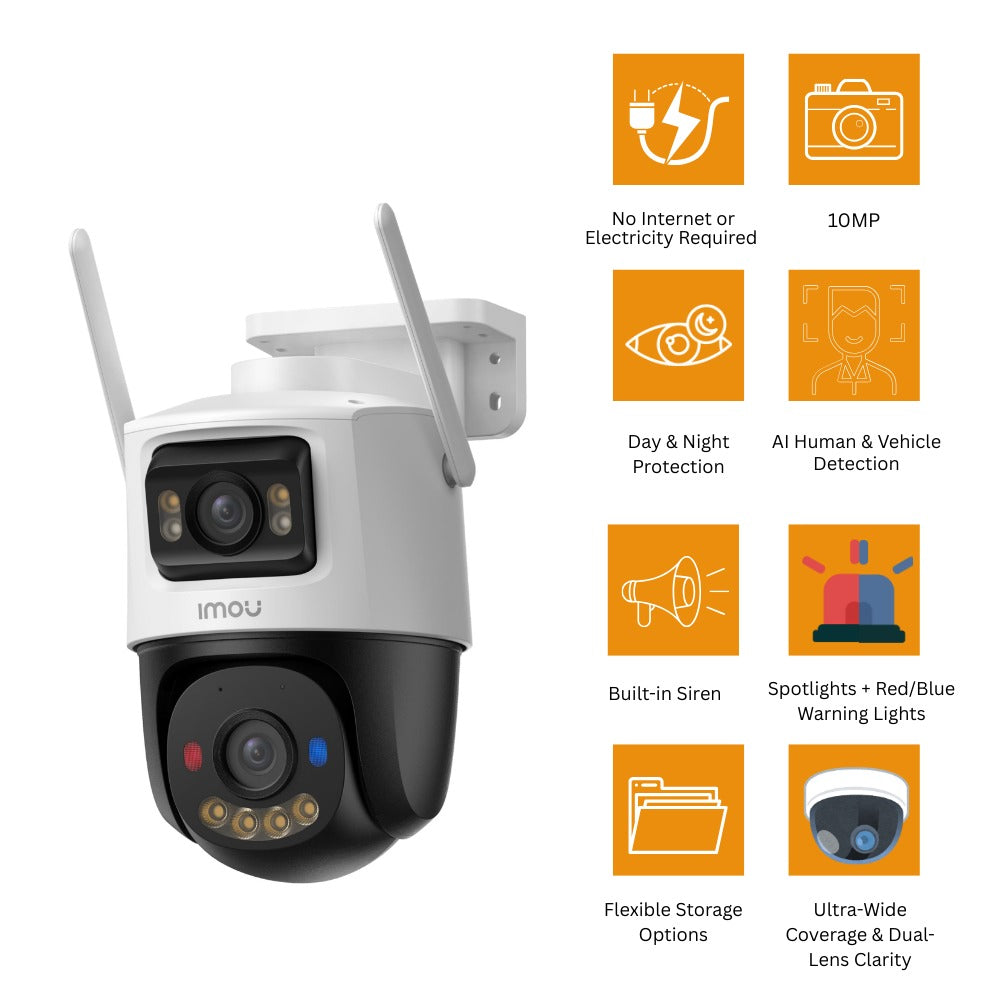

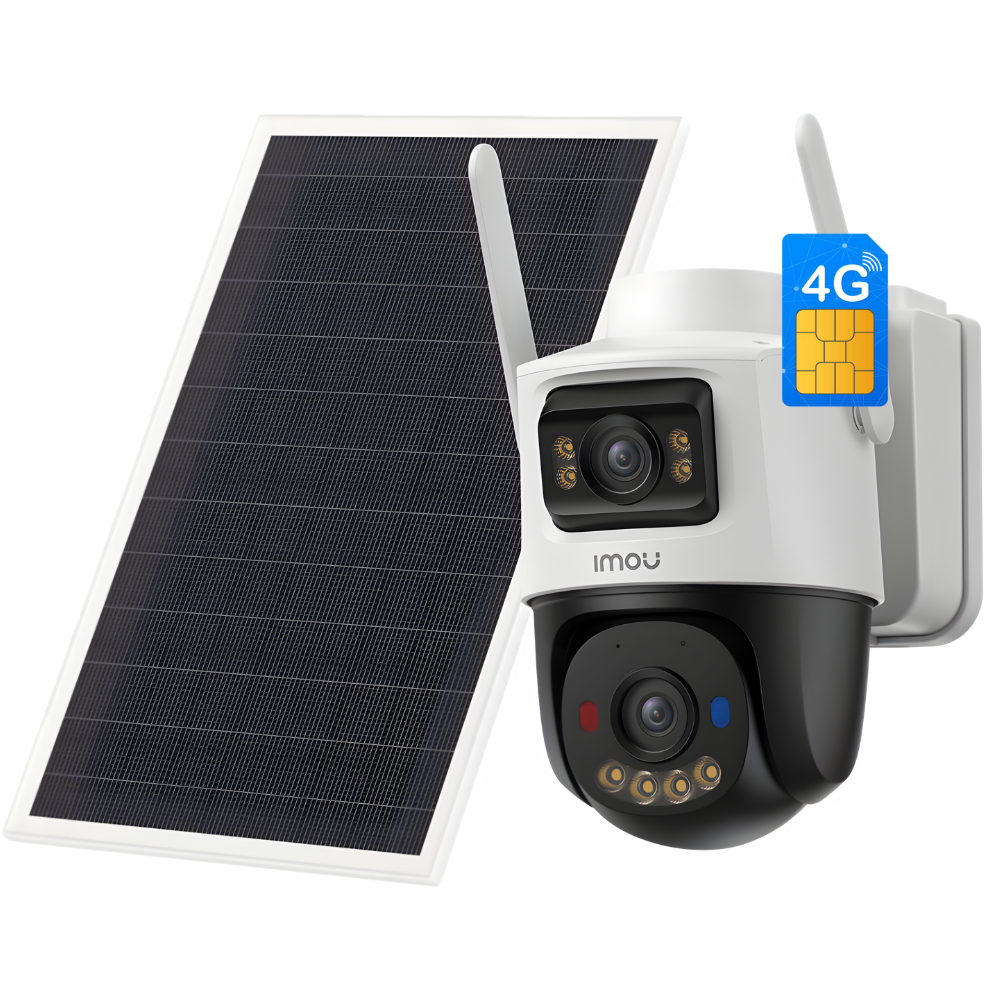

The IMOU Dual AOV 10MP (IPC-SA70F-10M1T2-EU/FSP008) is a solar-powered outdoor camera kit with two 5MP lenses: a fixed lens and a pan & tilt lens watch two zones at once. It runs on a 10,000 mAh rechargeable battery kept topped up by the included solar panel, and connects over 4G LTE (nano-SIM) or 2.4 GHz Wi-Fi, switching to 4G automatically if Wi-Fi is lost.
Always-on Video (AOV) records one frame every 3 seconds when nothing is happening and switches to full-frame recording as soon as an event starts, so you get 24/7 coverage without draining the battery. AI human and vehicle detection reaches up to 25 m, smart tracking follows moving targets, and smart full-color night vision turns on when a person is detected. A siren of up to 110 dB, spotlights, red-blue lights and two-way talk deter intruders, the camera charges at temperatures as low as -15°C, and footage is saved to a microSD card up to 512GB.

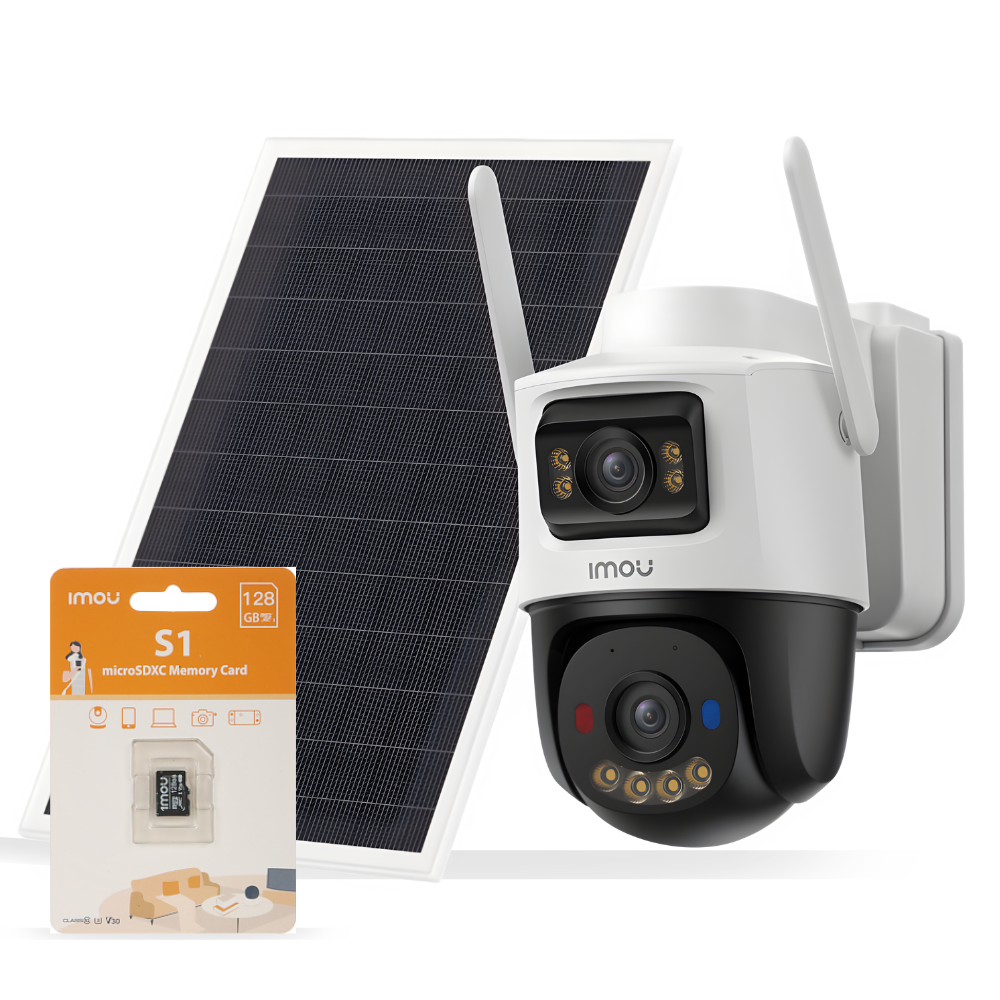

Note: for 4G, insert an active nano-SIM data card (no SIM card is listed in the box). Setup is done in the Imou Life app. Optional add-ons – a 128GB microSD card or installation in Amman / outside Amman – are available as variants.
Key Features
- Dual 5MP lenses (2880 × 1620 each): one fixed, one pan & tilt
- Pan & tilt lens: 340° pan and 90° tilt; fixed lens: 260° horizontal and 25° vertical adjustment
- 4G LTE (nano-SIM) and 2.4 GHz Wi-Fi with automatic switching
- AOV 24/7 recording: 1 frame every 3 s when idle, full frames on events
- 10,000 mAh battery with 8W solar panel for wire-free power
- AI human and vehicle detection up to 25 m with smart tracking
- Smart full-color night vision up to 25 m
- Siren up to 110 dB, spotlights and red-blue lights; two-way talk
- Low-temperature charging down to -15°C
- microSD up to 512GB, 8× digital zoom, detection zones and protection schedules
Works With
Technical Specifications
| Specification |
Details |
| Model |
IPC-SA70F-10M1T2-EU/FSP008 (camera + solar panel kit; store SKU IPC-SA70F-10M0T2-EU) |
| Product Name |
AOV Dual 10MP |
| Image Sensors |
2 × 1/3" Progressive CMOS |
| Resolution |
5MP + 5MP (2880 × 1620) |
| Lenses |
3.6 mm fixed lens + 3.6 mm pan & tilt lens |
| Field of View |
76° (H), 41° (V), 91° (D) |
| Pan / Tilt |
Pan & tilt lens: 340° pan, 90° tilt; fixed lens: 260° horizontal, 25° vertical |
| Night Vision |
Smart full-color, up to 25 m (82 ft) |
| Video |
Up to 15 fps; 8× digital zoom |
| Video Compression |
H.265 / H.264 |
| Audio & Alarm |
Built-in mic & speaker, two-way talk; siren up to 110 dB |
| Smart Detection |
Human / vehicle detection, configurable region, AOV mode |
| Wi-Fi |
IEEE 802.11b/g/n/ax (Wi-Fi 6), 2.4 GHz |
| 4G LTE Bands |
FDD B1/3/5/7/8/20/28; TDD B38/40/41 |
| 4G Data Rate |
FDD 10.3 Mbps down / 5.1 Mbps up; TDD 9.1 / 3.1 Mbps |
| Battery |
10,000 mAh rechargeable |
| Power Input |
DC 5V 2A / IMOU solar panel (8W) |
| Power Consumption |
< 3.5 W |
| Storage |
microSD up to 512GB |
| Operating Temperature |
-20°C ~ +50°C |
| Charging Temperature |
-15°C ~ +45°C |
| Material |
Plastic |
| Camera Dimensions |
195 × 115 × 193 mm |
| Camera Weight |
990 g |
What's in the Box
-
Camera: 1 × Camera, 1 × Power cable, 1 × Mounting bracket, 1 × Screw positioning sticker, 1 × Screw and wall anchor pack, 1 × Quick start guide
-
Solar panel: 1 × Solar panel, 1 × Mounting bracket, 1 × Screw and wall anchor pack, 1 × Quick start guide
Why Choose the IMOU Dual AOV?
- Two 5MP views from one wire-free camera
- 4G or Wi-Fi with automatic failover for remote sites
- AOV keeps a 24/7 record on solar power
- Human and vehicle detection with tracking and active deterrence
Downloads
⬇ Download Datasheet (PDF)⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
