Description

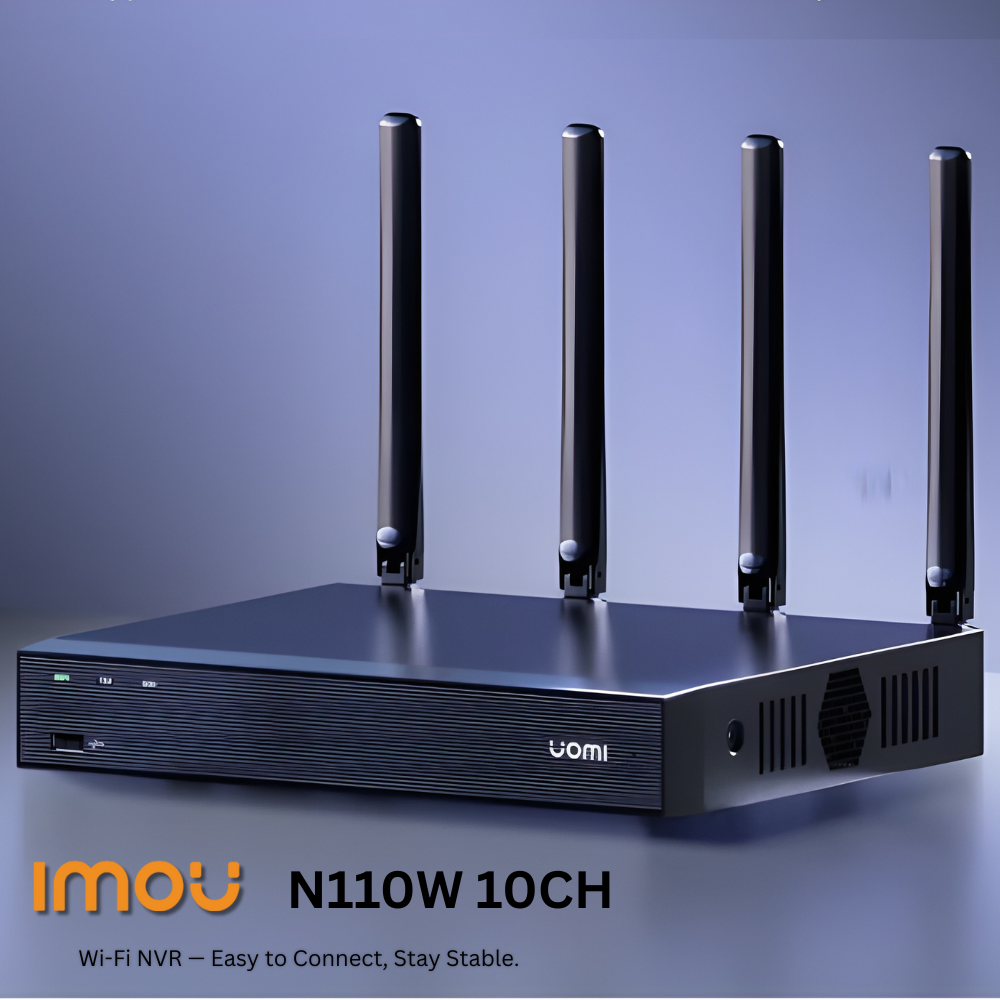

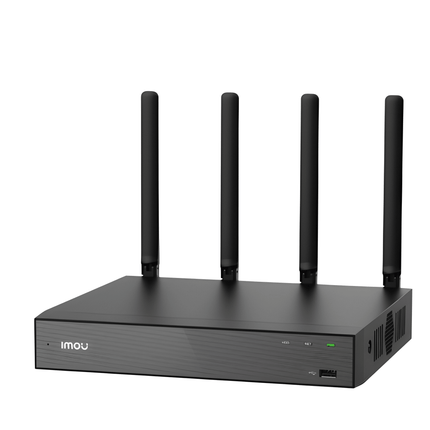

The IMOU N110W/N118W NVR is a versatile, wireless-ready network video recorder designed for smooth camera integration, reliable recording, and efficient playback. Perfect for homes, small businesses, and multi-camera setups, these NVRs support high-definition video streaming and extended storage, ensuring professional-grade monitoring and peace of mind. Compatible with multiple IMOU and ONVIF-compliant cameras, they allow flexible camera management, remote access, and real-time playback through the IMOU app. With robust performance, easy installation, and scalable functionality, the N110W/N118W NVRs provide a complete solution for comprehensive and intelligent video surveillance.

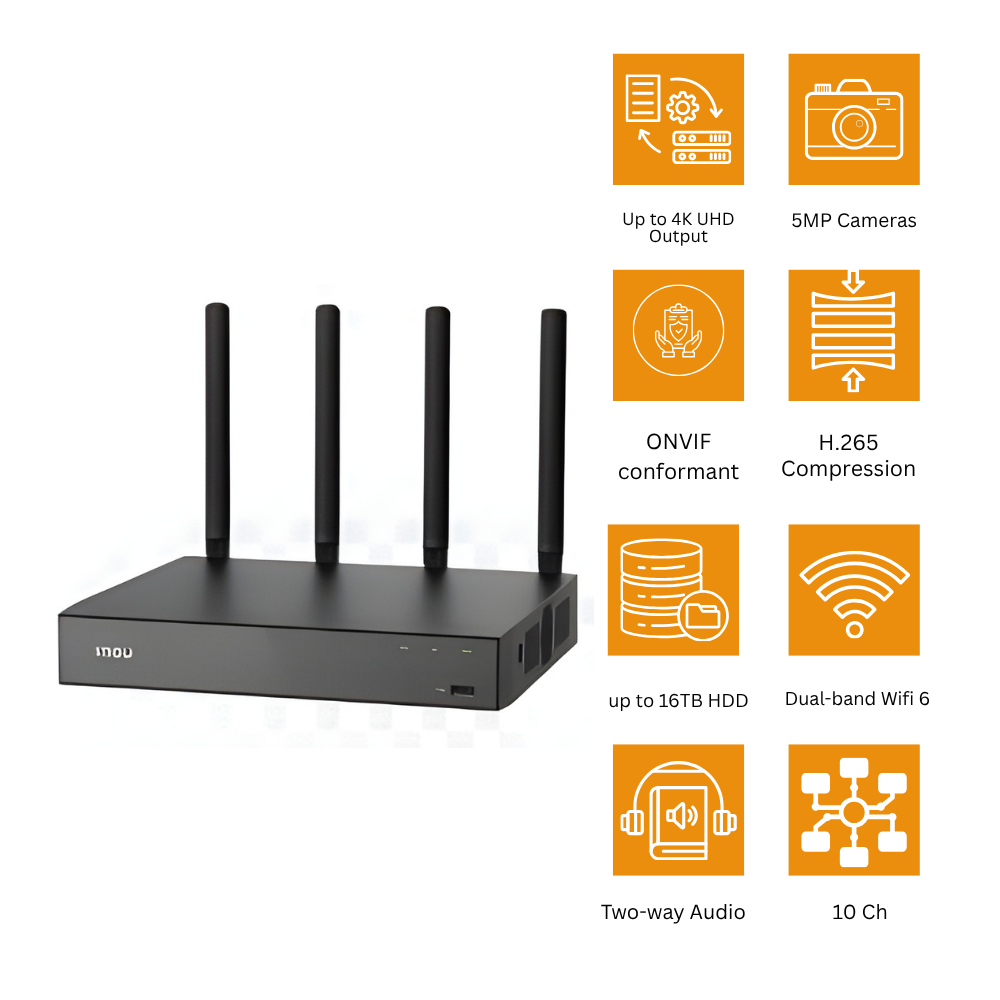

Key Features
-
Channel Support — N110W supports up to 10 cameras; N118W supports up to 18 cameras. Flexible setup accommodates varying surveillance scales.
-
Dual-Band Wi-Fi 6 — 2.4 GHz + 5 GHz connectivity with high-gain antennas ensures stable, wide-range wireless connections.
-
High-Definition Outputs — HDMI (up to 4K) and VGA ports for full-HD and ultra-clear video playback on external monitors.
-
Smart Playback — View 4 channels simultaneously at 8 MP @ 15 fps or 5 MP @ 30 fps; fast-forward options (2×, 4×, 8×, 16×) simplify review.
-
Large Storage Capacity — One SATA port supports HDDs up to 16 TB for extended retention (HDD not included).
-
Two-Way Audio — Integrated microphone and speaker allow real-time communication via connected cameras.
-
ONVIF & IMOU Compatibility — Supports auto-pairing with IMOU cameras and third-party ONVIF-compliant devices.
-
Compact & Quiet Design — Low-profile, efficient cooling design suitable for homes or small-to-medium businesses.
Technical Specifications
| Feature |
Specification |
| Channel Capacity |
N110W: up to 10 channels; N118W: up to 18 channels |
| Wi-Fi Connectivity |
Dual-band Wi-Fi 6 (2.4 GHz + 5 GHz), multiple high-gain antennas |
| Video Outputs |
1 × HDMI (supports 4K), 1 × VGA |
| Maximum Decoding Capacity |
4 ch at 8 MP @ 15 fps or 4 ch at 5 MP @ 30 fps |
| Video Compression |
H.265 / H.264 |
| Storage Support |
1 × SATA HDD port, up to 16 TB (not included) |
| Network Bandwidth |
Approx. 90 Mbps |
| Audio Features |
Built-in microphone + speaker (two-way) |
| Backup Interfaces |
2 × USB ports, network backup supported |
| Protocols |
ONVIF-compliant, auto-pairing with IMOU cameras |
| Power Supply |
DC 12 V / 2 A |
| Power Consumption |
< 9 W (without HDD) |
| Operating Temperature |
–10 °C to +45 °C |
| Dimensions |
241.5 × 260 × 60.2 mm |
| Weight |
Approx. 890 g (without HDD) |
Why Choose IMOU N110W/N118W NVR
-
Reliable support for multiple wireless cameras with Wi-Fi 6 connectivity.
-
Large storage and high-definition outputs enable long-term recording and detailed playback.
-
Two-way audio facilitates communication with visitors or monitored areas.
-
ONVIF and IMOU auto-pairing allow easy integration with existing systems.
-
Compact and quiet design fits seamlessly in homes, offices, or small businesses.
