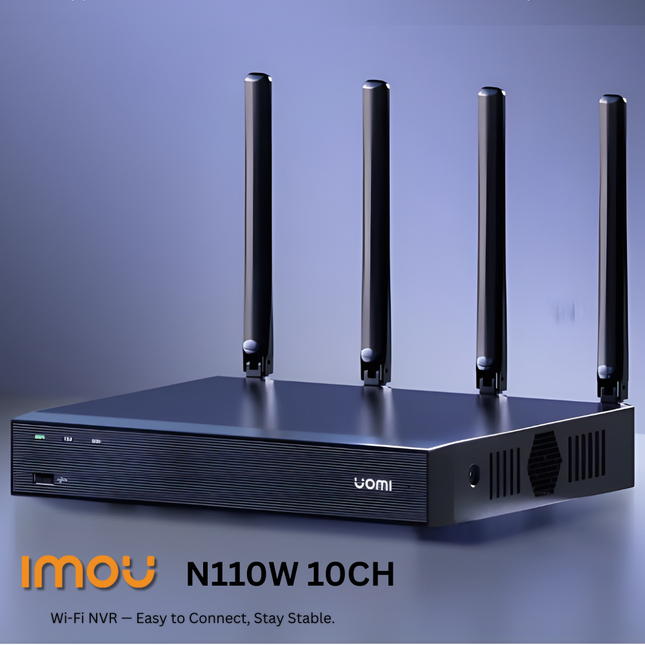

The IMOU N110W (NVR-N110W-8A0E) is a 10-channel Wi-Fi 6 network video recorder that builds a complete camera system without running video cables to every camera. IMOU cameras auto-pair with it in seconds, and its dual-band Wi-Fi 6 with 4 antennas connects up to 8 cameras on 2.4 GHz or up to 10 on 5 GHz. It records to one SATA hard drive of up to 16 TB with efficient H.265 compression, shows live and recorded video on a TV or monitor through HDMI (up to 4K) or VGA, and lets you check footage anywhere in the Imou Life app. The built-in microphone and speaker give you two-way audio directly from the NVR, and ONVIF (Profile T) support lets you add third-party IP cameras. Note: the hard drive is not included. Key Features 10 channels: up to 8 Wi-Fi cameras on 2.4 GHz or up to 10 on 5 GHz, or 10 wired 5MP cameras Dual-band Wi-Fi 6 (802.11ax) with 4 antennas for a stable, low-latency connection IMOU cameras auto-pair in seconds and can all be added to the Imou Life app with one tap, keeping almost all of their settings and smart features Motion, person and vehicle detection Two-way audio through the built-in microphone and speaker HDMI output up to 4K and VGA output up to 1080p 1 SATA port for a hard drive up to 16 TB, with H.265 compression for more days of recording 4-channel simultaneous playback (4 × 8MP @15fps or 4 × 5MP @30fps) with 2×, 4×, 8× and 16× fast-forward ONVIF (Profile T) conformant for third-party IP cameras Remote viewing anytime, anywhere with the Imou Life app Works With IMOU Wi-Fi cameras: pair automatically over the NVR's Wi-Fi, for example Ranger 2, Ranger 2 Pro 4K, Cruiser SC 8MP and Titan Pro Wired IP cameras: up to 10 × 5MP cameras on your network, including third-party ONVIF (Profile T) cameras App: Imou Life (iOS & Android) Technical Specifications Specification Details Model NVR-N110W-8A0E Product Name IMOU N110W Wi-Fi NVR Access Channels 10 channels Wi-Fi Access 2.4 GHz: up to 8 channels; 5 GHz: up to 10 channels Wired Access 10 × 5MP cameras Wi-Fi IEEE 802.11b/g/n/ax, Wi-Fi 6, dual-band 2.4 GHz & 5 GHz, 4 antennas Network Bandwidth 90 Mbps incoming, 90 Mbps outgoing Smart Detection Motion / Person / Vehicle Decoding Capability 4-ch 8MP@15fps; 4-ch 6MP@25fps; 4-ch 5MP@30fps; 5-ch 4MP@30fps; 10-ch 1080p@30fps Video Compression H.265 / H.264 Audio Two-way audio, built-in microphone and speaker; AAC Live Display 1/4/8/9/10 split screens Video Output 1 × HDMI: up to 4K (3840 × 2160); 1 × VGA: up to 1920 × 1080 Hard Drive 1 SATA port, up to 16 TB (HDD not included) Backup USB flash drive (MP4 files) Interfaces 1 × RJ-45 (10/100 Mbps), 2 × USB, reset button Third-Party Cameras ONVIF (Profile T) App Imou Life (iOS & Android) Power Supply DC 12V 2A Power Consumption <9 W average, <19 W peak (with HDD) Operating Temperature -10°C ~ +45°C Operating Humidity Less than 95% RH Dimensions 241.5 × 260 × 60.2 mm (antennas folded) Weight 890 g (without HDD) Certification CE Why Choose the IMOU N110W? A complete Wi-Fi camera system without running video cables to each camera Wi-Fi 6 with 4 antennas for a stable connection and low latency Local recording on up to 16 TB, viewable on a 4K screen or in the app Easy setup: IMOU cameras pair automatically and keep their smart features Downloads ⬇ Download Datasheet (PDF)⬇ Download Quick Start Guide (PDF) Warranty: 12-month warranty from the Official Distributor.

Read more less

The IMOU N118W (NVR-N118W-8A0E) is an 18-channel Wi-Fi 6 network video recorder that builds a complete camera system without running video cables to every camera. IMOU cameras auto-pair with it in seconds, and its dual-band Wi-Fi 6 with 4 antennas connects up to 8 cameras on 2.4 GHz or up to 12 on 5 GHz. It records to one SATA hard drive of up to 16 TB with efficient H.265 compression, shows live and recorded video on a TV or monitor through HDMI (up to 4K) or VGA, and lets you check footage anywhere in the Imou Life app. The built-in microphone and speaker give you two-way audio directly from the NVR, and ONVIF (Profile T) support lets you add third-party IP cameras. Note: the hard drive is not included. Key Features 18 channels: up to 8 Wi-Fi cameras on 2.4 GHz or up to 12 on 5 GHz, or 18 wired 5MP cameras Dual-band Wi-Fi 6 (802.11ax) with 4 antennas for a stable, low-latency connection IMOU cameras auto-pair in seconds and can all be added to the Imou Life app with one tap, keeping almost all of their settings and smart features Motion, person and vehicle detection Two-way audio through the built-in microphone and speaker HDMI output up to 4K and VGA output up to 1080p 1 SATA port for a hard drive up to 16 TB, with H.265 compression for more days of recording 4-channel simultaneous playback (4 × 8MP @15fps or 4 × 5MP @30fps) with 2×, 4×, 8× and 16× fast-forward ONVIF (Profile T) conformant for third-party IP cameras Remote viewing anytime, anywhere with the Imou Life app Works With IMOU Wi-Fi cameras: pair automatically over the NVR's Wi-Fi, for example Ranger 2, Ranger 2 Pro 4K, Cruiser SC 8MP and Titan Pro Wired IP cameras: up to 18 × 5MP cameras on your network, including third-party ONVIF (Profile T) cameras App: Imou Life (iOS & Android) Technical Specifications Specification Details Model N118W (NVR-N118W-8A0E) Product Name IMOU N118W Wi-Fi NVR Access Channels 18 channels Wi-Fi Access 2.4 GHz: up to 8 channels; 5 GHz: up to 12 channels Wired Access 18 × 5MP cameras Wi-Fi IEEE 802.11b/g/n/ax, Wi-Fi 6, dual-band 2.4 GHz & 5 GHz, 4 antennas Network Bandwidth 90 Mbps incoming, 90 Mbps outgoing Smart Detection Motion / Person / Vehicle Decoding Capability 4-ch 8MP@15fps; 4-ch 6MP@25fps; 4-ch 5MP@30fps; 5-ch 4MP@30fps; 10-ch 1080p@30fps Video Compression H.265 / H.264 Audio Two-way audio, built-in microphone and speaker; AAC Live Display 1/4/8/9/10/16/18 split screens Video Output 1 × HDMI: up to 4K (3840 × 2160); 1 × VGA: up to 1920 × 1080 Hard Drive 1 SATA port, up to 16 TB (HDD not included) Backup USB flash drive (MP4 files) Interfaces 1 × RJ-45 (10/100 Mbps), 2 × USB, reset button Third-Party Cameras ONVIF (Profile T) App Imou Life (iOS & Android) Power Supply DC 12V 2A Power Consumption <9 W average, <19 W peak (with HDD) Operating Temperature -10°C ~ +45°C Operating Humidity Less than 95% RH Dimensions 241.5 × 260 × 60.2 mm (antennas folded) Weight 890 g (without HDD) Certification CE Why Choose the IMOU N118W? A complete Wi-Fi camera system without running video cables to each camera Wi-Fi 6 with 4 antennas for a stable connection and low latency Local recording on up to 16 TB, viewable on a 4K screen or in the app Easy setup: IMOU cameras pair automatically and keep their smart features Downloads ⬇ Download Datasheet (PDF)⬇ Download User Manual (PDF) Warranty: 12-month warranty from the Official Distributor.

Read more less

The IMOU N110 (NVR-N110-8A0E) is a 10-channel network video recorder for homes and businesses. It connects to your network through its RJ-45 port, records up to 10 IP cameras to one SATA hard drive of up to 16 TB, and pairs IMOU cameras quickly and seamlessly. H.265 compression keeps more days of footage on the same disk, HDMI (up to 4K) and VGA (up to 1080p) outputs show live and recorded video on a local screen, and the built-in microphone and speaker allow two-way talk in real time. Manage recordings anytime, anywhere in the Imou Life app, or on the Imou Glow platform for business users. Note: this model has no PoE ports. Cameras are powered separately and connected through your network (router or switch). Key Features Up to 10 IP camera channels IMOU cameras auto-pair with the NVR; bind them to the Imou Life app in one click with almost all smart detection features kept Motion, person and vehicle detection Two-way talk through the built-in microphone and speaker HDMI output up to 4K and VGA output up to 1080p 1 SATA port for a hard drive up to 16 TB H.265 / H.264 compression for smoother live view, quicker playback and more days of recording 4-channel simultaneous playback (4 × 8MP @15fps or 4 × 5MP @30fps) with 2×, 4×, 8× and 16× fast-forward ONVIF (Profile T) conformant for third-party IP cameras Remote access with the Imou Life app or the Imou Glow business platform Works With IMOU cameras on your network: auto-pair with the NVR, for example Ranger 2 Pro 4K, Cruiser SC 8MP and Titan Pro Third-party IP cameras: ONVIF (Profile T) Wired network: connect the NVR and wired cameras to your router or a switch such as IMOU SG108 or IMOU SG105 Apps: Imou Life (iOS & Android) and Imou Glow Technical Specifications Specification Details Model N110 (NVR-N110-8A0E) Product Name IMOU N110 NVR Access Channels 10 channels Network Bandwidth 90 Mbps Smart Detection Motion / Person / Vehicle Playback Decoding 4-ch 8MP@15fps; 4-ch 5MP@30fps (2×, 4×, 8×, 16× fast-forward) Video Compression H.265 / H.264 Audio Compression AAC Back-up File Format MP4 Live Display 1/4/8/9/10 split screens Video Output 1 × HDMI (up to 4K), 1 × VGA (up to 1080p) Audio Two-way audio: built-in microphone and speaker Hard Drive 1 SATA port, up to 16 TB Backup Media USB flash drive Network Port 1 × RJ-45 (10/100 Mbps) USB 2 × USB Third-Party Cameras ONVIF (Profile T) App / Platform Imou Life app (iOS & Android); Imou Glow platform for business Power Supply DC 12V 2A Power Consumption <9 W average, <19 W peak (with HDD) Operating Temperature -10°C ~ +45°C Operating Humidity Less than 95% RH Dimensions 227.5 × 260 × 45.0 mm Weight 850 g (without HDD) Certification CE Why Choose the IMOU N110? Reliable local recording for up to 10 cameras on a single hard drive of up to 16 TB Quick setup: IMOU cameras pair automatically and keep their smart detection features View on a 4K screen at the site or remotely in Imou Life / Imou Glow Works with third-party ONVIF (Profile T) cameras for mixed systems Downloads ⬇ Download Datasheet (PDF)⬇ Download User Manual (PDF) Warranty: 12-month warranty from the Official Distributor.

Read more less

The IMOU N118 (NVR-N118-8A0E) is an 18-channel network video recorder for homes and businesses. It connects to your network through its RJ-45 port, records up to 18 IP cameras to one SATA hard drive of up to 16 TB, and pairs IMOU cameras quickly and seamlessly. H.265 compression keeps more days of footage on the same disk, HDMI (up to 4K) and VGA (up to 1080p) outputs show live and recorded video on a local screen, and the built-in microphone and speaker allow two-way talk in real time. Manage recordings anytime, anywhere in the Imou Life app, or on the Imou Glow platform for business users. Note: this model has no PoE ports. Cameras are powered separately and connected through your network (router or switch). Key Features Up to 18 IP camera channels IMOU cameras auto-pair with the NVR; bind them to the Imou Life app in one click with almost all smart detection features kept Motion, person and vehicle detection Two-way talk through the built-in microphone and speaker HDMI output up to 4K and VGA output up to 1080p 1 SATA port for a hard drive up to 16 TB H.265 / H.264 compression for smoother live view, quicker playback and more days of recording 4-channel simultaneous playback (4 × 8MP @15fps or 4 × 5MP @30fps) with 2×, 4×, 8× and 16× fast-forward ONVIF (Profile T) conformant for third-party IP cameras Remote access with the Imou Life app or the Imou Glow business platform Works With IMOU cameras on your network: auto-pair with the NVR, for example Ranger 2 Pro 4K, Cruiser SC 8MP and Titan Pro Third-party IP cameras: ONVIF (Profile T) Wired network: connect the NVR and wired cameras to your router or a switch such as IMOU SG108 or IMOU SG105 Apps: Imou Life (iOS & Android) and Imou Glow Technical Specifications Specification Details Model N118 (NVR-N118-8A0E) Product Name IMOU N118 NVR Access Channels Up to 18 channels Smart Detection Motion / Person / Vehicle Playback Decoding 4-ch 8MP@15fps; 4-ch 5MP@30fps (2×, 4×, 8×, 16× fast-forward) Video Compression H.265 / H.264 Audio Compression AAC Back-up File Format MP4 Video Output 1 × HDMI (up to 4K), 1 × VGA (up to 1080p) Audio Two-way audio: built-in microphone and speaker Hard Drive 1 SATA port, up to 16 TB Backup Media USB flash drive Network Port 1 × RJ-45 (10/100 Mbps) USB 2 × USB Third-Party Cameras ONVIF (Profile T) App / Platform Imou Life app (iOS & Android); Imou Glow platform for business Power Supply DC 12V 2A Operating Temperature -10°C ~ +45°C Why Choose the IMOU N118? Reliable local recording for up to 18 cameras on a single hard drive of up to 16 TB Quick setup: IMOU cameras pair automatically and keep their smart detection features View on a 4K screen at the site or remotely in Imou Life / Imou Glow Works with third-party ONVIF (Profile T) cameras for mixed systems Downloads ⬇ Download User Manual (PDF) Warranty: 12-month warranty from the Official Distributor.

Read more less

The IMOU N110-4P (NVR-N110-4P-8A0E) is a 10-channel network video recorder with 4 built-in PoE ports. Each port (10/100 Mbps, IEEE 802.3af/at) powers and connects an IP camera over a single Ethernet cable, plug-and-play, with a 70 W total PoE budget (max 25.5 W per port). It records to one SATA hard drive of up to 16 TB with H.265 compression, shows live view on HDMI (up to 4K) or VGA (up to 1080p), and adds AI-powered Smart Search for events, people and vehicles with no subscription or extra purchase. The built-in microphone and speaker allow two-way talk, and the Imou Life app (or the Imou Glow platform for business) lets you add the NVR and its cameras by scanning, with no on-site configuration. Key Features 4 PoE ports (10/100 Mbps, IEEE 802.3af/at): plug-and-play camera connection, power and data on one cable Up to 10 channels of live view 70 W total PoE power, up to 25.5 W per port Smart Search: AI-powered event, person and vehicle search with no subscription Two-way talk through the built-in microphone and speaker IMOU cameras auto-pair; scan to add the NVR and cameras in the Imou Life app HDMI output up to 4K and VGA output up to 1080p 1 SATA port for a hard drive up to 16 TB, with H.265 compression 4-channel simultaneous playback with 2×, 4×, 8× and 16× fast-forward ONVIF (Profile T) conformant for third-party IP cameras Works With IMOU PoE cameras (plug-and-play on the PoE ports): Bullet 3MP, Bullet 5MP, Bullet 8MP 4K, PS8E Turret, PS70F Dual-Lens and 5MP PoE Pan & Tilt Indoor Third-party IP cameras: ONVIF (Profile T) Apps: Imou Life (iOS & Android) and Imou Glow Technical Specifications Specification Details Model N110-4P (NVR-N110-4P-8A0E) Product Name IMOU N110-4P PoE NVR Access Channels 10 channels (4 PoE ports) PoE Ports 4 × 10/100 Mbps, IEEE 802.3af/at PoE Power 70 W total, max 25.5 W per port Network Bandwidth 90 Mbps incoming, 90 Mbps outgoing Decoding Capability 4-ch 8MP@15fps; 4-ch 6MP@25fps; 4-ch 5MP@30fps; 5-ch 4MP@30fps; 10-ch 1080p@30fps Smart Detection Motion / Person / Vehicle Video Compression H.265 / H.264 Audio Two-way audio, built-in microphone and speaker; AAC Live Display 1/4/8/9/10 split screens Video Output 1 × HDMI: up to 4K (3840 × 2160); 1 × VGA: up to 1920 × 1080 Hard Drive 1 SATA port, up to 16 TB Backup USB flash drive (MP4 files) Network Port 1 × RJ-45 (10/100 Mbps) USB 2 × USB Third-Party Cameras ONVIF (Profile T) App Imou Life app (iOS & Android); Imou Glow platform for business Power Supply DC 54V 1.35A Power Consumption NVR ≤ 9 W (without HDD), plus PoE output Operating Temperature -10°C ~ +45°C Operating Humidity Less than 95% RH Dimensions 227.5 × 260 × 45.0 mm Certification CE Why Choose the IMOU N110-4P? Up to 4 cameras powered and connected without a separate PoE switch Free AI Smart Search for events, people and vehicles Fast, remote-friendly setup: scan to add the NVR and cameras in the app Local recording on up to 16 TB with 4K output for on-site viewing Downloads ⬇ Download Datasheet (PDF)⬇ Download User Manual (PDF) Warranty: 12-month warranty from the Official Distributor.

Read more less

The IMOU N118-8P (NVR-N118-8P-8A0E) is an 18-channel network video recorder with 8 built-in PoE ports. Each port (10/100 Mbps, IEEE 802.3af/at) powers and connects an IP camera over a single Ethernet cable, plug-and-play, with a 95 W total PoE budget (max 30 W per port). It records to one SATA hard drive of up to 16 TB with H.265 compression, shows live view on HDMI (up to 4K) or VGA (up to 1080p), and adds AI-powered Smart Search for events, people and vehicles with no subscription or extra purchase. The built-in microphone and speaker allow two-way talk, and the Imou Life app (or the Imou Glow platform for business) lets you add the NVR and its cameras by scanning, with no on-site configuration. Key Features 8 PoE ports (10/100 Mbps, IEEE 802.3af/at): plug-and-play camera connection, power and data on one cable Up to 18 channels of live view 95 W total PoE power, up to 30 W per port Smart Search: AI-powered event, person and vehicle search with no subscription Two-way talk through the built-in microphone and speaker IMOU cameras auto-pair; scan to add the NVR and cameras in the Imou Life app HDMI output up to 4K and VGA output up to 1080p 1 SATA port for a hard drive up to 16 TB, with H.265 compression 4-channel simultaneous playback with 2×, 4×, 8× and 16× fast-forward ONVIF (Profile T) conformant for third-party IP cameras Works With IMOU PoE cameras (plug-and-play on the PoE ports): Bullet 3MP, Bullet 5MP, Bullet 8MP 4K, PS8E Turret, PS70F Dual-Lens and 5MP PoE Pan & Tilt Indoor Third-party IP cameras: ONVIF (Profile T) Apps: Imou Life (iOS & Android) and Imou Glow Technical Specifications Specification Details Model N118-8P (NVR-N118-8P-8A0E) Product Name IMOU N118-8P PoE NVR Access Channels 18 channels (8 PoE ports) PoE Ports 8 × 10/100 Mbps, IEEE 802.3af/at PoE Power 95 W total, max 30 W per port Network Bandwidth 90 Mbps incoming, 90 Mbps outgoing Decoding Capability 4-ch 8MP@15fps; 4-ch 6MP@25fps; 4-ch 5MP@30fps; 5-ch 4MP@30fps; 10-ch 1080p@30fps Smart Detection Motion / Person / Vehicle Video Compression H.265 / H.264 Audio Two-way audio, built-in microphone and speaker; AAC Live Display 1/4/8/9/10/16/18 split screens Video Output 1 × HDMI: up to 4K (3840 × 2160); 1 × VGA: up to 1920 × 1080 Hard Drive 1 SATA port, up to 16 TB Backup USB flash drive (MP4 files) Network Port 1 × RJ-45 (10/100 Mbps) USB 2 × USB Third-Party Cameras ONVIF (Profile T) App Imou Life app (iOS & Android); Imou Glow platform for business Power Supply DC 54V 1.85A Power Consumption NVR ≤ 9 W (without HDD), plus PoE output Operating Temperature -10°C ~ +45°C Operating Humidity Less than 95% RH Dimensions 227.5 × 260 × 45.0 mm Certification CE Why Choose the IMOU N118-8P? Up to 8 cameras powered and connected without a separate PoE switch Free AI Smart Search for events, people and vehicles Fast, remote-friendly setup: scan to add the NVR and cameras in the app Local recording on up to 16 TB with 4K output for on-site viewing Downloads ⬇ Download Datasheet (PDF)⬇ Download User Manual (PDF) Warranty: 12-month warranty from the Official Distributor.

Read more less

The IMOU N236-16P (NVR-N236-16P-8A0E) is a 36-channel network video recorder with 16 built-in PoE ports. Each port (10/100 Mbps, IEEE 802.3af/at) powers and connects an IP camera over a single Ethernet cable, plug-and-play, with a 150 W total PoE budget (max 25.5 W per port). It records to two SATA hard drives (2 SATA ports, up to 16 TB) with H.265 compression, shows live view on HDMI (up to 4K) or VGA (up to 1080p), and offers AI Smart Search for people, vehicles and events. IMOU cameras pair automatically, third-party cameras connect through ONVIF, and the IMOU app gives you remote monitoring and two-way audio through the built-in microphone and speaker. Key Features 16 built-in PoE ports (10/100 Mbps, IEEE 802.3af/at) for plug-and-play camera installation Up to 36 IP camera channels, cameras up to 8MP 150 W total PoE power, up to 25.5 W per port AI Smart Search for people, vehicles and events Motion, person and vehicle detection IMOU IPC auto-pair for automatic camera pairing HDMI output up to 4K and VGA output up to 1080p 2 SATA ports for hard drives (up to 16 TB), H.265 / H.264 compression Gigabit (10/100/1000 Mbps) network port and 320 Mbps bandwidth Two-way audio, remote monitoring in the IMOU app, ONVIF compatible Works With IMOU PoE cameras (plug-and-play on the PoE ports): Bullet 3MP, Bullet 5MP, Bullet 8MP 4K, PS8E Turret, PS70F Dual-Lens and 5MP PoE Pan & Tilt Indoor Third-party IP cameras: ONVIF Apps: IMOU app (iOS & Android) Technical Specifications Specification Details Model NVR-N236-16P-8A0E Product Name IMOU N236-16P PoE NVR Access Channels 36 channels (16 PoE ports) PoE Ports 16 × 10/100 Mbps, IEEE 802.3af/at PoE Power 150 W total, max 25.5 W per port Network Bandwidth 320 Mbps incoming, 320 Mbps outgoing Camera Resolution 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 720p Decoding Capability 4-ch 8MP@15fps; 4-ch 6MP@25fps; 4-ch 5MP@30fps; 5-ch 4MP@30fps; 10-ch 1080p@30fps Smart Detection Motion / Person / Vehicle Video Compression H.265 / H.264 Audio Two-way audio, built-in microphone and speaker; AAC Live Display 1/4/8/9/10/16/19/25/36 split screens Video Output 1 × HDMI: up to 4K (3840 × 2160); 1 × VGA: up to 1920 × 1080 Hard Drive 2 SATA ports, up to 16 TB Backup USB flash drive (MP4 files) Network Port 1 × RJ-45 (10/100/1000 Mbps, Gigabit) USB 2 × USB Third-Party Cameras ONVIF App IMOU app (iOS & Android) Power Supply 100–240 VAC, 50/60 Hz Power Consumption NVR ≤ 9 W (without HDD), plus PoE output Operating Temperature -10°C ~ +45°C Operating Humidity Less than 95% RH Dimensions 320.0 × 374.0 × 45.0 mm Certification CE Why Choose the IMOU N236-16P? Built for larger installations: 36 channels and 16 PoE ports in one recorder One-cable installation for each PoE camera, with a 150 W PoE budget Two hard-drive bays and a Gigabit network port 4K output, AI Smart Search and H.265 compression for efficient daily use Downloads ⬇ Download Datasheet (PDF)⬇ Download User Manual (PDF) Warranty: 12-month warranty from the Official Distributor.

Read more less
