Description

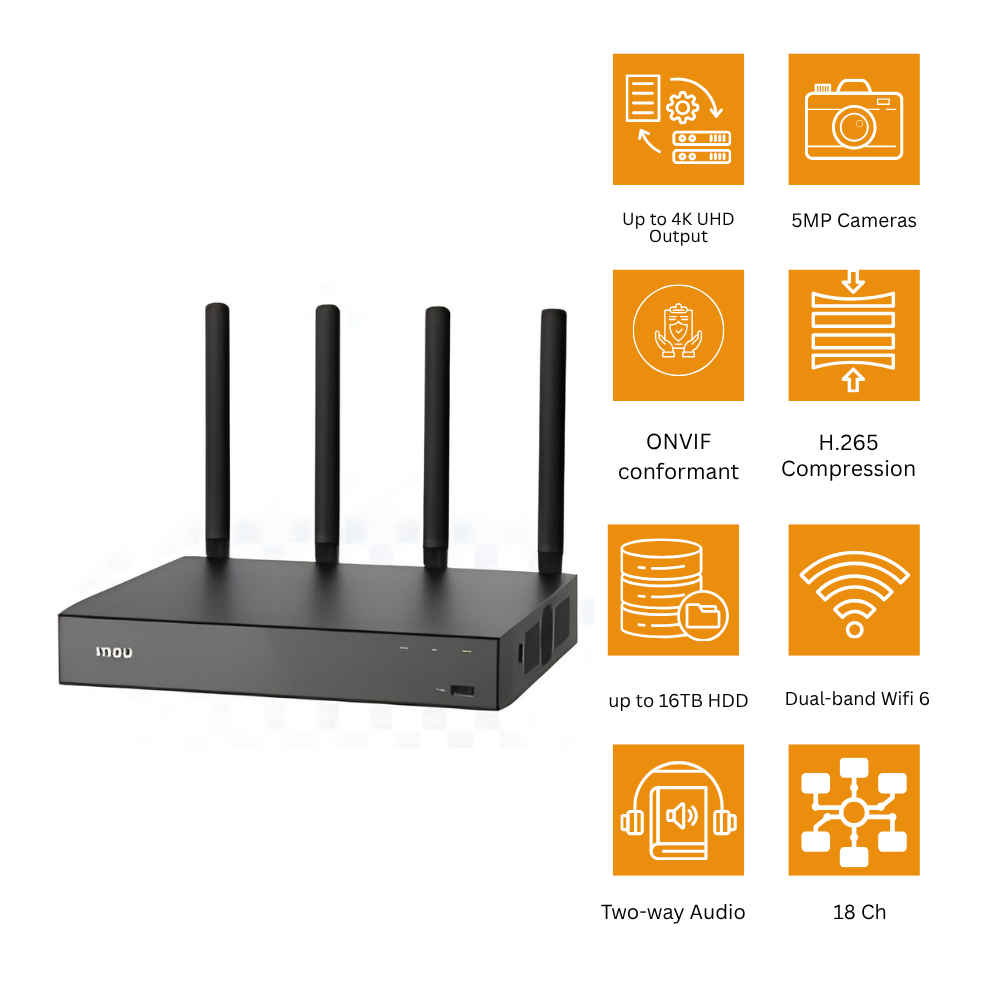

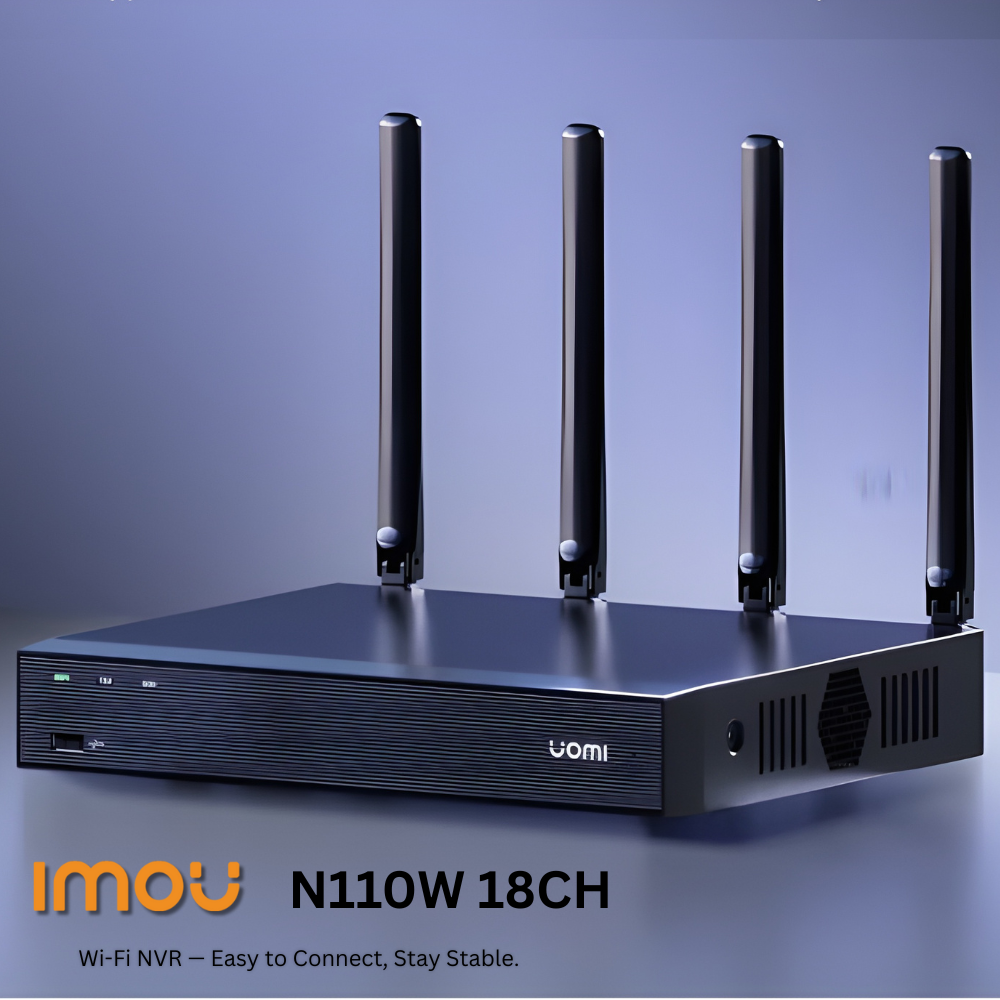

The IMOU N118W is a high-performance 18-channel NVR designed for wireless surveillance systems. It offers reliable video recording, dual-band Wi-Fi 6 connectivity, and easy management of multiple cameras, supporting both IMOU and ONVIF-compliant devices. Ideal for large homes, offices, and small businesses, the N118W allows efficient monitoring, remote access, and playback of multiple camera feeds simultaneously. With robust storage options and seamless integration with the IMOU app, it provides a complete solution for smart and scalable security systems, ensuring convenience, reliability, and peace of mind.
Key Features
-
Supports Up to 18 Cameras — Easily manage multiple IMOU cameras or other ONVIF-compliant devices for comprehensive coverage.
-
Dual-Band Wi-Fi 6 Connectivity — 2.4 GHz and 5 GHz Wi-Fi improves stability, coverage, and reduces interference for wireless cameras.
-
High-Definition Video Recording — Supports 8 MP @ 15 fps or 5 MP @ 30 fps decoding for up to four channels simultaneously.
-
Large Storage — One SATA interface supports up to 16 TB HDD (not included) for extended video retention.
-
Two-Way Audio — Built-in microphone and speaker enable real-time audio communication.
-
Smart Playback — Quickly review recordings with fast-forward options.
-
HDMI + VGA Outputs — Connect to 4K or standard monitors for live view and playback.
-
Easy Setup & Auto-Pairing — Automatically detects and pairs with IMOU cameras for straightforward installation.
-
ONVIF Compatibility — Works seamlessly with other ONVIF-compliant cameras.
-
Compact & Efficient — Low-profile design with efficient cooling for quiet operation.
Technical Specifications
| Feature |
Specification |
| Channels Supported |
Up to 18 |
| Wi-Fi Connectivity |
Dual-band Wi-Fi 6 (2.4 GHz + 5 GHz), high-gain antennas |
| Video Outputs |
1 × HDMI (4K), 1 × VGA |
| Decoding Capability |
4 × 8 MP @ 15 fps or 4 × 5 MP @ 30 fps |
| Video Compression |
H.265 / H.264 |
| Storage Support |
1 × SATA HDD (up to 16 TB, not included) |
| Network Bandwidth Support |
90 Mbps |
| Audio Features |
Built-in microphone and speaker (two-way) |
| Backup Options |
2 × USB ports + network backup |
| Protocol Support |
ONVIF / IMOU auto-pairing |
| Power Supply |
DC 12 V 2 A |
| Power Consumption |
< 9 W (without HDD) |
| Operating Temperature |
–10 °C to +45 °C |
| Dimensions |
241.5 × 260 × 60.2 mm |
| Weight |
Approx. 890 g (without HDD) |
Why Choose IMOU N118W NVR
-
Supports up to 18 wireless cameras with reliable Wi-Fi 6 connectivity.
-
Large storage capacity accommodates extended recordings.
-
Compact, low-noise design fits seamlessly in homes or offices.
-
Built-in two-way audio and smart playback options enable effective monitoring and communication.
-
Easy installation with auto-pairing and ONVIF compatibility simplifies setup for multi-camera systems.
