Description

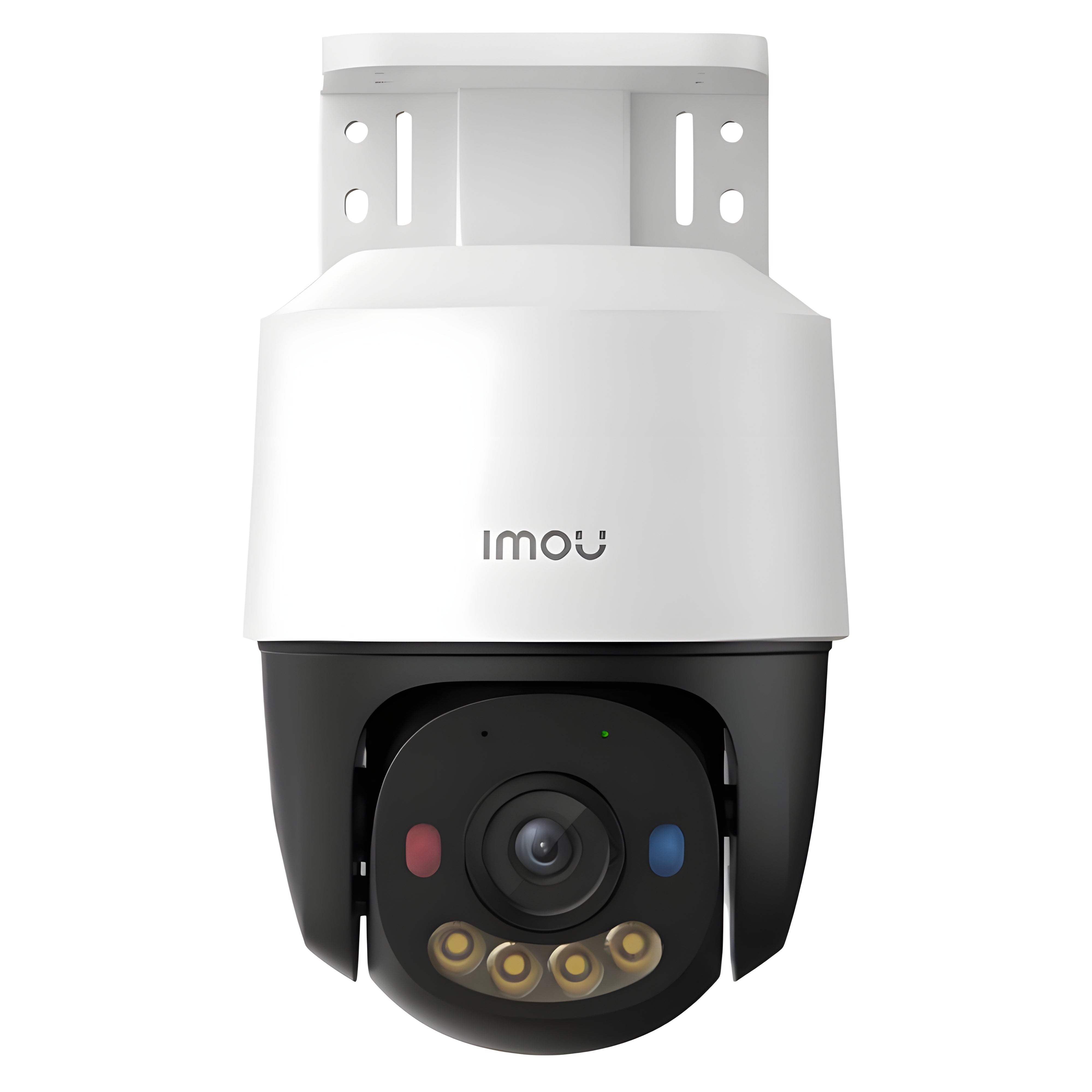

The IPC-PS7FP Series is a smart pan & tilt security camera designed for complete area coverage with powerful active deterrence. Available in 3MP and 5MP resolutions, it combines smooth 355° pan & 90° tilt movement, AI-powered detection, and vivid smart color night vision. With built-in spotlight, loud siren, and red-blue warning lights, this series not only monitors but actively protects your property—day and night, indoors or outdoors.

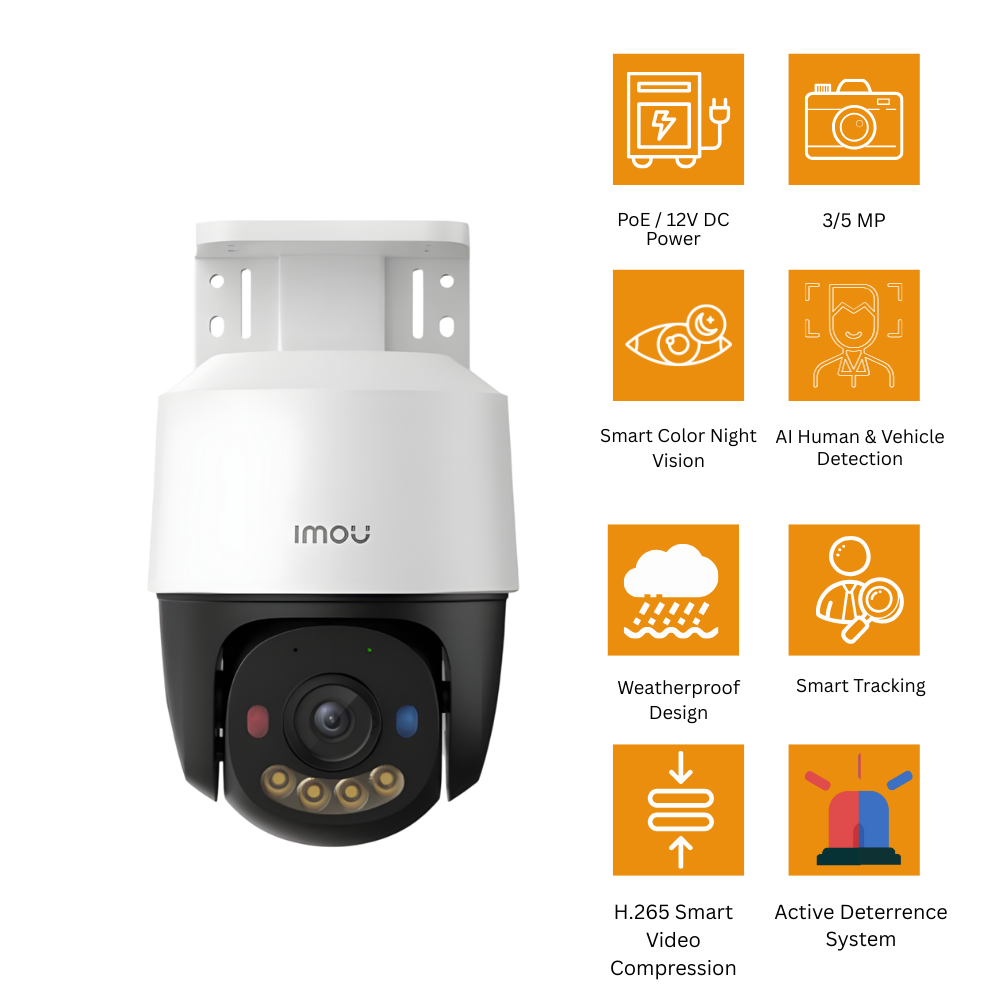

Key Features
• High-Resolution Live Monitoring
-
5MP model: Delivers sharp 3K clarity for detailed surveillance beyond standard 3MP.
-
3MP model: Clear and smooth video quality, superior to 1080P.
• Pan & Tilt Full Coverage
0–355° pan and 0–90° tilt ensure every corner is covered with no blind spots.
• H.265 Smart Video Compression
Advanced compression reduces storage usage while maintaining high image quality.
• Smart Color Night Vision
Four adaptive night vision modes provide clear images even in complete darkness .
• AI Human & Vehicle Detection
Accurately identifies people and vehicles, reducing false alarms caused by irrelevant motion.
• Smart Tracking
Automatically follows moving objects to keep important activity in view.

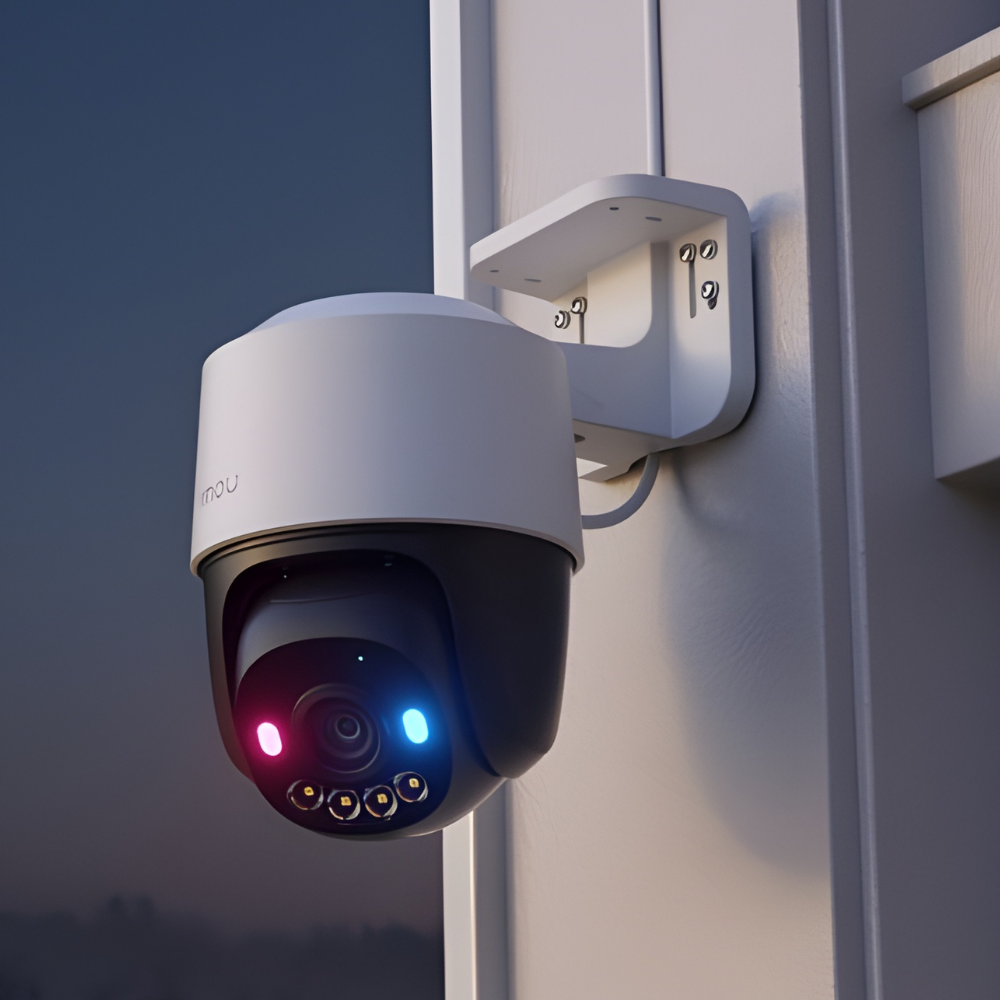

• Active Deterrence System
Built-in spotlight , powerful 110dB siren, and red-blue warning lights help scare away intruders instantly.
• Real-Time Alarm Notifications
Instant motion-triggered alerts are sent directly to your mobile phone.

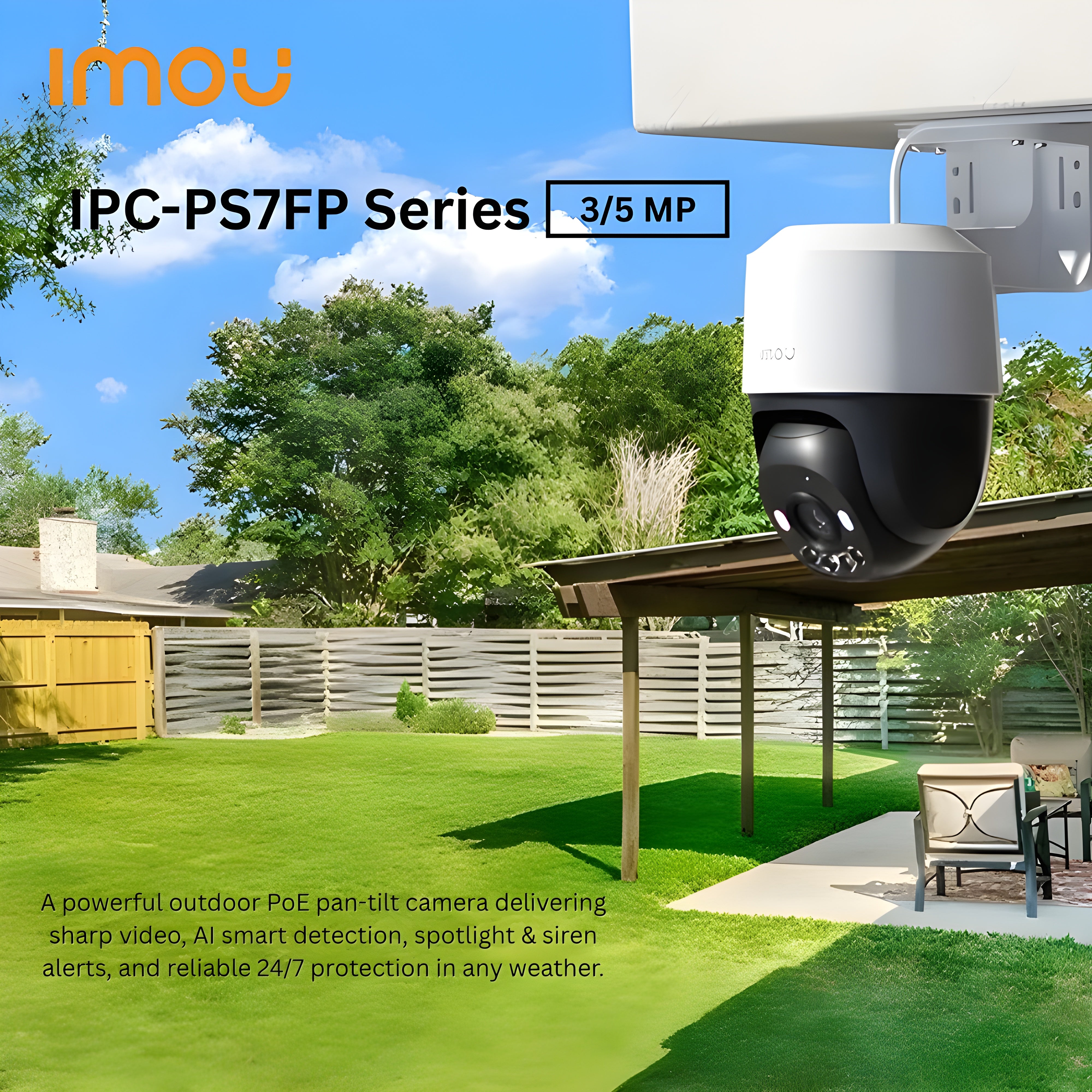

• Weatherproof Design
Reliable outdoor performance with resistance to dust, rain, and harsh weather .
• Flexible Storage Options
Supports Cloud, NVR, and MicroSD card storage up to 512GB with AOR Mode for efficient recording.
• PoE / 12V DC Power
Supports Power over Ethernet for clean installation or traditional DC power for flexibility.
Technical Specification
| Category |
PS7F 5MP (IPC-PS7FP-5M0) |
PS7F 3MP (IPC-PS7FP-3M0) |
| Image Sensor |
1/3” 5MP Progressive CMOS |
1/3” 3MP Progressive CMOS |
| Max Resolution |
5MP (2880 × 1620) |
3MP (2304 × 1296) |
| Frame Rate |
25 / 30 fps |
25 / 30 fps |
| Video Compression |
H.265 / H.264 |
H.265 / H.264 |
| Lens |
3.6mm Fixed |
3.6mm Fixed |
| Field of View |
76° (H), 41° (V), 91° (D) |
78° (H), 41° (V), 91° (D) |
| Pan / Tilt |
355° Pan / 0–90° Tilt |
355° Pan / 0–90° Tilt |
| Night Vision Distance |
30m (98ft) |
30m (98ft) |
| Illuminators |
4 (IR + Spotlight) |
4 (IR + Spotlight) |
| Red-Blue Warning Lights |
Yes (2 Lights) |
Yes (2 Lights) |
| Digital Zoom |
8× |
8× |
| Built-in Spotlight |
Yes |
Yes |
| Ethernet Port |
1 × 100Mbps |
1 × 100Mbps |
| Mobile App |
Imou App (iOS / Android) |
Imou App (iOS / Android) |
| ONVIF |
Supported |
Supported |
| Power Supply |
PoE / DC 12V 1A |
PoE / DC 12V 1A |
| Power Consumption |
<12W |
<12W |
| Storage |
MicroSD up to 512GB |
MicroSD up to 512GB |
| Operating Temperature |
–30°C to +50°C |
–30°C to +50°C |
| Operating Humidity |
<95% RH |
<95% RH |
| Material |
Plastic |
Plastic |
| Dimensions |
196 × 115 × 159 mm |
196 × 115 × 159 mm |
| Weight |
505g |
505g |
| Certification |
CE |
CE |
| Smart Detection |
Motion / Human / Vehicle |
Motion / Human / Vehicle |
Why You Need IPC-PS7FP Series
-
Complete coverage with smooth pan & tilt—no blind spots.
-
Clear day & night vision with smart color night modes .
-
Proactive security using spotlight, siren, and red-blue warning lights .
-
Smarter alerts thanks to AI human & vehicle detection.
-
Reliable outdoor use with weather-resistant design .
-
Easy installation with PoE or 12V DC power.
-
Flexible storage options to match your security needs.
-
Ideal for homes, shops, garages, and businesses seeking active, intelligent protection.
