Description

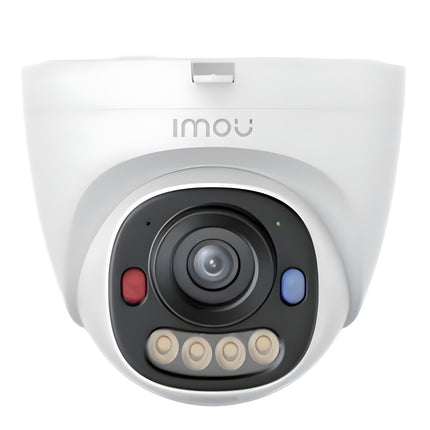

The PS8D Series is a compact yet powerful turret camera designed for reliable indoor and outdoor security. Available in 5MP and 3MP resolutions, it delivers clear video quality, smart color night vision , and intelligent human & vehicle detection powered by IMOU SENSE™. With built-in spotlights and red-blue warning lights, PS8D actively deters intruders while its IP67-rated housing ensures stable performance in all weather conditions.

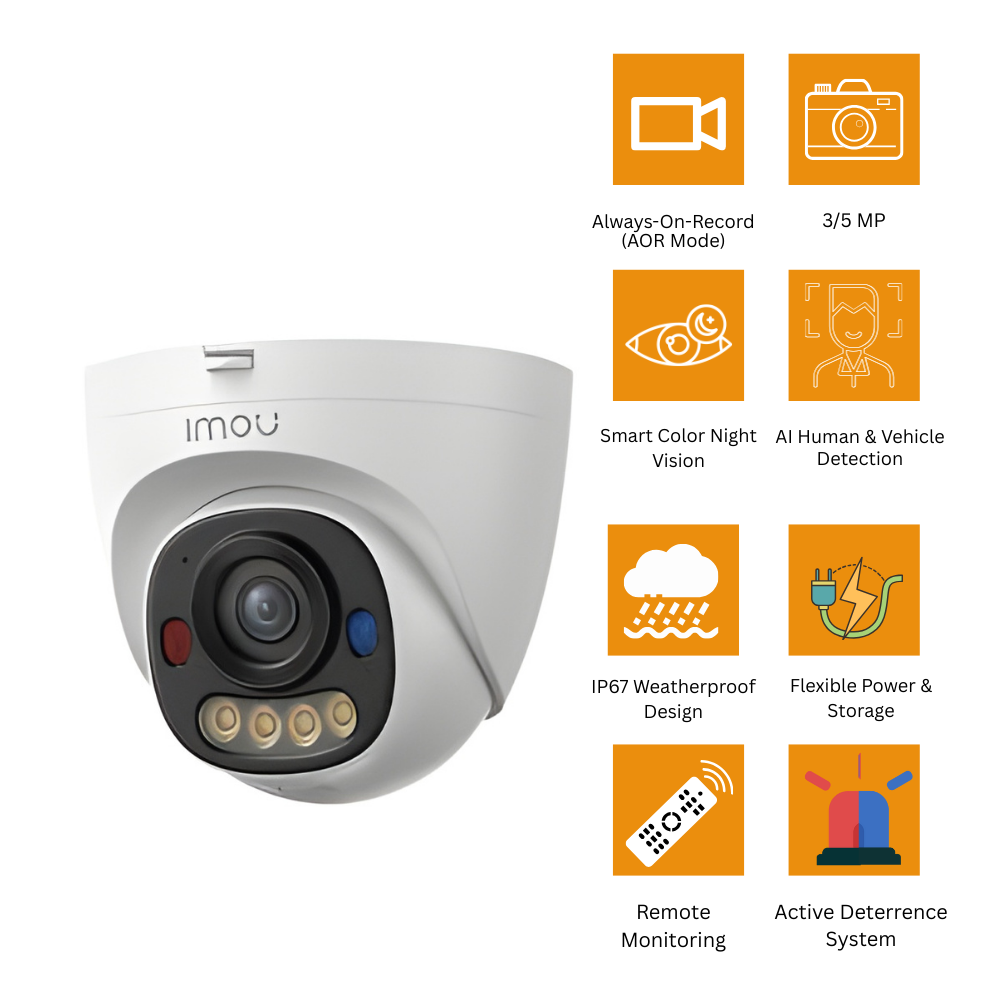

Key Features
• High-Definition Video Quality
-
5MP model: 3K ultra-clear resolution for capturing fine details beyond 1080P.
-
3MP model: Clear and smooth video quality, ideal for everyday surveillance needs.
• H.265 Smart Compression
Optimizes bandwidth and storage usage while maintaining image clarity.
• Smart Color Night Vision
Four adaptive night vision modes ensure clear visibility even in complete darkness .
• AI Human & Vehicle Detection
Powered by IMOU SENSE™, accurately distinguishes humans and vehicles to reduce false alarms.
• Active Deterrence
Built-in spotlights and red-blue warning lights help keep unwanted visitors away.
• Always-On-Record (AOR Mode)
Continuously records while saving storage—full frame during events and low frame rate when idle.

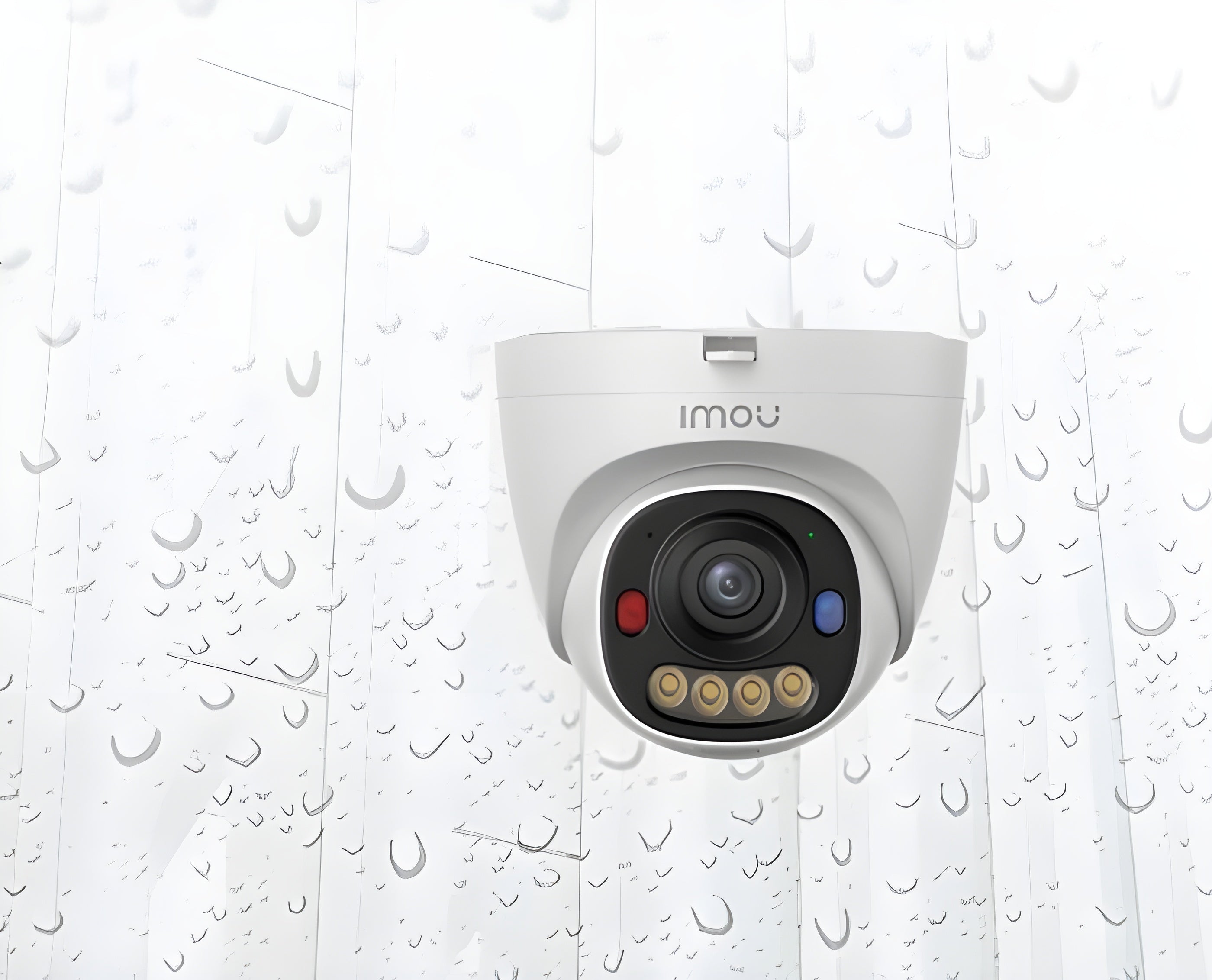

• IP67 Weatherproof Design
Built for outdoor use, resistant to dust, rain, and harsh environments .
• Flexible Power & Storage
Supports PoE or 12V DC power, and NVR, Cloud, or MicroSD storage up to 512GB.
• Remote Monitoring
View live footage, receive alerts, and manage recordings via the IMOU mobile app .
Technical Specification
| Category |
PS8D 5MP (IPC-PS8D-5V0) |
PS8D 3MP (IPC-PS8D-3V0) |
| Image Sensor |
1/3” 5MP Progressive CMOS |
1/3” 3MP Progressive CMOS |
| Maximum Resolution |
5MP (2880 × 1620) |
3MP (2304 × 1296) |
| Frame Rate |
Up to 25 / 30 fps |
Up to 25 / 30 fps |
| Video Compression |
H.265 / H.264 |
H.265 / H.264 |
| Night Vision Distance |
30m (98ft) |
30m (98ft) |
| Lens Options |
2.8mm / 3.6mm Fixed |
2.8mm / 3.6mm Fixed |
| Field of View (2.8mm) |
94° (H), 52° (V), 111° (D) |
94° (H), 52° (V), 111° (D) |
| Field of View (3.6mm) |
76° (H), 41° (V), 91° (D) |
76° (H), 41° (V), 91° (D) |
| Digital Zoom |
8× |
8× |
| Built-in Light |
Dual Spotlights |
Dual Spotlights |
| Warning Lights |
Red-Blue Lights |
Red-Blue Lights |
| Ethernet Port |
1 × 100Mbps |
1 × 100Mbps |
| Mobile App |
IMOU App (iOS / Android) |
IMOU App (iOS / Android) |
| Power Supply |
PoE / DC 12V 1A |
PoE / DC 12V 1A |
| Power Consumption |
<6W |
<6W |
| Material |
Metal + Plastic (Inner) / Plastic (Cover) |
Metal + Plastic (Inner) / Plastic (Cover) |
| Storage |
MicroSD up to 512GB |
MicroSD up to 512GB |
| Operating Temperature |
–30°C to +60°C |
–30°C to +60°C |
| Operating Humidity |
<95% RH |
<95% RH |
| Dimensions (L×W×H) |
109.9 × 109.9 × 95.7 mm |
109.9 × 109.9 × 95.7 mm |
| Weight |
254g |
254g |
| Certification |
CE, ONVIF |
CE, ONVIF |
| Smart Detection |
Motion / Human / Vehicle / Sound |
Motion / Human / Vehicle / Sound |
| Reset Button |
Yes |
Yes |
Why You Need PS8D Series؟
-
Choose 3MP or 5MP to match your clarity and budget needs.
-
Smart AI detection focuses on people and vehicles, not distractions.
-
Active deterrence with spotlights and red-blue lights protects proactively.
-
All-weather reliability with IP67-rated housing .
-
Efficient storage using H.265 and AOR Mode.
-
Simple installation with PoE or 12V DC power.
-
Anytime access via mobile app for peace of mind wherever you are.
-
Ideal for homes, offices, entrances, and outdoor areas needing compact yet powerful security.
