Description

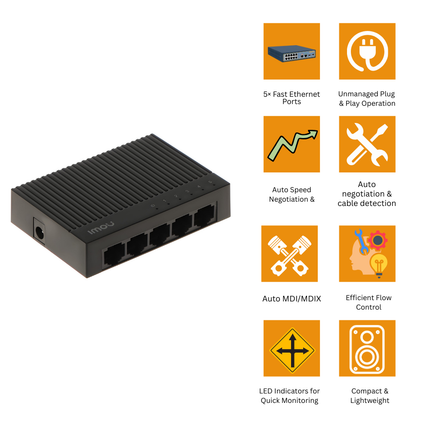

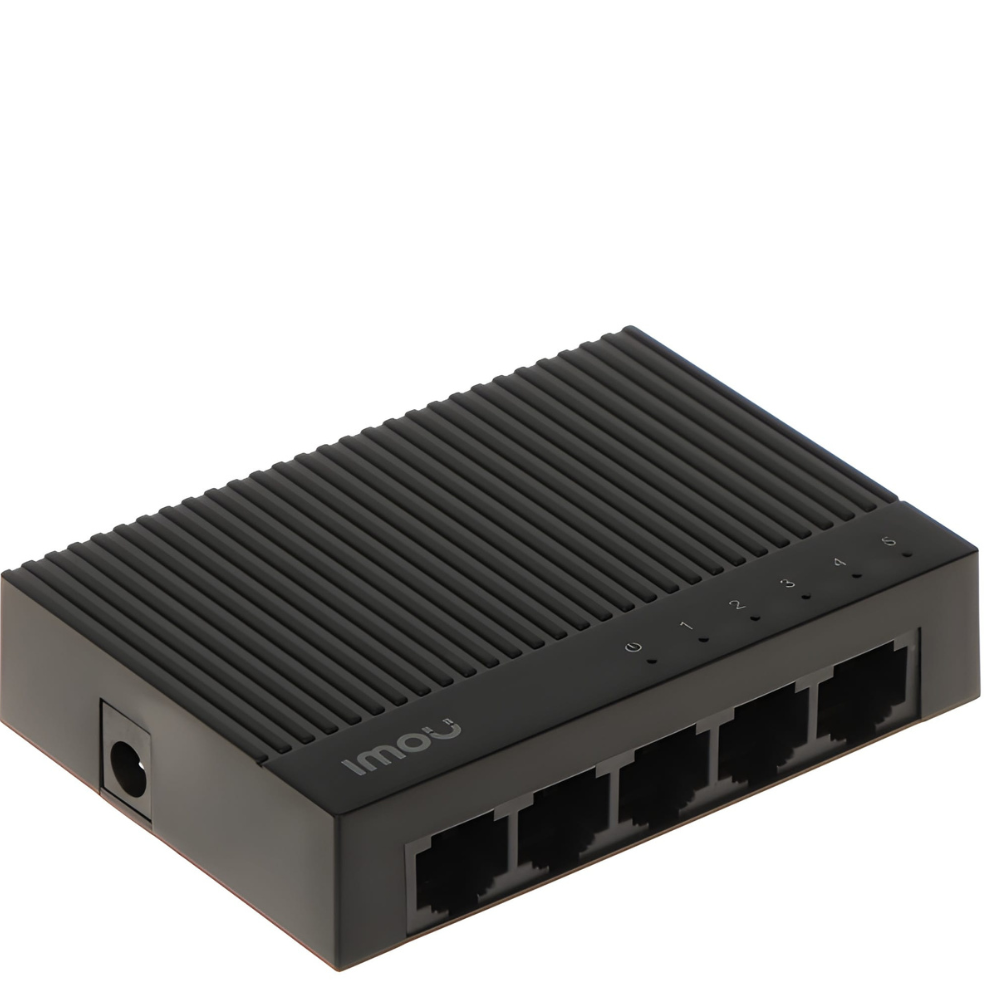

The IMOU SF105C is a compact, unmanaged 5-port Ethernet switch designed to expand your wired network quickly and reliably. It provides five 10/100 Mbps RJ45 ports for connecting multiple devices such as IP cameras, computers, printers, or smart home hubs, making it ideal for small offices, home networks, or surveillance setups. With plug-and-play simplicity, automatic speed negotiation, and LED link indicators, SF105C ensures fast and stable connectivity without any configuration required. Its lightweight plastic housing and small footprint enable flexible placement on desktops or mounting on walls, delivering a dependable and user-friendly network expansion solution.
Key Features
• 5× Fast Ethernet Ports
Equipped with five 10/100 Mbps RJ45 ports for connecting multiple network devices with stable data transmission.
• Unmanaged Plug & Play Operation
No configuration or technical setup needed; just connect devices and start working instantly.
• Auto Speed Negotiation & Auto MDI/MDIX
Automatically adjusts data transfer speeds and detects cable types, eliminating the need for crossover cables.
• Efficient Flow Control
Supports 802.3X Flow Control for smoother traffic handling, reducing packet loss and improving network stability.
• LED Indicators for Quick Monitoring
Power and link/activity LEDs help you check network status at a glance.
• Compact & Flexible Design
Small and lightweight plastic housing with desktop or wall-mount options, perfect for tight spaces or clean installations.
Technical Specification
| Category |
Specification |
| Model |
IMOU SF105C |
| Product Type |
Unmanaged Ethernet LAN Switch |
| Network Ports |
5 × RJ45 10/100 Mbps |
| Switching Capacity |
1 Gbps (aggregate) |
| Packet Forwarding Rate |
~0.1488 Mpps per port |
| Packet Buffer Memory |
768 KB |
| Jumbo Frame Support |
Up to 2K |
| MAC Address Table |
2K entries |
| Auto MDI/MDIX |
Supported |
| Flow Control |
802.3X |
| LED Indicators |
Power, Link/Activity |
| Housing Material |
Plastic |
| Power Supply |
DC 5V / 1A Adapter (Included) |
| Power Consumption |
~0.6W |
| Operating Temperature |
0°C – 40°C |
| Operating Humidity |
10% – 90% RH |
| Mounting Options |
Desktop / Wall |
| Dimensions |
~87.6 × 62 × 21.1 mm |
| Weight |
~55 g |
| Certifications |
CE, FCC |
Notes:
• This switch does not support PoE (Power over Ethernet).
Why You Need IMOU SF105C
-
Instant network expansion with 5 Ethernet ports
-
Simple plug & play—no configuration required
-
Stable performance for wired devices in small networks
-
Auto negotiation & cable detection for ease of use
-
Compact, flexible design fits desktops or walls
-
Ideal for home offices, IP camera systems, and small-scale wired networks
