Description
The IMOU SF108C is a compact and reliable 8-port unmanaged Ethernet switch designed to expand your wired network quickly and effortlessly. With eight 10/100 Mbps RJ45 ports, it enhances connectivity for small offices, homes, or any environment requiring fast, stable network access. The SF108C supports Auto-Negotiation and Auto MDI/MDIX, eliminating the need for crossover cables and adapting automatically to transmit data efficiently.
Equipped with 802.3X Flow Control, it ensures smooth data handling even under heavy traffic, reducing packet loss and congestion. Built with a lightweight plastic housing and offering Plug & Play setup, the SF108C is ideal for connecting IP cameras, computers, printers, and other devices with minimal effort.
Whether you’re streaming video, transferring files, or building a network for smart devices, SF108C delivers dependable performance with simple, hassle-free installation.

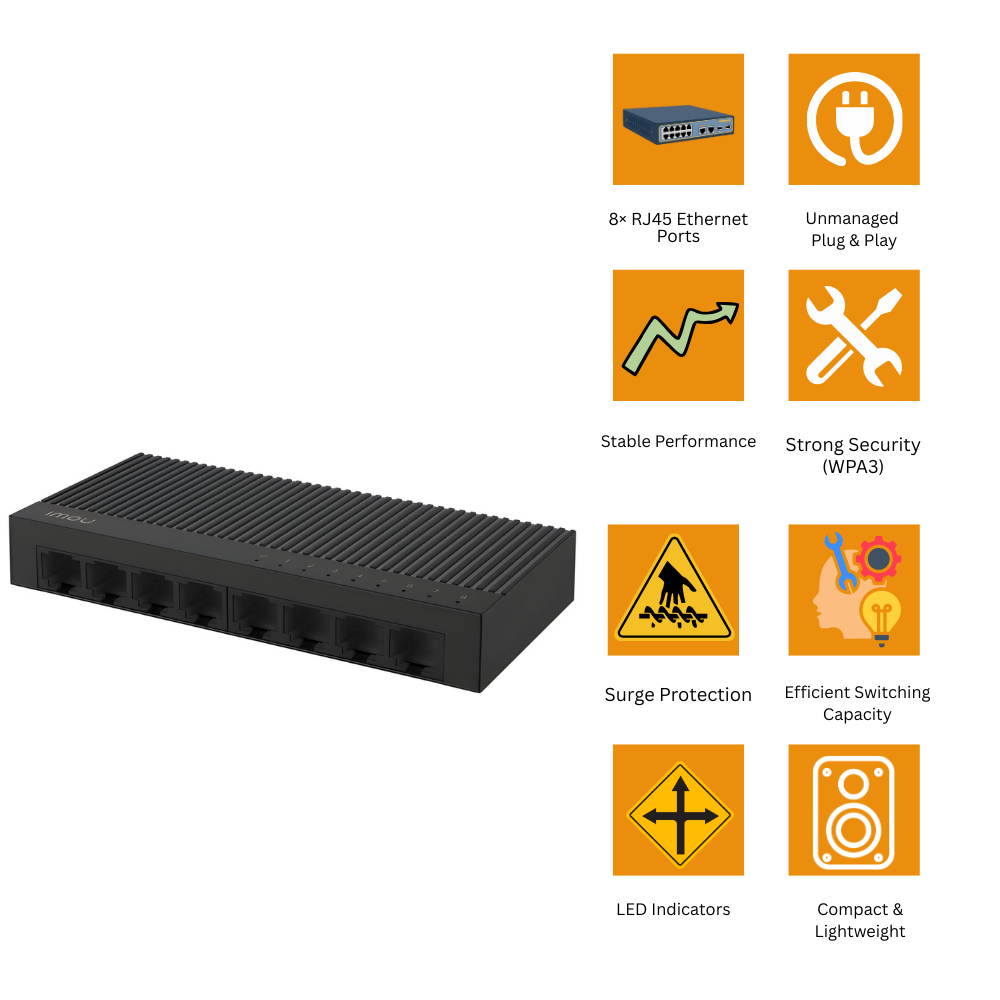

Key Features
• 8× RJ45 Ethernet Ports
Provides eight 10/100 Mbps network ports to connect multiple devices and expand your wired network.
• Unmanaged Plug & Play
No configuration needed—just connect and go for simplified operation without technical setup.
• Stable Performance
Supports 802.3X Flow Control for efficient data handling and minimizes congestion during heavy network usage.
• Auto MDI/MDIX Support
Automatically detects and adapts cable connections, eliminating the need for crossover cables.
• Efficient Switching Capacity
Offers a total throughput of 1.6 Gbps and a packet buffer memory of 768 KB, ensuring steady network performance.
• Surge Protection
Includes protection against electrical surges—common mode up to 2 KV and differential mode up to 1 KV—for added network reliability.
• LED Indicators
Power and connection Activity LEDs provide easy status monitoring at a glance.
• Compact & Lightweight
Durable plastic housing with a small footprint fits neatly on a desk or wall mountable for flexible use.
Technical Specification
| Category |
Specification |
| Model |
IMOU SF108C |
| Product Type |
Unmanaged Ethernet Switch |
| Network Ports |
8 × RJ45 10/100 Mbps |
| Switching Throughput |
1.6 Gbps |
| Packet Forwarding Rate |
0.1488 Mpps per port |
| Packet Buffer Memory |
768 KB |
| Jumbo Frame Support |
Up to 2K |
| MAC Address Table |
2K entries |
| Surge Protection |
Common Mode: 2 KV / Differential Mode: 1 KV |
| Auto MDI/MDIX |
Supported |
| Auto Speed Negotiation |
10 / 100 Mbps |
| Flow Control |
802.3X |
| LED Indicators |
1 × Power, 8 × Link/Activity |
| Housing Material |
Plastic |
| Installation |
Desktop / Wall Mount |
| Power Adapter |
DC 5V 1A |
| Power Consumption |
~1.2W |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
10% – 90% RH |
| Dimensions |
133.2 × 62 × 21 mm |
| Weight |
~86 g |
Why You Need IMOU SF108C
• Expand wired networks easily with 8 Ethernet ports
• Plug & Play simplicity—no configuration or technical setup needed
• Stable performance with flow control and auto speed negotiation
• Flexible cable support with Auto MDI/MDIX (no crossover cables)
• Reliable even under heavy load with surge protection and jumbo frame support
• Ideal for homes, offices, IP cameras, printers, and more
