Description

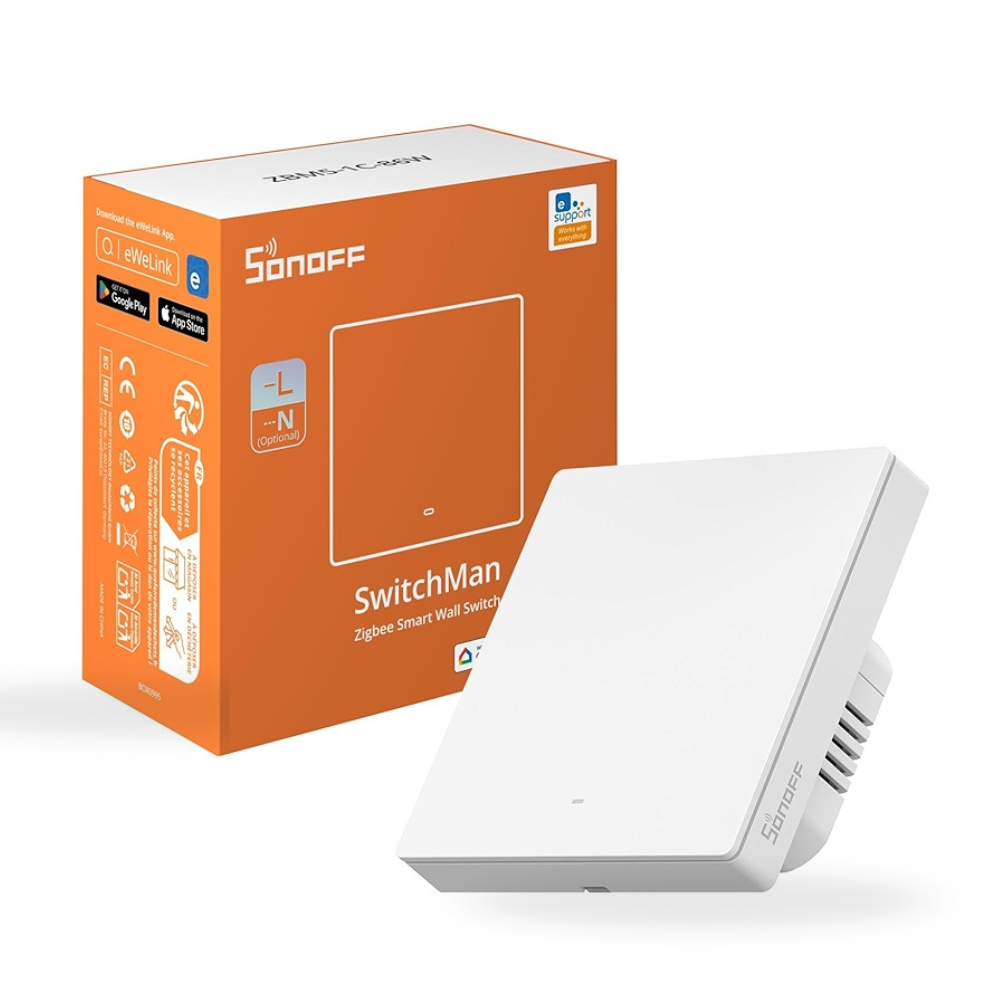

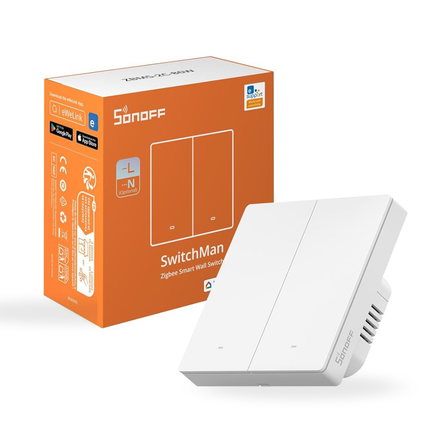

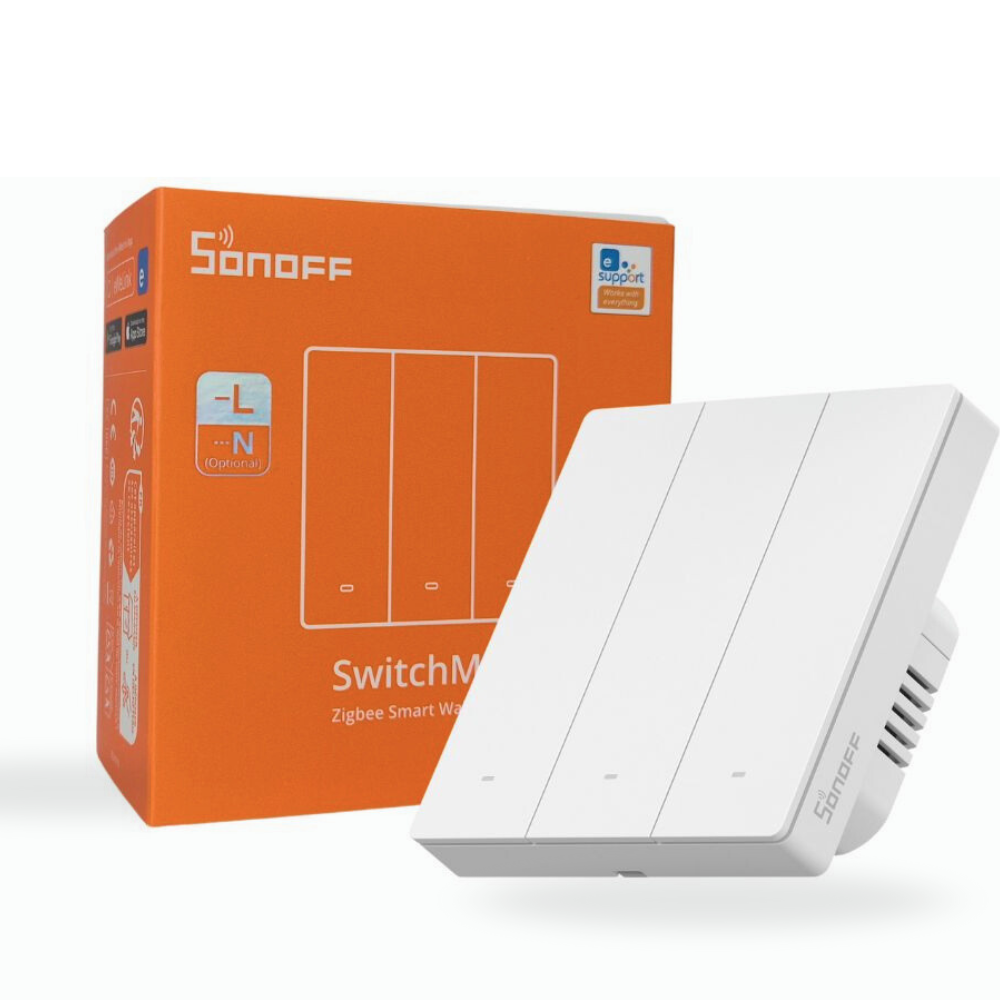

The SONOFF ZBM5 Series (86 Type) is a versatile Zigbee 3.0 smart wall switch line, designed to upgrade traditional lighting into a fully automated smart home system. With options for 1-gang, 2-gang, and 3-gang, it accommodates both neutral-wire and no-neutral installations, making it suitable for modern homes and older electrical setups alike.
Key Features
-
Zigbee 3.0 Technology – Ensures fast, reliable communication and wide compatibility with SONOFF hubs and other Zigbee-based ecosystems.
-
Neutral & No-Neutral Support – Works seamlessly with or without a neutral wire, allowing flexible installation.
-
Detach Relay Mode – Lets the physical switch operate independently from connected smart lights, maintaining smart control even when the switch is off.
-
Zigbee Mesh Router – In neutral-wire mode, it extends Zigbee network coverage and strengthens connectivity across the home.
-
Remote Control & Automation – Manage lights via the eWeLink app, schedule timers, set countdowns, and create smart scenes.
-
Voice Control Ready – Compatible with voice assistants via connected Zigbee hubs for hands-free control.
-
Smart Scenes & Sensor Integration – Works with SONOFF Zigbee sensors for automatic lighting based on motion, presence, or time schedules.
-
Elegant Modern Design – Sleek 80/86-type wall panel fits contemporary interiors.
Technical Specifications
| Specification |
Details |
| Model Options |
1-Gang / 2-Gang / 3-Gang |
| Voltage |
100–240V AC, 50/60Hz |
| Max Load |
10A total (model-dependent) |
| Minimum Load (No Neutral) |
3W |
| Wireless Protocol |
Zigbee 3.0 |
| Functions |
Remote control, timers, smart scenes, automation |
| Operating Temperature |
-10°C to +40°C |
| Material |
Flame-retardant PC |
| Dimensions |
87 × 87 × 40.2 mm (varies by gang) |
Why Choose the ZBM5 Series?
Compatible with homes with or without neutral wiring
Strengthens your Zigbee mesh network
Supports advanced automation, smart scenes, and sensor integration
Hands-free control via voice assistants
Elegant design fits modern home décor
Reliable Zigbee connectivity with low latency
