Description
Upgrade your existing motorized roller shutters, blinds, or curtains with the SONOFF MINI-ZBRBS. This compact Zigbee 3.0 smart module fits inside a standard wall box and enables remote control, scheduling, precise percentage positioning, and smart automation without replacing your existing motor. It also acts as a Zigbee router, extending the coverage and stability of your Zigbee mesh network.

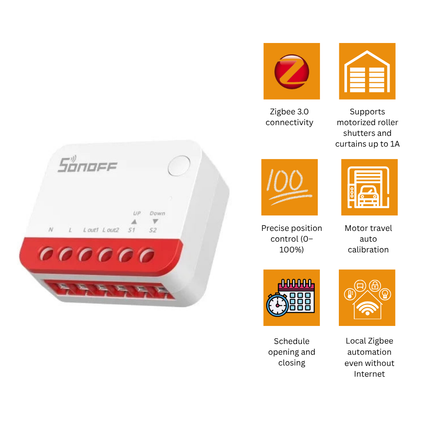

Key Features
- Zigbee 3.0 connectivity
- Supports motorized roller shutters and curtains up to 1A
- Precise position control (0–100%)
- Motor travel auto calibration
- Schedule opening and closing
- Smart scenes and automation
- Works with physical wall switches
- Functions as a Zigbee Mesh Repeater
- Local Zigbee automation even without Internet
- Compatible with eWeLink, Home Assistant (Zigbee2MQTT), Alexa, Google Home, and other supported Zigbee hubs
Technical Specifications
| Specification |
Value |
| Model |
MINI-ZBRBS |
| Wireless Protocol |
Zigbee 3.0 |
| Power Supply |
100–240V AC, 50/60Hz |
| Maximum Motor Load |
1A |
| Control Type |
Up / Stop / Down |
| Position Control |
Yes (0–100%) |
| Calibration |
Automatic Motor Calibration |
| External Switch Support |
Yes |
| Zigbee Router |
Yes |
| Local Automation |
Yes |
| Operating Temperature |
-10°C to 40°C |
| Dimensions |
39.5 × 33 × 16.8 mm |
Why Choose SONOFF MINI-ZBRBS?
- Turn existing electric shutters into smart shutters without replacing the motor.
- Accurate percentage positioning for maximum comfort.
- Reliable Zigbee communication with extended mesh coverage.
- Compact design fits behind most wall switches.
- Ideal for Home Assistant and advanced smart home automation.
