Description

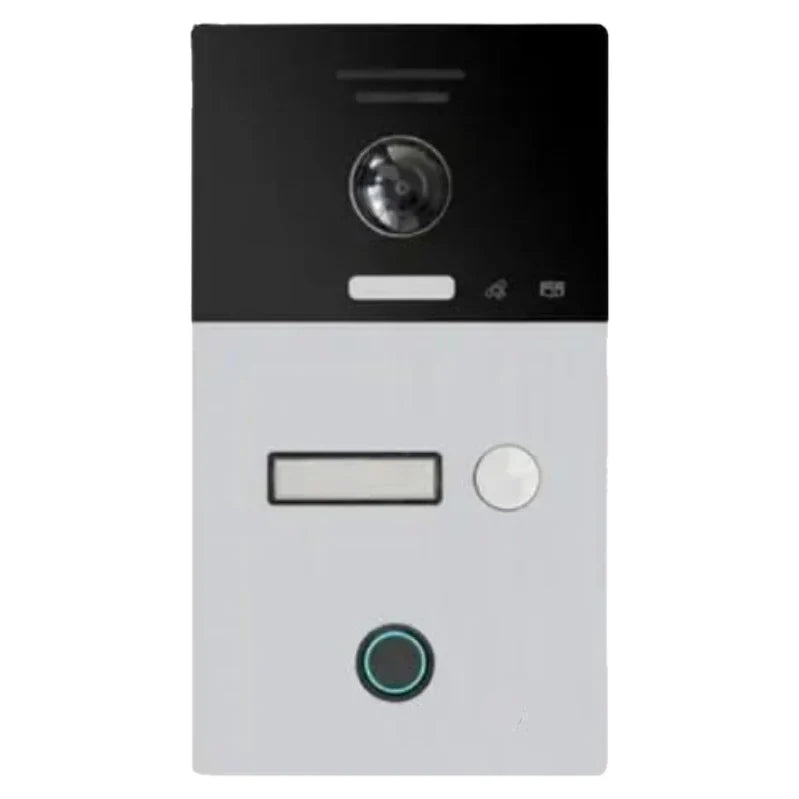

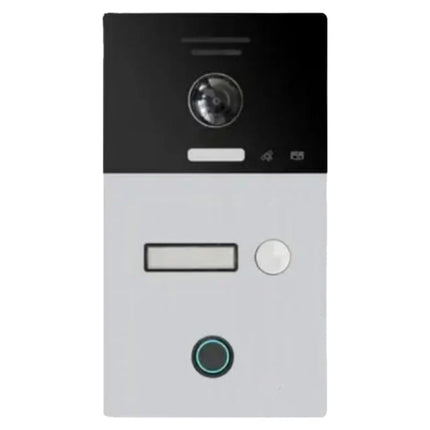

The Spark I-220 is an IP video outdoor unit with fingerprint and IC card unlocking, a 110° camera with white-LED night light and full-duplex intercom. It is rated IP65 and powered by PoE or DC 12 V over a Cat5 network cable.
Key Features
-
Fingerprint unlock: 500 fingerprints, registered from the indoor unit and kept separate per household
-
IC cards: 1,000 cards, 13.56 MHz
-
Camera: 110° viewing angle with white LED compensation light
-
Intercom: full duplex, 45 s messages, 120 s call duration
-

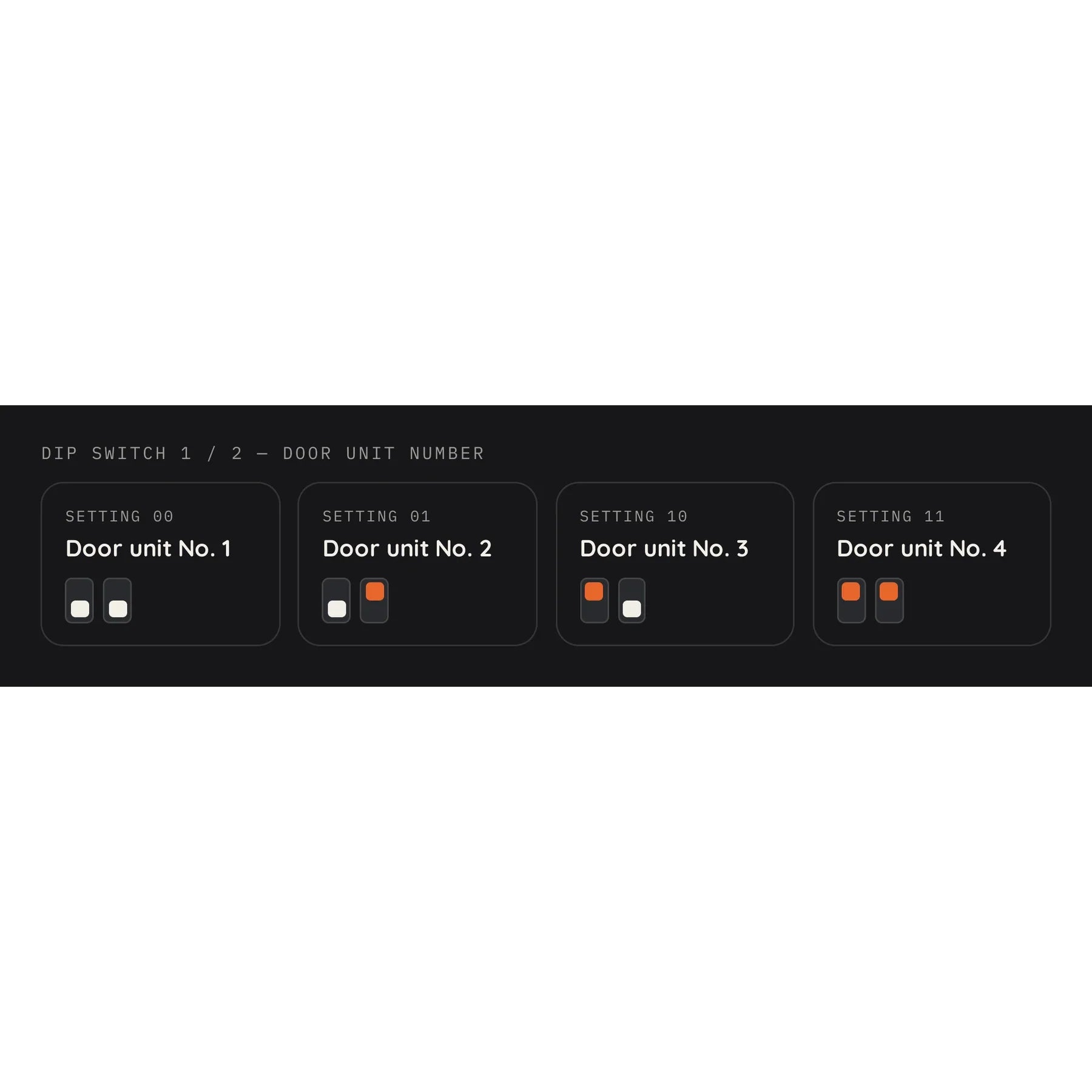

System size: up to 4 door units (DIP switch) and up to 6 IP cameras
-
Power: DC 12 V or PoE, max. 200 mA (adapter optional)
-
Weatherproof: IP65, -40 °C to +50 °C
-
Unlock options: indoor unit, fingerprint, card and exit button
Technical Specifications
| Model |
Spark I-220 |
| Brand |
Spark |
| Type |
IP video outdoor station (door station) |
| Viewing angle |
110° |
| Night light |
White LED compensation |
| Intercom |
Full duplex |
| Ringtone time |
30 / 60 / 90 s |
| Ringtone volume |
1 to 15 |
| Message time |
45 s |
| Call duration |
120 s |
| Door units per system |
Up to 4 (DIP switch) |
| IP cameras |
Up to 6 |
| Fingerprints |
500 |
| IC cards |
1,000 · 13.56 MHz |
| Unlock |
Indoor unit, fingerprint, card, exit button |
| Connection |
Cat5 network cable |
| Power supply |
DC 12 V or PoE |
| Power consumption |
Max. 200 mA |
| Power adapter |
Optional |
| Waterproof rating |
IP65 |
| Working temperature |
-40 °C to +50 °C |
| Installation |
Surface / flush mount, install height 120 to 160 cm |
What's in the Box
- Outdoor station
- Plastic anchors ×4
- Screws ×8
- 7-pin line
- 4-pin line
- 2-pin line
- IC cards ×2
- User manual
Downloads
⬇ Download Datasheet (PDF)
Buy the Spark I-220 IP video door station in Jordan from Bestways Smart-home Solutions.
