Description

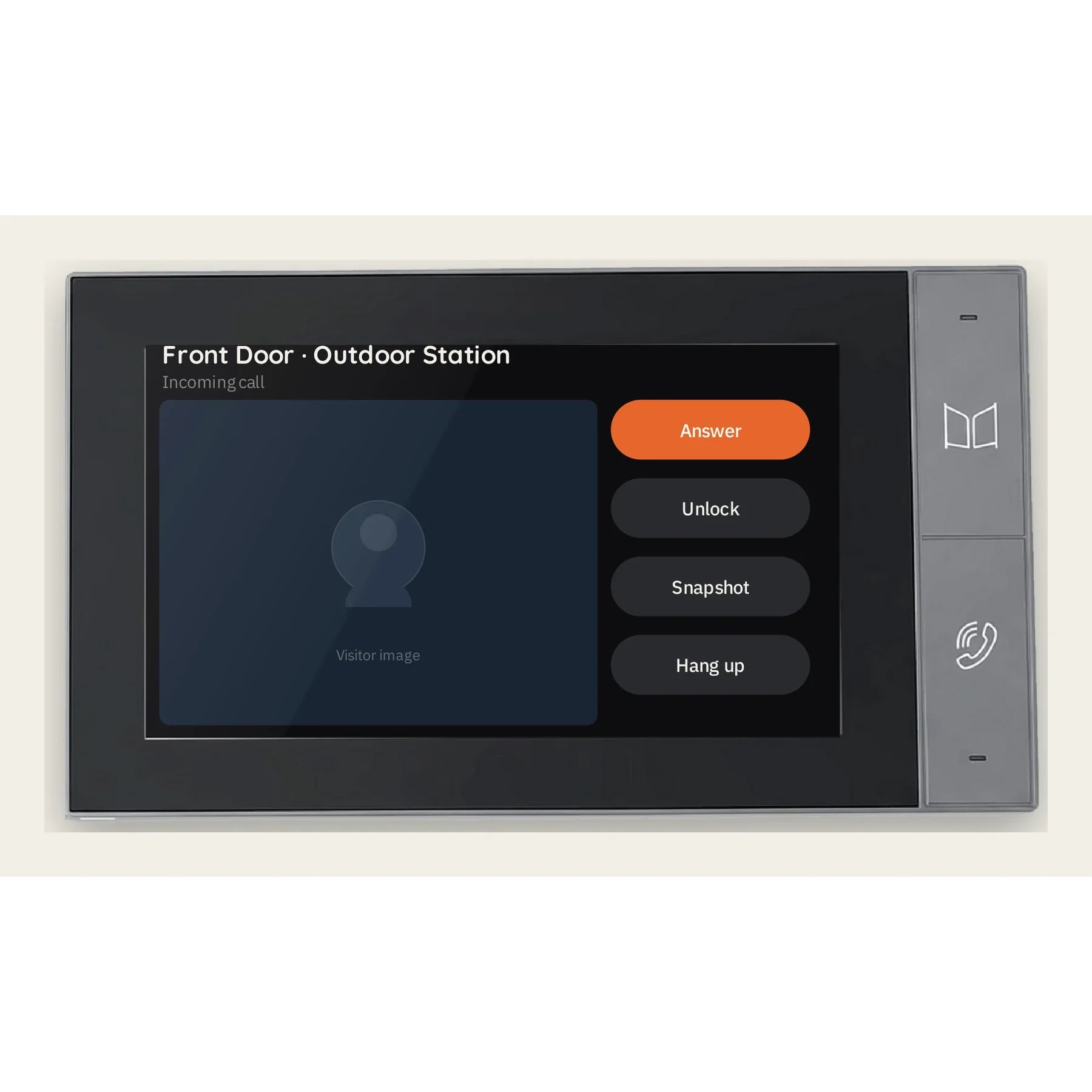

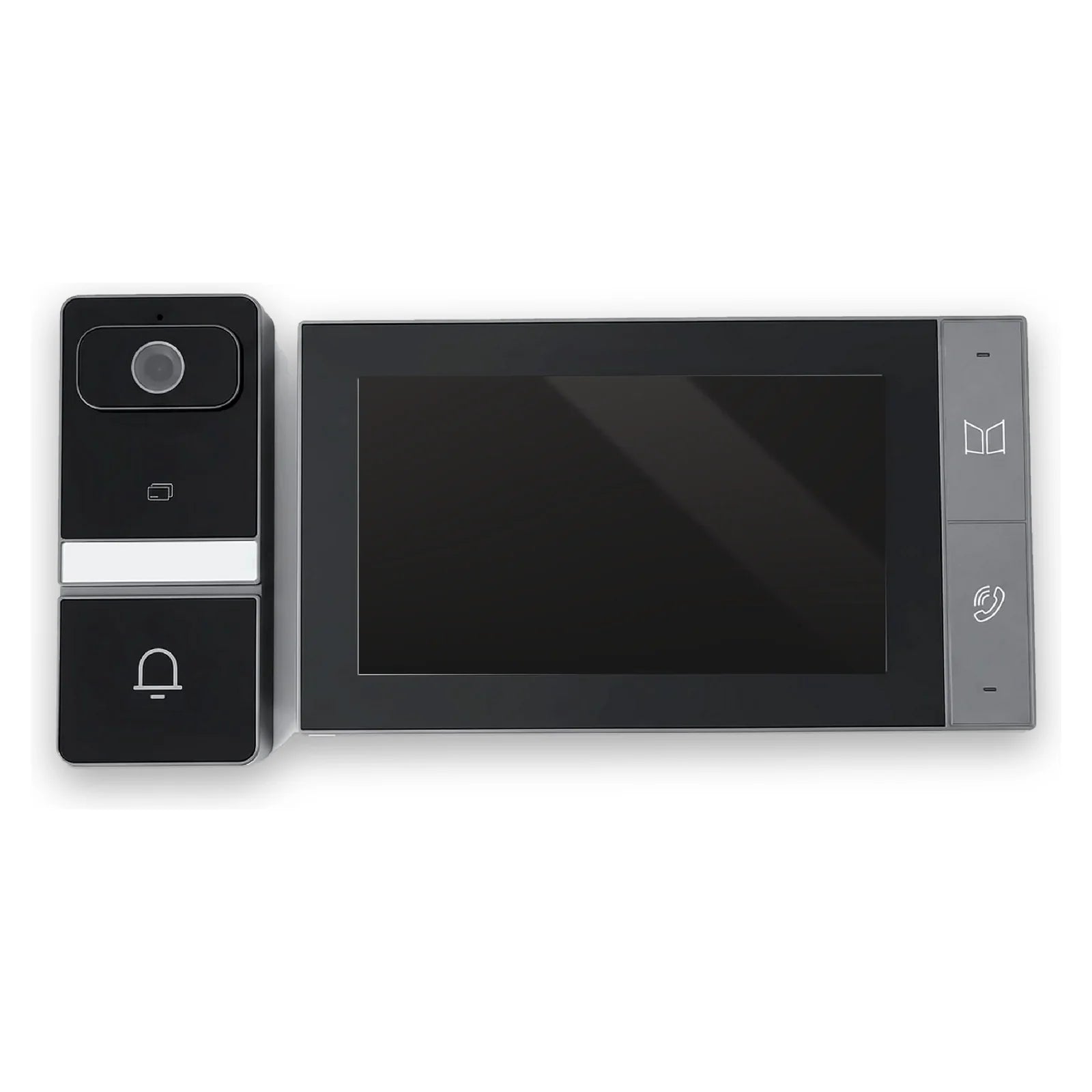

The Spark S-301 is sold by Spark as a 2-wire IP video intercom kit: a 7″ IPS touchscreen indoor monitor and a 3.0 MP outdoor station with a 140° view. Residents unlock with an IC card or with one tap from the call screen, and the kit is controlled from the Tuya / Smart Life app. Power is PoE or DC 24 V.
Key Features
-
3.0 MP camera: FHD 1080P H.264 video, 140° viewing angle, infrared night vision
-
IC card access: card reader on the outdoor station
-

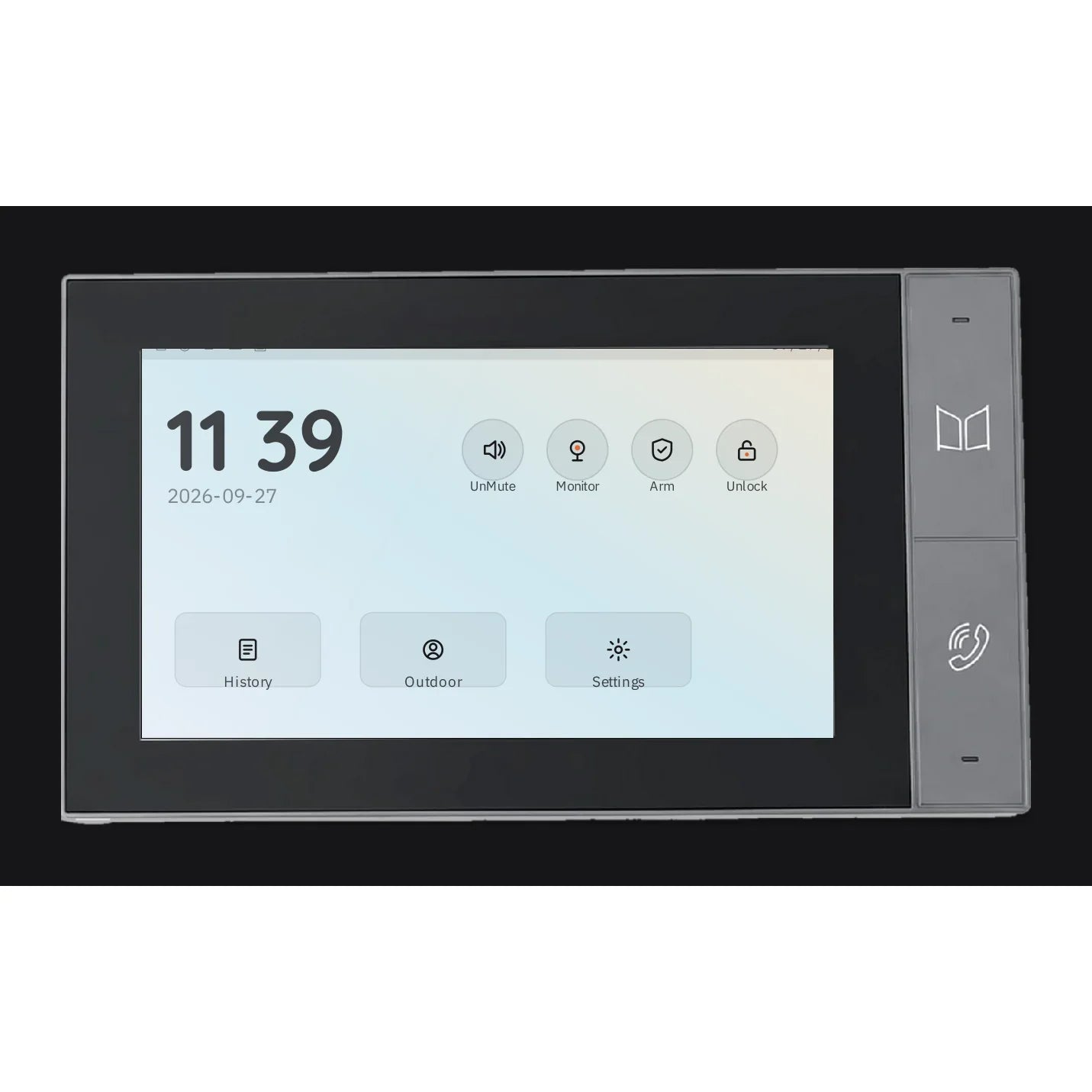

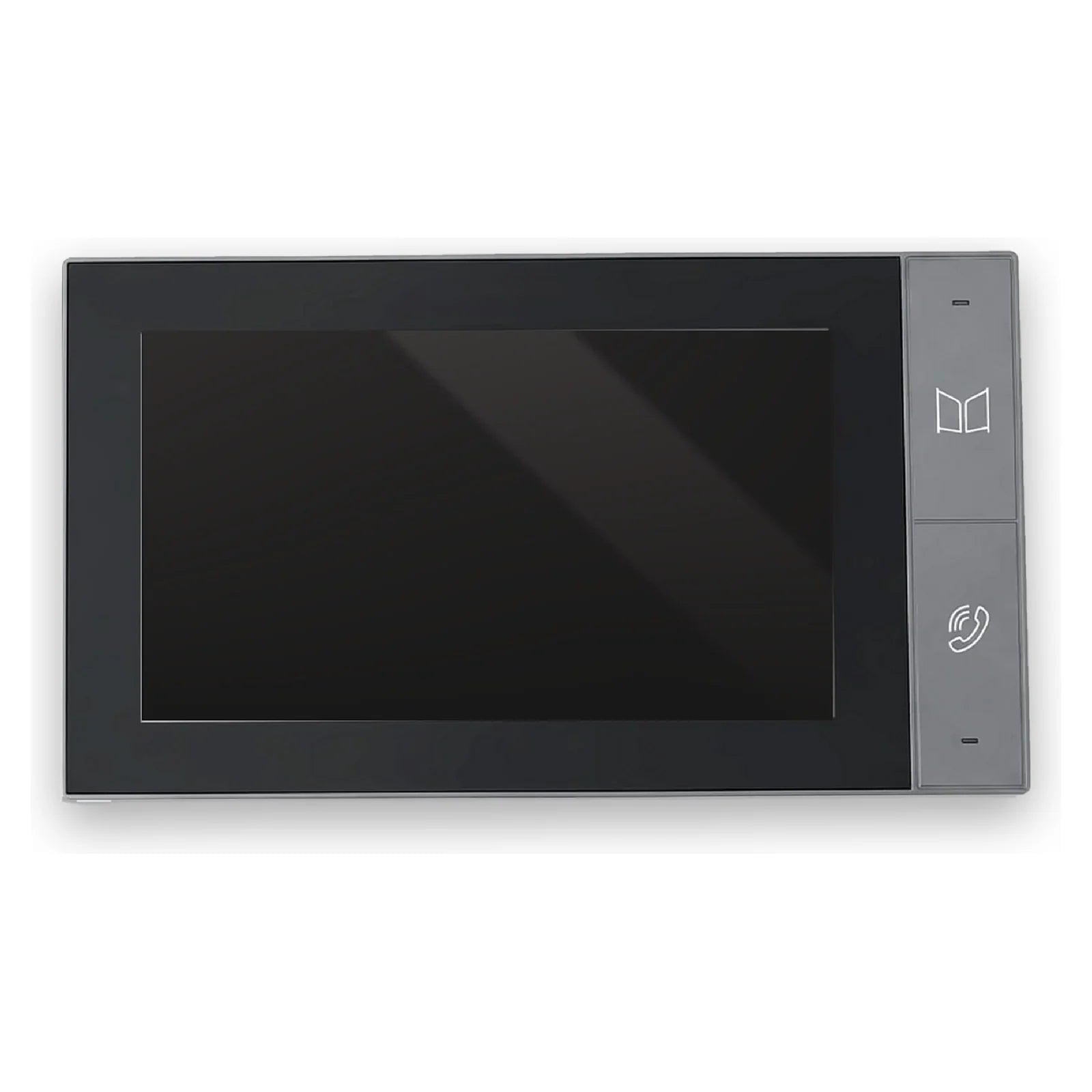

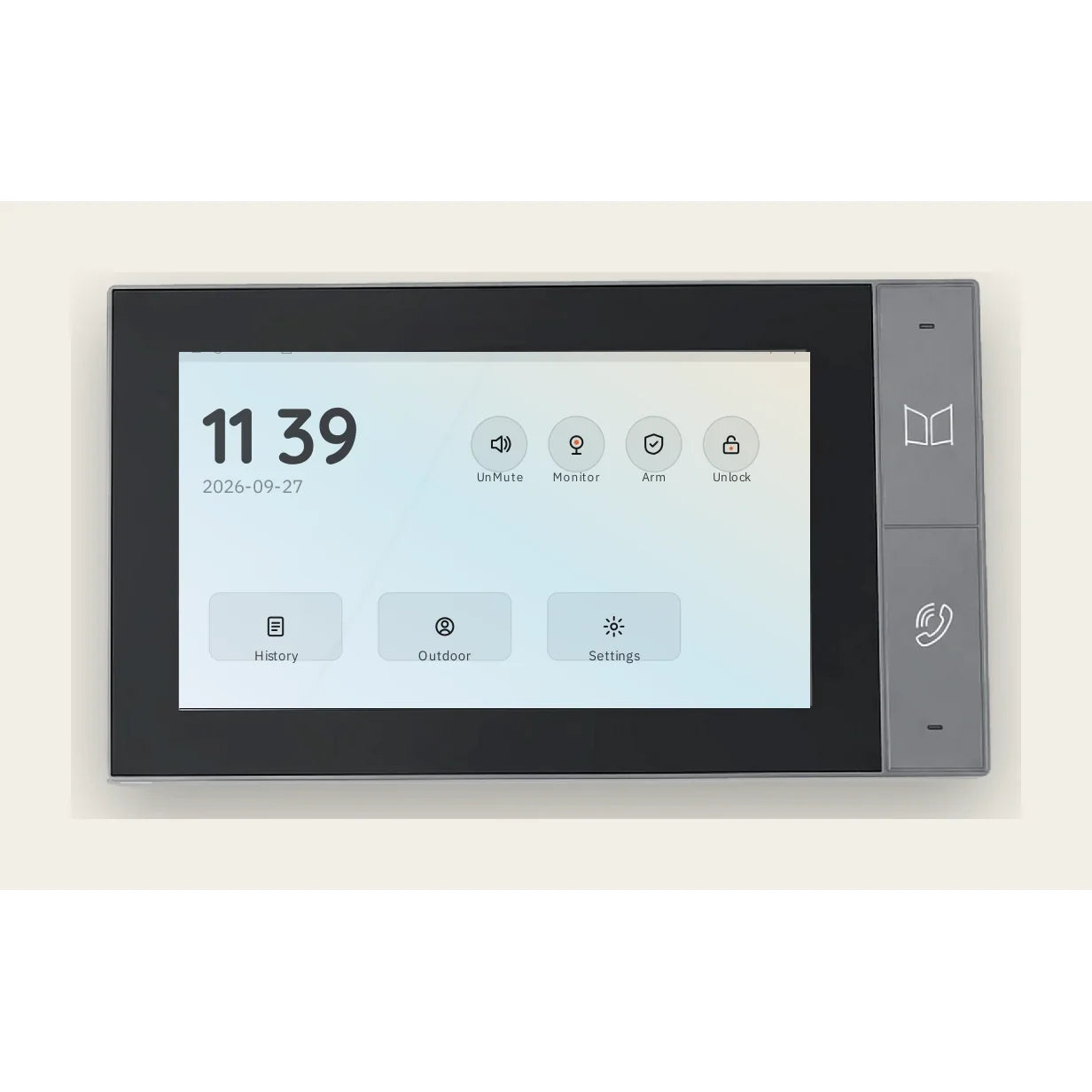

7″ IPS touch monitor: 1024 × 600, side buttons for answer and unlock, 8 Ω 2 W speaker
-
Recording: JPG snapshots and video to SD card up to 128 GB
-
Tuya / Smart Life: app control of the intercom
-

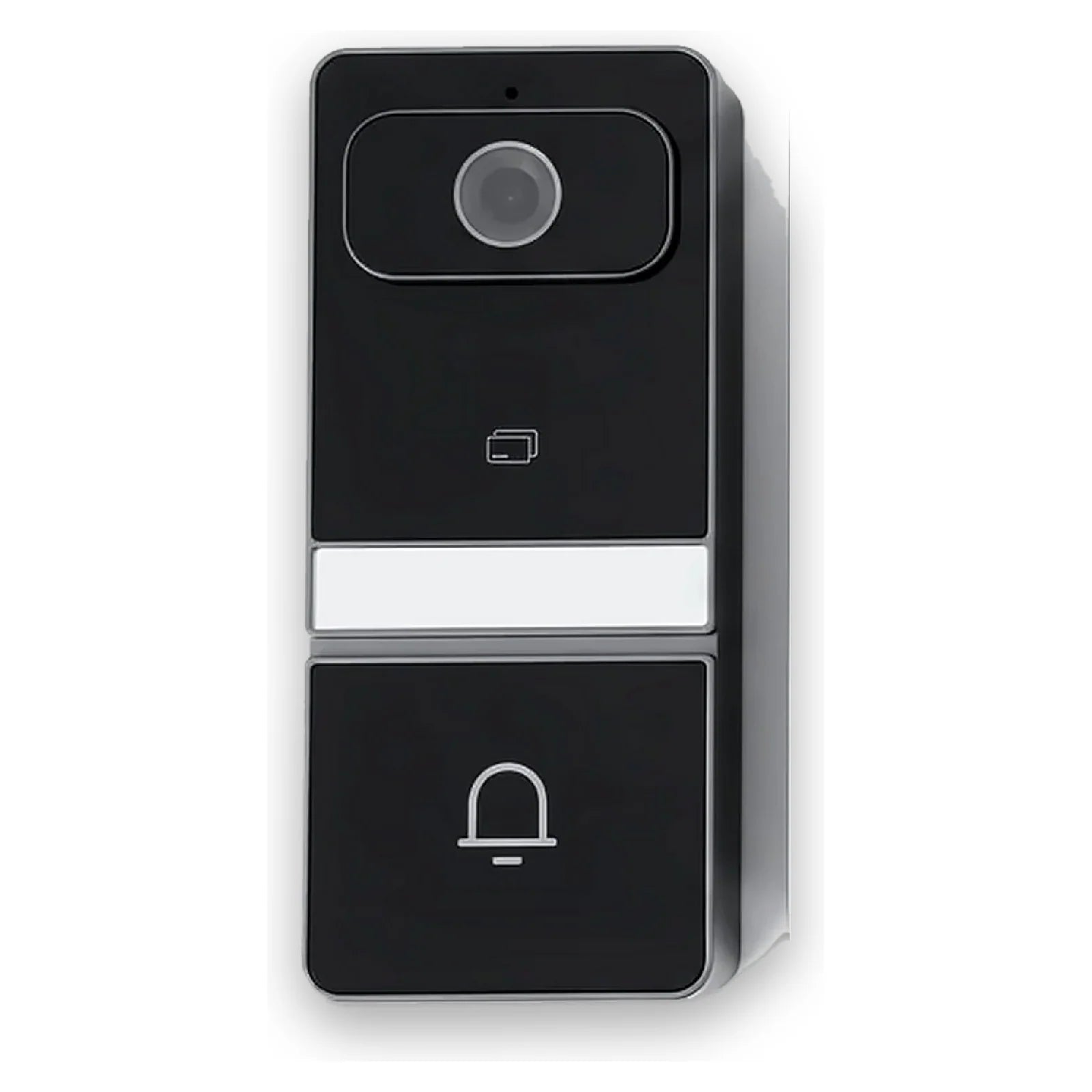

Outdoor build: aluminium alloy, IP65, -30 °C to +50 °C, 140 × 60 × 25 mm
-
Power: PoE or DC 24 V; outdoor unit powered via the indoor unit or PoE
Technical Specifications
| Model |
Spark S-301 |
| Brand |
Spark |
| Kit |
Indoor monitor + outdoor station (model numbers not stated) |
| Indoor – Screen |
7″ IPS, touchscreen |
| Indoor – Resolution |
1024 × 600 |
| Indoor – Video input |
FHD 1080P |
| Indoor – Video codec |
H.264 |
| Indoor – Speaker |
8 Ω, 2 W |
| Indoor – Intercom mode |
Full duplex |
| Indoor – SD card |
Up to 128 GB |
| Indoor – Platform |
Tuya / Smart Life |
| Indoor – Power |
DC 24 V / PoE |
| Indoor – Standby power |
≤ 2 W |
| Indoor – Working temperature |
-30 °C to +50 °C |
| Indoor – Installation |
Surface mount |
| Outdoor – Camera |
3.0 MP HD |
| Outdoor – Video |
FHD 1080P, H.264 |
| Outdoor – Viewing angle |
140° |
| Outdoor – Night vision |
Infrared |
| Outdoor – Access control |
IC card |
| Outdoor – Body |
Aluminium alloy |
| Outdoor – Dimensions |
140 × 60 × 25 mm |
| Outdoor – Protection |
IP65 |
| Outdoor – Power |
DC 24 V / 200 mA |
| Outdoor – Standby power |
≤ 2.4 W |
| Outdoor – Working temperature |
-30 °C to +50 °C |
| Outdoor – Installation |
Surface mount |
| Cabling |
Indoor–outdoor UTP Cat5/Cat5e, up to 50 m · lock RVV 2×1.0, up to 10 m |
| Lock relay |
One motor-operated lock, 12 V, max 500 mA instantaneous |
What's in the Box
- Indoor monitor
- Outdoor station
- Wall brackets
- Cat5 terminals
- IC cards ×2
- Screws and anchors
- User manual
Downloads
⬇ Download Datasheet (PDF)
Buy the Spark S-301 IP video intercom kit in Jordan from Bestways Smart-home Solutions.
