Description

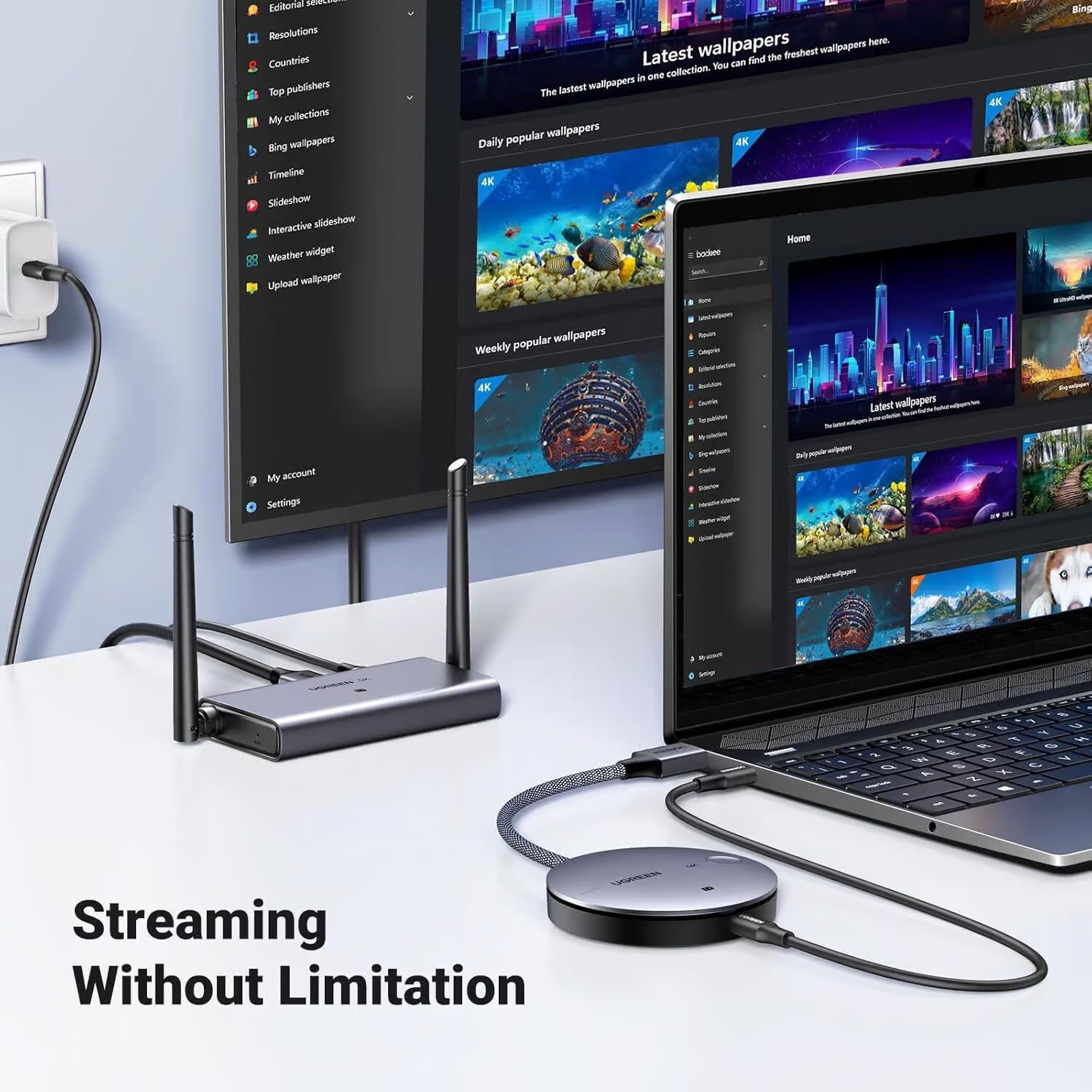

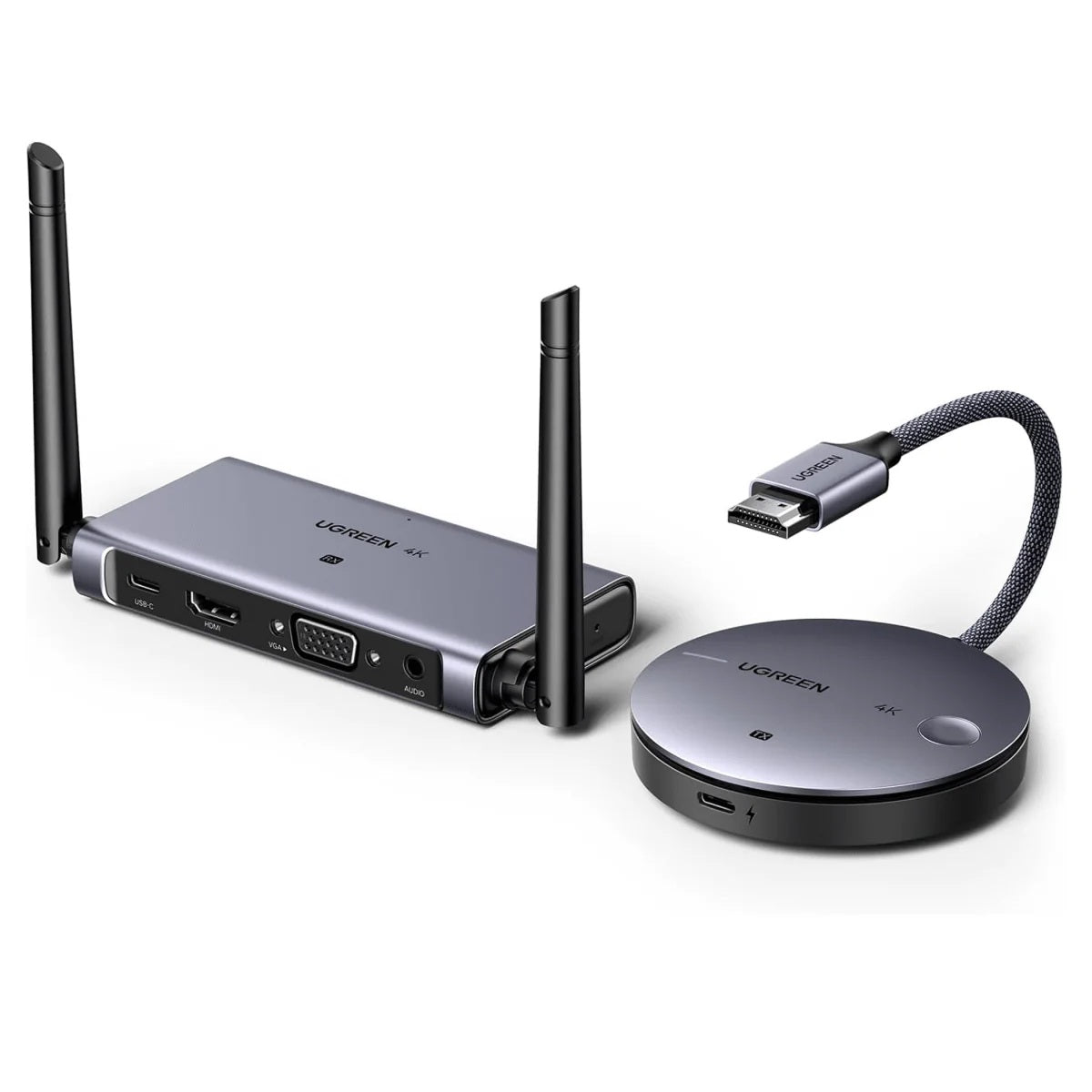

The UGREEN CM586 is a plug-and-play wireless HDMI transmitter and receiver kit designed to transmit high-definition video and audio wirelessly over distances of up to 50 meters (164 feet) in open spaces. It supports up to 4K@30Hz hardware decoding and is backward compatible with 1080P@60Hz, making it suitable for TVs, monitors, projectors, computers, cameras, and other HDMI-equipped devices.
The TX and RX units are factory pre-paired, so no Wi-Fi, Bluetooth, additional software, or complicated configuration is required. The receiver provides HDMI, VGA, and 3.5mm audio outputs, offering flexible connectivity for different display and audio setups.
Key Features
-
4K@30Hz Video: Supports hardware decoding of video up to 4K@30Hz and is backward compatible with 1080P@60Hz.
-
50m Wireless Transmission: Transmits video and audio up to 50 meters (164 feet) in open spaces without physical obstructions.
-
Plug and Play: TX and RX units are factory pre-paired and require no Wi-Fi, Bluetooth, drivers, or software installation.
-
Transmitter Ports: The TX unit features 1× HDMI input and 1× USB-C power port.
-
Receiver Ports: The RX unit provides 1× HDMI, 1× VGA, 1× 3.5mm audio jack, and 1× USB-C power port.
-
Flexible Display Connectivity: HDMI and VGA outputs allow connection to different compatible displays.
-
External USB Power: Both TX and RX units require a direct 5V/1A USB power connection for operation.
-
Wireless Audio & Video: Transmits both video and audio wirelessly, reducing the need for long HDMI cables.
Key Features — Short Summary
- Wireless HDMI TX/RX kit
- Up to 4K@30Hz hardware decoding
- 1080P@60Hz backward compatibility
- Wireless range up to 50m
- Factory pre-paired
- No Wi-Fi or Bluetooth required
- No software or drivers required
- TX: HDMI + USB-C power
- RX: HDMI + VGA + 3.5mm audio + USB-C power
- Requires 5V/1A USB power for both units
Specifications
| Specification |
Details |
| Brand |
UGREEN |
| Model |
CM586 |
| Product Number |
90909A |
| Type |
Wireless HDMI Transmitter & Receiver |
| Maximum Resolution |
Up to 4K@30Hz |
| Backward Compatibility |
1080P@60Hz |
| Maximum Range |
Up to 50m / 164ft |
| Transmitter Ports |
1× HDMI + 1× USB-C Power |
| Receiver Ports |
1× HDMI + 1× VGA + 1× 3.5mm Audio + 1× USB-C Power |
| Pairing |
Factory Pre-Paired |
| Wi-Fi Required |
No |
| Bluetooth Required |
No |
| Software Required |
No |
| Power Requirement |
5V/1A USB power for TX and RX |
| Transmission |
Wireless Video & Audio |
