Description

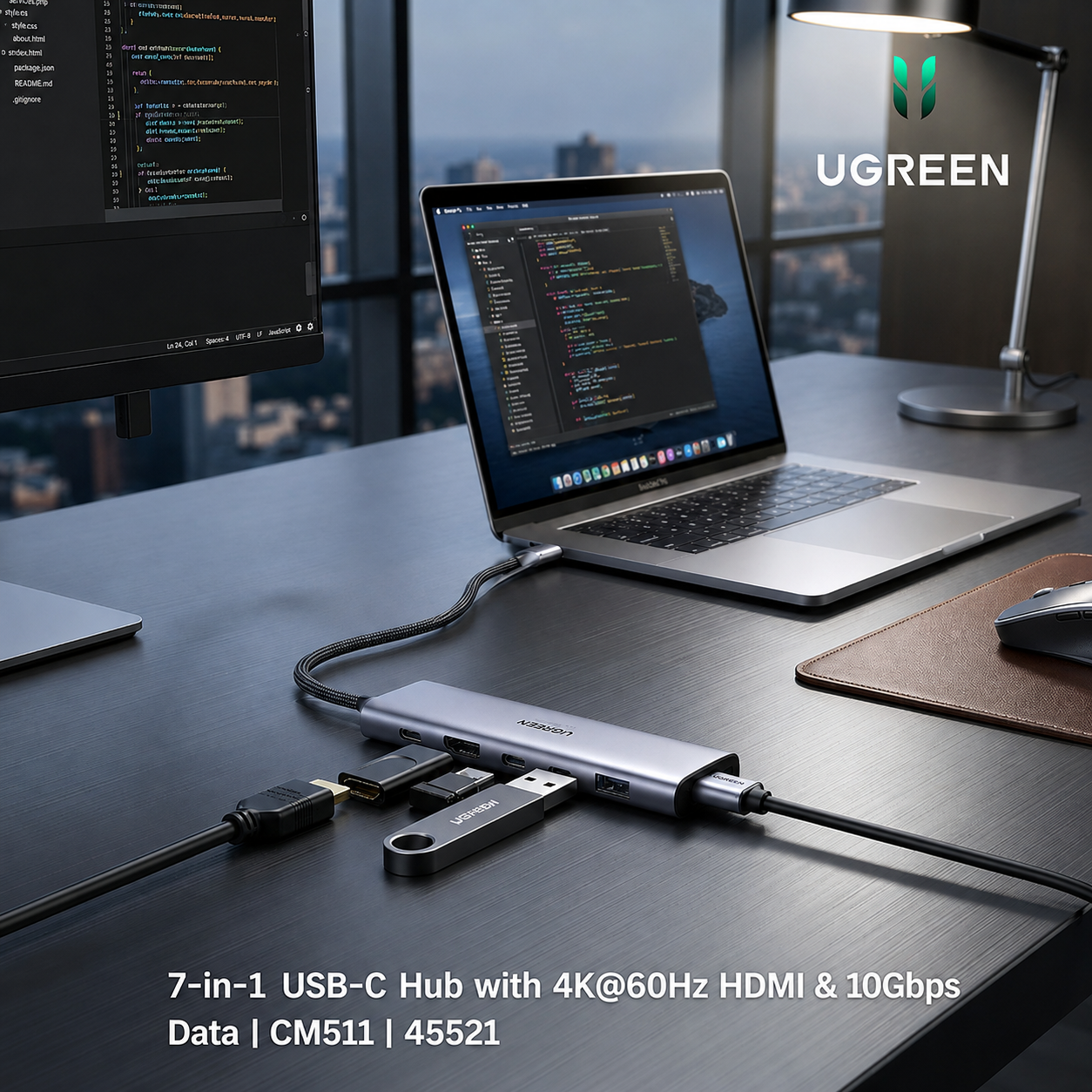

The UGREEN CM511 is a high-speed 7-in-1 USB-C multiport adapter designed to expand the connectivity of laptops, tablets, and smartphones. It combines 4K@60Hz HDMI output, three 10Gbps USB data ports, SD and microSD card readers, and 100W USB-C Power Delivery pass-through charging in a single compact hub. It is particularly suitable for modern USB-C devices, including Apple MacBooks with M1 and M2 chips, providing high-speed connectivity for displays, storage devices, peripherals, and memory cards.

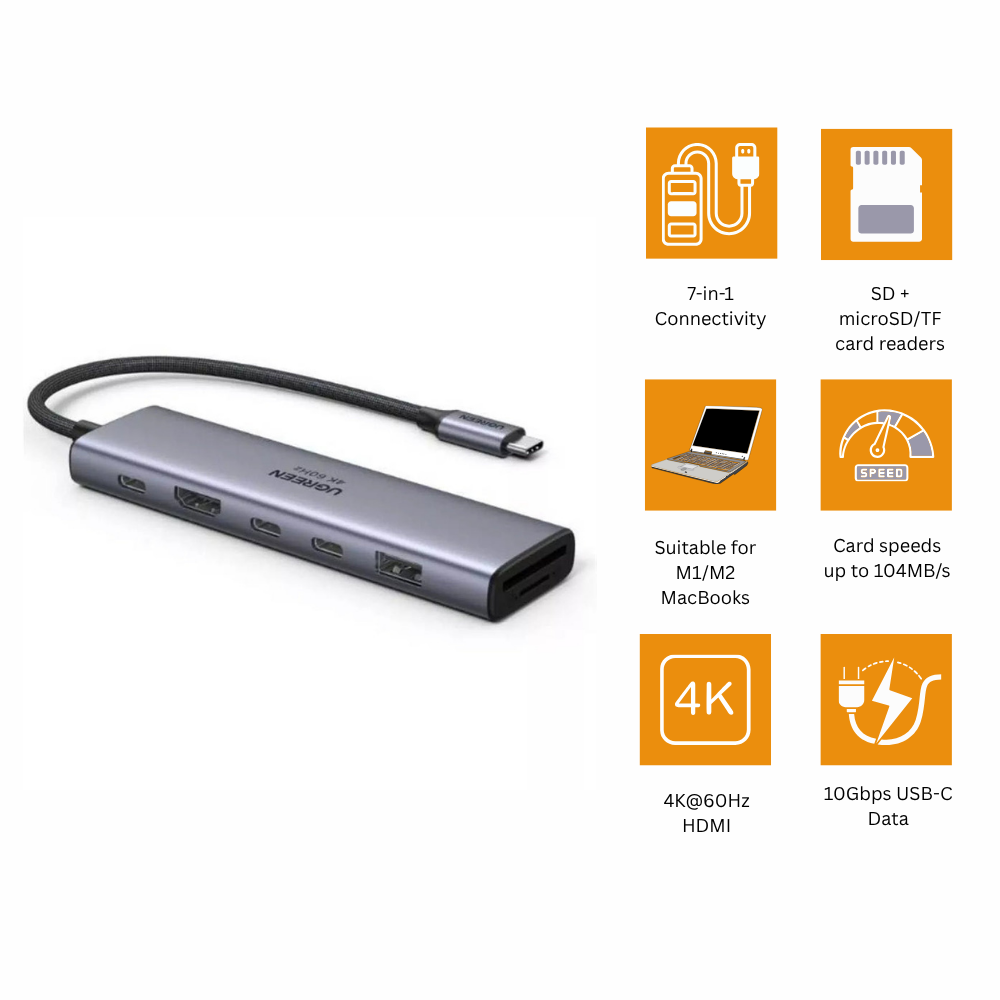

Key Features
-
7-in-1 Connectivity: Combines HDMI, 2× USB-C data, USB-A data, SD, microSD/TF, and USB-C PD charging in one adapter.
-
4K@60Hz HDMI: Supports external display output up to 4K at 60Hz for smooth and detailed video.
-
10Gbps USB-C Data: Two USB-C 3.2 data ports support transfer speeds of up to 10Gbps.
-
10Gbps USB-A Data: One USB-A 3.2 data port also supports speeds of up to 10Gbps.
-
100W Power Delivery: USB-C PD pass-through supports up to 100W input to charge the connected host device while using the hub.
-
Fast SD/TF Card Readers: Dedicated SD and microSD (TF) slots support transfer speeds of up to 104MB/s.
-
Wide Compatibility: Designed for laptops, tablets, and smartphones with compatible USB-C ports, including Apple M1 and M2 MacBooks.
-
Full-Speed Requirement: To achieve 10Gbps data speeds, the connected host USB-C port must support USB 3.2 Gen 2 (10Gbps) or higher.
-
Multi-Device Expansion: Allows simultaneous connection of displays, USB peripherals, storage devices, and memory cards.
Key Features — Short Summary
- 7-in-1 USB-C multiport hub
- HDMI up to 4K@60Hz
- 2× USB-C 3.2 up to 10Gbps
- 1× USB-A 3.2 up to 10Gbps
- SD + microSD/TF card readers
- Card speeds up to 104MB/s
- USB-C PD pass-through up to 100W
- Compatible with modern USB-C devices
- Suitable for M1/M2 MacBooks
- Requires USB 3.2 Gen 2 host for 10Gbps speeds
Specifications
| Specification |
Details |
| Brand |
UGREEN |
| Model |
CM511 |
| Product Number |
45521 |
| Type |
7-in-1 USB-C Multiport Adapter |
| HDMI |
1× HDMI |
| HDMI Resolution |
Up to 4K@60Hz |
| USB-C Data |
2× USB-C 3.2 |
| USB-A Data |
1× USB-A 3.2 |
| USB Data Speed |
Up to 10Gbps |
| SD Reader |
1× SD |
| TF Reader |
1× MicroSD / TF |
| Card Speed |
Up to 104MB/s |
| PD Port |
1× USB-C |
| PD Input |
Up to 100W |
| Host Requirement |
USB 3.2 Gen 2 or higher for 10Gbps |
| Compatibility |
Laptops, tablets, smartphones, compatible MacBooks |
