Description

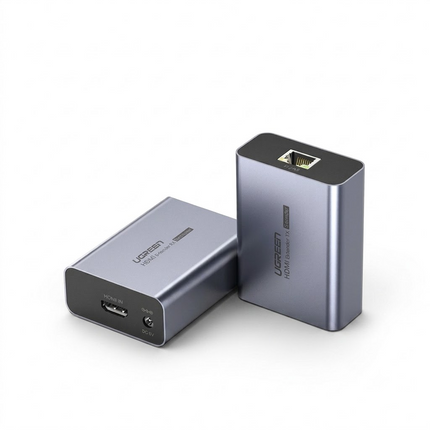

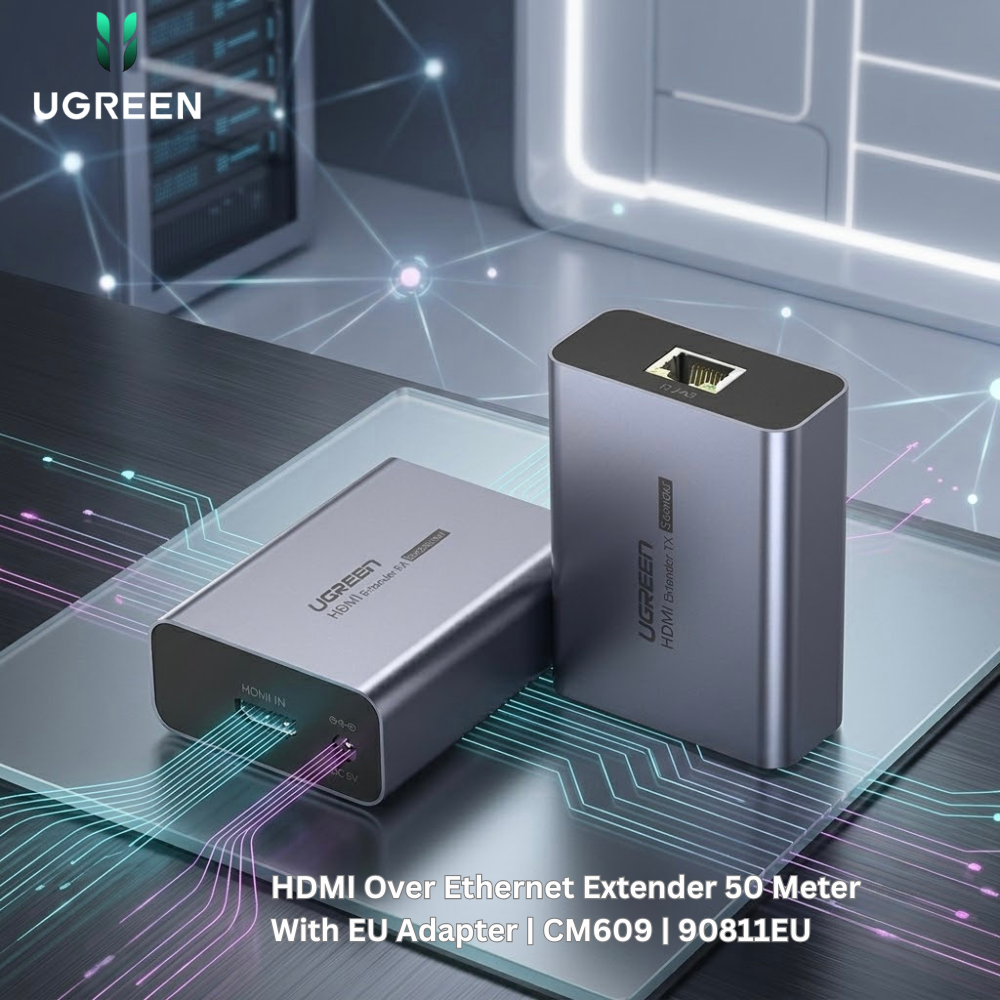

The UGREEN CM609 HDMI Over Ethernet Extender is a reliable HDMI extension solution that transmits Full HD 1080P video and audio up to 50 meters (164 feet) over a single Cat5e or Cat6 Ethernet cable. The kit includes a transmitter, receiver, and EU power adapters, making it ideal for home theaters, conference rooms, classrooms, digital signage, surveillance systems, and commercial AV installations. Featuring Plug & Play installation, PCM 2.0 audio support, and EDID pass-through, it delivers stable, high-quality signal transmission without requiring software or drivers.

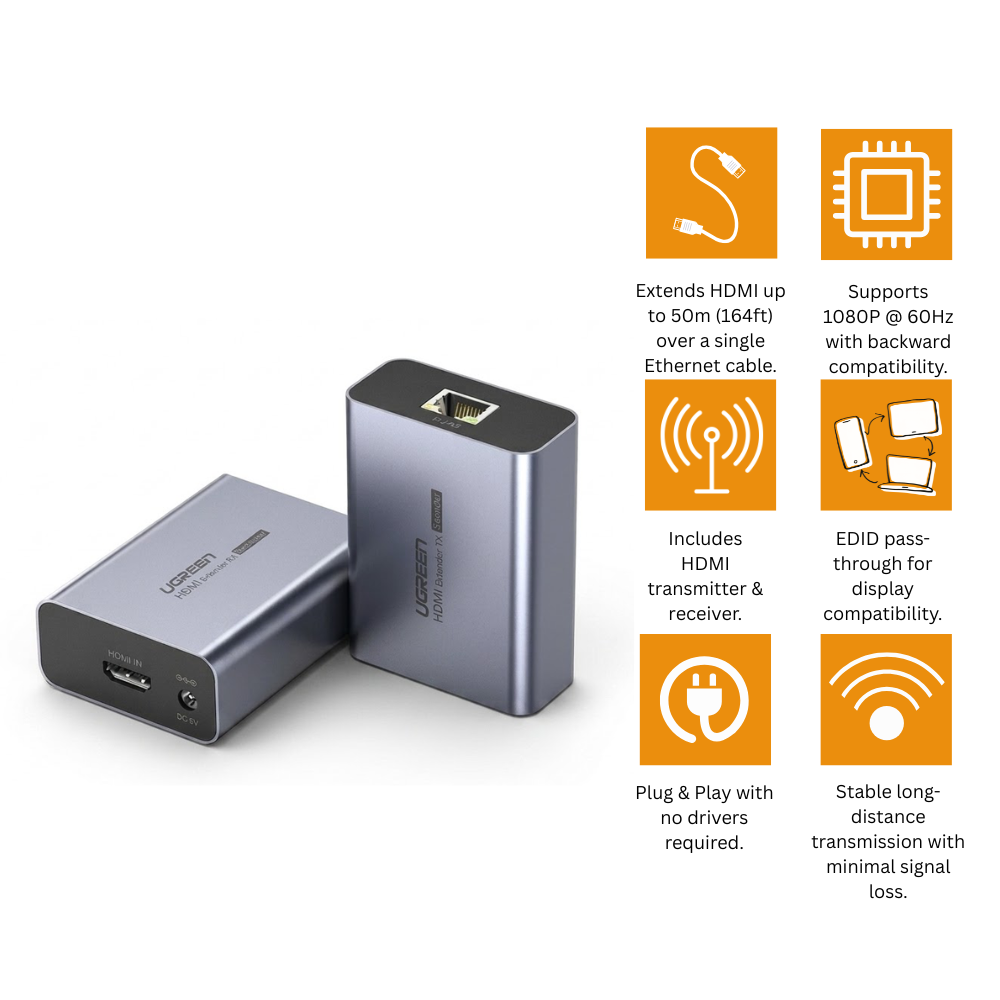

Key Features
- Extends HDMI signals up to 50 meters (164 feet) over a single Ethernet cable.
- Supports Full HD 1080P at 60Hz with backward compatibility for lower resolutions.
- Compatible with Cat5e and Cat6 pure copper network cables wired to the 568B standard.
- Includes HDMI transmitter and receiver for complete signal extension.
- Supports PCM 2.0 digital audio for synchronized sound transmission.
-
EDID copy pass-through ensures optimal display compatibility.
- Plug & Play operation with no drivers or software installation required.
- Stable long-distance transmission with minimal signal loss.
- Ideal for TVs, projectors, monitors, DVRs, NVRs, gaming consoles, media players, and PCs.
- Perfect for conference rooms, classrooms, home theaters, surveillance systems, and digital signage.
Technical Specifications
| Specification |
Details |
| Brand |
UGREEN |
| Model |
CM609 |
| Product Code |
90811EU |
| Product Type |
HDMI Over Ethernet Extender |
| Transmission Distance |
Up to 50m (164ft) |
| Maximum Resolution |
1080P @ 60Hz |
| Network Cable |
Cat5e / Cat6 Pure Copper (568B Wiring) |
| HDMI Units |
1 Transmitter + 1 Receiver |
| Audio Support |
PCM 2.0 |
| EDID Support |
Yes |
| Installation |
Plug & Play |
| Power Supply |
EU Power Adapters Included |
| Compatibility |
TVs, Monitors, Projectors, PCs, DVRs, NVRs, Media Players, Game Consoles |
Package Contents
- HDMI Transmitter
- HDMI Receiver
- 2 × EU Power Adapters
- User Manual
