Description
Looking for a PoE NVR in Jordan for a larger CCTV installation in a villa, building or business? The IMOU N236-16P 36-channel recorder costs 170 JOD at Bestways, the official IMOU distributor in Jordan, with one unified price at every authorised dealer and a 12-month warranty from the official distributor.

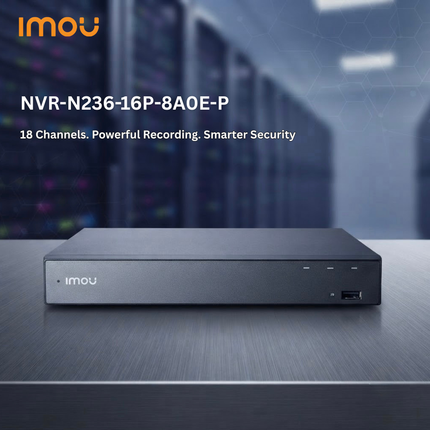

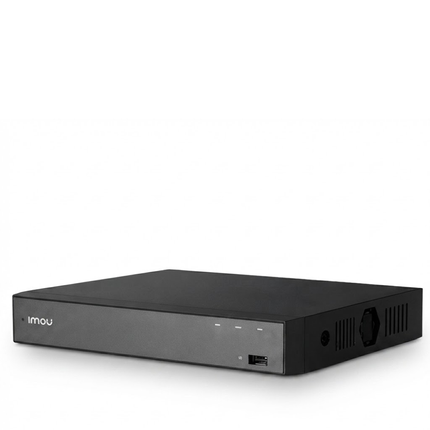

The IMOU N236-16P (NVR-N236-16P-8A0E) is a 36-channel network video recorder with 16 built-in PoE ports. Each port (10/100 Mbps, IEEE 802.3af/at) powers and connects an IP camera over a single Ethernet cable, plug-and-play, with a 150 W total PoE budget (max 25.5 W per port).
It records to two SATA hard drives (2 SATA ports, up to 16 TB) with H.265 compression, shows live view on HDMI (up to 4K) or VGA (up to 1080p), and offers AI Smart Search for people, vehicles and events. IMOU cameras pair automatically, third-party cameras connect through ONVIF, and the IMOU app gives you remote monitoring and two-way audio through the built-in microphone and speaker.

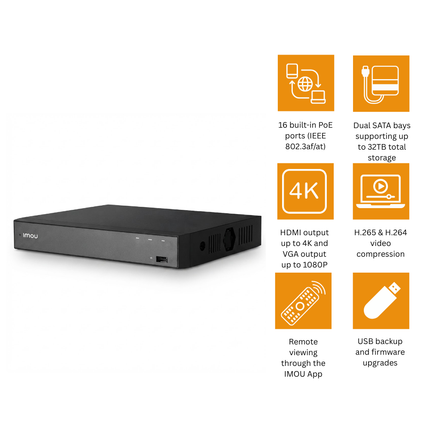

Key Features
- 16 built-in PoE ports (10/100 Mbps, IEEE 802.3af/at) for plug-and-play camera installation
- Up to 36 IP camera channels, cameras up to 8MP
- 150 W total PoE power, up to 25.5 W per port
- AI Smart Search for people, vehicles and events
- Motion, person and vehicle detection
- IMOU IPC auto-pair for automatic camera pairing
- HDMI output up to 4K and VGA output up to 1080p
- 2 SATA ports for hard drives (up to 16 TB), H.265 / H.264 compression
- Gigabit (10/100/1000 Mbps) network port and 320 Mbps bandwidth
- Two-way audio, remote monitoring in the IMOU app, ONVIF compatible
Works With
Technical Specifications
| Specification |
Details |
| Model |
NVR-N236-16P-8A0E |
| Product Name |
IMOU N236-16P PoE NVR |
| Access Channels |
36 channels (16 PoE ports) |
| PoE Ports |
16 × 10/100 Mbps, IEEE 802.3af/at |
| PoE Power |
150 W total, max 25.5 W per port |
| Network Bandwidth |
320 Mbps incoming, 320 Mbps outgoing |
| Camera Resolution |
8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 720p |
| Decoding Capability |
4-ch 8MP@15fps; 4-ch 6MP@25fps; 4-ch 5MP@30fps; 5-ch 4MP@30fps; 10-ch 1080p@30fps |
| Smart Detection |
Motion / Person / Vehicle |
| Video Compression |
H.265 / H.264 |
| Audio |
Two-way audio, built-in microphone and speaker; AAC |
| Live Display |
1/4/8/9/10/16/19/25/36 split screens |
| Video Output |
1 × HDMI: up to 4K (3840 × 2160); 1 × VGA: up to 1920 × 1080 |
| Hard Drive |
2 SATA ports, up to 16 TB |
| Backup |
USB flash drive (MP4 files) |
| Network Port |
1 × RJ-45 (10/100/1000 Mbps, Gigabit) |
| USB |
2 × USB |
| Third-Party Cameras |
ONVIF |
| App |
IMOU app (iOS & Android) |
| Power Supply |
100–240 VAC, 50/60 Hz |
| Power Consumption |
NVR ≤ 9 W (without HDD), plus PoE output |
| Operating Temperature |
-10°C ~ +45°C |
| Operating Humidity |
Less than 95% RH |
| Dimensions |
320.0 × 374.0 × 45.0 mm |
| Certification |
CE |
Why Choose the IMOU N236-16P?
- Built for larger installations: 36 channels and 16 PoE ports in one recorder
- One-cable installation for each PoE camera, with a 150 W PoE budget
- Two hard-drive bays and a Gigabit network port
- 4K output, AI Smart Search and H.265 compression for efficient daily use
Downloads
⬇ Download Datasheet (PDF)⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
