Description

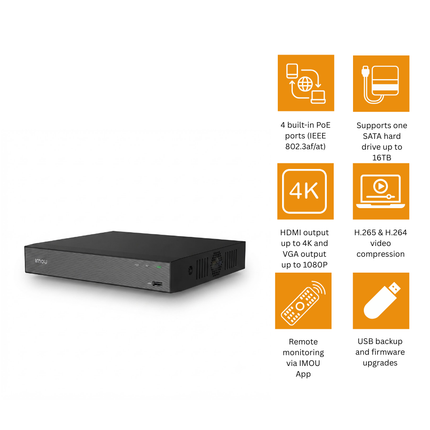

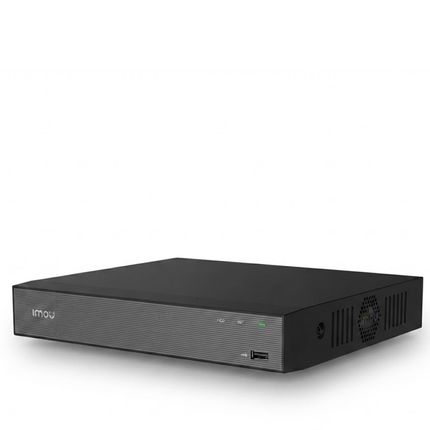

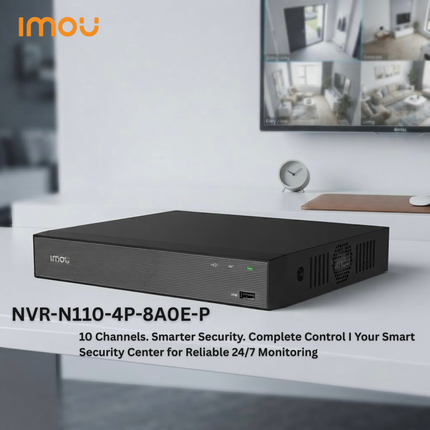

The IMOU NVR-N110-4P-8A0E-P is a professional 10-channel PoE Network Video Recorder designed for homes, offices, retail stores, and small business surveillance systems. Equipped with 4 built-in PoE ports, it delivers both power and data to compatible IP cameras through a single Ethernet cable, ensuring fast, clean, and hassle-free installation.
Featuring 4K HDMI output, H.265/H.264 video compression, AI Smart Search, two-way audio, and support for one SATA hard drive up to 16TB, this NVR provides reliable recording, intelligent playback, and convenient remote access via the IMOU App. It also supports IMOU IPC Auto-Pair and ONVIF compatibility for seamless integration with compatible cameras.
Key Features
- 4 built-in PoE ports (IEEE 802.3af/at)
- Supports up to 10 IP camera channels
- Plug & Play PoE installation
- H.265 & H.264 video compression
- HDMI output up to 4K and VGA output up to 1080P
- AI Smart Search for Person, Vehicle, and Events
- Built-in microphone and speaker for two-way audio
- Supports one SATA hard drive up to 16TB
- IMOU IPC Auto-Pair for automatic camera pairing
- Remote monitoring via IMOU App
- ONVIF Profile T compatible
- USB backup and firmware upgrades
Technical Specifications
| Specification |
Details |
| Model |
NVR-N110-4P-8A0E-P |
| PoE Ports |
4 × 10/100Mbps IEEE 802.3af/at |
| Camera Channels |
Up to 10 IP Channels |
| Maximum Camera Resolution |
Up to 10MP |
| Video Compression |
H.265 / H.264 |
| Video Output |
1 × HDMI (Up to 4K), 1 × VGA (Up to 1080P) |
| Playback |
4 × 8MP @15fps or 4 × 5MP @30fps |
| Storage |
1 × SATA HDD (Up to 16TB) |
| Network Interface |
1 × RJ45 10/100Mbps |
| Audio |
Built-in Microphone & Speaker |
| Smart Search |
Person, Vehicle & Event Search |
| USB Ports |
2 × USB 2.0 |
| Remote Access |
IMOU App |
| Third-Party Compatibility |
ONVIF Profile T |
| Power Supply |
DC 54V / 1.2A |
| Operating Temperature |
-10°C to +45°C |
Why Choose NVR-N110-4P-8A0E-P IMOU?
The IMOU NVR-N110-4P-8A0E-P is the perfect choice for users looking for a compact and professional PoE surveillance recorder. Its 4 integrated PoE ports simplify installation by supplying power and network connectivity through a single cable, while 4K video output, AI-powered Smart Search, H.265 compression, and support for up to 16TB of storage ensure dependable performance for residential and commercial security systems.
