Description

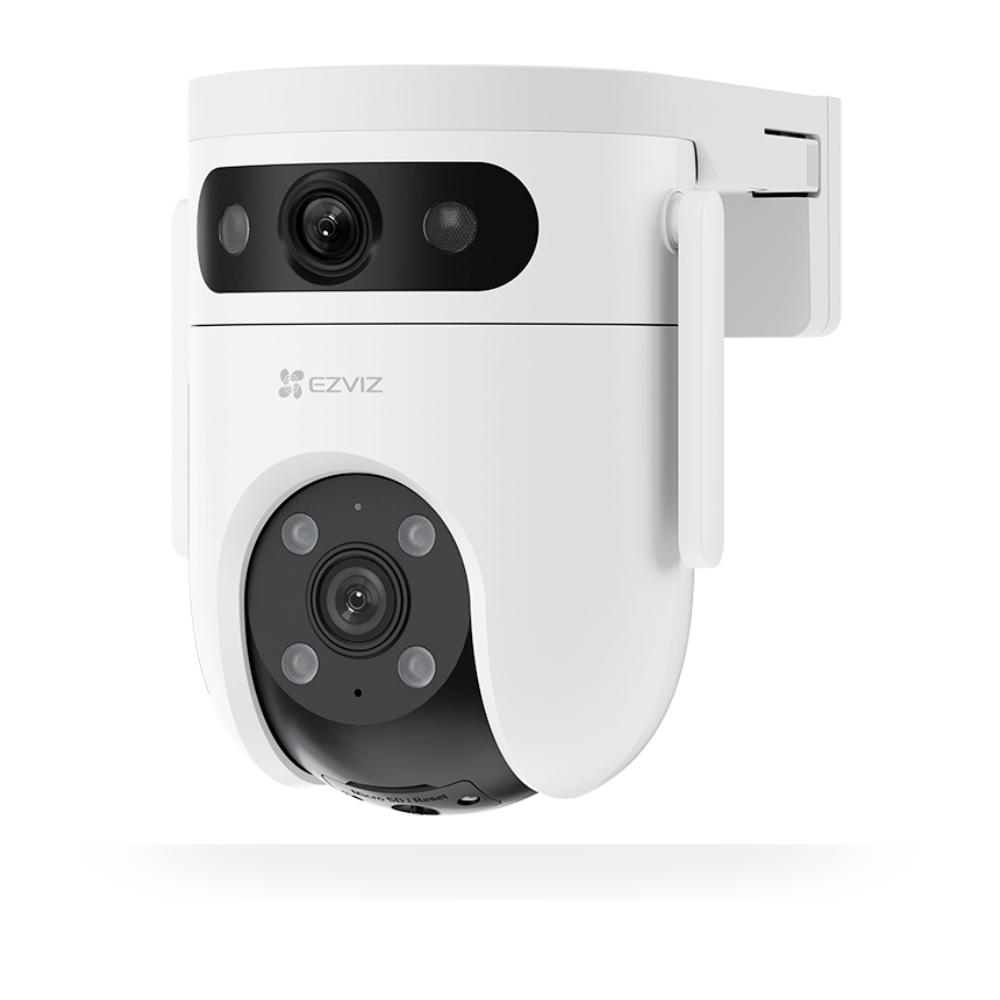

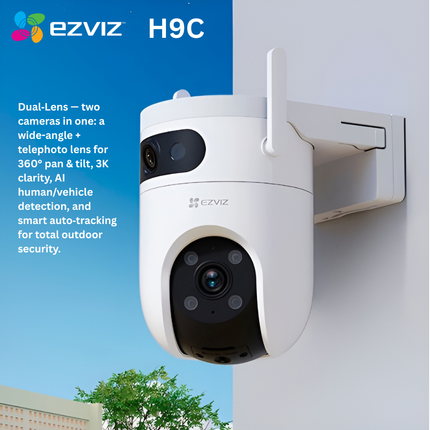

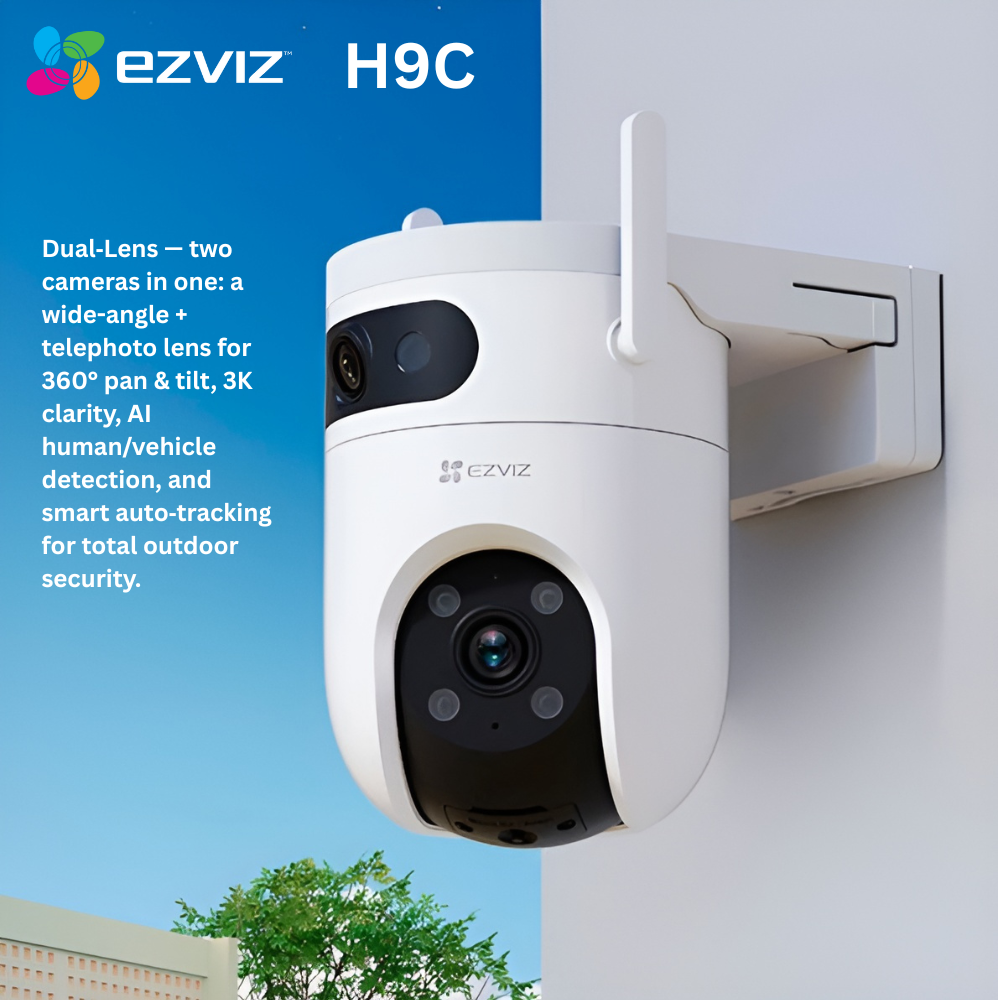

The EZVIZ H9C Dual‑Lens is a 2K outdoor Wi-Fi pan-and-tilt camera designed for comprehensive coverage and automated security. With dual lenses — a wide-angle lens for broad-area monitoring and a telephoto lens for detailed close-up viewing — it provides versatile and high-resolution imaging for complete property protection. The camera features AI-powered human and vehicle detection, enabling intelligent alerts while minimizing false alarms. Pan-and-tilt functionality allows 360° horizontal rotation and 90° vertical movement, ensuring no blind spots. Two-way audio enables real-time communication with visitors or intruders, while color night vision ensures clear monitoring even in low-light conditions. Weather-resistant and easy to install, the H9C Dual-Lens camera connects seamlessly to the EZVIZ app, allowing remote viewing, real-time alerts, and automated security management from anywhere.

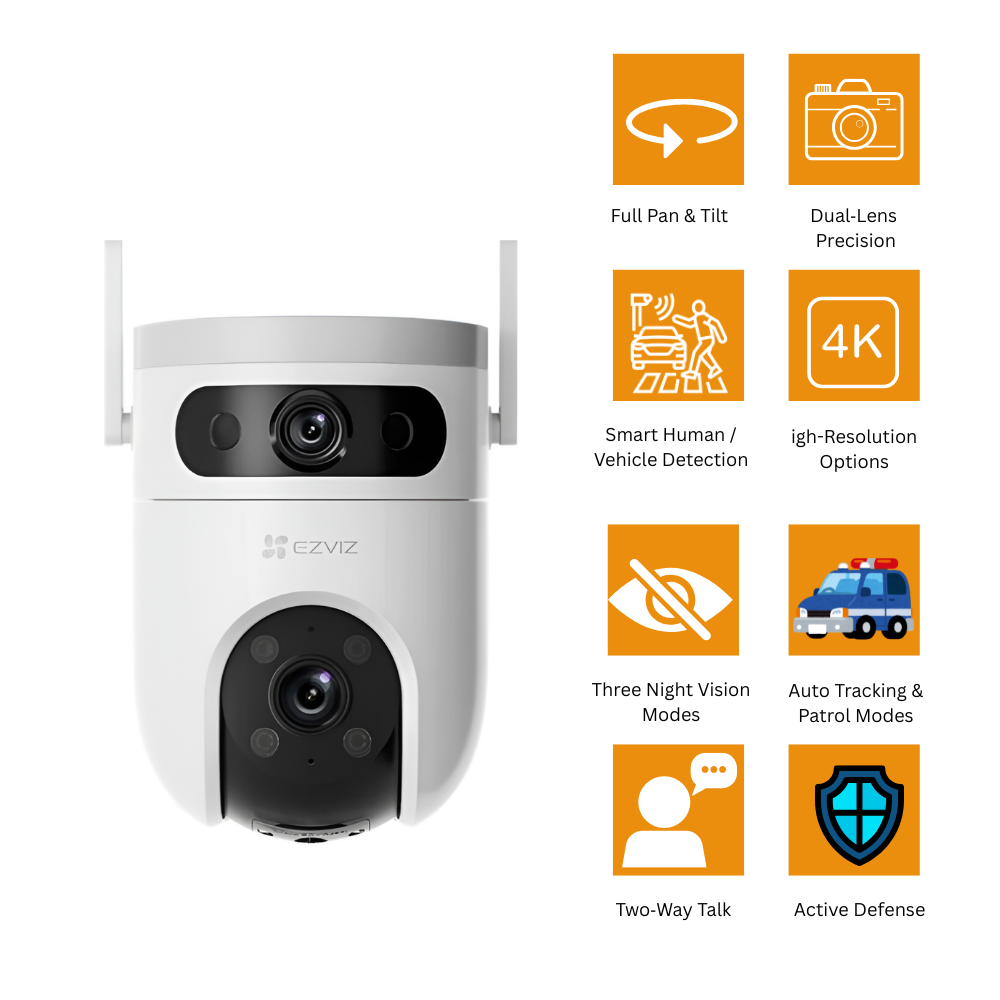

Key Features
Dual 2K Lenses
Wide-angle lens (2.8 mm) for broad coverage, telephoto lens (6 mm) for close-up detail.
Full Pan & Tilt
Motorized pivot on the telephoto lens for 360° coverage; manual rotation on the wide lens for flexible viewing angles.
Smart Human & Vehicle Detection
AI-powered detection differentiates people and vehicles to reduce false alarms.
Auto Tracking & Patrol Modes
Automatically tracks moving objects or patrols preset positions for continuous monitoring.
Three Night Vision Modes
Color Mode — full-color night video
Smart Mode — adaptive lighting on motion
Black & White Mode — traditional IR vision
Active Defense
Built-in LED lights and siren to deter intruders.
Two-Way Audio
Communicate in real-time via built-in microphone and speaker.
Local & Cloud Storage
Supports microSD cards up to 512 GB and EZVIZ CloudPlay for secure cloud backup.

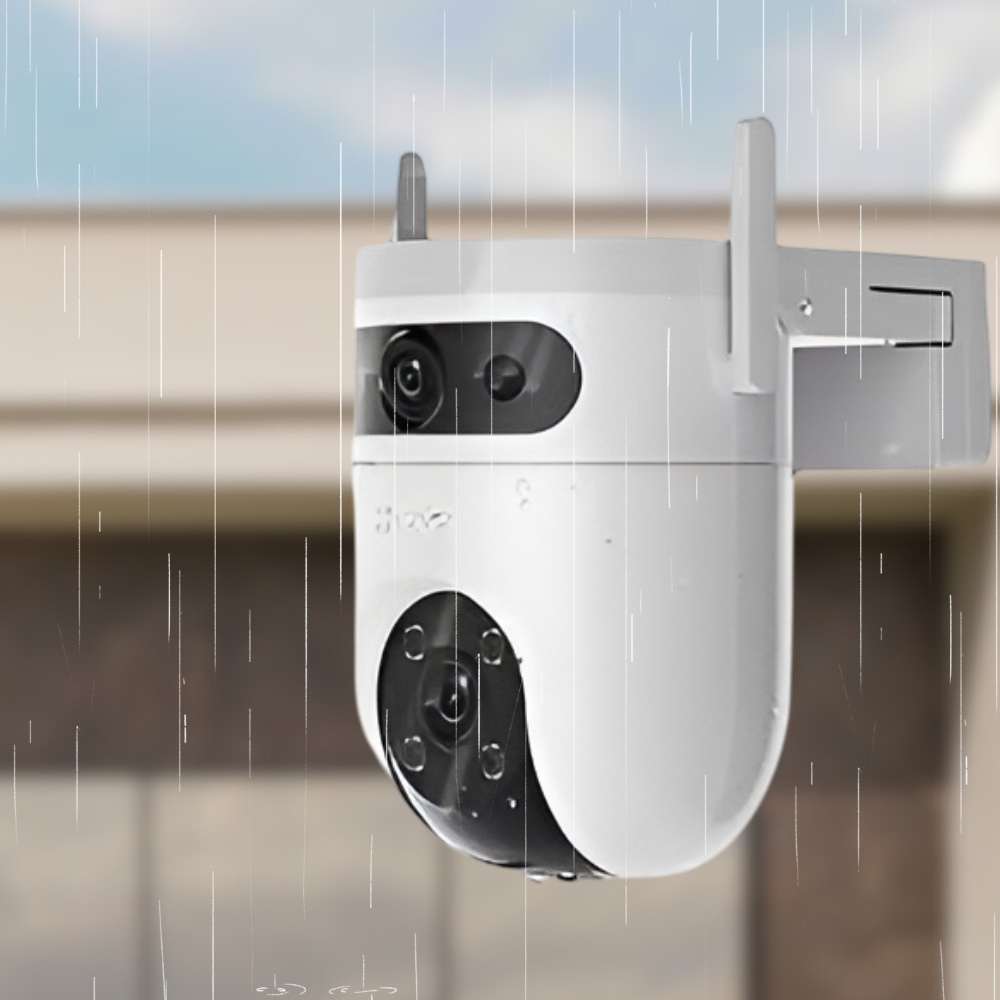

Weatherproof Design
Durable outdoor housing, operating from –30°C to +50°C.
Power Supply
12 V DC, maximum consumption ~12 W.
Technical Specifications
| Specification |
Details |
| Model |
EZVIZ H9C Dual-Lens (2K) |
| Wide Lens |
2.8 mm @ F1.6, 130° diagonal view |
| Telephoto Lens |
6 mm @ F1.6, motorized pan & tilt |
| Pan / Tilt Range |
Pan: ~350°, Tilt: ~80° |
| Max Resolution |
2304 × 1296 (2K) |
| Video Compression |
H.264 / H.265 |
| Wi-Fi |
IEEE 802.11 b/g/n (2.4 GHz) |
| Minimum Illumination |
0.5 Lux (color), 0 Lux with IR |
| Night Vision Distance |
Up to 30 m (B/W), 40 m if both lenses face the same direction (color) |
| Storage |
microSD (max 512 GB) / EZVIZ CloudPlay |
| Operating Conditions |
–30°C to +50°C, ≤95% humidity |
| Power |
12 V DC, 1.5 A |
Why Choose the EZVIZ H9C Dual‑Lens?
Wide and detailed monitoring with dual lenses
Pan-and-tilt coverage reduces the number of cameras needed
Intelligent AI detection lowers false alarms
Automated patrols and tracking for smarter security
Strong night vision in color or black & white
Durable outdoor design with weatherproof housing
Flexible storage: local microSD or secure cloud
