Description

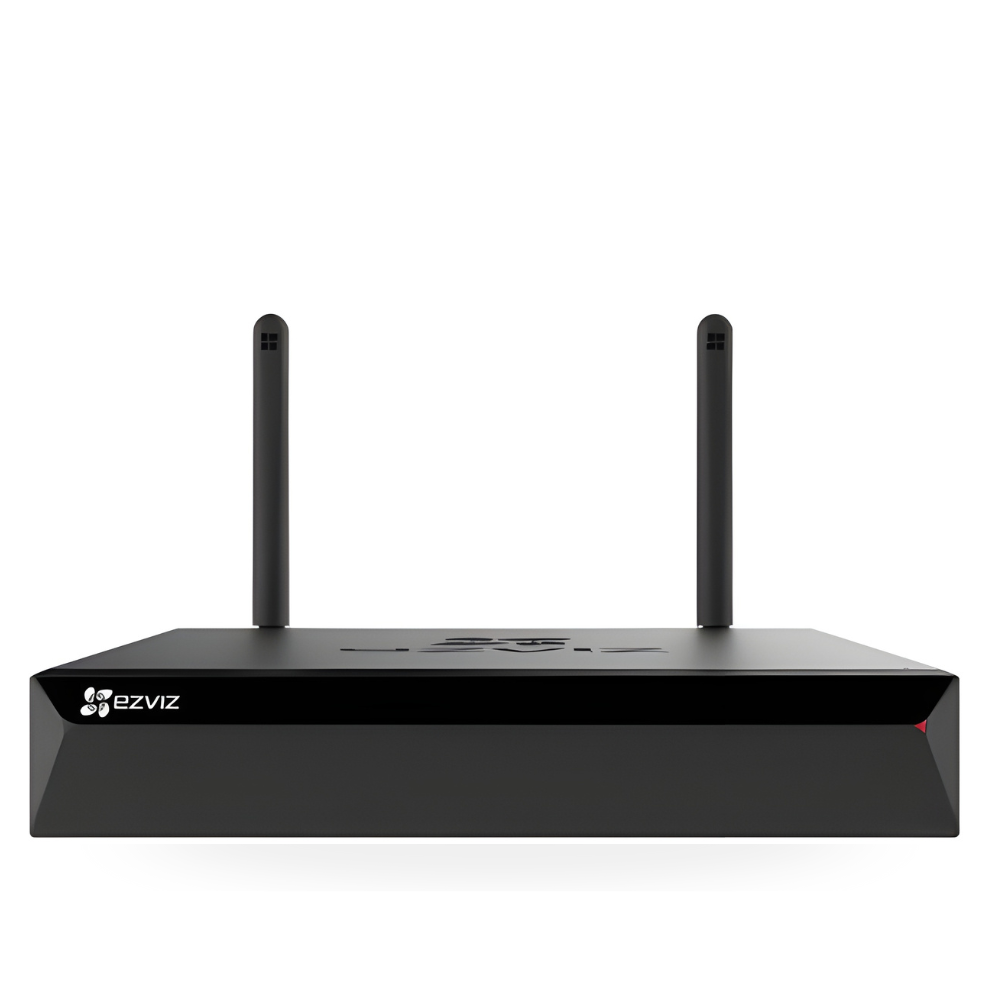

The EZVIZ X5S Wireless NVR is a robust network video recorder designed to serve as the central storage and management hub for your home or business surveillance system. It supports both wired and wireless camera connections, enabling flexible installation without the complexity of extensive cabling. Built for continuous 24/7 recording in high quality, it ensures reliable storage and playback of security footage from multiple cameras simultaneously. Its compatibility with high‑resolution cameras and efficient video compression technology makes it suitable for both residential and commercial monitoring needs.

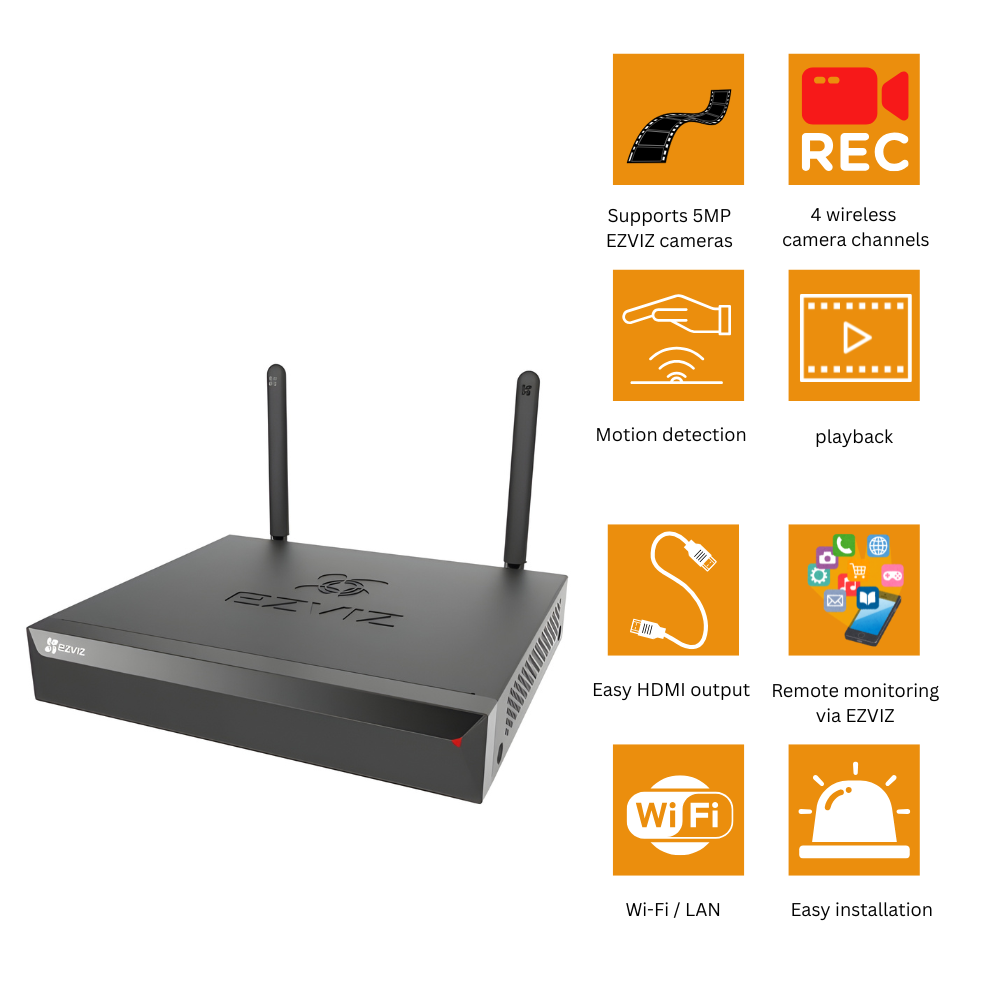

Key Features
-
Supports connection of multiple Wi‑Fi or wired cameras (configurations for 4 or 8 cameras).
-
High‑resolution video support up to 3K for detailed surveillance footage.
-
Uses advanced H.265 video compression for efficient storage usage.
-
Expandable storage up to 8 TB via built‑in SATA HDD interface.
-
HDMI and VGA outputs for direct connection to monitors.
-
Extended Wi‑Fi range up to 100 m for flexible camera placement.
-
Supports ONVIF protocol for integration with third‑party cameras.
-
Multiple recording and playback modes including motion‑triggered and scheduled recording.
Technical Specifications
| Specification |
Details |
| Model Variants |
X5S‑4W / X5S‑8W |
| Device Type |
Wireless Network Video Recorder (NVR) |
| Camera Support (Wireless/Wired) |
Up to 4 cameras (X5S‑4W) / Up to 8 cameras (X5S‑8W) |
| Maximum Supported Resolution |
Up to 3K |
| Video Compression |
H.265 / H.264 |
| Recording Modes |
Manual, Motion Detection, Scheduled, Event Triggered |
| Playback Modes |
Instant, Normal, Event, Tag, Log Event |
| Wi‑Fi Range |
Up to 100 m |
| Radio Frequency |
2.4 GHz |
| Network Interface |
One adaptive 10/100 Mbps Ethernet port |
| Video Outputs |
HDMI (up to ~2592×1944 @ 30 Hz), VGA (up to ~1920×1080 @ 60 Hz) |
| Storage Interface |
One built‑in SATA port for 1 TB–8 TB HDD |
| Antenna Count |
2 |
| Open Protocol Support |
ONVIF V2.5 / HIKVISION protocol |
| USB Ports |
1–2 USB 2.0 interfaces |
| Hardware Reset Support |
Yes |
| Dimensions |
~235 × 270 × 44.5 mm |
| Certifications |
CE / UL / RoHS / WEEE / REACH |
| Power Supply |
DC 12 V / 1.5 A |
| Net Weight |
~932 g |
Why Choose the EZVIZ X5S?
The EZVIZ X5S Wireless NVR offers a complete solution for multi‑camera security systems with strong storage capacity and support for high‑resolution video. Its flexible wireless camera support and extended Wi‑Fi range make it ideal for both indoor and outdoor deployments without complicated wiring. Advanced video compression technology optimizes storage and bandwidth utilization, while HDMI and VGA outputs allow convenient direct monitoring. Compatibility with ONVIF and widely used camera protocols ensures interoperability with a range of IP cameras, making the X5S a versatile and reliable choice for comprehensive surveillance needs.
