Description

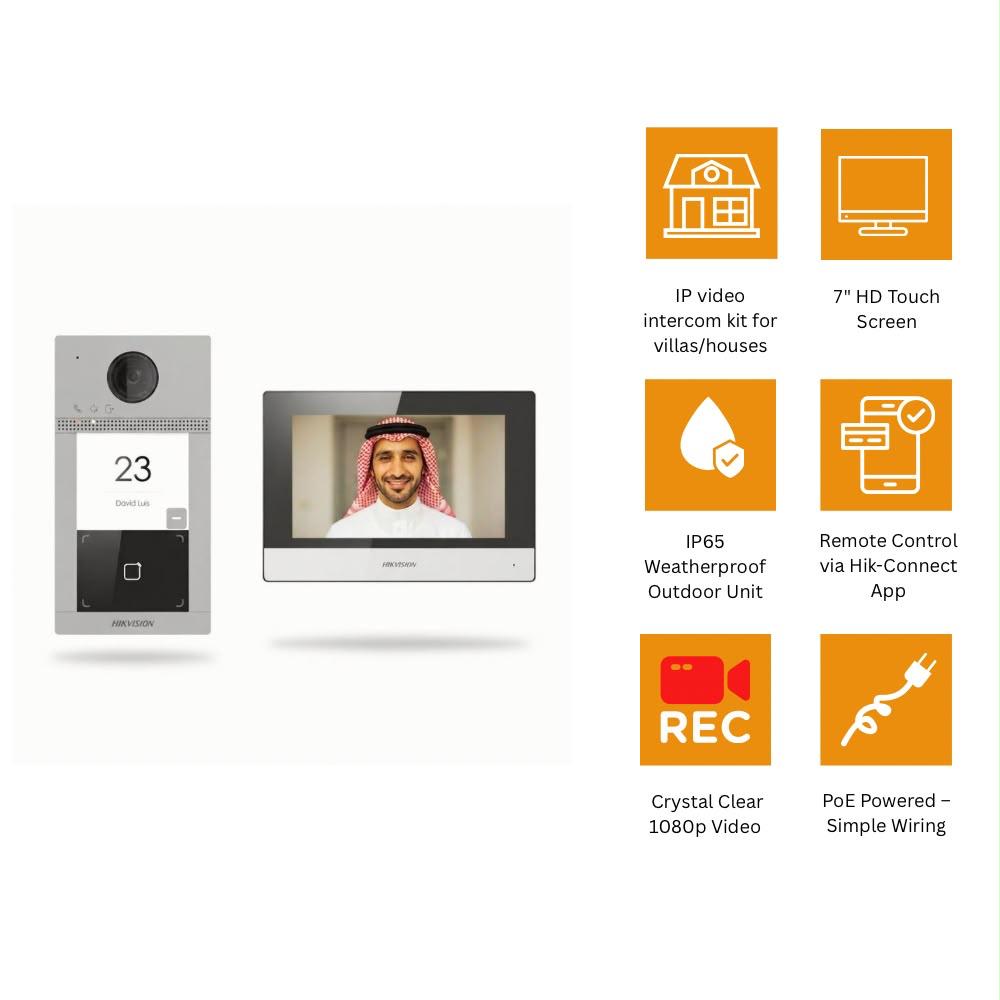

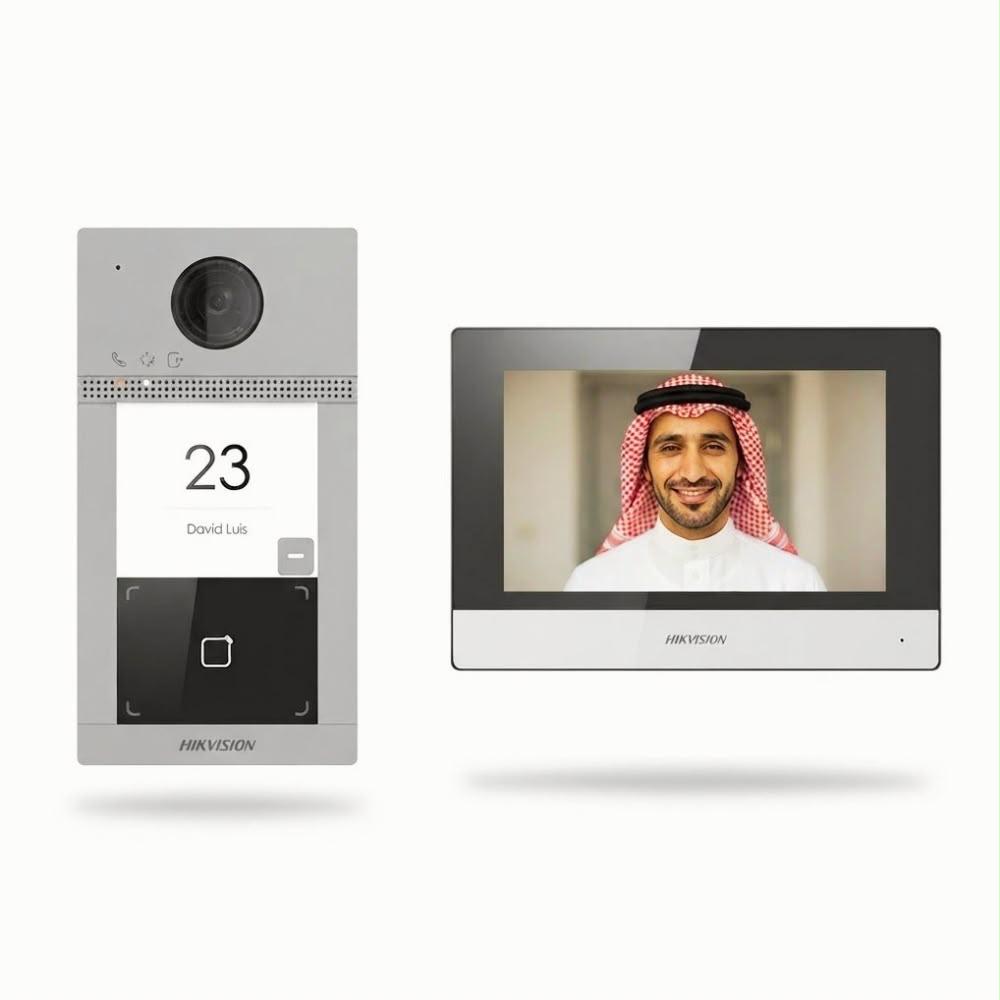

The Hikvision IP Video Intercom Kit (DS-KIS604-P(C)) is a complete IP intercom for a villa or house. It pairs a 2MP (1920 × 1080) door station (DS-KV8113-WME1(C)) that has a 124° horizontal view and one call button with a 7-inch capacitive touchscreen indoor station (DS-KH6320-WTE1).
Control the intercom from your phone with the Hik-Connect app, and store messages and captured pictures on a TF card. Both units support standard PoE or 12 VDC, Ethernet and Wi-Fi; the door station controls up to 2 locks, and its metal housing is rated IP65 and IK08 for outdoor use.
Key Features
- Complete IP kit for a villa or house with one call button
- 2MP door camera: 1920 × 1080 main stream, WDR and IR supplement light
- Wide 124° horizontal and 75° vertical field of view
- 7-inch colour TFT capacitive touchscreen, 1024 × 600
- Convenient Hik-Connect app mobile control
- Stores messages and captured pictures on a TF card
- Two-way audio with noise suppression and echo cancellation (door loudspeaker over 80 dB within 30 cm)
- Controls up to 2 locks, with 2 exit-button and 2 door-contact inputs
- Standard PoE (IEEE 802.3af) or 12 VDC; Ethernet and Wi-Fi on both units
- Metal door station rated IP65 and IK08, -40 °C to 53 °C
Technical Specifications
| Specification |
Details |
| Model |
DS-KIS604-P(C) |
| Product Name |
IP Video Intercom Kit |
| Door Station |
DS-KV8113-WME1(C) |
| Indoor Station |
DS-KH6320-WTE1 |
| Resolution |
Main stream: 1920 × 1080, 1280 × 720; sub stream: 1280 × 720, 640 × 480 |
| Field of View |
H 124°, V 75° |
| Video Features |
WDR, IR supplement light |
| Video Compression |
H.264, H.265, MJPEG |
| Audio |
Built-in microphone and loudspeaker; noise suppression and echo cancellation; door loudspeaker > 80 dB within 30 cm |
| Indoor Station Display |
7-inch colour TFT, capacitive touch, 1024 × 600 |
| Network |
10/100 Mbps Ethernet and Wi-Fi 802.11 b/g/n (both units) |
| Protocols |
TCP/IP, RTSP, SIP |
| Door Station Interfaces |
2 lock outputs, 2 exit buttons, 2 door contacts, 4 alarm inputs, 2 RS-485, tamper |
| Indoor Station Interfaces |
RS-485, 8 alarm inputs, 2 relay outputs, TF card (up to 32 GB) |
| User Capacity |
2,000 (door station) |
| Power Supply |
IEEE 802.3af standard PoE or 12 VDC (both units) |
| Power Consumption |
Door station < 10 W; indoor station ≤ 6 W |
| Door Station Protection |
IP65, IK08 |
| Operating Temperature |
Door station -40 °C to 53 °C; indoor station -10 °C to 55 °C |
| Door Station Dimensions |
174 × 91 × 29 mm |
| Door Station Weight |
380 g |
| Indoor Station Dimensions |
200 × 140 × 15.1 mm |
| Installation |
Surface mounting |
| Mobile App |
Hik-Connect |
What's in the Box
- 1 × DS-KV8113-WME1(C) door station
- 1 × DS-KH6320-WTE1 7-inch indoor station
- 1 × DS-KABV8113-RS/Surface protective shield
- 1 × Administrator card
- 5 × Key fobs
- 2 × Power supply units
Why Choose the Hikvision DS-KIS604-P(C)?
- A ready-to-install IP kit for a single-family home
- Rugged metal IP65 / IK08 door station
- Remote control with Hik-Connect and visitor pictures saved on a TF card
- Flexible PoE or 12 VDC installation with Wi-Fi
Downloads
⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
