Description

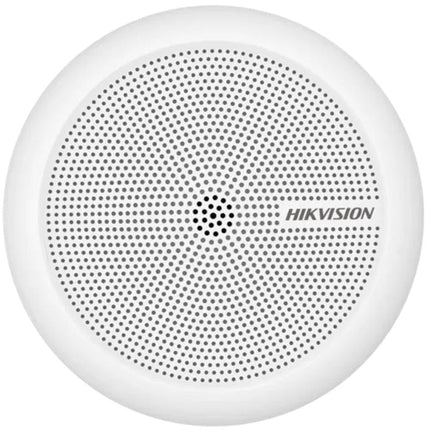

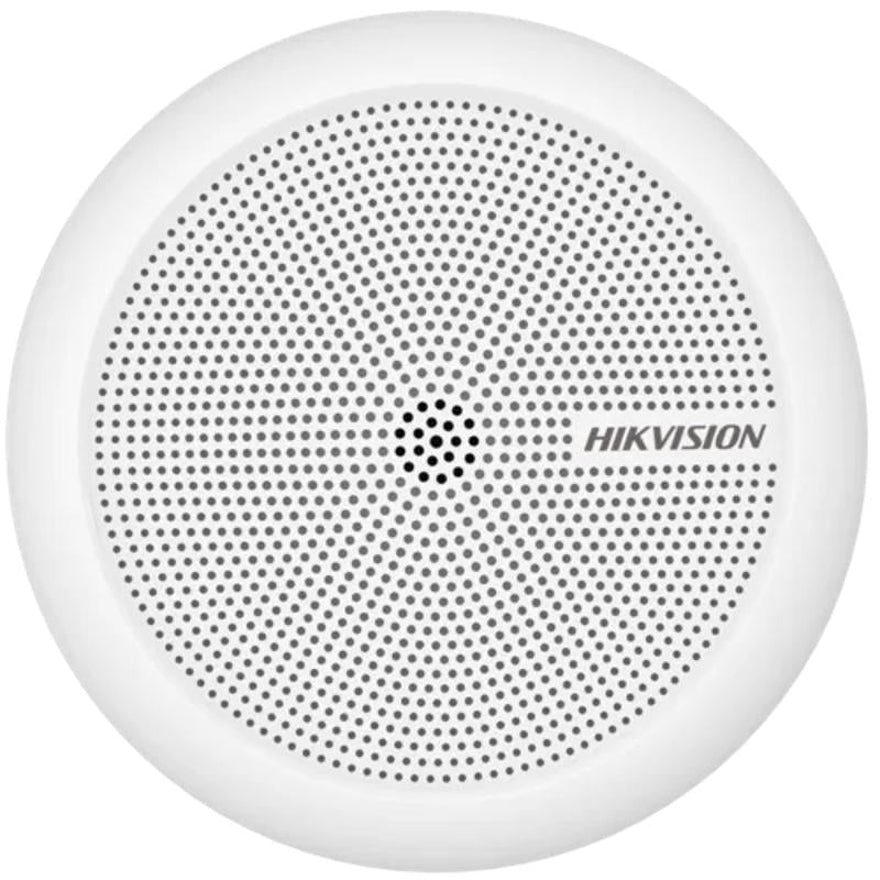

The Hikvision Indoor Security Microphone (DS-2FP2061) is a compact 360° omnidirectional audio pickup that adds clear sound to security and recording applications. Its high-sensitivity electret capsule picks up voices from every direction up to 5 m away (best within 3 m), with a 20 Hz–20 kHz frequency response and 90 dB SNR.
At only Ø85 × 20.48 mm and about 48 g, it mounts on a ceiling, a wall or a desk, and suits counters, cash registers, meetings, negotiations and recording. A volume knob adapts the level to the surroundings, and built-in power, lightning and reverse-polarity protection modules keep it running reliably on 12 VDC.
Key Features
- 360° omnidirectional pickup with high sensitivity and high fidelity
- Pickup range up to 5 m, best pickup within 3 m
- 20 Hz–20 kHz frequency response, -32 dB sensitivity and 90 dB SNR
- Sampling rate 8 kHz, 16 kHz (default) or 32 kHz
- Volume adjustment knob to match the surroundings
- Built-in output driving circuit that can directly drive earphones and other devices
- Power protection, lightning protection and reverse-polarity protection modules
- Ceiling, wall or desktop mounting
- Low power: 12 VDC, max. 0.1 W
- Blue LED shows normal operation
Technical Specifications
| Specification |
Details |
| Model |
DS-2FP2061 |
| Product Name |
Indoor Security Microphone |
| Microphone Type |
Electret |
| Polar Pattern |
360° omnidirectional |
| Pickup Range |
0 – 5 m (best: 3 m) |
| Frequency Response |
20 Hz – 20 kHz |
| Sensitivity |
-32 dB |
| SNR |
90 dB |
| Dynamic Range |
0 dB – 90 dB |
| Sampling Rate |
8 kHz, 16 kHz (default), 32 kHz |
| LED Indicator |
Blue: working normally |
| Power |
12 VDC, max. 0.1 W |
| Material |
Plastic |
| Installation |
Ceiling, wall or desktop mounting |
| Operating Conditions |
-10 °C to 50 °C (indoor) |
| Dimensions |
Ø85 × 20.48 mm |
| Weight |
Approx. 48 g |
What's in the Box
- 1 × DS-2FP2061 microphone
- 1 × Regulatory compliance and safety information
Why Choose the Hikvision DS-2FP2061?
- Clear, all-round sound pickup for counters, cash registers and meeting rooms
- Compact body with three mounting options
- Built-in protection modules for reliable long-term operation
- Very low power consumption from a 12 VDC supply
Downloads
⬇ Download Datasheet (PDF)⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
