Description
The Hikvision DS-QAPS6R6-6P is a professional Network PoE Frameless Ceiling Speaker designed for high-quality audio distribution, background music, and public address applications in modern commercial and professional environments.
Featuring a 6.5-inch woofer and a 1.2-inch tweeter, the speaker utilizes a Two-Way audio system with Digital Crossover technology to deliver balanced sound reproduction, clear voice announcements, and detailed music playback.
With a frequency response of 74Hz to 20kHz, 90dB sensitivity, and a maximum output sound pressure level of 106dB, the speaker delivers reliable audio performance across a wide range of indoor applications.
The speaker supports network audio transmission through a 100Mbps RJ45 Ethernet interface, including the professional AES67 audio-over-IP protocol, enabling integration into compatible network-based audio systems.
It also supports PoE power delivery, including Hi-PoE/PoE++ (IEEE 802.3bt), allowing audio data and electrical power to be delivered through the network infrastructure.
Its elegant frameless ceiling design, 110° coverage angle, and advanced digital audio processing make it suitable for hotels, offices, shopping centers, conference facilities, educational institutions, and commercial buildings.
Key Features
-
Professional Network PoE Ceiling Speaker
-
Modern Frameless Ceiling Design
-
Two-Way Audio System
-
6.5-inch Woofer for low and mid frequencies
-
1.2-inch Tweeter for high-frequency reproduction
-
Integrated Digital Crossover
-
Frequency response: 74Hz–20kHz (-10dB)
-
Sensitivity: 90dB @ 1W/1m
-
Maximum output sound pressure level: 106dB
-
Wide 110° sound coverage angle
-
Total Harmonic Distortion: Less than 0.5%
-
Supports PoE network power
-
Supports Hi-PoE / PoE++ IEEE 802.3bt
-
RJ45 100Mbps Ethernet interface
-
Supports AES67 Audio over IP
-
Advanced audio algorithms including Delay, Mixing, PEQ, and ALC
-
Supports Digital Crossover Processing
-
Supports network audio synchronization protocols
-
LED status indicators for operation and fault detection
-
Supports device reset
-
Metal construction
-

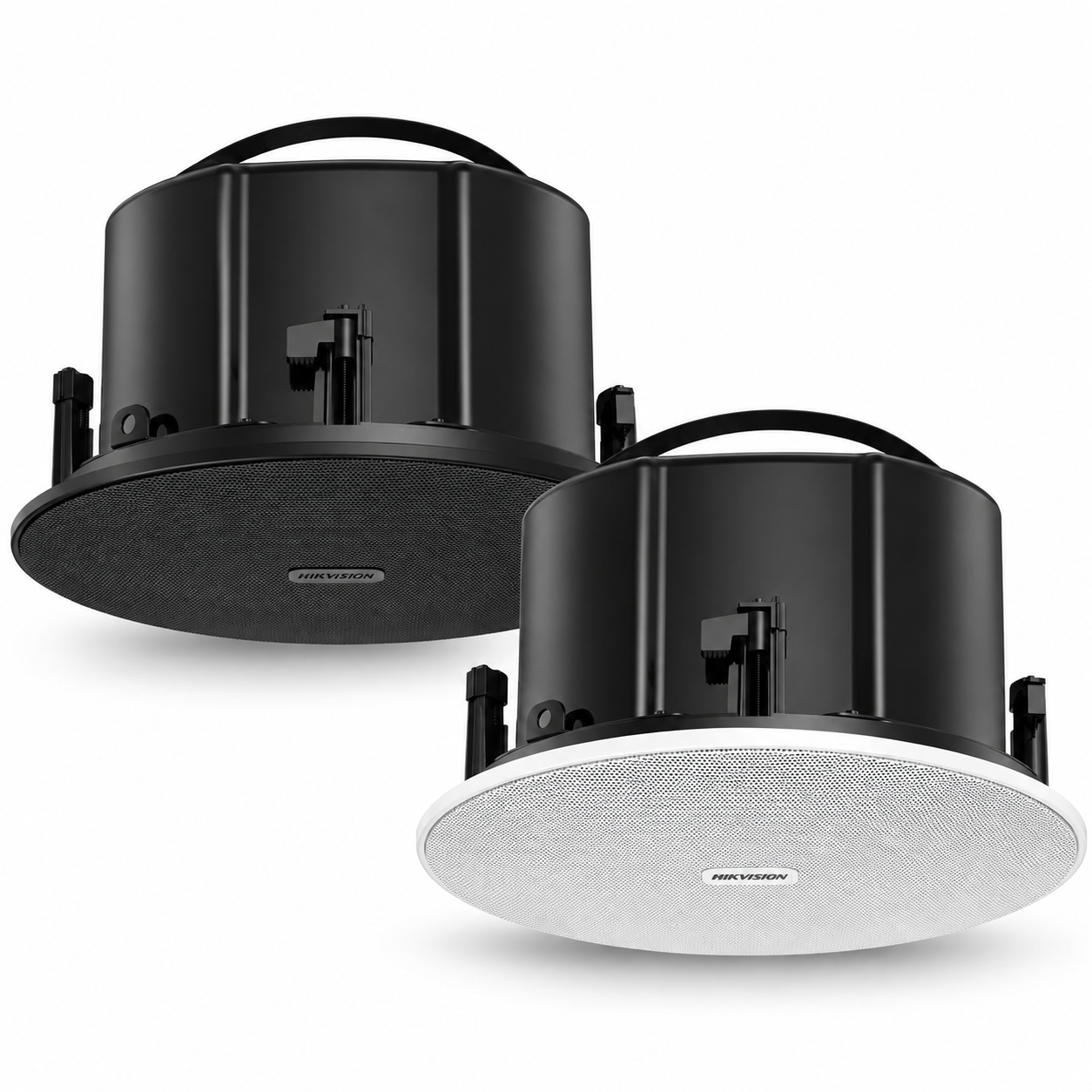

Available with white or black top cap
-
Designed for professional indoor ceiling installation
Technical Specifications
| Specification |
Details |
| Product Type |
Network PoE Frameless Ceiling Speaker |
| Speaker System |
Two-Way |
| Woofer |
6.5″ × 1 |
| Tweeter |
1.2″ × 1 |
| Speaker Impedance |
4Ω |
| Maximum Output Loudness |
106dB |
| Sensitivity |
90dB @ 1W/1m |
| Frequency Response (-10dB) |
74Hz–20kHz |
| Frequency Response (-3dB) |
100Hz–20kHz |
| Coverage Angle |
110° |
| Total Harmonic Distortion |
Less than 0.5% @ 1W/1kHz |
| Crossover Frequency |
3.3kHz |
| Crossover Type |
Digital Crossover |
| Audio Algorithms |
Delay / Mixing / PEQ / ALC / Digital Crossover |
| Audio Input |
Network Audio |
| Network Interface |
1 × RJ45 100Mbps Ethernet |
| Audio over IP Protocol |
AES67 |
| Network Protocols |
TCP/IP, ICMP, HTTP, HTTPS, DNS, RTP, RTSP, RTCP, NTP, QoS, UDP, SSL/TLS, IEEE1588 |
| API Protocol |
OTAP |
| Power Supply |
Hi-PoE / PoE++ IEEE 802.3bt, 60W |
| Status Indicators |
Power / Initialization / Operation / Identification / Fault |
| Reset Function |
Supported |
| Housing Material |
Metal |
| Dimensions |
Ø327.49 × 179.69mm |
| Mounting Hole Diameter |
Ø300mm |
| Mounting Depth |
174mm |
| Weight |
Approx. 4.4kg
|
| Package Dimensions |
425 × 425 × 310mm |
| Package Weight |
Approx. 7.4kg
|
| Operating Temperature |
-10°C to 50°C |
| Operating Humidity |
≤90%, Non-Condensing |
| Main Body Color |
Black |
| Top Cap Colors |
White / Black |
| Installation |
Ceiling Mounting |
| Model |
DS-QAPS6R6-6P |
Why Choose Hikvision DS-QAPS6R6-6P?
The DS-QAPS6R6-6P combines professional network audio technology with an elegant frameless ceiling design, making it ideal for commercial installations requiring high-quality sound and centralized audio distribution.
Its 6.5-inch woofer and 1.2-inch tweeter, together with Digital Crossover processing, deliver balanced sound reproduction for music and voice announcements.
With support for AES67 network audio, advanced digital audio processing, and PoE++ power delivery, the speaker offers a modern solution for scalable IP-based audio installations.
The wide 110° coverage angle and discreet ceiling-mounted appearance make it particularly suitable for offices, hotels, conference centers, shopping malls, and other professional indoor environments.
