Description

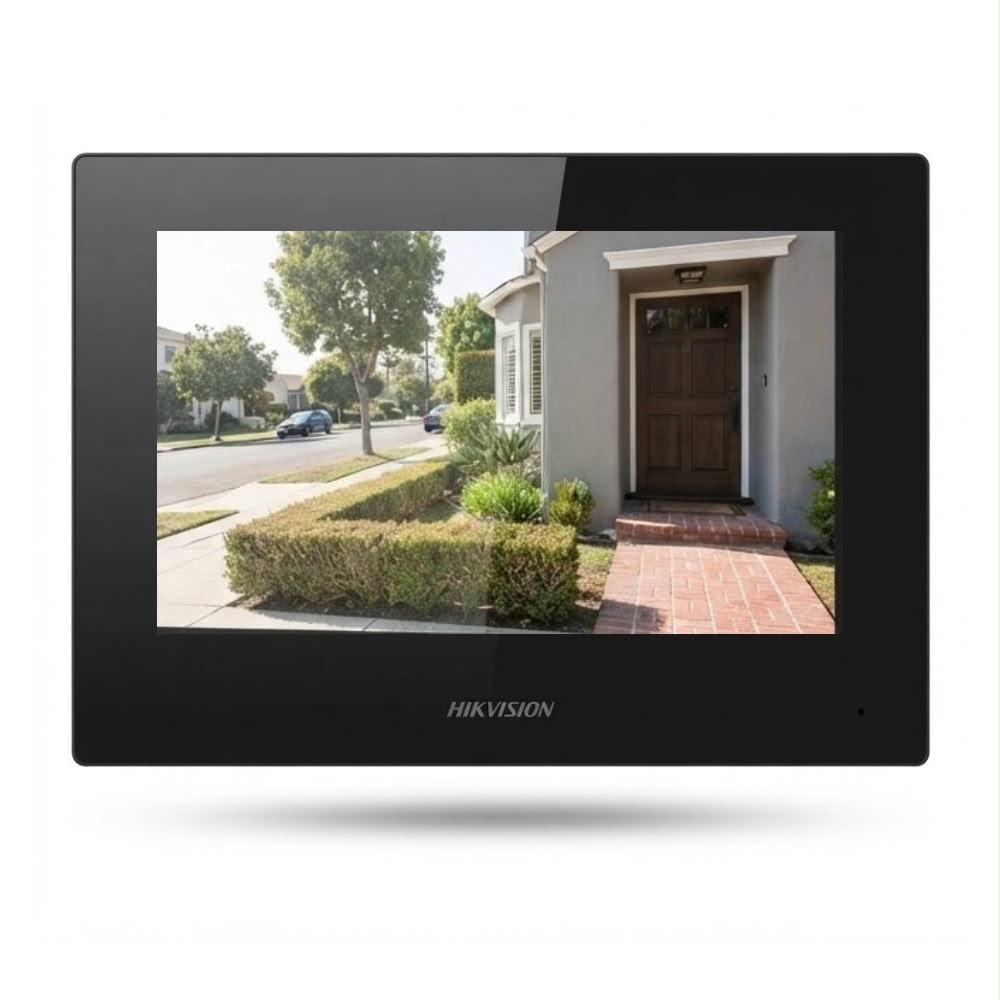

The Hikvision DS-KH6320-LE1(B) is a 7-inch IP video intercom indoor station with a colorful TFT capacitive touch screen (1024 × 600). It lets you answer door station calls and watch live video from the door station and cameras in public areas.
Designed for wired installations, it connects through a single 10/100 Mbps Ethernet cable and is powered by standard PoE (IEEE 802.3af) or 12 VDC. Plug & Play setup, H.265/H.264 video support and links to up to 17 door stations and 16 network cameras make it a simple, reliable choice for villas, apartments and offices.
Note: this is a wired IP video intercom unit (Ethernet only, no Wi-Fi). It works with Hikvision IP door stations on the same network (see "Works With" below).

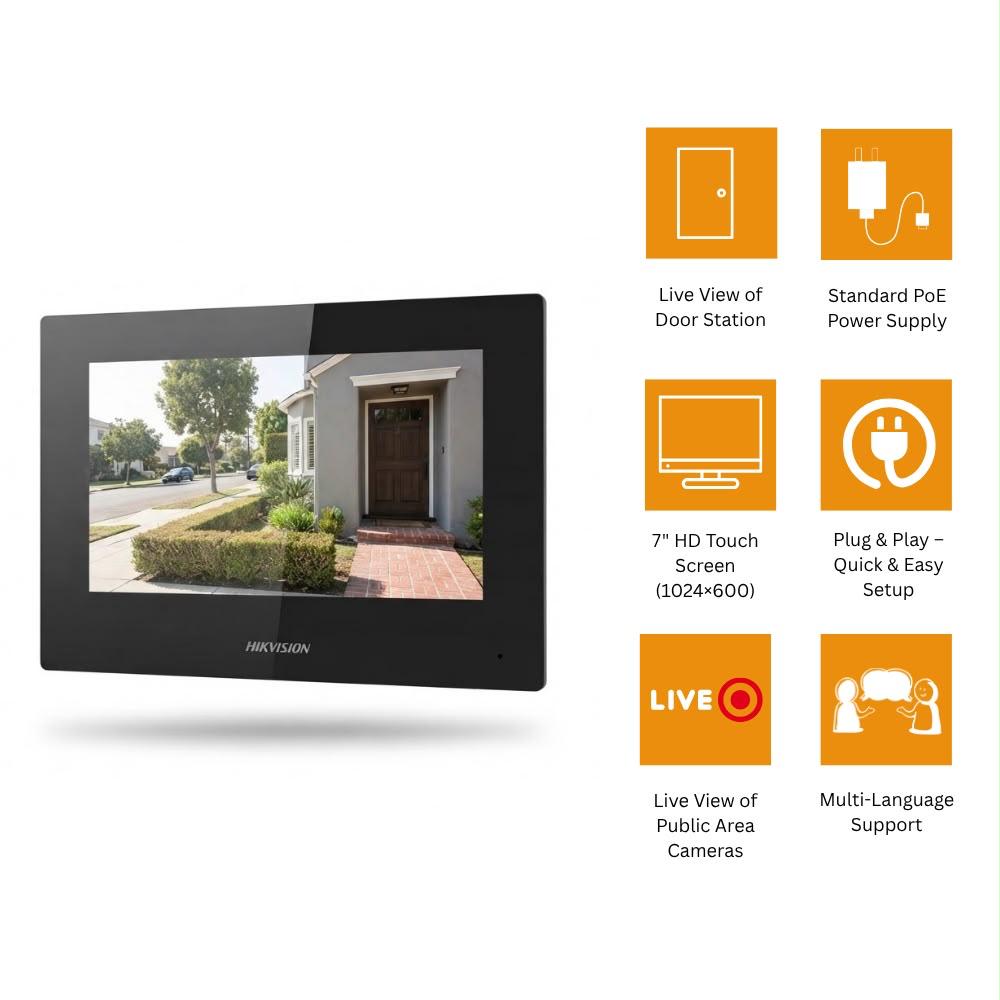

Key Features
- 7-inch colorful TFT capacitive touch screen, 1024 × 600 resolution
- Plug & Play setup
- Standard PoE (IEEE 802.3af) power: one cable for power and data; 12 VDC also supported

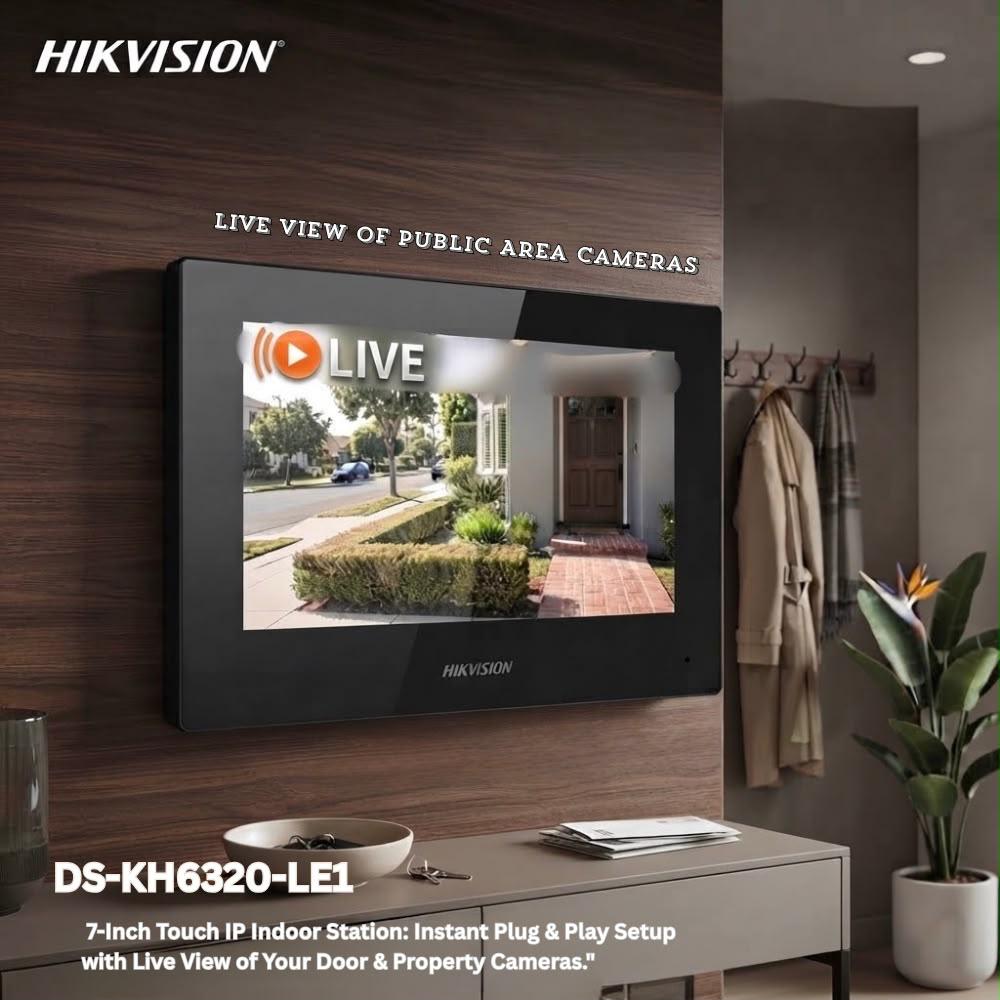

- Live view of the door station and cameras in public areas
- Links up to 17 door stations, 16 indoor extensions and 16 network cameras
- H.265 / H.264 video support
- Noise suppression and echo cancellation; adjustable volume
- 8 alarm inputs
- Surface or table mounting
- Multiple languages, including English and Arabic
Works With
Technical Specifications
| Specification |
Details |
| Model |
DS-KH6320-LE1(B) |
| Operating System |
Linux |
| ROM / RAM |
32 MB / 128 MB |
| Screen |
7-inch colorful TFT |
| Resolution |
1024 × 600 |
| Operation |
Capacitive touch screen |
| Video Compression |
H.265, H.264 |
| Audio |
Built-in omnidirectional microphone and loudspeaker; noise suppression and echo cancellation |
| Audio Compression |
G.711U, G.711A, Opus, AAC-LD, AAC-LC, G.726, G.722.1 |
| Linked Devices |
Up to 17 door stations, 16 indoor extensions, 16 network cameras |
| Network Protocol |
TCP/IP, RTSP |
| Network Interface |
1 × RJ-45, 10/100 Mbps self-adaptive (no Wi-Fi) |
| Alarm Input |
8 |
| Message Capacity |
200 alarm records |
| Power Supply |
12 VDC; IEEE 802.3af standard PoE |
| Power Consumption |
≤ 6 W |
| Installation |
Surface mounting, table mounting |
| Application Environment |
Indoor |
| Working Temperature |
-10 °C to 50 °C (14 °F to 122 °F) |
| Working Humidity |
10% to 90% (non-condensing) |
| Dimensions |
200 × 140 × 23.6 mm |
| Weight |
Net 325 g; gross 649 g |
| Languages |
36 languages, including English and Arabic |
Why Choose the Hikvision DS-KH6320-LE1(B)?
- Simple wired installation: one Ethernet cable carries power and data with standard PoE
- Plug & Play setup with a clear 7-inch touch screen
- Links up to 17 door stations and 16 cameras for larger homes and buildings
- Can be wall-mounted or placed on a table
Downloads
⬇ Download Datasheet (PDF)⬇ Download Quick Start Guide (PDF)
Warranty: 12-month warranty from the Official Distributor.
