Description The Hikvision DS-PM2-S(EU) 3G/4G Communication Module adds cellular communication to Hikvision AX Hybrid PRO control panels with 4G, 3G and 2G support: FDD-LTE B1/B3/B7/B8/B20, dual-band UMTS/HSDPA/HSPA+ B1/B8 and GSM/GPRS/EDGE 900/1800 MHz.
With a SIM card in its slot, the panel can report alarm events over the mobile network on a main or backup path and send SMS notifications. Support for three network generations gives more coverage options at the installation site.
Note: this is the EU-region version. Check that your mobile operator uses the listed bands; the DS-PM2-S(AU) version covers a different set of LTE bands.
Key Features
Adds 3G/4G cellular alarm communication to AX Hybrid PRO control panels
FDD-LTE: B1/B3/B7/B8/B20
Dual-band UMTS/HSDPA/HSPA+: B1/B8
GSM/GPRS/EDGE: 900/1800 MHz
1 SIM card slot
Enables SMS notifications from the panel
Works as a main or backup path in the panel's dual-path communication

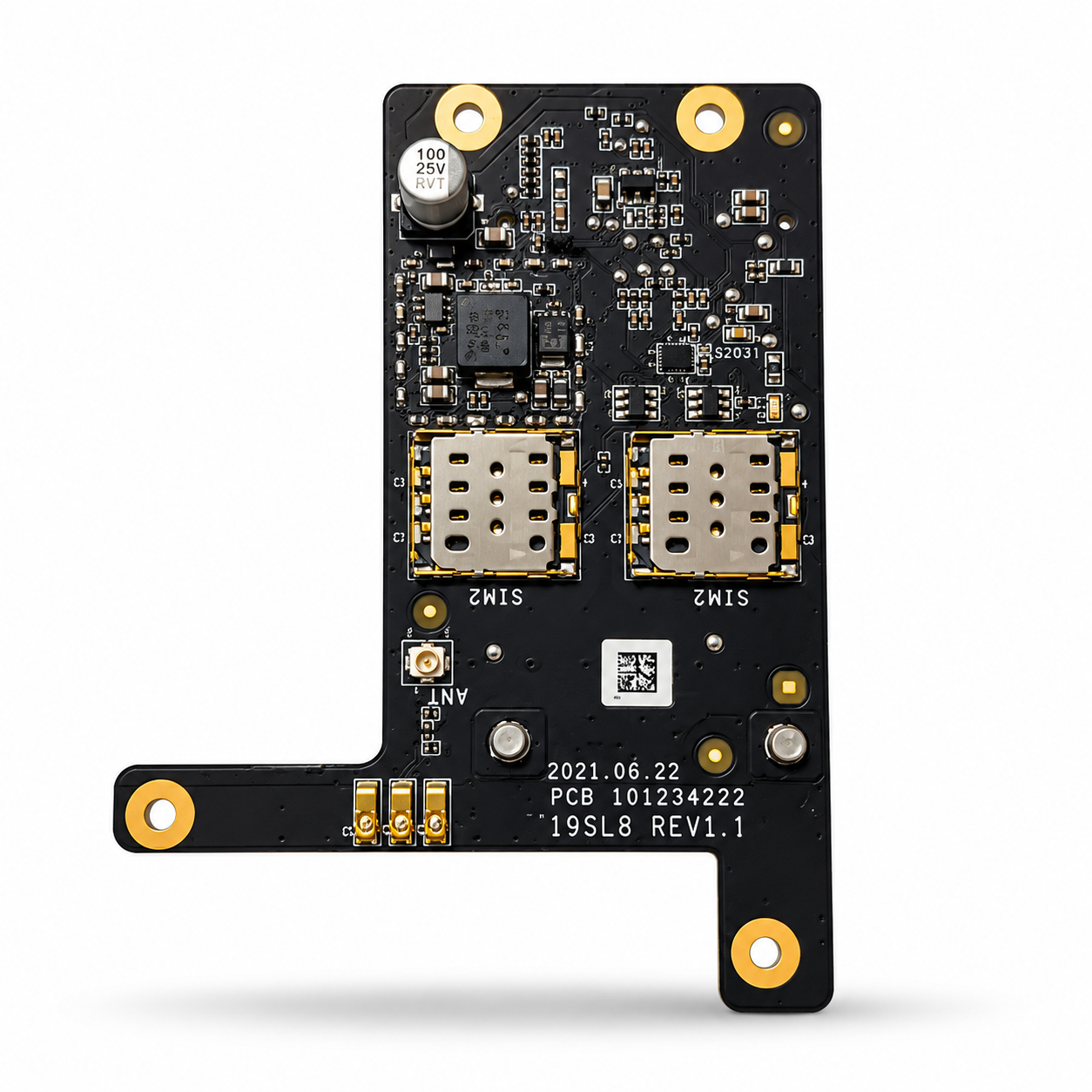

Compact 62.03 × 88.28 mm board, 28 g
Works With
Technical Specifications
Specification
Details
Model
DS-PM2-S(EU)
Product Name
3G/4G Communication Module (EU)
System
Hikvision AX Hybrid PRO
4G (FDD-LTE)
B1/B3/B7/B8/B20
3G (UMTS/HSDPA/HSPA+)
B1/B8 (dual-band)
2G (GSM/GPRS/EDGE)
900/1800 MHz
SIM Slot
1
SMS Notification
Supported (through the control panel)
Operating Temperature
-10 °C to +40 °C
Dimensions (W × H)
62.03 × 88.28 mm
Weight
28 g
Why Choose the Hikvision DS-PM2-S(EU)?
One module covering 4G, 3G and 2G networks
Reports alarms without depending on the site's wired network or phone line
Adds SMS notifications to the panel
Simple add-on for AX Hybrid PRO control panels
Downloads
⬇ Download Datasheet (PDF)
Warranty: 12-month warranty from the Official Distributor.
