Description

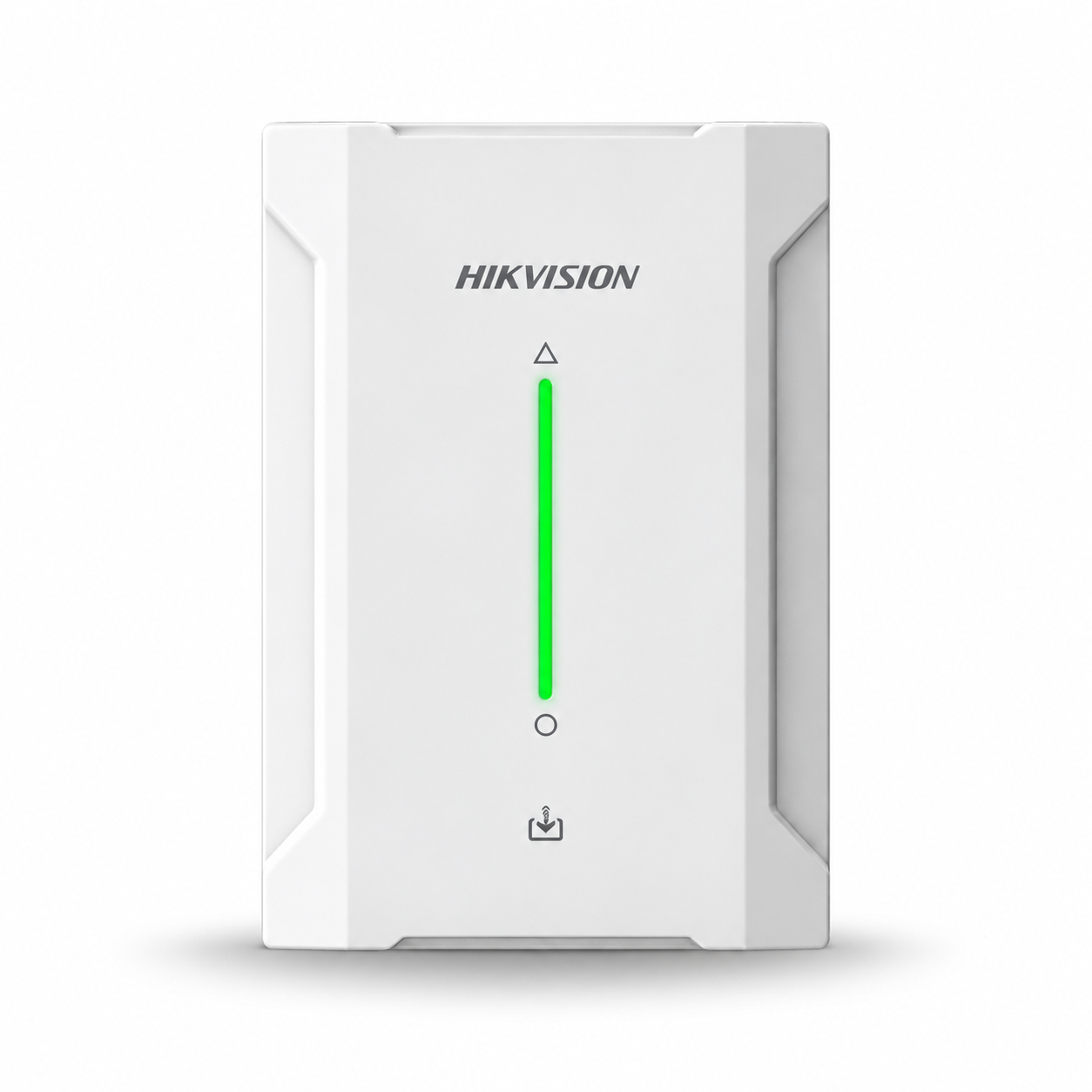

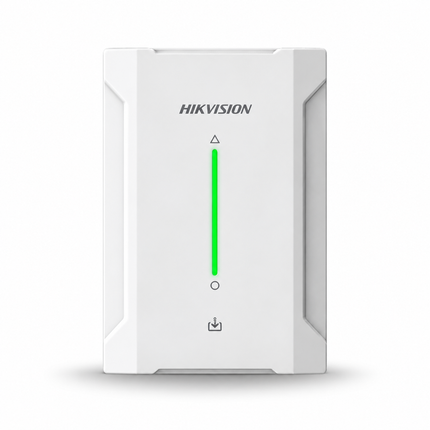

The Hikvision DS-PM1-O4H-H is a wired 4-way high-power relay expander designed for the Hikvision AX Hybrid PRO intrusion alarm system.
It provides 4 onboard power relay outputs, allowing the AX Hybrid PRO system to control higher-power electrical loads and external devices. Each relay can handle current of up to 16A, making this model suitable for applications that require significantly higher switching capacity than a standard low-current relay expander.
The module communicates with the AX Hybrid PRO control panel through Speed-X Bus and includes both an uplink and downlink Speed-X connection, allowing compatible expanders to be connected in cascade for larger installations.
Key Features
-
Wired power relay expander for Hikvision AX Hybrid PRO
- 4 onboard high-power relay outputs
-
Maximum current up to 16A per relay
- Suitable for controlling higher-power electrical loads
-
Relay terminals: NO / NC / COM
- 2 × Speed-X Bus
- Uplink Speed-X connection to the control panel
- Downlink Speed-X connection for additional expanders
-
Supports Cascade connection
-
Up to 15 relay expanders in cascade
- 1 × TTL serial port
- Front and rear tamper protection
- Power and fault LED indicators
-
Address configuration from 0–63
-
Compact wall-mounted design
Technical Specifications
| Specification |
Details |
| Product Type |
Wired High-Power Relay Expander |
| Compatible System |
Hikvision AX Hybrid PRO |
| Relay Outputs |
4 |
| Relay Type |
High-Power Relay |
| Maximum Current |
Up to 16A per Relay |
| Relay Contacts |
NO / NC / COM |
| Communication |
Speed-X Bus |
| Speed-X Ports |
2 |
| Uplink |
Speed-X to Control Panel |
| Downlink |
Speed-X for Next Expander |
| Cascade Support |
Yes |
| Maximum Cascade |
Up to 15 Relay Expanders |
| Serial Port |
1 × TTL |
| Address Range |
0–63 |
| Tamper Protection |
Front & Rear |
| Power Supply |
9–24V DC, 1A |
| Maximum Current |
210mA @ 12V DC |
| Quiescent Current |
65mA @ 12V DC |
| LED Indicators |
Power + Fault |
| Operating Temperature |
-10°C to 40°C |
| Operating Humidity |
10%–90% |
| Housing Material |
Plastic |
| Dimensions |
110 × 155 × 32.5 mm |
| Weight |
333.1 g |
| Model |
DS-PM1-O4H-H |
Why Choose Hikvision DS-PM1-O4H-H?
The DS-PM1-O4H-H is designed for AX Hybrid PRO installations that require the alarm system to control higher-power electrical devices.
With 4 independent power relays rated up to 16A each, it offers significantly greater switching capacity than the low-current DS-PM1-O4L-H. Speed-X connectivity and cascade support also make it suitable for larger residential and commercial automation and security installations.
