Description

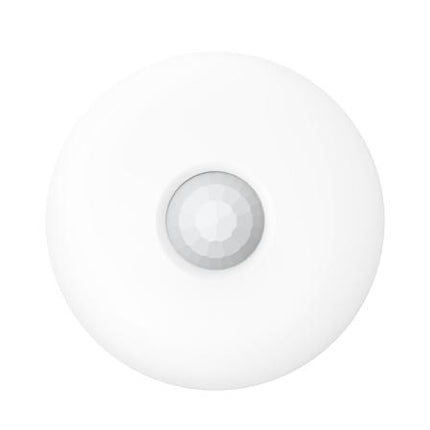

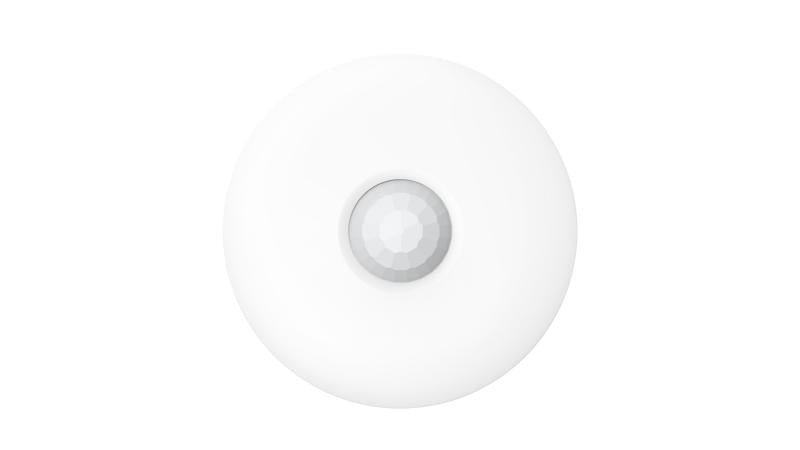

The Hikvision DS-PDCL12DT-EG2 is a professional wired dual-technology ceiling detector designed for reliable indoor intrusion detection.
It combines a digital quad-element Passive Infrared (PIR) sensor with 24 GHz microwave detection, requiring both technologies to verify movement for enhanced detection reliability and reduced false alarms.
Installed on the ceiling, the detector provides 360° coverage, a detection range of up to 12 meters, and 172 detection zones, making it suitable for offices, shops, commercial buildings, halls, and other indoor security applications.
Key Features
-
Wired Dual-Tech Ceiling Detector
-
Combines PIR + Microwave detection
-
Digital quad-element PIR sensor
-
24 GHz microwave technology
-
Detection range up to 12 m
-
Full 360° detection angle
-
172 detection zones
-
Detectable speed: 0.3–2 m/s
-
Automatic and Low sensitivity modes
-
Digital temperature compensation
-
Creep zone protection
-
Digital signal processing
-
Sealed optics
-
White light filter up to 6500 lux
-
Front tamper protection
-
On-board EOL resistor support
-
Wide 9–16 VDC power input
-
Ceiling mounting height from 2.4 to 4 m
-
Designed for indoor applications
Technical Specifications
| Specification |
Details |
| Product Type |
Wired Dual-Tech Ceiling Detector |
| Detection Technology |
Passive Infrared + Microwave |
| PIR Sensor |
Digital Quad Pyro Sensor |
| Microwave Frequency |
24 GHz (24.15–24.25 GHz) |
| Detection Range |
12 m |
| Detection Angle |
360° |
| Detection Zones |
172 |
| Detectable Speed |
0.3–2 m/s |
| Sensitivity |
Auto / Low |
| White Light Filter |
6500 lux |
| Digital Temperature Compensation |
Supported |
| Creep Zone Protection |
Supported |
| Digital Processing |
Supported |
| Sealed Optics |
Supported |
| Tamper Protection |
Front |
| LED Indicator |
Green: PIR / Red: Microwave / Blue: Alarm |
| Power Supply |
9–16 VDC |
| Typical Voltage |
12 VDC |
| Maximum Power Consumption |
100 mA |
| Mounting Height |
2.4–4 m |
| Mounting Method |
Ceiling |
| Application |
Indoor |
| Operating Temperature |
-10°C to 55°C |
| Operating Humidity |
10%–90% |
| Dimensions |
Ø120 × 33.2 mm |
| Weight |
138 g |
| Model |
DS-PDCL12DT-EG2 |
Why Choose Hikvision DS-PDCL12DT-EG2?
The DS-PDCL12DT-EG2 combines two detection technologies — PIR and 24 GHz microwave — to provide more reliable intrusion detection and help reduce false alarms compared with a conventional PIR-only detector.
Its ceiling-mounted design provides complete 360° coverage with 172 detection zones and a detection range of up to 12 meters, making it ideal for monitoring open indoor spaces from a central ceiling position.
With digital temperature compensation, automatic sensitivity adjustment, sealed optics, creep zone protection, and front tamper protection, it provides a reliable solution for professional wired alarm systems.
