Description

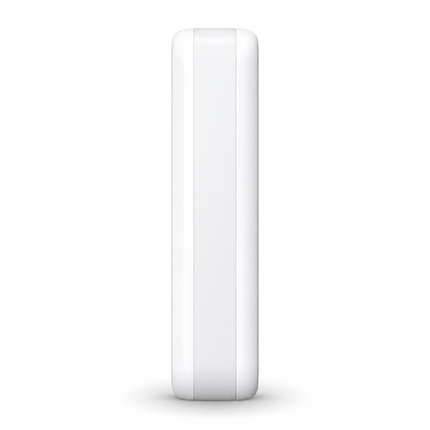

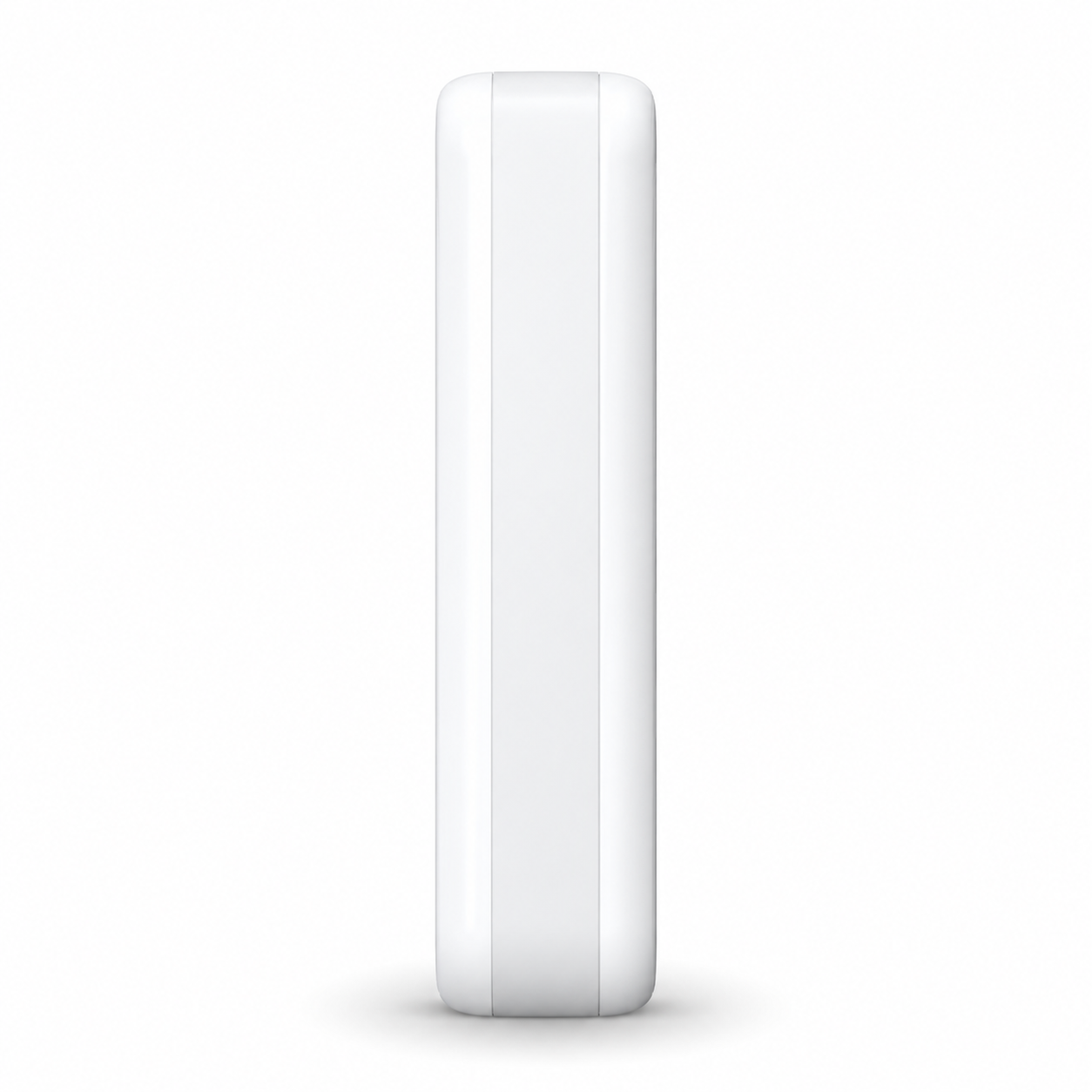

The Hikvision DS-PDC10DM-VG3 is a wired dual-technology curtain detector designed for accurate perimeter and narrow-area intrusion detection.
It combines Passive Infrared (PIR) and 24GHz microwave detection, helping improve detection reliability while reducing unwanted alarms. Its slim curtain-style detection pattern provides a narrow 5° detection angle, making it ideal for protecting windows, doors, corridors and other narrow areas.
The detector provides a range of up to 10 meters when wall mounted and 6 meters when ceiling mounted. It also features Active Anti-Masking, directional detection, digital temperature compensation, sealed optics, and front and rear tamper protection. With an IP65-rated enclosure, it is suitable for both indoor and outdoor installations.
Key Features
-
Wired Dual-Tech Curtain Detector
-
Dual detection technology: PIR + Microwave
- 24GHz microwave
-
Wall-mounted detection range up to 10 m
-
Ceiling-mounted detection range up to 6 m
-
Narrow 5° curtain detection angle
- 32 detection zones
-
Detectable speed: 0.2–3 m/s
- Automatic sensitivity
- Active Anti-Masking
- Directional Detection
- Digital temperature compensation
- Creep zone protection
- Digital signal processing
- Sealed optics
-
White light filter up to 6500 lux
- Front and rear tamper protection
- Normally Closed alarm output
-
IP65 weather protection
-
Suitable for indoor and outdoor installation
-
Slim design suitable for window-frame applications
Technical Specifications
| Specification |
Details |
| Product Type |
Wired Dual-Tech Curtain Detector |
| Detection Technology |
PIR + Microwave |
| Wall Mount Detection Range |
Up to 10 m |
| Ceiling Mount Detection Range |
Up to 6 m |
| Detection Angle |
5° |
| Detection Zones |
32 |
| Detectable Speed |
0.2–3 m/s |
| Sensitivity |
Auto |
| Microwave Frequency |
24GHz (24.15–24.25GHz) |
| White Light Filter |
6500 lux |
| Anti-Masking |
Supported |
| Directional Detection |
Supported |
| Digital Temperature Compensation |
Supported |
| Creep Zone Protection |
Supported |
| Digital Processing |
Supported |
| Sealed Optics |
Supported |
| Tamper Protection |
Front & Rear |
| Alarm Output |
Normally Closed |
| Transmission |
Wired |
| Power Supply |
9–16V DC |
| Typical Voltage |
12V DC |
| Maximum Current |
22mA |
| Protection Rating |
IP65 |
| Operating Temperature |
-25°C to 60°C |
| Operating Humidity |
10%–90% |
| Mounting Height |
2–4 m |
| Installation |
Wall / Ceiling |
| Dimensions |
29.2 × 134.4 × 39.5 mm |
| Weight |
79 g |
| Model |
DS-PDC10DM-VG3 |
Why Choose Hikvision DS-PDC10DM-VG3?
The DS-PDC10DM-VG3 is particularly useful when you need to protect a specific narrow area rather than an entire room. Its 5° curtain detection pattern makes it suitable for windows, doors, building openings and narrow passages.
By combining PIR and 24GHz microwave detection with Anti-Masking and directional detection, it provides a more advanced solution for perimeter protection. Its IP65 weather resistance also allows it to be installed outdoors where a standard indoor PIR detector would not be suitable.
