Description

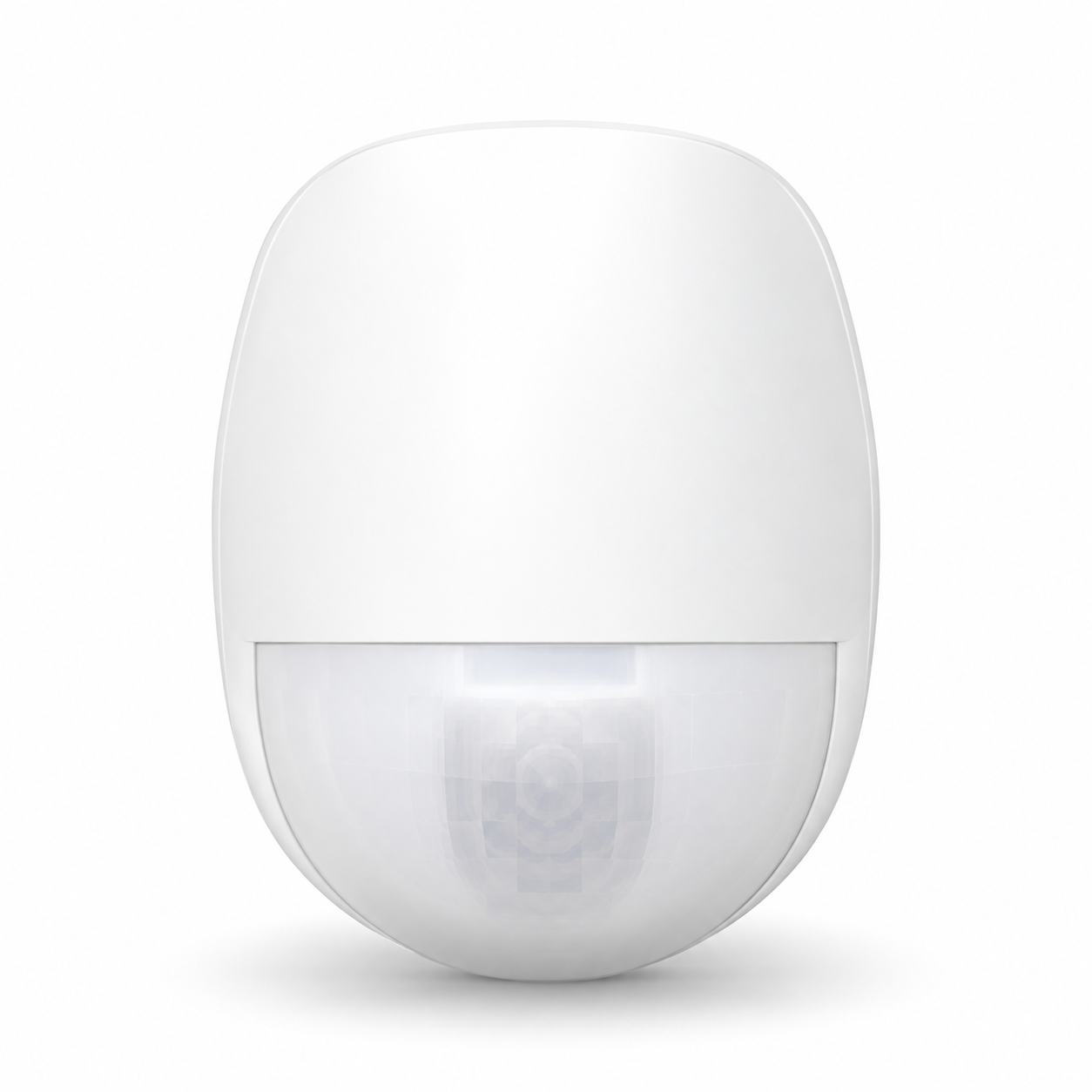

The Hikvision DS-PDC15-EG2(B) is a wired PIR curtain detector that covers up to 15 m with a narrow 6.3° detection angle and 18 detection zones. Its long, narrow coverage forms a detection curtain, so it can protect a corridor, a row of windows or a long wall without covering the whole room.
Digital processing with digital temperature compensation, creep zone protection, sealed optics that keep insects out and a 6500 lux white light filter help prevent false alarms. It works on 9–16 VDC (12 VDC typical) with polarity reverse connection protection, provides a normally closed (NC) alarm output with selectable EOL resistors, and mounts on a wall or ceiling at 2.4–3.6 m.
Note: it connects by cable to a wired zone of an alarm control panel or input expander and is powered at 9–16 VDC (see "Works With" below).
Key Features
- Up to 15 m detection range with a narrow 6.3° curtain angle
- 18 detection zones, detectable speed 0.3–2 m/s
- Digital processing with digital temperature compensation
- Creep zone protection and sealed optics that prevent insect interference
- 6500 lux white light filter against false alarms
- Normally closed (NC) alarm output with selectable EOL resistors for alarm and tamper wiring
- Front tamper protection and blue alarm LED
- 9–16 VDC wide voltage input with polarity reverse connection protection
- Wall or ceiling mounting at 2.4–3.6 m (wall and ceiling brackets sold separately)
- Global certifications available: EN Grade 2, CE, CB, IC, RCM
Works With
Technical Specifications
| Specification |
Details |
| Model |
DS-PDC15-EG2(B) |
| Detection Method |
Passive Infrared (PIR) |
| Detection Range |
15 m |
| Detection Angle |
6.3° |
| Detection Zones |
18 |
| Detectable Speed |
0.3–2 m/s |
| White Light Filter |
6500 lux |
| Digital Temperature Compensation |
Supported |
| Creep Zone Protection |
Supported |
| Sealed Optics |
Supported |
| Tamper Protection |
Front |
| Alarm Output |
Normally Closed (NC) |
| LED Indicator |
Blue (alarm) |
| Transmission |
Wired |
| Power Supply |
9–16 VDC (12 VDC typical) |
| Current Consumption |
11 mA max. |
| Mounting Height |
2.4–3.6 m |
| Mounting Method |
Wall / ceiling (brackets optional) |
| Application |
Indoor |
| Operating Temperature |
-10 °C to 55 °C |
| Operating Humidity |
10% to 90% |
| Dimensions (W × H × D) |
65.4 × 86.8 × 45.5 mm |
| Weight |
68 g |
Why Choose the Hikvision DS-PDC15-EG2(B)?
- Long, narrow coverage protects corridors, window rows and long walls without covering the whole room
- Digital temperature compensation and sealed optics keep detection reliable and false alarms low
- Wide 9–16 VDC input with reverse polarity protection makes wiring forgiving
- Selectable EOL resistors fit standard alarm panel zone wiring
Downloads
⬇ Download Datasheet (PDF)⬇ Download User Manual (PDF)
Warranty: 12-month warranty from the Official Distributor.
