Description

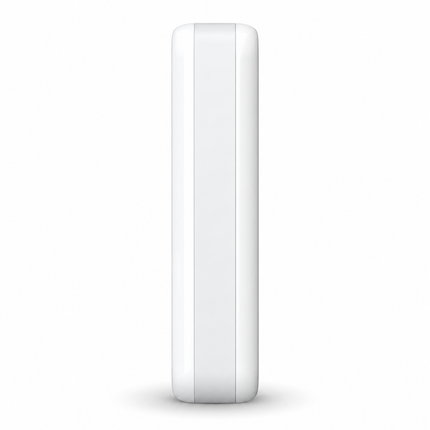

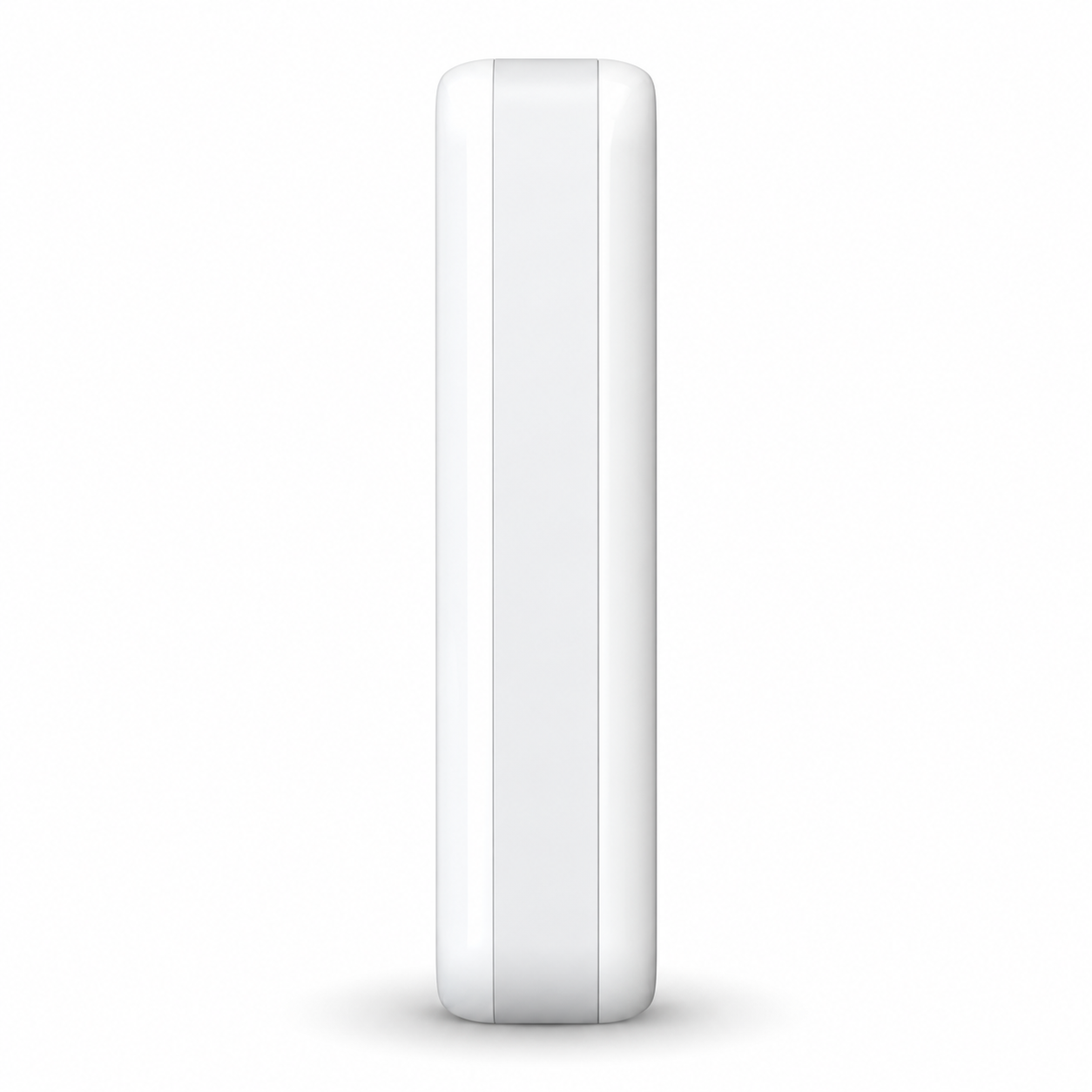

The Hikvision DS-PDC10AM-VG3 is a wired PIR curtain detector with active IR anti-masking and an IP65 weather-resistant housing for indoor and outdoor use. It detects up to 10 m when wall-mounted (6 m when ceiling-mounted) with a narrow 5° curtain and 32 detection zones, and its slim design suits installation on window frames.
Automatic sensitivity, directional detection, digital temperature compensation, creep zone protection, sealed optics and a 6500 lux white light filter keep detection reliable. It works on 9–16 VDC, provides a normally closed (NC) alarm output with selectable EOL resistors and front and rear tamper protection, and comes with an L-shaped adapter for wall or ceiling mounting at 2–4 m.
Note: it connects by cable to a wired zone of an alarm control panel or input expander and is powered at 9–16 VDC (see "Works With" below).
Key Features
- Slim design for window frame installation
- IP65 weather resistance for outdoor application
- Active IR anti-masking with green and orange masking LEDs
- Detection range: 10 m wall-mounted, 6 m ceiling-mounted; 5° angle, 32 zones
- Automatic sensitivity and directional detection support
- Digital temperature compensation, creep zone protection and sealed optics
- Selectable EOL resistors for alarm and tamper-proof wiring
- Front and rear tamper protection
- Wide operating temperature: -25 °C to 60 °C
- L-shaped adapter included for wall or ceiling mounting
Works With
Technical Specifications
| Specification |
Details |
| Model |
DS-PDC10AM-VG3 |
| Detection Method |
Passive Infrared (PIR) |
| Detection Range |
Wall mount: 10 m; ceiling mount: 6 m |
| Detection Angle |
5° |
| Detection Zones |
32 |
| Detectable Speed |
0.2–3 m/s |
| Sensitivity |
Auto |
| Anti-Masking |
Supported (active IR) |
| White Light Filter |
6500 lux |
| Digital Temperature Compensation |
Supported |
| Creep Zone Protection / Sealed Optics |
Supported |
| Directional Detection |
Supported |
| Tamper Protection |
Front and rear |
| Alarm Output |
Normally Closed (NC) |
| LED Indicator |
Blue (alarm), green + orange (mask) |
| Power Supply |
9–16 VDC (12 VDC typical) |
| Current Consumption |
22 mA max., 9 mA quiescent @ 12 VDC |
| Ingress Protection |
IP65 |
| Mounting Height |
2–4 m |
| Mounting Method |
Wall / ceiling (L-shaped adapter included) |
| Application |
Indoor and outdoor |
| Operating Temperature |
-25 °C to 60 °C |
| Operating Humidity |
10% to 90% |
| Dimensions (W × H × D) |
29.2 × 134.4 × 39.5 mm |
| Weight |
77.5 g |
Why Choose the Hikvision DS-PDC10AM-VG3?
- Anti-masking reports attempts to cover or block the detector
- IP65 housing allows outdoor installation as well as indoor use
- Slim profile fits window frames and narrow openings
- Selectable EOL resistors and front and rear tamper protection for professional wired installations
Warranty: 12-month warranty from the Official Distributor.
