Description
The IMOU NVR-N110 & NVR-N118 are powerful and easy-to-use network video recorders designed to deliver stable, high-quality surveillance management for homes and businesses. With automatic IMOU camera pairing, built-in microphone and speaker for two-way audio, and support for 4K UHD output, these NVRs provide a seamless and professional monitoring experience.
Supporting IMOU App remote access, large-capacity storage up to 16TB, and ONVIF compatibility, the N110 and N118 ensure flexible deployment, secure recording, and convenient management—anytime, anywhere .

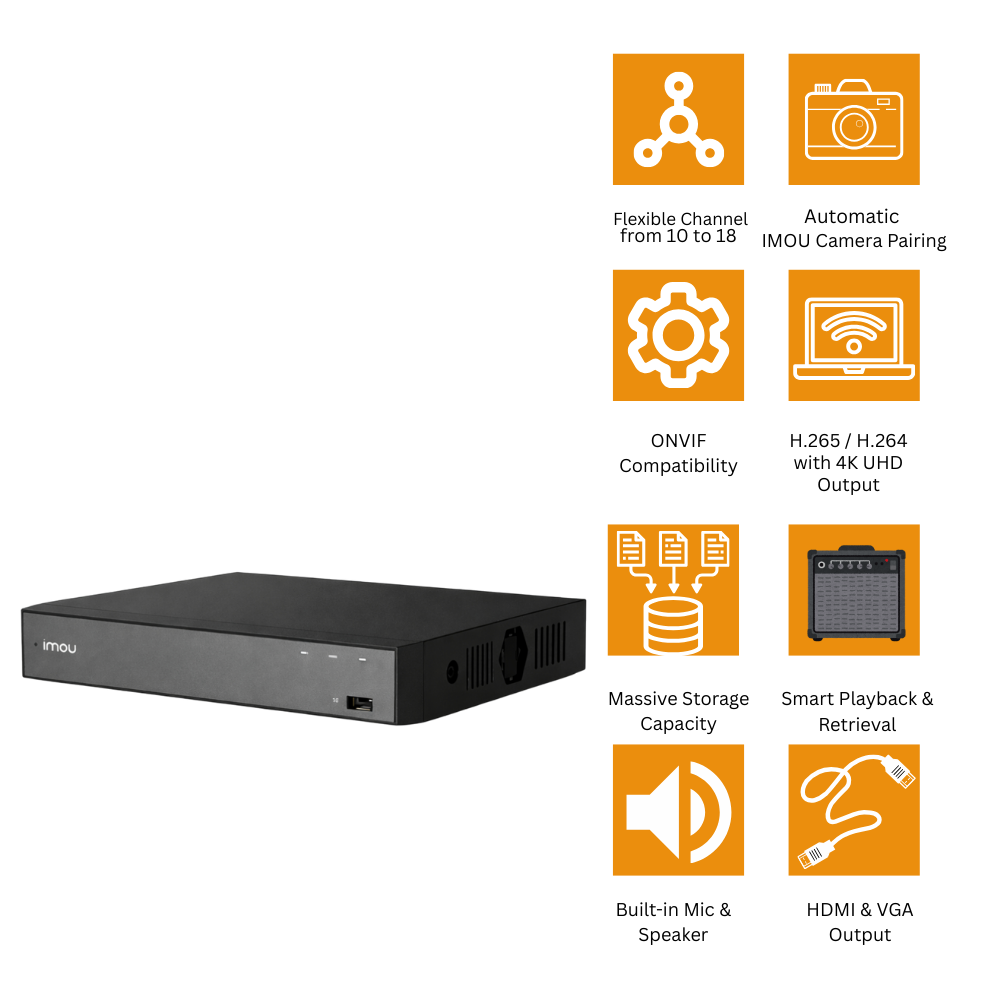

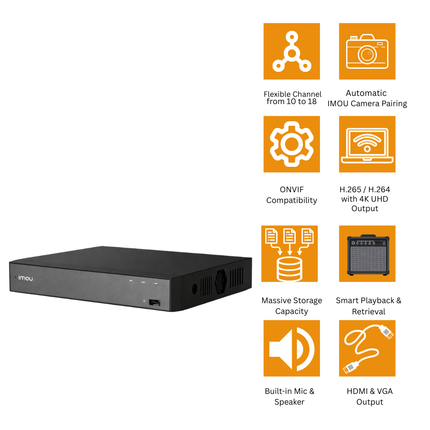

Key Features
• Flexible Channel Options
• Automatic IMOU Camera Pairing
Effortlessly connects IMOU cameras to the NVR, reducing setup time and simplifying installation .
• H.265 / H.264 with 4K UHD Output
Efficient video compression with support for up to 4K resolution, delivering clear images while saving storage space.
• Built-in Mic & Speaker
Enables two-way audio communication without the need for external audio devices.
• IMOU App Remote Access
View live video, playback recordings, and manage settings anytime through the IMOU App (iOS & Android).
• Massive Storage Capacity
Supports 1 SATA HDD up to 16TB, ideal for long-term video retention.
• HDMI & VGA Output
Compatible with most displays, offering flexible monitor connections .
• ONVIF Compatibility
Works with third-party cameras and devices for broader system integration.
• Smart Playback & Retrieval
Supports 4-channel playback, multiple playback speeds (2× / 4× / 8× / 16×), and intelligent video search.
Technical Specification
| Category |
NVR-N110-8A0E |
NVR-N118-8A0E |
| Access Channels |
10 Channels |
18 Channels |
| Video Compression |
H.265 / H.264 |
H.265 / H.264 |
| Max Output Resolution |
4K UHD |
4K UHD |
| Playback Decoding |
4-ch 8MP@15fps / 4-ch 5MP@30fps |
4-ch 8MP@15fps / 4-ch 5MP@30fps |
| Live Display |
1 / 4 / 8 / 9 / 10 |
1 / 4 / 8 / 9 / 10 / 16 / 18 |
| Audio |
Built-in Mic & Speaker |
Built-in Mic & Speaker |
| Audio Compression |
AAC |
AAC |
| Network Interface |
1 × RJ-45 (10/100 Mbps) |
1 × RJ-45 (10/100 Mbps) |
| Network Bandwidth |
90 Mbps |
90 Mbps |
| Video Output |
1 × HDMI, 1 × VGA |
1 × HDMI, 1 × VGA |
| USB Ports |
2 × USB |
2 × USB |
| Storage |
1 SATA HDD, up to 16TB |
1 SATA HDD, up to 16TB |
| Backup Method |
USB Flash Drive |
USB Flash Drive |
| Smart Detection |
Motion / Person / Vehicle |
Motion / Person / Vehicle |
| Remote Upgrade |
Supported |
Supported |
| Power Supply |
DC 12V 2A |
DC 12V 2A |
| Power Consumption |
<9W Avg / <19W Peak |
<9W Avg / <19W Peak |
| Operating Temperature |
–10°C to +45°C |
–10°C to +45°C |
| Humidity |
<95% RH |
<95% RH |
| Dimensions |
227.5 × 260 × 45 mm |
227.5 × 260 × 45 mm |
| Weight (Without HDD) |
850g |
850g |
| Certification |
CE |
CE |
Why You Need IMOU NVR-N110 / NVR-N118?
-
Easy system expansion with 10 or 18 channel options
-
Fast installation thanks to automatic IMOU camera pairing
-
Clear and smooth video with 4K UHD output
-
Two-way audio built in, no extra accessories required
-
Large storage supports up to 16TB for long recording cycles
-
Remote access anytime through the IMOU App
-
ONVIF compatibility for flexible camera integration
-
Ideal for homes, shops, offices, and small businesses seeking reliable and scalable video surveillance
