Description
The IMOU Ranger 2 Dual 6MP (IPC-S20EP-6M0S) is a dual-lens Wi-Fi indoor camera that gives you two images in one camera: a pan & tilt lens (355° pan, -5° to 80° tilt) plus a fixed lens that can be turned by hand (0–355° pan, 0–15° tilt). Each lens records 3MP (2304 × 1296) video, for 3MP + 3MP (6MP) in total.
Smart full-colour night vision with four modes (up to 15 m) switches from infrared to colour automatically, and human and pet detection plus an abnormal sound alarm send alerts straight to your phone. Smart tracking follows moving objects, auto-cruise surveys the room 360° or between your favourite points, and the light alarm helps keep unwelcome visitors away. The one-touch call button lets your family call you in the app, privacy mode hides the lens when you are home, and dual-band Wi-Fi 6 (2.4/5 GHz) keeps the connection stable. Recordings go to microSD cards up to 512GB or to cloud storage.

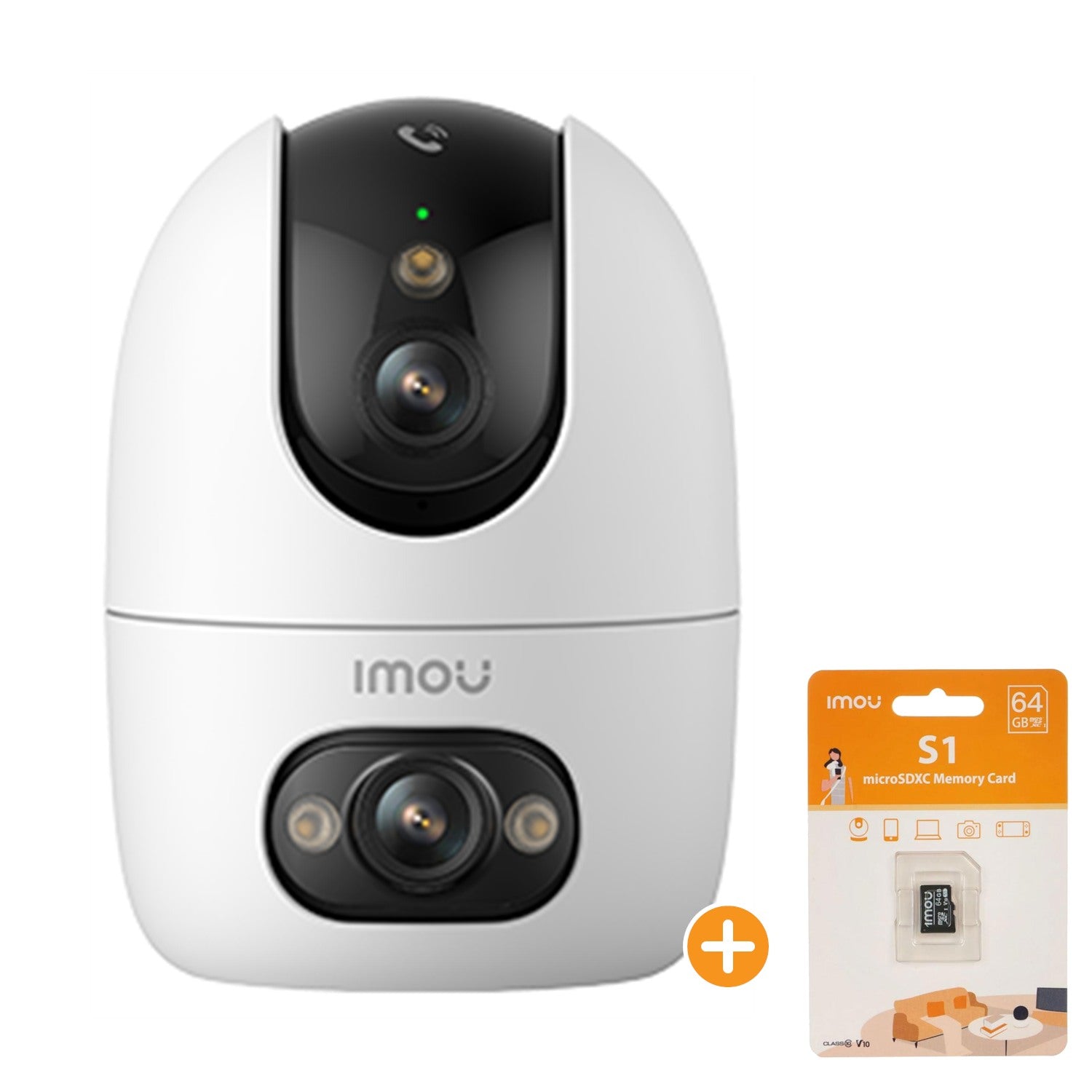

Available options: camera only, or camera with a 64GB microSD card (+15 JOD) or a 128GB microSD card (+25 JOD).
Key Features
- Dual lens: 3MP pan & tilt lens plus 3MP manually adjustable fixed lens, two images in one camera
- 3MP + 3MP (2304 × 1296 per lens) with 8× digital zoom
- PT lens: 355° pan and -5° to 80° tilt; fixed lens: 0–355° pan and 0–15° tilt by hand
- Smart full-colour night vision, 4 modes, up to 15 m
- Human, pet and motion detection with abnormal sound alarm
- Smart tracking and auto-cruise between favourite points
- Abnormal sound alarm with app alerts
- One-touch call button and two-way audio
- Privacy mode that hides the lens
- Dual-band Wi-Fi 6 (2.4/5 GHz), Ethernet port, microSD up to 512GB or cloud storage
Works With
Technical Specifications
| Specification |
Details |
| Model |
IPC-S20EP-6M0S |
| Product Name |
IMOU Ranger 2 Dual 6MP |
| Image Sensor |
1/3" progressive CMOS (per lens) |
| Resolution |
3MP + 3MP (2304 × 1296 per lens) |
| Lens |
3.6 mm fixed focal length (each lens) |
| Field of View |
91° (H), 47° (V), 107° (D) |
| Pan / Tilt |
PT lens: 355° pan, -5° to 80° tilt; fixed lens: 0–355° pan, 0–15° tilt (manual) |
| Night Vision |
Smart full-colour night vision (4 modes), up to 15 m (49 ft) |
| Frame Rate |
Up to 15 fps |
| Digital Zoom |
8× |
| Video Compression |
H.265 / H.264 |
| Audio |
Two-way audio, built-in mic & speaker |
| Smart Detection |
Human, pet and motion detection, abnormal sound alarm, configurable region, one-touch call notification |
| Wi-Fi |
Wi-Fi 6 (IEEE 802.11b/g/n/ax), dual-band 2.4/5 GHz, up to 50 m in open field |
| Network |
Ethernet port, ONVIF |
| Storage |
microSD card slot (up to 512GB), cloud storage |
| App |
Imou Life (iOS, Android) |
| Power Supply |
DC 5V 1.5A (USB-C) |
| Power Consumption |
< 7.5 W |
| Operating Environment |
-10°C to +45°C, < 95% RH |
| Dimensions |
77.4 × 77.4 × 106.8 mm |
| Net Weight |
200 g |
| Certification |
CE |
What's in the Box
- 1 × Camera
- 1 × Quick start guide
- 1 × Power adapter
- 1 × Power cable
- 1 × Screw package
- 1 × Mounting plate
- 1 × Installation position map
Why Choose the IMOU Ranger 2 Dual 6MP?
- Two lenses show two areas of the room in one camera
- Smart full-colour night vision for clear images in the dark
- Person, pet and sound alerts sent straight to your phone
- One-touch calling for safety and family communication
Downloads
⬇ Download Datasheet (PDF)
Warranty: 12-month warranty from the Official Distributor.
